Laser Receiver Dealers

• Condition: New
• Country of Origin: India
• Brand Name: Topcon

Laser Sensor / Laser Receiver

Used with the control unit ct-02 the machine's hyraulics can manually raise, lower and seek the 'on grade' position for the blade. features 8 levels photocells for a better accuracy.three "on grade" acuuracies.constant reception accuracy regardless of operating distance, spot size and rotating laser type.special software program for constant receive under excavating condition with vibrations.laser beam rotating speed recognitioncan bus type communication with control unit le-ctultra bright indication with led's easy to view even in brightest sunlight.double stable bracket mountingwaterproof and shock resistant.   Detection Range                          360 degree Detecting Window                       220mm Accuracies “On grade”             +-  4, 8,12 mm Operating Range*                     900 m (Diameters) Operating Voltage                       10-30 v DC Operating Temperature                -15 dig To +60 dig C Body                                             Shock resistant,                                                       Aluminum Housing Weight                                         2.25kgs Clamp capacity                            25 to 50mm *8 levels photocells for better accuracy *Special software programmed for constant receives under   excavating condition with vibrations. *CAN bus type communication with control unit *Ultra bright indication with LED’s easy to view even in brightest sunlight. *Waterproof and shock resistant   *Quick installation and easy mounting.

Blade Contol Laser Receiver is a part of Electronic System in Laser Land Leveler. It is mounted on a 45mm Chrome Rod on the Mast of Scraper. Its working is to receive the laser emitted by the Laser Transmitter and further pass on the signal of the position of Scraper to the Digital Control Panel.   Technical Specifications Beam Reception Range - 360° Operating Range - 450 Meter radius Vertical Reception Range - 190 mm Display - LED (High Bright) Power - 12/24 VDC, (Through Cable) Mounting Pipe Clamp - Suitable for 40 to 50 mm

MATHARU LR 250 laser receiver is a rugged, multipurpose and easy to use apparatus. Four sets of photocell sensors are provided spaced at 90° to allow 360° reception. It detects laser light generated by almost all rotary laser transmitter even if the laser is visible or invisible. This receiver is designed specially to control leveller blade.It communicate the position of laser beam to hydraulic valve through Control box CB 104. It has 2 types of dead band setting to meet job site requirement.

• Type: Card
• Shape: Rectangular
• Available Choice: NOVA
• Feature: Durable
• Quality: Good

We offer our valued customers Receiving Card that needs to receive the signal from sending card to the LED display. It is offered at easy on pocket rates. We as an Importer and Supplier of Receiving Card put quality on the top of our priority list. We ensure to align our quality to the industrial quality standards.

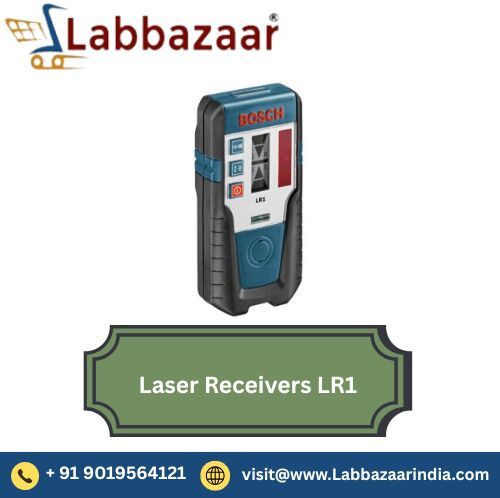

• Range of: 5 – 50 m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used)
• Power supply: 2 x 1.5 V LR6 (AA)
• Dust and splash protection: IP 54
• Weight, approx.: 150 g
• Tool dimensions (width): 28 mm
• Tool dimensions (length): 73 mm
• Tool dimensions (height): 137 mm
• Measuring accuracy (fine/rough): ± 1 mm/± 3 mm
• Type of receiver: Combi- and line lasers

• Weight (Kgs): 120 g
• Warranty: 6 Months
• Power Supply: 2 x 1.5 V LR03 (AAA)
• Dust And Splash Protection: IP 54
• Measuring Accuracy (Fine/Rough): ± 1 mm/± 3 mm
• Measuring Accuracy, Rough: ± 3 mm
• Measuring Accuracy, Fine: ± 1 mm
• Tool Dimensions (Height/Length/Width): 28 mm, 123 mm, 69 mm
• Range Of: 5 – 50 m
• Standard Accessories: 2 x 1.5 V LR03 battery (AAA)

• Model Number: YLR- 240
• Brand Name: YOGASA- 3L
• Place of Origin: DELHI

Laser receiver Laser Beam Acceptance : 360° Detection Window : 240 mm (9.5’’) Operating Temperature : -40°-71°C (-40° to +160°F) Storage Temperature : -55°- 85°C (-67° to +185°F) Electric Input : 10 to 30 V DC Drag Scrapper

1) Single card outputs 16-group of RGBR 'data;2) Single card outputs 24-group of RGB data;3) Single card outputs 20-group of RGB data;4) Single card outputs 64-group of serial data;5) Single card supported resolution 256x226;6) Configuration file read back;7) Temperature monitoring;8) Ethernet cable communication status detection;9) Power supply voltage detection;10) High gray-scale, high-refresh rate, and high and low brightness mode refresh;11) Pixel-by-pixel brightness and chromaticity calibration and brightness and chromaticity calibration coefficients for each LED;12) Comply with EU RoHs standard;13) Comply with EU CE-EMC standard.

We are offering laser mini receiver. Mini detector detection: 170 degree auto shut off : 30 minuteshorizontal and vertical bubble to maintain field survey accuracy.brighten button to glow the lcd for better observation visibility. Specifications detection range300 mtfinefine ±1/32''(±1mm) coarseaccuracy±1/16''(±2mm)battery1x9 v(120 hours)size (mm)160 x 85 x 28mmkit weight (kg)(0.45kg)water resistanceip66operating temperature-20 to 55oc

• Laser Transmitter Speed: 270 to 1320 RPM
• Laser Beam Accep.Angle: 360°
• Detection Window: 231mm (9.1”)
• Electric Input: 10 to 30 V DC

Offered by us is a quality-approved range of Laser Plane Receivers LR-410. These are automated machine control systems that ensure productivity and accuracy in the agricultural drainage. These receivers also help in leveling equipment by up to 50% owing to their durable performance. We fabricate these systems using latest technologies as per international quality standards.

Laser Tech Receiver, Laser Tech control Box

blade control laser receiver, connecter attached cable

Laser Receiver, Rotavator, Rolling Shutter, seed cum fertilizer

Laser Receiver, Control Box, Transmitter, Scraper

Laser Receiver, Laser Land Leveller, Laser Guided Land Leveler

Laser Receiver, Laser Land Leveler

Laser Receivers, Laser Rangefinders, Miter Saw 255, Rotary Hammer N Drill
