Line Boring Machine Dealers

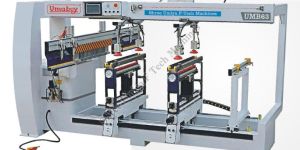

In order to keep pace with never ending demands of the customers, our company is instrumental in offering Two Line Multi Boring Machine.   Features Easy to operate Strong construction Fine finish

We Offer Horizontal Line boring machine with maximum spindle travel ensure fast and easy setting and operation. Infinitely variable Speed and feed gives an excellent finish in bores.

We Specialized in developing high quality products as per clients need we, HPSM’ is a renowned manufacturer, supplier and exporter of boring machines. Boring machines are used to mill, drill, bore, cut threads or face turn using a rotating tool, usually a cutter, drill, boring rod or milling head. We use latest technology and the most modern manufacturing facilities to make All Geared Head Line Boring Machine. Our main focus is to offer customized solutions and specifications with quality. Infinitely variable spindle speed and feed to achieves good surface finish of the bore Compact centering device for accurate bore centering Tool setting micrometer with magnetic base for fast and accurate tool setting Special alloy bearing bush for boring bar to ensure long life of the boring bar

• Condition: New
• Automatic Grade: Automatic
• Application: Boring
• Feature: Easy To Operate

The line boring machine developed by Eurotech Systems is capable of achieving high degree of accuracy and at the same time it is easy to use over a wide range.

• Shipping Volume (m3): 6.0
• Overall Dimensions (m): 4.0 x 1.5 x 1.0
• Drive Motor: 1.5 HP

Permanent Parallels, Parallels 130 mm high, Parallels 160 mm high, Parallels 200 mm high, Bearings for boring bars (4 pcs.), Tapered centering cones (4 pcs.), Boring bars (1.25" x 5’ 5" and 2" x 6’ 5"), Cutter heads for 1.25" and 2" boring bars, Extra support for boring bars, Boring bar rest, Micrometers (2" to 4.5" and 1.25" to 3.25"), Tool-Setting device for cutter heads, Centering device with Dial Indicator (2 nos.), Boring Facing and Chamfering Tools (26 pcs.), Clamps Bolts and Operating Tools, Machine Lamp, Electric Motor and Starter.

• Type: Line Boring Machine
• Application: Boring
• Weight: 100-500kg
• Voltage: 110v
• Automatic Grade: Automatic
• Power: 1-3kw
• Feature: Easy To Operate, Long Life, Low Maintainance

The simplistic design of this Hydraulic Press Machine is acclaimed by all of our clients. Used for carrying out accurate pressing operation, this Hydraulic Press Machine is manufactured in confirmation to the set industrial standards. Further, this Hydraulic Press Machine is used in aviation, automobile, aerospace, track vehicle, etc.

EXTRA EQUIPMENT : Boring Bars with appropriate bearings, cones, extra supports and cutters 22 x 1300 mm and 60 x 2500 & 3000 mm Into-Bore Gauge (for measuring without removing boring bar) 35-105 mm and 100-210 mm Tool Grinder Extra Cutter Heads for 30 mm & 48 mm Boring Bars Extension for Boring Bar 260 mm Small Busing for extra support (specify diameter of boring bar) Boring Bar Sag Checking Attachment Bpring Bar Hand Feed Remote Control

• Max. Length of engine block: 1550 mm (61”)
• Packing case outer size: 3835x1065x1680mm (151x41.9”x66.4”)
• Setting up parallel-200 mm: 01 set
• Setting up parallel 160 mm: 01 set
• Setting up parallel-130 mm: 01 set
• Block tightening device assembly: 04 nos
• T-bolt with nut & washer: 16 nos
• Boring bar 30 x 1600 mm: 01 no
• Boring bar 48 x 1900 mm: 01 no
• Boring bar 60 x 3000 mm: 01 no
• Bearing bush for boring bar 30 mm: 02 nos
• Bearing bush for boring bar 48 mm: 02 nos
• Bearing bush for boring bar 60 mm:
• Centering cone 30 mm: 01 nos
• Centering cone 48 mm: 01 nos
• Centering cone 60 mm: 01 no
• Cutter head 98 mm: 01 nos
• Cutter head 120 mm: 01 nos
• Cutter head 170 mm: 01 no
• Extra support for boring bar with 60 bush: 01 no
• Centering device with dial gauge and pins: 01 set
• Centering pins 8 mm: 01 set
• Optional Accessories: Boring Bars dia 22 x 1300 , 40 x 1800, 60 x 1500, 60 x 2000, 60 x 2500, 60x3000 with Bearings, Cones, supports and Cutters
• Extra Cutter Heads for Ø48mm & Ø60mm Boring Bars: Into-Bore gauge (for measuring without removing boring bar) 35-105mm and 100-210mm
• Extension for Boring Bar 260mm: Tool Grinder
• Bushing for extra support (Specify diameter of boring bar): Boring Bar Sag Checking attachment
• Boring Bar Sag Checking Attachment: Boring Bar Hand Feed Remote Control

With a significant progress of infrastructure and manufacturing industries, there has been a growing demand for accurate designed boring machines for engineering purposes. The most advanced and technically revolutionary portable line boring machines has been widely used across numerous industrial segments for accurate machining of medium and large parts. The functions of a portable line boring machine are plenty. This boring machine is capable of measuring bores using calibrated internal and external micrometers and its size ranges from 30 mm to 2500 mm in diameter. The advantage of using portable boring machine equipment is that precision field machining bores can be done on site. This low weight machine is easily portable from one place to another. SH Engineering is one of the renowned portable boring machine manufacturers in India. We have done a lot of research and development works to design and develop this most advanced line boring machine. This machine is unique of its kind and appreciated for its unique design, functionality and robustness. Portable Boring Machines are used for concentric boring of holes on Backhoes, Dozers, End loaders, Scrapper Hitches, metal structures, Tractors, Excavators, machine components etc - using a standard magnetic drill press.

We are Engaged in Providing a Heavy Duty High Precision horizontal Line Boring Machine. the Horizontal Line Boring Machine is Offered for Internal Combustion Engines and is also Suitable for other Horizontal Boring Applications. We Provide the Horizontal Line Boring Machine At Market Leading Rates to Clients.

• SIZE: 10 mm to 300 mm
• speed: 10 RPM to 1,000 RPM

This is a Line Boring Machine built for a customer, using our side mounting standard 5 HP milling head and a slide unit, having 500 mm X axis traverse.The feed movement is through VFD driven motor & gear box, which provides stepless feed range from 10 mm to 300 mm per minute.MHCL-5, has stepless spindle speed range from 10 RPM to 1,000 RPM in combination of the lever operated, 4 stepped spindle speeds. Using a long arbor, job resting fixture & a base, this machine can be used for line boring application. MHCL-5, has stepless spindle speed range from 10 RPM to 1,000 RPM in combination of the lever operated, 4 stepped spindle speeds. Using a long arbor, job resting fixture & a base, this machine can be used for line boring application.

• Maximum Travel of Boring Bar: 325 mm
• Net Weight: 1700 kg (approx.)

Boring Bars with appropriate bearings, cones, extra supports and cutters 22 x 1300 mm and 60 x 2500 & 3000 mm Into-Bore Gauge (for measuring without removing boring bar) 35-105 mm and 100-210 mm Tool Grinder Extra Cutter Heads for 30 mm & 48 mm Boring Bars Extension for Boring Bar 260 mm Small Busing for extra support (specify diameter of boring bar) Boring Bar Sag Checking Attachment Bpring Bar Hand Feed Remote Control

We are offering horizontal line boring machine.

•  Model:  PHLV-1550
•  Max. length of black:  1551 mm
•  Distance from built in parallels to Boring bar:  815 mm (maximum)
•  515 mm (minimum):  Boring capacity with
•  34-150 mm (Standard boring bars):  26-225 mm infinitely variable from 50-750
•  Feed : both direction (automatic & manual):  0.15 mm Roughing
•  0.04 mm Finishing:  Max. travel of boring bar
•  325 mm:  Additional travel with extension bar (extra equipment)
•  260-325 mm:  Drive motor (440 V, 3-ph, 50Hz)
•  1.5 hp:  Width of bed
•  570 mm: Work space required
• 5050 x 1760 mm:  Net weight (approx.)
• 1700:  Gross weight

Lokesh is the preferred source for Cam and Crank Boring Machines. More than 100 machines supplied till date. First EURO 6 Engine manufacturer in INDIA uses our machine only.
