Linear Motion Screen Dealers

• Voltage: 220 - 440 V
• Driven Type: Electric
• Country of Origin: Made in India
• Type Of Machine: Linear
• Transmission Structure: Tubular Frame With Coiled Spring
• Body Material: Mild Steel
• Usage/Application: fine screening, powder etc
• Capacity: Up to 400 TPH
• Automation Grade: Semi-Automatic
• Brand: "Maa"
• I Deal In: New Only
• Surface Treatment: Powder Coated
• Frequency: 50 Hz

• Brand Name: Delite
• Voltage: 220-400 V
• Country of Origin: Made in India
• Material: Mild Steel
• Capacity: 150-300 Kg/hr
• Finishing Type: Color Coated
• Power Source: Electric
• Frequency: 50-60 Hz
• Automation Grade: Automatic
• Motor Power: 1-3 HP
• Usage/Application: Industrial

Horizontal linear motion screens operate on high forces owing to the flat bed design of screen. The screens are considered highly efficient as it offers maximum probability for material passage through openings and also owing to high retention time of material over the screen.

The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part. The barrel-type vibration exciter is installed in the middle part of the machine. During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened.

Circular Motion Screens are operated either by a mechanical exciter or two unbalance motors. In both cases rotation in opposite directions creates linear vibration. Linear motion screens are very high performance machines, in terms of capacity and efficiency. They have a low inclination which varies between 0 degree and 15 degree. The drive is a combination of high amplitude and low frequency of vibration.

Linear Motion Screens are operated either by a mechanical exciter or two unbalance motors. In both cases, rotation in opposite directions creates linear vibration. Linear Motion Vibrating Screens are very high performance machines, in terms of capacity and efficiency. They have a low inclination which varies between 0 to 15. The drive is a combination of high amplitude and low frequency of vibration. TWO UNBALANCE MOTORS These are arranged as a double drive which produces linear vibrations. They are mainlyused to medium sized vibratory screens. Due to linear vibrations, these screens have amuch lower downward inclination than those with shaft drivers. In special cases the screens can even run without any inclination or with a slight incline.

• Widths: 1000 mm to 3800 mm
• Lengths: 2500 mm to 10000 mm

Linear Motion Vibrating Screens Circular Motion Vibrating Screens have a limitation on Area of Deck to 14 to 18 square meters due to excessive load on the Bearings.Whereas Linear Motion Vibrating Screens can be a better solution as they can offer a larger area for screening.  Screens up to 40 square meters of Deck Area can be available in Single or Double Deck construction. Imbalanced Motor Construction:   Widths: 400 mm to 1250 mm  Lengths: 1250 mm to 3000 mm Process Application : Separation/Classification/Sizing/Draining & Dewatering Industrial Application : Iron Ore Beneficiation Plants/Iron Ore Washing Plants/Sand Washing Plant

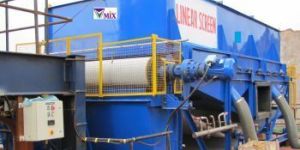

Linear screen widely used for thrash removal before feeding to the main process. VMix is having customised design to treat various capacity. Our equipment capable of screening too slime material. 2000 microns Low water and power consumption. Low construction material. Less footage space requirement. Low maintenance and simple structure. Application- Wet Processing, Slurry preparation.

• Material: Stainless Steel
• Automation Grade: Automatic
• Voltage: 380 V
• Usage/Application: Industrial
• Type Of Machine: Circular
• I Deal In: New Only
• Motor Power: 1HP to 12.5 HP
• Capacity: 2 TPH to 200 TPH

Marsman Vibrating screens are designed and manufactured with modern technology on highly sophisticated machines and equipments to produce maximum output with minimum screening area and power consumption. Excellent accuracy for separation Maintenance free, Minimum wear rate per ton, Perfect gradation of material, Minimum Power Required.

ZS linear vibrating screen is designed according to the principle of self-synchronous straight line vibration of dual vibrating motor. Simple harmonic motion or approximate simple harmonic vibration at an inclined angle with the water level may occur to a screen driven by double vibrating motor under the effect of the longitudinal exciting force generated by reverse rotation during the operation of the motor, allowing materials in a screen to be threw forward constantly, so as to satisfy the purpose of screening. It is designed for gravel screening and also other building materials.

adapted with great ease to the particular screening task. Relatively smaller size of linear motion machines can also be offered with a wide range of Unbalance Motor exciters.   The linear motion screens are made up of sub-assemblies Huck/lock-bolted together, enabling wear parts to be readily replaced. Drive is from standard AC motor via cardan shaft. The linear motion screens are horizontal/low inclination Screens and its operation is based on the micro throw principle. The operating frequency is generally 750 or 1000 vibrations per minute and easily adapted to the material to be screened in terms of angle of throw and amplitude which are adjustable within certain limits. Great stress has been laid on machine ruggedness and stability, simple maintenance and servicing including replacement of screen decks. Depending on application the machines are available as single or double deck type. Sizes range up to 4 m wide and to 9 m long and capacities up to 3000 tph depending upon the cut point and material characteristics. Applications include primary and secondary classification, sizing, washing/dewatering/ desliming, knock-out screens in foundry, screening of hot material and many others. Screen mats used are woven wire, rubber, polyurethane and perforated plate.   Isolation Frame In a large vibrating machine, substantial exciter forces are active and to avoid harmful vibration to building and support structure, Isolation Frames can be offered to reduce dynamic loads by approximately 90%-95%. These Isolation Frames are mounted on springs and hyraulic shock absorbers. Trolley Vibrating screens mounted on trolleys are offered suitable for transverse or longitudinal movement. Trolley movement can be either manual or motorised. Special jack pads and wedge block mounting ensure that load is off the wheels when screening machine is in operation. Circular Motion Vibrating Screens This is a new generation range of vibratory screening machines characterised by low profile, efficient protection of

• Widths: 1000 mm to 3800 mm, 400 mm to 1250 mm
• Lengths: 2500 mm to 10000 mm, 1250 mm to 3000 mm

Circular Motion Vibrating Screens have a limitation on Area of Deck to 14 to 18 square meters due to excessive load on the Bearings. Whereas Linear Motion Vibrating Screens can be a better solution as they can offer a larger area for screening. Screens up to 40 square meters of Deck Area can be available in Single or Double Deck construction.

Linear motion vibrating screens differ from other screening systems.Vibrations are caused through linear oscillating motion. The linear motion vibrating screens are very compact in design. Very low mounting heights can be achieved by installing these screens in horizontal and low inclination positions. Linear motion is produced by the action of two unbalanced motors mounted on screen body. Both the motors are mounted on machine CG point at an angle. The contra rotation of these motors provides pattern like straight line throw. Linear motion provides excellent performance even in high moisture applications. Screening media includes woven mesh, rubber and polyurethane modular panels.These vibrating screens are equipped with single and multiple screening decks.

Linear motion vibrating screens differ from other screening systems.vibrations are caused through linear oscillating motion. The linear motion vibrating screens are very compact in design. Very low mounting heights can be achieved by installing these screens in horizontal and low inclination positions. Linear motion is produced by the action of two unbalanced motors mounted on screen body. Both the motors are mounted on machine cg point at an angle. The contra rotation of these motors provides pattern like straight line throw. Linear motion provides excellent performance even in high moisture applications. Screening media includes woven mesh, rubber and polyurethane modular panels.these vibrating screens are equipped with single and multiple screening decks.

ZS linear vibrating screen is designed according to the principle of self-synchronous straight line vibration of dual vibrating motor. Simple harmonic motion or approximate simple harmonic vibration at an inclined angle with the water level may occur to a screen driven by double vibrating motor under the effect of the longitudinal exciting force generated by reverse rotation during the operation of the motor, allowing materials in a screen to be threw forward constantly, so as to satisfy the purpose of screening. It is designed for gravel screening and also other building materials.

• features: High through put & separation efficiency possible through variable amplitudes

Linear motion vibrating screens differ from other screening systems.Vibrations are caused through linear oscillating motion. The linear motion vibrating screens are very compact in design. Very low mounting heights can be achieved by installing these screens in horizontal and low inclination positions. Linear motion is produced by the action of two unbalanced motors mounted on screen body. Both the motors are mounted on machine CG point at an angle. The contra rotation of these motors provides pattern like straight line throw. Linear motion provides excellent performance even in high moisture applications. Screening media includes woven mesh, rubber and polyurethane modular panels.These vibrating screens are equipped with single and multiple screening decks.
