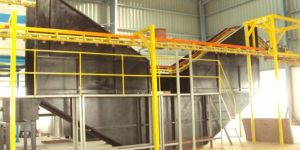

Liquid Painting Booth Dealers

• Color: Blue & white
• Country of Origin: Made in India
• Material To Be Painted: Any Metal
• Usage/Application: Industries, Factories, Laboratories
• Coating: Liquid Painting.
• Booth Size: Booth Size will be decided as per Customer requirement.
• Capacities: 2 HP TO 20 HP
• Fast Color Change: AVAILABLE

• Voltage: 240V
• Material To Be Painted: MS
• Booth Size: 1000x950x700mm
• Output Current: 50A
• Frequency: 50Hz
• Usage/Application: Industrial
• Automation Grade: Semi-Automatic

• Type: Automatic
• Voltage: 220V/380V
• Warranty: 1 Year
• Certification: CE Certified
• Power: 5-10Kw
• Condition: New

Features : Rust-proof Fine finish Smooth operation

Liquid paint can be applied in many different ways determined by: the product, the volume, the quality requirements and other factors. Application method: handheld spray guns, high volume low pressure (HVLP) guns, automatic guns, automatic rotary bells or disk. >> Spray equipment: non-electrostatic or electrostatic. >> Typical paint is used for such wet on wet process is epoxy or polyurethane. Paint is normally baked. Painting components with corners & crevices >> Spray cannot reach each & every area. >> In addition, if the component needs high corrosion resistance, then electrophoretic technology will be more appropriate for depositing the primer paint and is followed by spray with top coat of paint. >> Typical components requiring this technology are auto components. Painting large components >> These are shot blasted, can be given a zinc phosphatelayer followed by primer coat of paint which is either applied through manual spray or electrostaticspray. >> This is followed by spray top coat (normally polyurethane acrylic) and is forced to dryat 70-80°C temperature. >> Also for plastic parts, spray painting is used.

• Booth Size (mm X mm X mm): 6400mm x 3962mm x 3048mm
• Material to be painted: Aluminum, Wood, Iron, Steel, Plastic
• Heating Mode: Infrared Ray, Electric, Diesel
• Air-Flow Direction: Lateral Undershot Type, Cross-Flow Type, Fully Undershot Type
• Air flow pattern: Side draft & Down draft
• Duct diameter (millimetre): 850x850
• Finish: Puf Panel
• Heat Exchanger Material: Gas fired or Electrical
• Max Temperature (degree celsius): 150 degree
• Ventilation System: HDPE filter
• Voltage (volt): 240 V

The Dip Painting can be carried either Dunk type (Transporter based) or Conveyorised method. The component is immersed in paint having specific viscosity to avoid the Orange pill and droplets.

• Size: 55x40ft, 60x40ft, 65x40ft
• Type: Down Draft Painting Booths
• Thickness: 0-10mm, 10-20mm, 20-30mm
• Color: Natural
• Position: Commercial
• Open Style: Folding, Retractable
• Surface Finishing: Chrome
• Feature: Folding Screen, Magnetic Screen, Waterproof
• Warranty: 1year

With the help of our skilled and experienced professionals, we are able to provide a top quality assortment of Liquid Painting Booth. These booths are suitable for painting applications in industrial and commercial sectors. The offered booth is manufactured by using the finest grade material and advanced machinery in accordance with the defined industry norms. To meet the varied needs of the patrons, these products are offered by us in different sizes and shapes. High in demand, these Liquid Painting Booths are available at the most reasonable prices.   Total Liquid Painting Solution. Amazing Quality finish. Phenomenal Saving achieved. Complex material handling solution for articles weighing from 10kg to 10 tons. Statfield - The name synonymous with productivity and quality has a unique range of liquid painting booth. Ingenious design is at the heart of Statfield's equipments. This gives the edge to accommodate complicated customization and automation to optimize efficiency. Statfield's pedigree is the proof that our expertise and resources can handle such requirements effortlessly. We also provide customized products with intelligent material handling solutions in accordance with the customer requirement. With rapidly changing needs of industries there is demand to find out solutions for challenges. Statfield is proud to claim that, "We Are Solution Giving Company For Challenges." Challenges are : Advent of hazardous paint. Stricter pollution norms. 10 kg. To 10 Tons component weight. At a time variety of articles in the same batch. Complex vertical movement of articles. (Ground to overhead) Here Are Customized Solutions All In One Booth   Selection Criteria : Selecting an appropriate type of booth depends on article size, production, type of paint, its consumption, type of application & number of operators etc. Normally Dry Booth is recommended if paint consumption is low. Water Wash Booth is preferred when higher volume of paint demands higher paint killing. The Down Draft version is needed for large / heavy articles so as to coat article from all sides.   Total Liquid Painting Solution. Amazing Quality finish. Phenomenal Saving achieved. Complex material handling solution for articles weighing from 10kg to 10 tons. Statfield - The name synonymous with productivity and quality has a unique range of liquid painting booth. Ingenious design is at the heart of Statfield's equipments. This gives the edge to accommodate complicated customization and automation to optimize efficiency. Statfield's pedigree is the proof that our expertise and resources can handle such requirements effortlessly. We also provide customized products with intelligent material handling solutions in accordance with the customer requirement. With rapidly changing needs of industries there is demand to find out solutions for challenges. Statfield is proud to claim that, "We Are Solution Giving Company For Challenges." Challenges are : Advent of hazardous paint. Stricter pollution norms. 10 kg. To 10 Tons component weight. At a time variety of articles in the same batch. Complex vertical movement of articles. (Ground to overhead) Here Are Customized Solutions. All In One Booth. Selection Criteria : Selecting an appropriate type of booth depends on article size, production, type of paint, its consumption, type of application & number of operators etc. Normally Dry Booth is recommended if paint consumption is low. Water Wash Booth is preferred when higher volume of paint demands higher paint killing. The Down Draft version is needed for large / heavy articles so as to coat article from all sides. Water Wash :Water wash type booth mainly suggested for high paint consumption. A continuous water flow is provided which collects the over-sprayed paint particles and removes from booth. Thus a clean & pollution free working is provided. Side Draft (SD). Down Draft (DD). Side Draft Booth (SD) :Construction : There are two chambers separated by water curtain wall. The front spray chamber is where the article is hooked and painter can stand. Backside of water curtain wall is Suction Chamber with baffles to separate paint particles from air/thinner mixture. On the top of this chamber there is a Blower and Motor. All Panels are manufactured in GI, powder coated having two colors viz. inside white and outside green. The most important thing is that the blower is mounted on a separate base to avoid vibrations from reaching to the paint chamber or the booth. Working : The over sprayed paint is dragged towards the water flowing continuously. The turbulence is created below the screen & sludge is formed. The water and the sludge are separated in the filter at the bottom tank. The clean water is pumped again to the top tank and flows over the screen. The paint is sucked by the blower through the baffles wherein the paint particles are separated. The baffles are very effective in separation and can be removed, cleaned easily. Only clean air with thinner is left to atmosphere. It has more efficiency as compared to the dry booth. The sound level is as per industrial norms. Advancement - Pressurized booth in Pressurized clean room.Down Draft (DD) : These booths are recommended for large or heavy articles.Construction : The water tanks are below ground level. Air suction is created downwards through the water tank. The suction chamber sucks the air/ paint mixture towards the water below, where the sludge is formed and is separated. At the baffles the remaining air particles are arrested. Turn table can be given in case if article rotation is desired for articles with less weight. Alternatively heavy article can be loaded from ground trolley or OH crane. Working :In this booth the air draft is in the downward direction. Articles are normally kept stationary and the operator moves around it. Over sprayed paint is dragged downwards with the air suction and the sludge is separated at the bottom tank. The clean water is pumped back again. The air is sucked through baffles and paint is separated from the air /paint mixture.Advancement - Turn table in line with ground level for easy movement :In this booth the air draft is in the downward direction. Articles are normally kept stationary and the operator moves around it. Over sprayed paint is dragged downwards with the air suction and the sludge is separated at the bottom tank. The clean water is pumped back again. The air is sucked through baffles and paint is separated from the air /paint mixture.   Dry Type :The dry type booth is recommended when paint consumption is less or water is scarce. Metallic filters are used for arresting the over sprayed paint and give clean air output to atmosphere. Dry Back- Side Draft. Dry Bottom- Down Draft Dry Back- Side Draft :Construction : Booth is made up of 18 SWG materials, with GI powder coated sheets. The suction is taken at the back side of booth connected to the blower. Blower is placed on separate structure so that vibrations are not passed & noise is reduced. The metallic filters (male / female) types are provided at the back side of booth.Additional filter for better paint separation can also be placed to release clean air into the atmosphere. Article turn table or rails can be used for material handling.Working :The over sprayed paint is sucked by exhaust blower through the filters at the back. The excess sprayed paint is arrested by filters & only air is exhausted to the atmosphere. These filters are easy to remove and clean. The velocity in the booth keeps the atmosphere very clean for working.Dry Bottom- Down Draft :Construction : The dry bottom booth is recommended for heavy or large articles. In this booth, metallic filters are provided to arrest the over sprayed paint. The booth employs metallic filters at the bottom. The complete structure of the booth is bolted.Pressurization : For additional dust protection, pressurization can be provided. A plenum chamber is provided on the top of the booth. Pressurized air is pumped in the booth uniformly through this chamber.Working : The article is stationary on the rail or the hook and operator will paint it by moving around. The air draft that is directed downwards will carry the over sprayed paint towards the bottom metallic filters. These filters can be removed easily by removing the frames for cleaning purpose. Advancement in Booth :Booth for very large articles - Introduction :If an article is very big like cannons - 6m long and if a civil pit construction is not possible for down draft action, we have developed a sideward draft towards bottom of the booth panel. Dimension : 7000(W) x 4500(D) x 3000(H). Down draft sideward suction provided. Dry metallic Filter attached for filtration. Pressurization from the top for dust free operation. Combination Model - Side Draft / Down Draft - Introduction :Sometimes there is very critical production constraints like articles weigh form 5 tons upto 5 kg. So we have combined side draft booth with down draft to accommodate heavy production of different types of articles two types of conveyer are given along with ground trolley.Paint kitchen :3 different paint color lines are circulated at two different painting stations Very Small articles - 261 Conveyor. Bigger articles - 262 Conveyor. Big articles on ground trolley. Booth for 4 painters at a time.

Offered by us is Liquid Paint Booth that is available in different models as per the requirements of the customers. The Liquid Paint Booth that we bring forth is appreciated for possessing features like high performance, trouble free functioning, longer service life and many others. Models Available Downdraft Wet Type Down Draft BoothDowndraft Dry Back TypeDowndraft Single SidedDowndraft Central suction type down draft boothDowndraft Pit type with collection tank under the finished floor levelDowndraft specialized Uplifted Tank Conveyorised schemes forChassisTransformersCar bodyLarge enginesExport containersTruck body cabins Basic Concept (Wet Type) Water wash spray booth with wateralkali mixture in washing tank breaks down sticky resinsCollects broken down resin in the tankWater Screen catches the water spray and move it to washing tankCirculating pump, Pipe works, Nozzles, and Filters are involved in the processAir velocities are maintained for lowest explosive level Attributes Uniform water distribution at Stainless Steel ScreenSpecial design and high efficacyConstructed with heavy MSGI sheetsRust resistance with Fiber lining or rubber liningInner super white booth paintOuter silver hammer tone booth paintFree from dust.

• Type: Spray Booths
• Voltage: 380V, 50HZ
• Heating Mode: Gas,Gas,Diesel,Electric,Infrared Ray,Gas,Diesel,Electric,Infrared Ray

Product Details: Air-Flow Direction - Lateral Undershot Type, Cross-Flow Type, Fully Undershot Type Booth Size (mm X mm X mm) - Customized Heating Mode - Gas Heating Model - Diesel, Electric, Infrared Ray Material to be painted - Aluminum, Wood, Steel, Plastic We are manufacturer of Liquid Painting multistage coating covering single stage finished coat, primer and finished coat(wet on wet) and also primer, finish and top coat(3 coat system) with requisite flash offs. Specification: Type: Spray Booths Voltage: 380V, 50HZ, Phase : 3

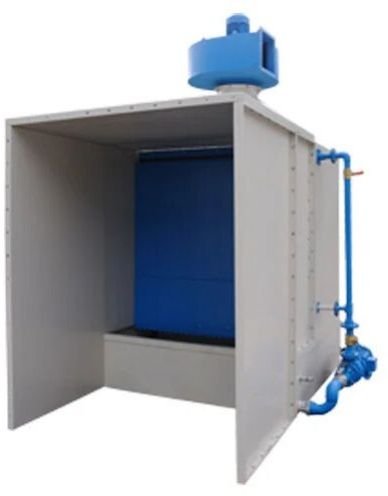

We offer our customers a variety of highly efficient side draft water wash booths. Due to the high consumption of paint and usage of reciprocator with auto guns, the overhead conveyorised painting line need to have water wash booth. These modular constructed booths have water tank and a water wall made out of ss for ensuring smooth and a thin flow of water from top to bottom. There is efficient suction in the water-wall side. the operator is required to always face water-wall during coating. In cases where the component calls for all sides coating and indexing is not possible, the booths are positioned on a back to back basis allowing each operator to have separate booth to coat. These booth are available in pressurized (dust proof coating system), which are made by pushing an external air from air supply unit (asu).

We are identified as one of prominent liquid painting booths manufacturers in the national and international markets. Our liquid painting booths are made using latest technology which advocates for their robust construction. We provide liquid painting booths in side draft and down draft designs as per the industrial requirements. Herein, the size of the components decides the size as well as type of the liquid paint booth to be used. Material of construction ms and ss sheets features compact designenhance product finishoffers clean air to the operatormake site installation easyeliminate dust particles from spraying arearequire low maintenancedoor available for maintenance

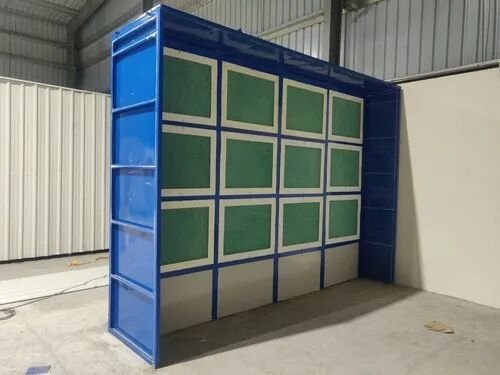

We Offer’s Liquid Painting Booth to accomplish the pollution-less environment. Designed and developed very efficient and effective liquid spray booths, which offer adequate flow of clean air. The standard designs range from an economical model, to an excellent performer in quality painting. Liquid paint Booth with disposable filters is an economical choice for low volume Spray Painting operations. Well designed filtration/ separator system offers highest efficiency of paint collection… Features: Long lasting Intermediate flash off zone Air supply unit Available as per the demand

A paint booth is a structure, which is designed to keep dust and other contaminants out of a painting area. Contaminants can have a major impact on the quality of a paint job, whether the paint is being applied to Surface. Using Paint booths ensures that paint jobs are done quickly and in a clean environment.

• Voltage: 415 V
• Booth Size: 7 x 4 x 2.5 m
• Phase: 3 Phase
• Brand: ATS ELGI
• Motor Power: 7.5 HP
• Frequency g: 50 Hz
• Metal Basement: 330 mm
• Inlet Blower Rating: 10 HP (7.5 kW)
• Extractor Rating: 2 HP
• Burner Capacity: 1,80,000 Kcal/h
• Inlet Blower Air Capacity: 21,000 m3/h
• Air Velocity Inside The Painting Chamber: 0.2 m/sec

Along with several other supreme quality industrial products, we are also providing our valued clients one of the most exclusive kinds of liquid paint booths. We have used very tough and tensile quality raw materials for the manufacture of these liquid paint booths. We are providing these liquid paint booths to our clients at a very convenient range of prices. Due to its high grade material quality and reliable utility, these liquid paint booths are widely in demand in the market and are used in almost all the regions of the country. Features : Durable and Tensile Reliable Functionality Low Maintenance Corrosion Resistant
