Load Break Switch Panel Dealers

• Country of Origin: India
• Voltage: 11KV
• Phase: Three Phase
• Brand: Electro Control Systems India Pvt Ltd
• Type: High Voltage
• Material: Mild Steel
• Power Source: Electric
• Color: Gray

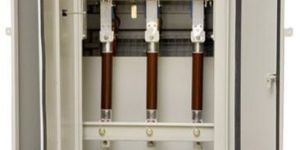

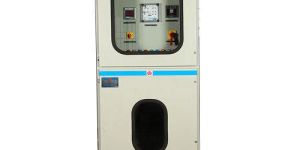

We presents you high performing 11KV LBS Panel that may either are manual or motor operated. These robust Load Break Switches are used in a variety of applications that include transformer switching, Ring main gears (RMG) and Condensers. These Load Break Switches are easy to operate, user-friendly, reliable and have a practical designnd LBS panels are of a fixed type switch having 3-poles and a spring loaded shaft driving the moving contacts towards the fixed contacts. This is equipped with a trip-free mechanism for opening. LBS can be Tripped by hand push-button, shunt trip coil or a fuse-trip mechanism.   Our Load break switches are extensively used in power plants and distribution networks and are regarded as highly reliable.

• Rated Voltage: 12kv
• Frequency: 50 Hz
• Feature: High Breaking Capacity, Active Vibration Control
• Approx Weight: 300 Kgs
• Power Source: Electric
• Capacity: 630/800 A

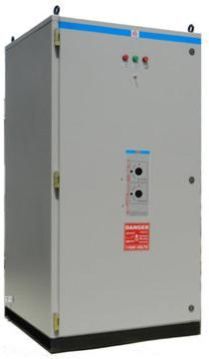

LBS Panels are mounted in metal clad Enclosure, No exposed to sun & rain –No corrosion No Rusting Immune to atmospheric condition No Cable/Conductor joints, Complete Bus-Bar System Manual/ Motorised operation Trip mechanism with Back-up Fuses Elegant Panel Compact in Construction. No Land Wastage. Zero Maintenance

• Phase: Single Phase
• Power: 12kv
• Application: Generator, PLC Automation

In order to deliver a flawless lot of products, we keep it in safe and secure place. We have developed all the in-house storage unit wherein we keep it to prevent from damaging factors. We are counted amidst the well-known names based in Ahmedabad(India) and cater to every nook and corner.

• Material: Horn
• Warranty: 1 Yr,2 years
• Color: Black
• Durability: Long Life
• Car Make: For Jeap Dodge
• OE No.: 05189428AC

• Country of Origin: India
• Frequency: 50 Hz
• Voltage: 11KV
• Phase: Three Phase
• Power Source: Electricity
• Rated Current: 630 Amp
• Material: Mild Steel

• Features: Compact design, Cost effective prices, Highly efficient

• Type: Automated Switch Panel
• Number of Button: 4

• 12kV LBS: Indoor type

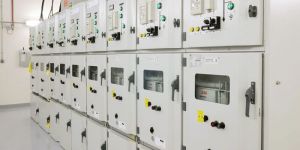

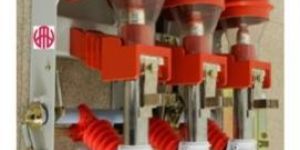

We are offering load break switch panel. Ranging from 3.3kv to 36kv offers a high tech standard and economy over the years for the switchgear manufacturer with dependability, reliability and versatility. Main features of max lbs
very high operating reliability
simple maintenance and inspection
high dynamic and thermal strength
tested in cpri as per is-9920/iec62271-2002
special bottle arc-chutes
current interruption without visible arcs
simple driving mechanism the salient feature of max lbs is its ability to permit load connections even under a short circuit conditions without danger to the operating personnel. It complies with iec, vde and is standards. A high speed (snap action) make and break ensures a fast switching action and the very special design of arc chutes having excellent extinguishing properties for both high and low currents. Suitability of mounting in horizontal or vertical plane etc. Proves the versatility of these switches.

• Voltage: 440 V
• Frequency: 50 Hz
• Material: Mild Sheet Sheet
• Automatic Grade: Automatic
• Power Source: Electric

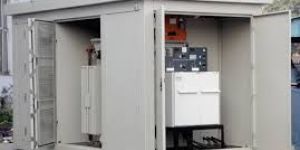

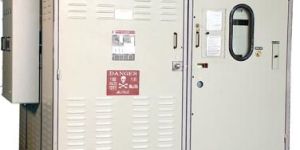

We are offering unitised substation are designed for locations where space and safety is a concern, population density is high, such as urban centre. Unitised substation is divided in three section or compartment – medium voltage, transformer and low voltage switchboard. Unitised substations are designed in accordance with is 14786 / iec 61330 standards with degree of protection for ip23 for transformer and ip54 for mv & lv compartments or as per customer requirement. Echnical specifications mv switchgear- 3.3 to 33 kv type of switchgear- lbs / sfu / breaker / rmu insulation medium- sf6 gas or vacuum tripping- fuse / relay short circuit rating- up to 20 ka or as per customer requirement type of cooling- oil immersed / dry type rating- 100 to 2000 kva voltage -3.3 to 33/0.433 kv or any specific phase / frequency- 3 phase / 50 or 60 hz. vector group- dyn1 or dyn5 or dyn11 or any specific. mv switchgear- acb's, mccb's current rating- up to 3250 amps voltage- 433 volts no. Of poles- 3 / 4 short circuit rating- 50ka or as per customer requirement.

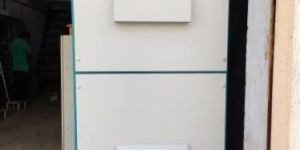

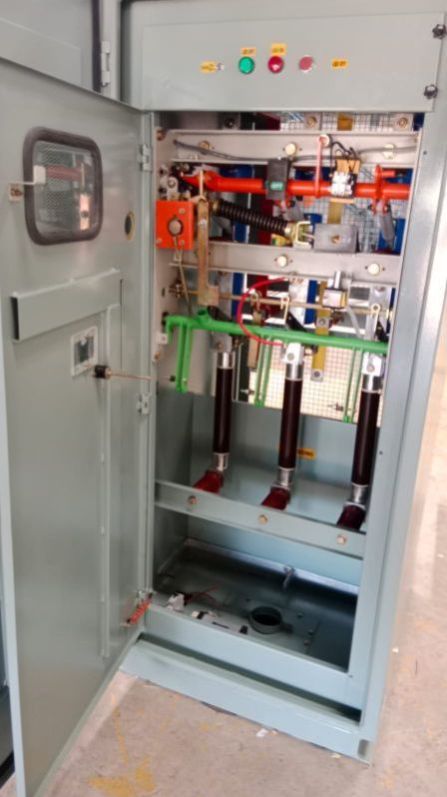

The 11/12 kv Switching Panel with LBS is suitable for Indoor & Outdoor applications. The Switching Panel consists of a Load Break Switch that can be used for Switching ON & OFF of the transformer. The HRC Fuses used conforms to IS Standards. The Protection / Tripping System is implemented through fuses (Striker pin) & relays and assembled with suitable bus bars. The Panel is Powder Coated with 80-120 microns for its Inner /outer texture with High Quality Process. The Type Tests conducted by us in CPRI Bangalore (Ref. Nos) is as follows (As per IEC & IS Standards): Short Circuit :SC15S0692 (26.3KA rms for 1 Sec) High Voltage : HVML2014S0660 (12/28/75KV) Temperature Rise :SC15S06 (at 630 Amps) IP 55 : EATDHVLM2014s0660 (Category 2) Application: They are used in Residential / Commercial/Large & Small Industrial Uses.

• Phase: Single Phase, Three Phase
• Brand Name: PARV
• Material: CRCA Sheet Metal,Stainless Steel
• Condition: New
• Application: Industrial,Industrial
• Feature: Rigid Construction,High Durability,Longer Service Life
• Payment Terms: L/C (Letter of Credit)/T/T (Bank Transfer)/Other
• IP Rating: IP33, IP40, IP44, IP54, IP55

• Feature: » Earthing switch and earthing interlocks are provided.» Provisions for sealing by the Electricity Board Authority

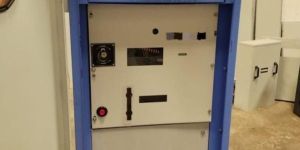

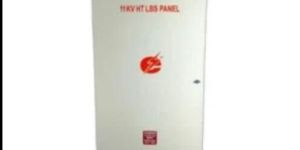

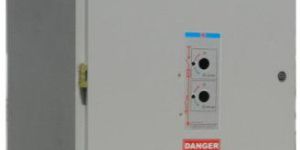

Load break switch panel is used to Switch ONOFF the 11KV supply to the consumer. The panel is installed in indoor. This is installed in between the incoming Board supply and distribution transformer provided at the customers premises. Load Break Switch Panels are available with and without metering facilities.

The uss will comprise of hv 12 kv load break switch panel, cast resin air cooled transformer, with associated protection and ventilated housing.the whole assembly is mounted on to a rigid base of steel fabricated section.

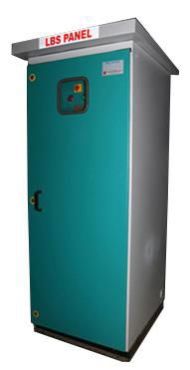

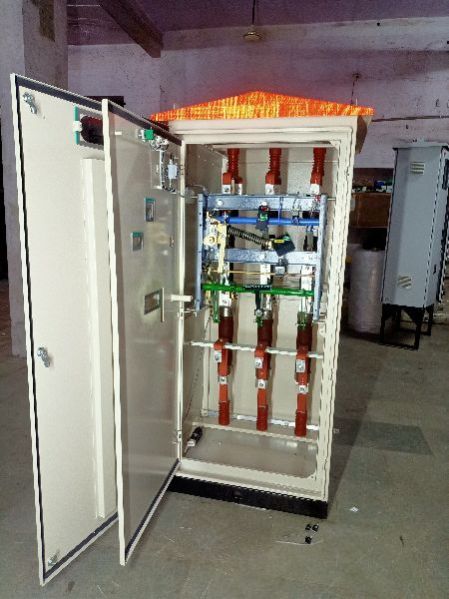

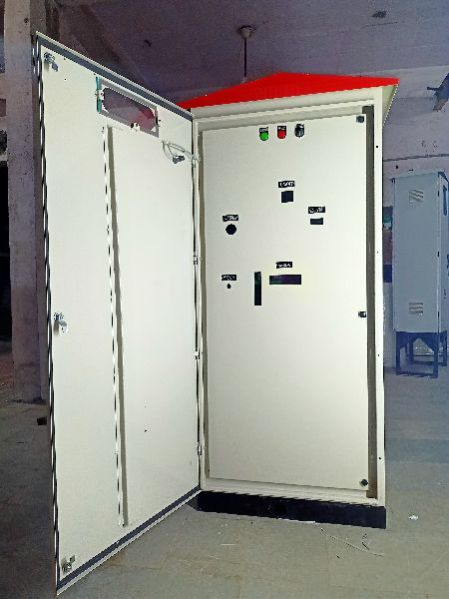

Intrans make outdoor load break switch panels comprise of a HV 12 kV Load break switch panel with CT/PT and Test Terminal Block and HT Fuses completely enclosed in a Powder coated Galvanised Iron enclosure confirming to IP 54 Class protection. Even under adverse weather conditions the Galvanised Iron enclosure ensures a long life for the Load break switch.

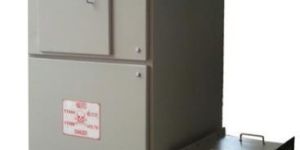

We are recognized as a trusted Manufacturer, Exporter & Supplier of 11 kV Load Break Switch Panel. The 11 kV Load Break Switch Panel is manufactured using the best grade material and the latest technology. The 11 kV Load Break Switch Panel offered by is provides a consistent energy output over long periods of time. Clients can avail the11 kV Load Break Switch Panel from us in the required specifications at the market leading prices.

    Model No : MV V12 LBS   Rated Voltage & Rated Current:12kV, 630A Up to 2000A   Frequency : 50Hz   Short Time Withstand Current And Duration: 26.3kA/3Sec   Insulation Level: 28kV / 75kV Peak   Breaker Standard: IEC 60265/ IS 9920   Degree of Protection: IP4X & 5X

• Country of Origin: India
• 11KV: 34KV

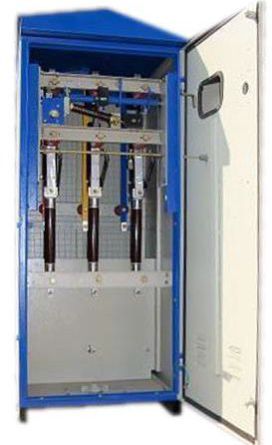

Load Break Switch Panel Our clients can avail from us 11 KV Outdoor Load Break Switch Panel, 11 KV LBS Outdoor Bush Panel and 11 KV Indoor Load Break Switch Panel. These panels are easy to install and have low maintenance cost. Manufactured using precision engineered components, our range of panels delivers excellent performance. The different types of products which we offer are explained below: Outdoor Load Break Switch Panel We are engaged in offering 11 kv outdoor load break switch panels, which conform to is/ iec standards. Our panels are suitable for outdoor application as these can resist adverse weather conditions and temperature. These panels are sturdy and offer excellent performance. Indoor Load Break Switches Our clients can avail from us 11 KV Indoor Load Break Switch Panels, which finds application in different types of combinations such as multi panel or main systems. As our panel conform to IEC/ IS standards, these ensure maximum reliability. These Indoor Load Break Switches come with metal clad enclosure with dynamic mimic and extensible on each side. Furthermore, output consistency can be achieved over long periods using these panels. We also offer these panels to our clients at industry leading prices. LBS Outdoor Roof Bush Panel We are engaged in providing 11 KV LBS Outdoor Roof Bush Panels, which are available as outdoor kiosk with roof bushing. These panels come with single or multi-panel formations. Steel sheet housing with separate metal clad compartments comprises the fixed portion of the bush panel. These are suitable for bus bars, breaker and CT & cable terminals. The circuit breaker is carried with the operating mechanism by the four wheeled truck, which is the moving portion. Moreover, at the top of the panel, the draw out points are placed. Indoor Load Break Switch Panels Our clients can avail from us 11 KV Indoor Load Break Switch Panels, which find application in different types of combinations such as multi-panel or main systems. As our panels conform to IEC/ IS standards, these ensure maximum reliability. These panels come with metal clad enclosure with dynamic mimic and extensible on each side. Furthermore, output consistency can be achieved over long periods using these panels. We also offer these panels to our clients at industry leading prices
