Lobe Compressors Dealers

• Driven Type: Electric
• Automatic Grade: Automatic
• Application: Indsurial Use
• Type: Twin Lobe Compressors
• Warranty: 1year

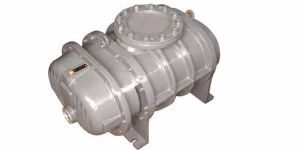

We are the manufacturers of Twin Lube Compressor. These are engineered as per the international quality standards and are widely acclaimed for easy installation, low maintenance cost, and trouble-free performance.

We source the raw material from the leading vendors and manufacturers in the market; thus, we are capable of fulfilling the exact requirements of the clients with our offered products. We are immensely accredited for delivering the orders within the stipulated time frame as we have the latest transportation facilities.

In order to make available high quality product range, we make use of the finest grade raw material that is sourced from the trusted places after complete assurance of the quality. We meticulously pack the entire lot for ensuring safe and secure deliveries across the boundaries.

• Power Source: AC Three Phase
• Country of Origin: Made in India
• Horse Power: 2 HP - 75 HP
• Maximum Flow Rate: 50 - 1500 m3/hr
• Discharge Pressure: UPTO 1 KG/CM2

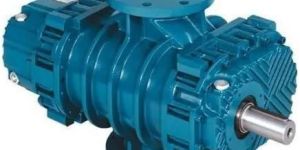

"Roots India Company" We are into full manufacturing range of Twin Lobe Rotary CompressorsROOTS BLOWER. These are also known as Water ring vacuum pump and Gas Booster used in various systems and plants like ETP STP RMC . These are High volume-low pressure positive displacement compressors. They operate on differential pressure and constant volume characteristics.

• blowers: 36 AC to 615AC

This series covers the blowers from 36 AC to 615AC, KE series was developed during the early days of Kay Engineering, hence called as KE Series Blower, Series covers the air cooled as well as water cooled blowers. Above 7000mmwg water cooled blowers will be supplied, Capacity for KE series Blowers ranges from 60m3hr to 1431m3hr with pressure application from 1000mmwg (0.1kgcm2) to 10000mmwg (1.0kgcm2), Material of construction of the casing and lobes for all blowers in this series is C.I.F.G.-260 conforming to IS: 210, Shaft material from 36AC to 59AC is alloy steel, EN9 (070M55).and above 59AC it is EN24 (817M40) conforming to BS: 970.

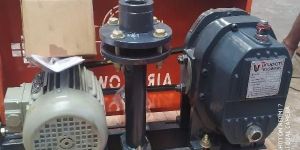

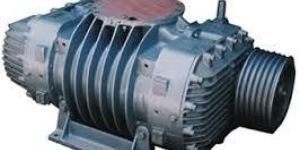

Our firm specializes in manufacturing an excellent range of Twin Lobe Air Compressors, popularly known as Root Blowers. The product belong to the category of positive displacement blowers. It consist of a pair of involute profiled (shape of 8) lobesrotors rotating inside an oval shaped casing which are closed at ends by side plates. One lobe is the driving lobe, driven by the external power, while the driven lobe is driven by a pair of equal ratio gears. Both lobes rotate with same speed in opposite directions. As the rotors rotate, air is drawn into inlet side of the cylinder and forced out of the outlet side against the system pressure. With each revolution, four such volumes are displaced. These are widely demanded for application where there is constant oil free high volume air demand at very low pressure. To maintain industry defined quality standards, the entire range is manufactured using quality proven raw material and cutting-edge technology. Also, the entire range is examined properly by our quality analysts upon distinct parameters of quality.

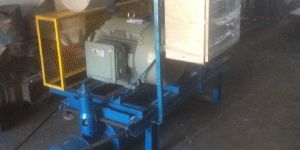

Water Cooled Twin Lobe Blower is mainly use for Effluent treatment plantSugar Mill,Paper Mill,Cement Ind.,Polution Control Plant,Textile - Humidification,Gas Booster,Fertilizer Plant,Chemical Plant,Glass Bulb Ind etc.

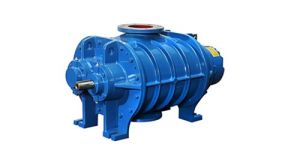

Rotary Twin Lobe Blowers Compressors follow the well established principle of the roots-type machine. Operation is both simple and effective. Two 8-shaped Rotors Impellers, mounted on parallel shafts and contained within casing rotate in opposite directions. The Shape of the impellers is such that a small accurately gauged clearance is maintained at all times between the impellers and casing. As they rotate, air is drawn in to the space between the impellers and the casing, where it is trapped as the tip of the impellers passes the edge of the inlet opening.

The Two “8” shaped impellers which are mounted on parallel shafts, rotate in opposite direction and with every revolution of the impeller across the compressor inlet, a definite volume of air is trapped and carried across the casing to the compressor outlet where this air is discharged. With a constant speed operation, the displaced volume is essentially the same at a constant pressure,

• Horse Power: 20 HP
• Discharge Pressure: 8-10 bar
• Number of Compression Stages: Single Stage
• Maximum Flow Rate: >1000 cfm
• Motor Speed: 0.55 KW-22 KW
• Material: Cast Iron
• Model Number: GR-22

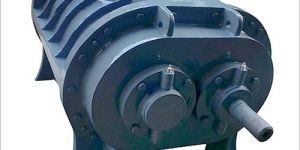

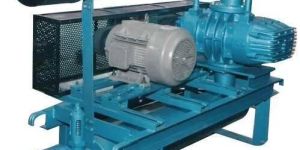

Twin Lobe Roots Blower is also well known as Twin Lobe Rotary Compressors Exhausters Roots Vacuum Pump, used in various systems and plants like Sewage Treatment Plants. These are High volume-low pressure positive displacement (PD Type Roots Blowers) compressors. They operate on differential pressure and constant volume characteristics. Twin Lobe Roots Blowers are suitable for different pressure up to 1 Kgcm2 in Single Stage and up to 2.2 Kgcm2 in Double Stage. Also suitable for Gas Duty as well as Vacuum Duty (Up to 600 mbar).

• Country of Origin: Made in India
• Material: Stainless Steel
• Type: Air Cooled
• Pressure: 1000 Bar
• Drive: Electric
• Capacity: 10 m3 / Hr

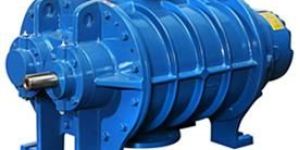

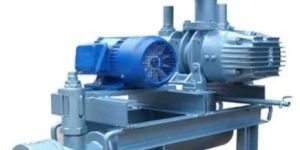

We have for our clients twin lobe rotary compressors that are well designed and are compact in size. These twin lobe rotary compressors are known for their high efficiency and come with the following features: Type : Air cooled, water cooled Capacity : 10 M3 / Hr to 12,000...

• Pressure: 1000mmwg (0.1kg/cm2) to 10000mmwg (1.0kg/cm2)
• Blowers ranges: 60m3/hr to 1431m3/hr

This series covers the blowers from 36 AC to 615AC.KE series was developed during the early days of Kay Engineering, hence called as KE Series Blowers.Series covers the air cooled as well as water cooled blowers. Above 7000mmwg water cooled blowers will be supplied.Capacity for KE series Blowers ranges from 60m3hr to 1431m3hr with pressure application from 1000mmwg (0.1kgcm2) to 10000mmwg (1.0kgcm2)

Air Flow can be vertical or horizontal with adjustable feet, V-belt drive can be used for complete range, shaft center heights to suit motor as per IEC frame size, special sealing arrangment, suitable for gases othe then Air.
