Loop Calibrator Dealers

We makes truly portable and highly reliable Loop Calibrator  This can be used for Two Wire Transmitters & other mA operated Process Control Instruments. Basically designed  to suit Instrument  Lab as well as field calibration. This is powerful Tool for Commissioning , Quality Assurance Routine Maintenance and Trouble Shooting.. FEATURES– Loop Calibrator suppliers Hand held, Battery operated, Portable 2 Wire Loop Operated Source. Loop Calibrator suppliers – Typical Accuracy 0.1% Optional battery eliminator for operation on 230V AC Loop Calibrator suppliers – External DC Power Supply 12-36 V DC as per load.Loop Calibrator  Applications – a) Field Transmitter & Process Control Instrument   b) As fault finding tool + Quality Assurance Tool

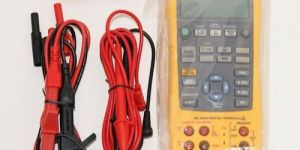

• Accuracy to 0.01% of reading • Measure, source, or simulate loop current • Measure DC volts • Simultaneously mA and % span display • Switch functionality • Selectable ramp and step functions • HART 250â�¦ resistor in series with 24V loop

Our organization is endowed by a massive circulation system that allows us to reach purchasers wherever and distribute orders on schedule. We are acknowledged for meeting the urgent requirements of the clients even on short notice as we are supported by capacious warehouse and streamlined inventory management system.

• voltages: 1 mV

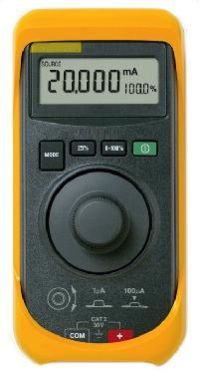

The Fluke 709 mA loop calibrator is designed to save time and produce high-quality results. This tool reduces the time it takes to measure, or source, voltage or current and poewr up a loop.Small rugged design operates on (6) standard AAA batteries, Built-in selectable 250 Ω resistor for HART communication,Variable step & ramp time in seconds.

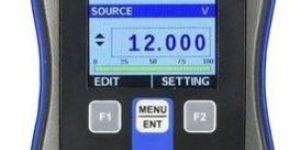

• Feature: Easy to read Color Graphical TFT LCD display,24 VDC Loop power Supply to power transmitters and loops,Data Logging to measure long time drift

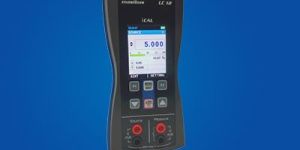

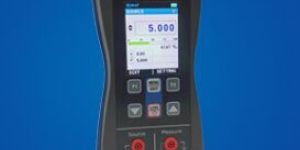

iCAL models LC12 and LC11 are the Ultimate Loop Calibrators for sourcing, measuring and simulating Loop current, mV and V. They are compact, rugged and easy to use hand held device with graphical user interface. Loop Calibrators LC 12 has simultaneous Source and Sense capability with independent parameter and range selection for source and sense, also the source and sense circuits are isolated from each other. Loop Calibrators LC 11 has either Measure only or Source only feature. Masibus LC 12 and LC 11 Loop Calibrators are designed to provide base accuracy of 0.02% of Reading in all modes of operation. 2W simulate and ReadPower are unique features for Loop testing and calibration. They have been designed to give maximum Battery life on full charge, the backlight is adjustable for power saving and the display can be programmed to automatically switch off when not in use.

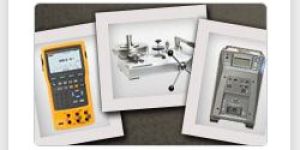

Multifunction Calibrators, mA Loop Calibrators, Pressure Calibrators, Temperature Calibrators, Process Calibration Software.

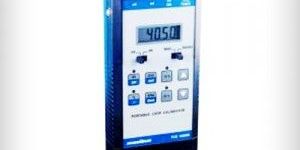

We are offering loop calibrator. Product description accurate performance tcs 4050m is precision loop calibrator designed to provide enhanced performance with accuracy of 0.05percentage and 1µa resolution. Tcs 4050m can power and read two-wire transmitter for its calibration or can simulate transmitter to calibrate read-out instruments. Compact and simple tcs 4050m is a compact, lightweight portable calibrator capable of measuring and simulating mv and ma signals. This simple to use calibrator has membrane keys offering drift-free performance and stability even in hostile environments. Assured usability the instrument is powered with long-lasting rechargeable battery of standard ‘aa’ size. It is supplied with an external charger and leather carrying case for hands-off field work. Calibration certificates traceable to national standards are provided with all calibrators.

Our company is the major in offering Precision Loop Calibrator to the clients. This product is made using premium grade components and sophisticated technology and machines at unit under the professional guidance and supervision. Precision Loop Calibrator is used in various industries to meet the demands of variegated clients. This product is used in various industries. Offered range is widely appreciated for several attributes such as easy to operate and long functional life at clients end. This product can be customized as per specification of the clients.

• Weight: 750gm Wo Batteries
• Pay Mode Terms: T/T (Bank Transfer)
• Brand Name: Gipitronix
• Source Capability: Up to 25 mA in 600 or 20mA in 800
• Source Mode: Up to 15V in 600ohm or 20V in 2000ohm
• Model: Unical 38531
• Power Supply: 6 Batteries
• Input Power: 230VAC 50Hz
• Dimension: 200 125 55 mm
• Accuracy: 0.02 of rgd +- 0.01% FS +- 2 dgt
• DC Voltage Range: 0 to 20V
• Current Output: 0 to 20 mA

• Resolution: 0.01 mA
• Accuracy: ± 0.1 % F.S.D. ± 1 digit
• Display: LCD; 3½ digits 0.5
• Display range: 0...19.99 mA
• Temp. effect: ± 0.01% per °C
• Source & 2-wire Transmitter Simulation Read range: 4-20 mA continuous

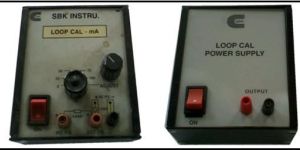

Description 4-20 mA Loop Analyser, IT52.51 is a versatile portable instrument for rapid checking & simulation of 2 wire Transmitters and checking Indicators, Controllers, Recorders, Current alarms, Data Loggers, Final control elements & Computers etc. operating on 4-20 mA DC input/output. IT52.51 with its built-in power source and LCD display has four modes of operation, viz. Normal Source, 2-wire Transmitter Simulation, Normal Read and 2-wire Transmitter Read. Normal Source mode provides 4-20 mA DC output. 2-wire Transmitter Simulation mode modulates external power to pass 4-20 mA in the external loop. In these two modes, "QUICK CHECK" switch provides instant 4 mA & 20 mA output; for rapid check of zero & span end points. "QUICK CHECK" switch also has an intermediate Dial position; selection of this position allows precise intermediate settings between 4-19.99 mA on 10 turn potentiometer operated by a separate knob. Normal Read mode measures input currents fed to the Analyser. 2-wire Transmitter Read mode supplies 27 Volts in series with the internal measuring circuit at the output terminals and measures 2-wire Transmitter output, thus eliminating need of external power supply.   FEATURES Tests/ calibrates instruments operating on 4-20 mA DC signal Multifunction capability: Sources 4-20 mA; Reads 0-20 mA; Simulates 2-wireTransmitter and powers 2 Wire Transmitter and measures its mA output in the range 4-20 mA High accuracy : 0.1% FSD - Bench top accuracy in a Tool Box Calibrator Instant check of 4 mA & 20 mA end points; and also fast check of any intermediate point in both Source & 2-wire Transmitter simulate mode Circuit design ensures stability of set current regardless of changes in voltage and load Large clear 3½ digit LCD, 0.5" high Portable, rugged and dry cell powered - Ideal for use in field & control room  APPLICATIONS Used for rapid checking & simulation of 2 wire transmitters and checking Indicators, Controllers, Recorders, Current alarms, Data Loggers, Final control elements & computers etc.

The Meriam M334 is a state of the art, highly reliable, rugged and easy to use milliamp calibrator. It has the functions necessary to perform all the required maintenance and calibration tasks of virtually any 4-20mA loop. It provides source and read milliamp functions along with power and measure and two wire transmitter simulations. In addition it can measure DC Voltage for troubleshooting power supplies.

• Feature: High performance, Exceptional durability ,Precision design

• Feature: • 4-20mA (1kΩ Load, 24V Loop Output).• 0-20mA and 0-24mA output ranges.• 0.025% Basic Accuracy.• Auto Ramp and Step functions.• 0-100% output with percentage step option.
• • Operating Temperature: 0º C - 50º C
• • Operating Humidity: ≤80% R.H.
• • Storage Temperature: -10º C - 60º C
• • Storage Humidity: ≤85% R.H.
• • Power Supply: 9V x 1 alkaline battery
• • Dimensions: 160 (L) x 100 (W) x 38 (D) mm
• • Weight: Approx. 350g (battery included)

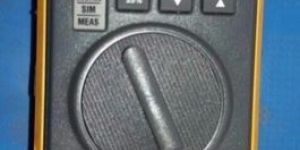

• Brand Name: Fluke
• Power: 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
• Feature: mA sourcing, simulation and measurement. 0.02% accuracy and 0.001 mA resolution. Simultaneous mA and % of span display. Selectable step or ramp outputs. 24 V Loop supply with mA measure.
• Pay Mode Terms: T/T (Bank Transfer)
• Model Number/Name: 705
• Relative Humidity: 95 % (10 DegreeC to 30 DegreeC); 75 % (30 DegreeC to 40 DegreeC); 45 % (40 DegreeC to 50 DegreeC); 35 % (50 DegreeC to 55 DegreeC)
• Maximum Voltage: 30 Volts
• Non Operating Temperature: -4 deg C to 60 deg C
• Operating Temperature: 10 deg C to 55 deg C
• Operating Altitude: 3000 m max
• Shock: 1 m drop test
• Vibration: Random, 2 g, 5 Hz to 500 Hz
• EMC: EN50082-11992 and EN550221994 Class B
• Warranty: Three Years

INTRODUCTION The SIKA UC mAV is a hand-held process calibrator (conforming toEC standards). It is more particularly intended for calibration and maintenance. It can measure and generate electrical quantities either on siteor in the laboratory. It fulfils voltage and current measuring and generation functions (DC or LF rampsignals) and a continuity test (on passive loop). Owing to its monitoring (regulation) mechanism in transmission mode, the instrument cannot take measurements and transmit simultaneously. APPLICATION Display of results in accordance with a linear conversion law or not. Generation of increments, single or cyclic ramp signals. Its utilisation is facilitated by a series of improvements Fast access to all the functions. Intuitive user interface. Graphic display of 160x160 pixels Connection by 4-mm safety sockets. Powered by 4 AA batteries or a rechargeable battery pack with fast internal charger (Option). The instrument is enclosed in an ABS casing with an elastomer sheath. CHARACTERISTICS Hand-held instrument energized by 4 AA batteries (1.7 Ah Ni-MH battery pack on option). Wrist-strap for carrying and use on sites Graphic 160 x 160 pixel liquid crystal display (LCD). Choice of language of the messages and programming functions, ranges and parameters on 6-key keypad + 1 navigator. Display backlighting accessible via the keypad, with the possibility of programming automatic extinction after a given period of inactivity. Presentation: ABS casing (elastomer sheath on option). Dimensions: 157 mm x 85 mm x 45 mm (without sheath). Weight: 306 g without sheath. Sealing IP54 in accordance with standard EN 60529 UC mAV is compatible with HART transmitters by inserting a 250 resistance which doesn't disturb digital data transfer.

KM CAL 700VOLT / mA CALIBRATOR SOURCE & MEASURESKusam Meco Calibrators ACCESSORIES :Double insulation Test Leads , 2 Crocodile Clips, DC 1.5V (AAA) Battery x 6,Carrying Case, User’s Manual. SKU: KMCAL700Category: CalibratorsTags: loop calibrators, calibration instruments, instrument calibrator,km cal 700, Kusam meco calibrators, VOLT / mA CALIBRATOR SOURCE MEASURES

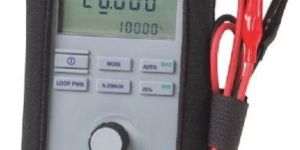

The precision loop calibrator cep1000 provides significantly extended performance when compared to any competitive calibrator. With an accuracy of 0.015 % of reading, with 0.001 ma resolution, the cep1000 has the highest accuracy in its class. Features such as a “% error” function, which eliminates manual error calculation and allows the display of the actual versus ideal error at any calibration point, put the cep1000 way beyond similar instruments. The cep1000 can simulate, power, and measure two-wire transmitters. With automatic step and ramp functions, the cep1000 enables remote calibration of 4 .. 20 ma devices. Intuitive handling a handful of clearly marked keys provide access to the full functionality of the unit. A pair of cursor keys allows rapid selection of the decade to be modified, while a large knob allows precise and rapid adjustment to any value needed. A single mode key cycles through and selects the source, simulate, and measure modes.

• Accuracy: 0.01%

The UPS III Loop Calibrator is a rugged and extremely compact loop calibrator. Measuring 3 in x 5 in (77 mm x 129 mm) and weighing just 9.7 oz (275 g), it fits comfortably in a shirt pocket. It is an essential tool for loop testing, instrument maintenance and valve set-up, with an easy to read display and simple to use time saving features.
