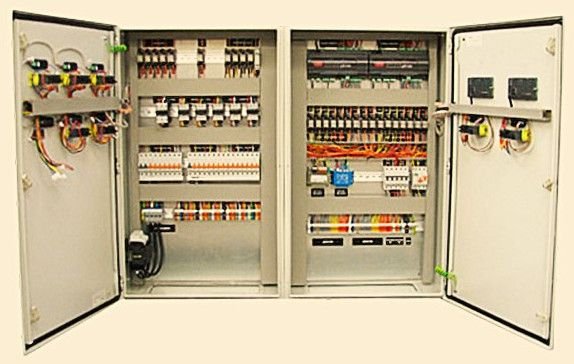

We have a range of timers and controllers depending on the application. Control Panels are designed as per customer requirement. Common Applications   Lubrication Systems

The Electronic Timer are used for time controlling of lubrication systems. There are different models used for different applications. Following models are under our regular production.

• Voltage: 220 V AC
• Brand Name: Mark
• On time: 5 second fixed
• Off time: 1 to 128 minute

An Automated Lubrication System also referred to as a Centralized Lubrication System delivers a controlled amount of lubricant (either grease or oil) to multiple, specific locations on a machine while the machine is operating at specific times from a central location. A typical automated system (grease or oil) includes a pump, controllertimer, lubricant supply line, metering devices and lubricant feed lines. Many of Standard Lubrication System Manufacturer’s pumps integrate the reservoir, controller and fault monitor capability in one unit for design simplicity and installation cost reduction.

• Power Supply: 220 V AC + - 10%, 50 Hz
• OutPut: 220 V AC

Electronic timers are used to maintain the Lubrication cycle in automatic single shot Lubrication Units. It is basically ON - OFF timer with following technical specifications.

• Type: Channel Mounted
• Brand Name: Pnjcs
• Rated Voltage: 230vac
• Rated Current: 5amp max
• Display Type: Led 7 segment
• Power Supply: 230vac
• Voltage (V): 230vac
• .5kg: 72x72x130mm

• Operating Voltage: 110 or 240 V AC (User Selectable) / 50 Hz.

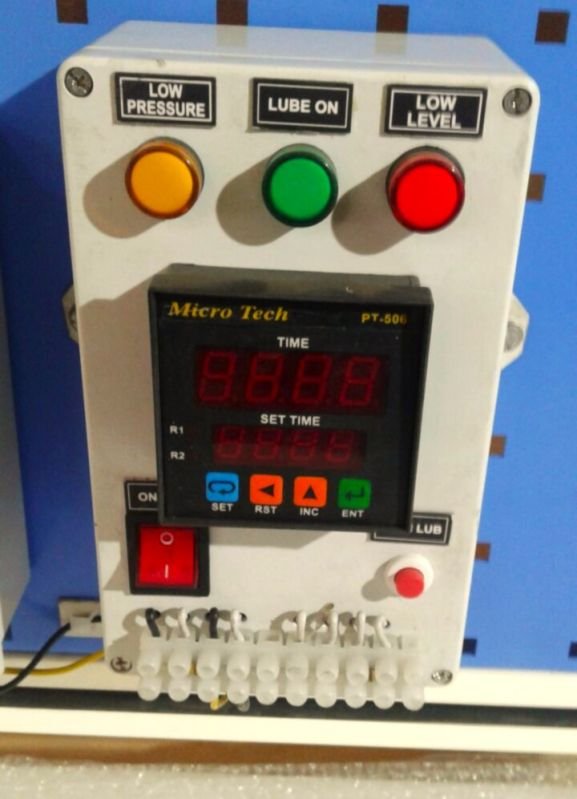

Electronic Controller are high performance solid state instruments, intended for automatic control and monitoring of CENLUB centralised lubrication systems.It provides precision control of lubrication cycle. It also has the facility of monitoring oil pressure and low oil level in the reservoir. Visual indications are given on the front panel to give "lub fault" or "fill oil" display.

• Input: 220V AC,/110 VAC
• Indication: Main On, Lub. On

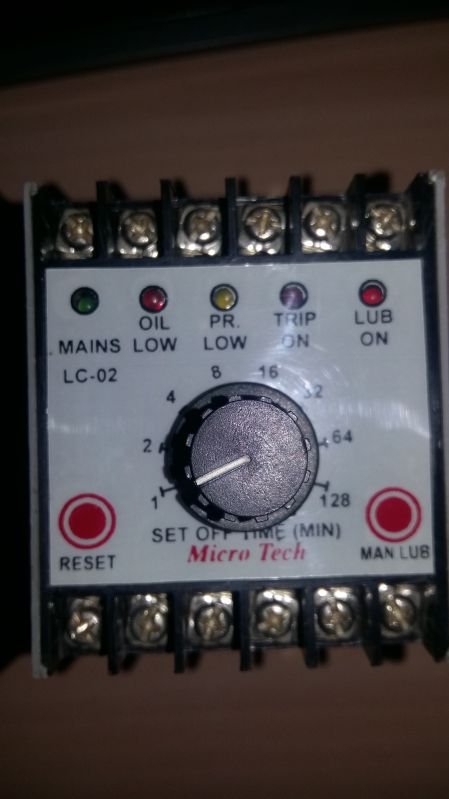

Electronic Lubrication timer with ON TIME 5 sec. (fixed) OFF TIME 1, 2, 4, 8, 16, 32, 64 & 128 min. (adjustable) with the help of Rotary Switch. A 8 LED's bar makes possible to read out the time over with the rate of 1 minute.

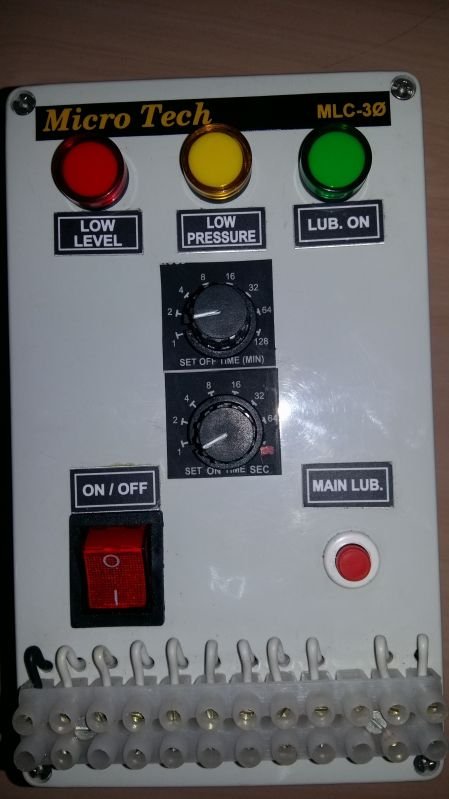

DMEC-501 Panel Mount Type, ON TIME 5 sec. (fixed), OFF TIME 1, 2, 4, 8, 16, 32, 64, 128 min. (adjustable) with the help of Rotary Switch. 8 LED's bar makes possible to read out the time over with the resolution of 1 minute. DMEC - 502Wall/ Din Rail Mount Type, ON TIME 5 sec. ( fixed), OFF TIME 1, 2, 4, 8, 16, 32, 64,128 min. (adjustable) with the help for Rotary Switch. 8 LED's bar makes possible to read out the time over with the resolution of 1 minute.DMEC - 5/2-120 (B.I.C.)Wall Mount Type, ON TIME 5 sec. (fixed) and OFF TIME 1, 2, 4, 8, 16, 32, 64,128 min. (adjustable) Inching Switch for manual Lubrication. Built in Contactor.fuse holder Main on Lubrication on LOW LEVEL LOW PRESSURE INDICATION.
