Magnet Switch Dealers

We are an acclaimed manufacturer, exporter and suppliers of Displacer Type Magnetic Level Liquid Switch in Maharashtra, India. This Level Liquid switch is reliable and cost effective. The product offers a choice of alarm and control configurations and is well suited for both simple and complex applications. This switch is used in process industry, cooling tower, water treatment, sump, reservoir, building automation & filtration systems.   Details : Reliable & cost effective based on buoyancy principle.  They offer a choice of alarm and control configurations and well suited for both simple & complex applications. Range - upto 15 mtrs Density - ≥0.8 g/cm3 Wtd Parts - SS304/316, PP or PVDF Max Temp - 300oC Max Pressure - 40Kg/cm2 Contacts - 5A, 250VAC x 2SPDT Enclosure     - Cast Al x IP66, Ex-P IIB/C Preset Levels - One to Four Applications : Large Sumps & Fuel Tanks, Boiler Feed Water, Waste Water & Sewage, Interface Liquids, Petrochemical, Nuclear Power & Generator Sealing Liquid.

BERNSTEIN offers electromechanical reed contact magnetic switches and electronic versions which operate according to the Hall and magnetoresistive principle. The electronic versions are characterised by their enhanced mechanical properties (extremely high resistance to vibration, shock or impact) and are not prone to wear in operation. Thanks to the use of only one single “active” component (reed contact), “traditional” electromechanical magnetic switches are extremely reliable in operation. The universal current capability and low procurement costs allow these switches to be used in a wide range of applications.

• Size Collar: 50mm x 13mm x2mm; 32mm x 9mm x 8mm
• Hole Gap: 40mm
• Size of Screw: 33mm with head of 5mm
• Operating Gap Minimum: 13mm (approx.)
• Contact Rating: 100 VDC, 0.5A, 10W
• Contact Type: NO or NC
• Wire Size: 15 inches long wire
• Plastic Case Material: ABS resin 1st grade

Features: Highly durable Flawless finish Easy installation

Owing to our rich industry experience, we are reckoned among the nonpareil Manufacturers, Suppliers and Exporters of Top Mounted Magnetic Level Switches from Maharashtra. The Level Switches we make available detects when a certain predefined level is reached. We maintain a large stock of the Magnetic Level Switches, to cater the bulk and urgent requirements of the buyers. The entire range of the Level Switches is reasonably priced by us.

We are leading dealer and distributor of Magnetic Contact Switches in Noida, Greater Noida and Ghaziabad. Magnetic Contact Switches can be added to existing wired Alarm Systems. They are ideal for protecting doors, windows and patio doors and any opening device such as a drawer or cupboard for example. In the event of contact being broken then the alarm will be activated immediately. Magnetic Contacts are perfect for use in situations where it is not suitable to fit PIR sensors, for example where there are pets or animals.Magnetic Contact Switches when paired with permanent magnets present an ideal method of sensing and detecting movement, proximity, metal detection, and liquid level and flow measurement.Magnetic Contact Switches come in hundreds of different sizes and shapes to meet a multitude of different application requirements. Reed Sensors are available in contact forms A, B, C, D, & E with power ratings up to 100W. They do well in long operating life applications if switching relatively low voltages and currents with life expectancy up to 1 billion operations.

• Level Switch: Level Sensor
• Magnetic level switch: Side and Top Mounted Level Switch

We are offering side mounted magnetic level switches. “kabir” make magnetic level switches is specially suitable for high and low level signalization or automatic level control (by starting & stopping pumps or opening & closing of valves) in vessels. Horizontal mounting type directly on vessel or on external chamber. Compact & rugged construction consisting of a free moving pivoted float assembly and a switch enclosure in non - magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one carried by the float arm and other by the contact carriers housed in the switch enclosure. A change in liquid level brings the like poles of dual magnets opposite to each other and resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is glandless, leaving no scope for leakages from vessel into switch housing. These switches are manufactured in various materials, enclosures & special features to suit broad range of media applications. They are designed to provide high repeatability and to minimizes effects of shock, vibration & pressure. Installation:- mounted internally or externally through a chamber. External mounting is resorted to, where space is a limiting factor or mechanical devices like stirrers operate within the tank. Besides, in applications like boilers, reaction kettles etc., with external mounting, isolating is possible for regular servicing. The switch is normally side-mounted, however for applications like slurry, top installation is preferred. The switch can be wired directly "to make or break electrical circuits", of burners, heaters, motor pumps, alarms and other such electrically operated devices. Wetted parts: moc : s.s.316s.s.304 p.p switch : reed switch micro switch having no+nc+c 230 vac connection : flanges , screwed

ALL CONTROL HAVE BEEN DESIGNED USING MODULAR CONCEPT. STANDARD ASSEMBLIES MAY BE INCORPORATED IN A WIDE VARIETY OF ARRANGEMENTS TO MEET VIRTUALLY ANY CONTROL APPLICATION N ALLOWING MAXIMUM INTERCHANGEABILITY OF ASSEMBLIES. DK'S UNIQUE ENGINEERING & MANUFACTURING CAPABILITY HANDLES YOUR SPECIAL PROCESS REQUIREMENTS PROMPTLY WITH OUT LONG DELAYS AT AN ECONOMICAL COST. THE BASIC OPERATION PRINCIPLE FOR MAGNETIC SWITCH ACTION RESULTS FROM A CHANGE IN LIQUID LEVEL, WHICH MOVES A MAGNETIC ATTRACTION SLEEVE (SS410IMS) INTO THE FIELD OF AN EXTERNALLY LOCATED 'U' MAGNET.

Be it refrigerator or any other type of cooling equipment, this Side Mounted Magnetic Level Switch is designed by applying the leading-edge technological concepts. Also, this Side Mounted Magnetic Level Switch finds use in diverse types of humidifiers. We are a credible name to get premium Side Mounted Magnetic Level Switch. Construction : Float mounted at one end of rigid rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switches contacts across the face changes accordingly Advantages : Simple and proven DesignOperates in most liquidMinimum maintenance Trouble-free operationLow cost of ownership Applications : High Low level signals for alarm Annuciation Safety interlock circuits Automatic Pump Control Solenoid Value Control Prevention of tank overflows Pump safeguard against dry running Order Details : Minimum Order Quantity : 50 PiecesPrice Range : Ranging From 1500 INR to 50,000 INR

• Shape: Rounded
• Packaging Type: Box, Plastic Packet
• Country of Origin: India
• Rust Proof: Yes
• Switch Type: Regular

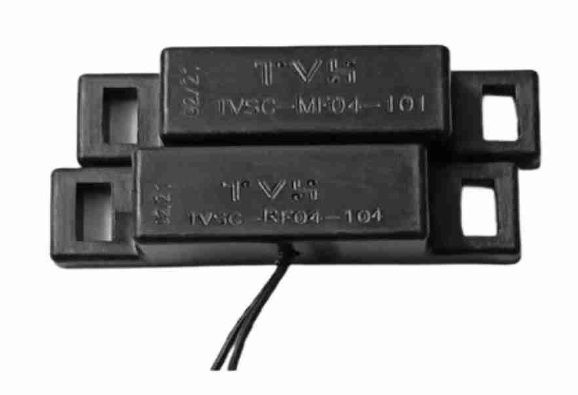

magnetic reed switch

• Material: ABS Plastic / Cast Al
• Country of Origin: Made in India
• Brand Name: SMARTsaa
• Current Rating: 2 Amp at 230 V AC
• Shape: Square
• Sensing Distance: up to 40 mm depends on strength of magnet
• Cable Length: 2 Mtr

We bring forth efficient Magnetic Level Switch for our valued clients. The Magnetic Level Switch consists of non-abrasive float carrying permanent magnet and non-ferrous stem carrying one. Two or multiple reed switches. The float glides along the stem and when the float nears the vicinity of reed switch the magnetic field of permanent magnet forces the contact to close, thereby completing the external electrical circuit. We offer Magnetic Level Switch at reasonable price. Applications : Due to simple design, reliability and with only one moving part i.e., Magnetic float, Magnetic Level Switch finds application in various liquids where accurate and repeated liquid level control is called for. Magnetic Level Switch is suitable for storage tanks, utility tanks, process tanks, hydraulic power pack, centralized lubrication system, fuel tanks, cooling tower, textile, pharmaceuticals and special purpose machines.

• Brand Name: OZO
• Usage: Industrial
• Current Rating: 10 AMPERE
• Model Name/Number: CSK11-A
• Micro Switch Type: Limit
• Material/Body: Plastic

• Brand Name: JELPC
• Size (Inch): 1″
• Product Type: Filter Cartridge
• Model No: FC-6
• Pack Type: Box

We offer an exclusive and wide range of magnetic proximity switch, which senses the presence of magnetic field which gets activated when metal approaches the switch and sends specified signal. Also offered is a non-contact, piston detection sensor for use with steel hydraulic cylinders. These magnetic sensors offer reliable piston magnet detection and are easily mounted, without the need for mounting slots or holes in the cylinder.

  We have established ourselves as leading name in the field of Liquid Magnetic Float Level Switch in the market . Switching is achieved with the unique magnet system, giving snap-action latch-on switching. A switch mechanism is mounted inside the enclosure adjacent to the pressure tube. Vertical movement of the float magnet in the pressure tube simultaneously actuates the secondary and tertiary magnets in the switch mechanism to operate the contacts. Features: Snap-action Accurate mechanism Easy to maintain Other Details: Single, Bilevel and multilevel sensing with potential free contacts Float : SS-316/PU Foam/Poly propylene/BUNA-N Mounting : Flange, Threaded in MS / SS or TC joint Terminations: cable / DIN connectors / RTD head / weather proof or flame proof junction box Suitable upto 90 degree Applications: Scientific laboratory Research centres Chemical industries Technical Specifications: Float : S.S.316 or Teflon Coated or PP / PVDF/Monel Flange : Mini 1” NB to Any Size in C.S. or S.S.304 or S.S.316 or S.S. Lined C.S. Etc Reed Switch with Rhodium Contact SPST / SPDT . Rating : 0.5 Amp @ 240 VAC Switch Housing : Die Cast Aluminium, Weather Proof IP 65( Enclosure ) ( IS – 2147 )  Flame Proof to II A, II B ( IS – 2148 CMRSDhanbad Approved ) Operating Pressure : 10 Kg / Cm2Operating Temp : Maxi. 1000 C. Cable Entry : ½” NPT ( F ) OR ¾” ET ( F ) No of Switches : As Per Customer Requirement Stem Length : Up to 5 Meters

Wide choice of switching functions. Suitable for large tanks up to 15 Mtrs. Site Adjustable switch points. Customised for high temp., high pressure & vacumm service. Reliable performance in turbulent liquids even without still pipes. Enclosure : W-proof- IP- 66, Ex- proof- Gr IIA & IIB or IIC.

• Shape: Rounded
• Design: Standard
• Packaging Type: Box
• Specialities: High Quality
• Mechanical Life: 1 Year
• Phase: Single Phase
• Country of Origin: India
• Corrosion Resistance: Yes
• Rust Proof: Yes
• Switch Type: Regular
• Switch Operation: Two Way
• Switch Size: 1 Module

• Specialities: Rust Proof, High Tensile, High Quality, Heat Resistance
• Design: Standard
• Shape: Rectengular
• Brand Name: KLINGER
• Housing: AISI 316
• Bracket: AISI 316
• Hose Clamp: AISI 316
• Nuts: Brass Nickel Plated
• Cable Gland: Brass Nickel Plated
• Cable Gland Seal: TPE
• Cable: Silicone
• Cable Core: Copper 3 x 0.75 mm2
• Ground Plate: AISI 316
• Mica Sheet: Mica
