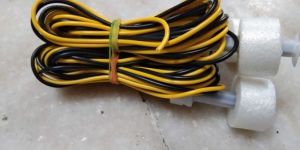

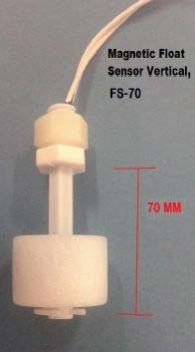

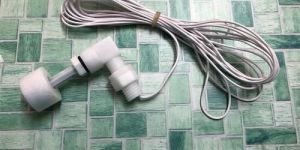

Magnetic Float Sensor Dealers

• Type: Float Sensor
• Color: White
• Condition: New
• Country of Origin: India
• Color: White

  Introduction: a float sensor is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices. The magnetic float sensor is an electromagnetic on/off switch. It helps to sense the level of water present in the overhead tank or sump. These sensors have a permanent magnet in the float. The switch is present in the white stem of the sensor. As the float rises or falls with the level of water in the tank, the switch gets activated by the magnet in the float, thereby the signal which is obtained from the sensors is used along with the water level controllers for controlling the motor pump.

Our company is engaged in offer a wide array of products one of which is Magnetic float sensor. To easily organize and stack the entire lot of products in our warehouse, we have installed an automated warehousing system. It is supervised by our warehousing experts.

• Contact rating: Sensor 230 V AC, 2 A
• Controller: 230 V AC, 5 A
• Output: SPST / SPDT relay (controller)
• Temperature: 150 C
• Pressure: Atm / 10 bar
• Insertion depth: 0.1 to 3 mtr. length
• Wetted parts: SS / Polypropylene

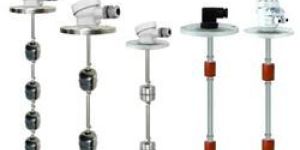

We offer a wide range of Magnetic Floats.Specifications: Float operated level switch/Controller Contact rating: Sensor 230 V AC, 2 A Controller: 230 V AC, 5 A Output: SPST / SPDT relay (controller) Temperature: 150 C Pressure: Atm / 10 bar Insertion depth: 0.1 to 3 mtr. length Wetted parts: SS / Polypropylene Mounting top, multi-point For chemicals with foam, coolant, dyes, edible Condensate, water, oil, acids, alcohol

Infra systems, offers range of Magnetic Float Switches. These are mainly available for Single Level Sensing and Two Level Sensing type. Magnetic Float Switch contacts are SHORT when float is at lowermost level and OPEN when float moves up (towards fixing). This can be used for further interlock for automatic functioning of system. Control Units also offers audio or visual alarms. These are mainly available for Single Level Sensing and Two Level Sensing type. Magnetic Float Switch contacts are SHORT when float is at lowermost level and OPEN when float moves up (towards fixing). As per the level of liquid, float position changes and corresponding output is used for automation Control Unit is also available for automatic functioning of Pump or Feeder with supply 220 volts AC and offers relay output. Relay is ON when level of liquid reaches lower level and gets OFF when level of liquid reaches upper level. This can be used for further interlock for automatic functioning of system. Control Units also offers audio or visual alarms.

• Contact Rating: 12W
• Wire Length: 2mtr
• Accuracy: 99.9%
• Voltage: 220V
• Switching Current: 0.5 Amp DC
• Switching cycles: 0.5 x10 6

• Material: Plastic
• Brand Name: Glass Hi-Tech
• Country of Origin: Made in India
• Mounting Options: Side Mount
• Model Name/Number: GHT5537
• Switching Current: 1A
• Media Type: Dry Material
• Pole And Throw Specification: SPST
• Size: M12

• Material: Stainless Steel
• Brand: Electronic Switches
• Working Temperature: 55 Degree C
• Supply Voltage: 10-24 Volts DC
• Packaging Type: Box
• Current: 500 mA

• Material: Stainless Steel
• Set points: 2 to 4
• Output: SPST, C NO or NC
• Process Connection: Thread or Flange

Not just designing and manufacturing, but we make sure that the packaging of the products is also given the priority. Our packaging experts make use of quality packaging material to deliver the product undamaged. Our pool of veteran professionals makes certain that the quality of all products is superior and exceptional.

Float Sensor is an electrical ONOFF Switch, which operates automatically when liquid level goes up or down with respect to specified level. The Signal thus available from the Float Sensor can be utilized for control of a Motor Pump or an allied electrical element like Solenoid, Lamps, and Relays etc. Float Sensors contain hermetical sealed Reed Switch in the stem and a permanent Magnet in the Float. As the Float rises or falls with the level of liquid the Reed Switch is activated by Magnet in the Float. Hamilton Float Sensors are available in wide range according to operation material mounting methods to suit variety of individual application. These Float sensors are rugged, accurate and reliable in operation.

Float sensor is a device used to detect the level of liquid within a tank. The switch may be used as an indicator, an alarm etc. It helps to sense the level of water present in the overhead tank or sump. Magnetic float sensor is an electromagnetic ONOFF switch. Float Sensors contain hermetical sealed Reed Switch in the stem and a permanent Magnet in the Float. As the Float rises or falls with the level of liquid the Reed Switch is activated by Magnet in the float.

• Switching Voltage: 25 V DC max.
• Temperature: -25 to 75ºC

Magnetic float switches level sensor sare used to detect the senor shave seale dreed switches in a stem with a permanent magnet installed in the float.As float rises or falls, switch is activateddeactivated. Power House float sensor uses unique magnetic push at the floating magnet to respond fast to any change of liquid level.

• Type: Magnetic Float Sensor
• Certification: CE Certified, ISO 9001:2008
• Application: For Water Level Controller
• Color: White
• Frequency: 50Hz
• Driven Type: Electric
• Automation Grade: Automatic
• Material: Plastic

• Type: Magnetic Sensor
• Color: white
• Material: nylon,ss
• Model: wcc001
• Condition: New
• Contact Rating: 6amps
• Wire Length: customised is possible
• Is It Portable: Portable

We are offering magnetic float sensor. Function: magnetic float switches / level sensor sare used to detect the senor shave seale dreed switches in a stem with a permanent magnet installed in the float.as float rises or falls, switch is activated/deactivated. power house float sensor uses unique magnetic push at the floating magnet to respond fast to any change of liquid level. features: unique magnetic lift suitable for water/oil or fuel sensing easy installation can be installed directly on pipe specifications: level measurement type :point level switching capacity :10 w/va switching current :0.5 amp.max. Switching voltage :25 v dc max. Material :engineeringplastic cable :2core temperature :-25 to 75ºc

We have developed state-of-the-art storage facility wherein we keep a large stock. It also prevents our offerings from air, duct, sunlight and other damaging factors. The range we offer to the customers are stringently packed and delivered as per the customers' requirement and convenience. Corrosion, Stain, Sulphationand Ionisation Resistant. Details : Electrically IsolatedSensor. Can work with JalmitraMini, Nano & Jumbo. Works with all liquids.

• PE-101V (Lower & Upper): CE Approved
• Switching Capacity------------10 Watt: Switching Current--------------0.5/1.0 Amp
• Switching Voltage--------------200 VDC: Pressure -------------------------3-5 Bars

We are offering Magnetic Float Sensor, Switches etc.Parasnath Electronics is one of the leading manufacturer supplier and exporter of different types of Proximity Switches such as InductivePhoto-ElectricMagneticCapacitiveLDR type, Float Switches, Flow Switches, Magnetic Door contact for security systems, Signal Isolators and SMPS (switching Mode Power Supplies) etc. We also mfg. Control PCB Card and its sensors for the Vehicle Tracking for Petrol & Diesel trucks etc. Product specification:-Magnetic Float Switches Level Sensors 1. TYPE : Vertical (Upper & Lower Level) Horizontal 2. OUTPUT LOGIC : NO NC NO+NC 3. SENSING : 1 SET, 2 SET & Multi set points 4. MATERIAL : Plastic & Stainless Steel (SS 304 & 316 ) 5. APPROVALS : CE

• Brand Name: Nohken
• Material: stainless steel
• Temperature: + 180 deg C
• Model: FR series
• Pressure: 2Mpa max.

• Features: Accurate Results, Suited for most of the controllers and Indicators, Long Lasting.

Function: Magnetic float switches / level sensor sare used to detect the senor shave seale dreed switches in a stem with a permanent magnet installed in the float.As float rises or falls, switch is activated/deactivated. Power House float sensor uses unique magnetic push at the floating magnet to respond fast to any change of liquid level. Features: ��Unique magnetic lift ��Suitable for water/oil or fuel sensing ��Easy Installation ��Can be installed directly on pipe Specifications: Level Measurement Type :Point Level Switching Capacity :10 W/VA Switching Current :0.5 Amp.max. Switching Voltage :25 V DC max. Material :EngineeringPlastic Cable :2Core Temperature :-25 to 75�ºC

Magnetic float sensor, Automatic Water Level Controller, Wireless Controller

Magnetic Float Level Sensor, Belt Sway Switch, Electro Arts Twilight Switch

Magnetic float sensor, Electronic Transducer, radiation detectors

Magnetic float sensor, Automatic Water Level Controller

Magnetic float sensor, Pump Digital Starter, Liquid Level Indicator

Magnetic float sensor, Horizontal Float Sensor

Magnetic float sensor
