Master Gauges Dealers

• Application: Used to calibrate comparators, snap gages, and other precision measuring instruments
• Material: Steel, Chromed Steel, or Carbide.
• Feature: Strong construction, High strength, Rust resistance
• Price Range: Rs. 550 to 3000
• Class: X, XX or XXX
• Range: 3 -200 mm

Master stainless steel pressure gauges suitable for corrosive environment and gaseous or liquid media that will not obstruct the pressure system. Manufacturer, supplier & exporter in mumbai, india of stainless steel pressure gauges designed for commercial and industrial markets. Stainless steel pressure gauge are manufactured using quality components. We also manufacture bourdon tube pressure gauges manufacturer in india mumbai, triclover pressure gauge and homogenizer pressure gauge.

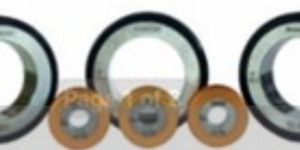

Ring Gauges are ideal for measuring outside diameter of work pieces. A ring gauge is also effective to check out of roundness on the higher side. A master setting ring is used as a standard to set bore gauges, which can then be used to determine deviation from the master size. Product Information :- We offer a choice of choosing between GO and NO-GO both made in Tungsten Carbide/Steel and GO in Tungsten Carbide with NO-GO in Steel. The latter type is more popular owing to the cost advantage. We also manufacture Ring Gauges to relevant I.S., B.S. and DIN standards based on customer requests from 1- 300mm diameter. We are also specialize in non-standard designs such as extra lengths, multiple diameters, air grooves, pilots, depth steps and relieved NO-GO ends.

• Diameter: 1- 300mm

Ring Gauges are ideal for measuring outside diameter of work pieces. A ring gauge is also effective to check out of roundness on the higher side. A master setting ring is used as a standard to set bore gauges, which can then be used to determine deviation from the master size.

Masters form the base standards when it comes to comparative measurement of components on the shop floor. Master Setting Rings and Discs when calibrated become the basic operational standards in general metal working industry.

• Application: Testing & calibration
• Feature: Mirrored Scale Dial & Knife edge pointer
• Nominal Size (mm): 150,200,250
• Scale Range: 0.. Vacuum to 0.6 to 0..1400 kg/cm2
• Accuracy in FSD: 0.25%
• Thread Connection: 3/8", ½ ", BSP & NPT, M-20
• Mounting of Gauge: Direct Bottom
• Case and Bezel: SS 304/Die cast Aluminum
• Pressure Elements: Bourdon Tube
• Diaphragm: Nil
• Wetted Parts: SS 316

Precision Setting Master

• Type: Setting Master
• Brand Name: Unitech
• Unitech: Pune
• Condition: New, Good
• Item Name: OD Setting Master

Backed by an efficient network and trustworthy resources, we have emerged as a dominant supplier of Master Setting Ring Gauges in the market. Supported by an industrious network, our organization is able to serve to patrons all over Pune(India) and other marketplaces without problem. We make available, OD Setting Master, which is manufactured using steel and carbide. The Master has diameter ranging from 1 mm-300 mm.

• Certification: ISO 9001, ISO 14001, ISO 18001
• Country of Origin: India
• Model Number: MAPG
• Brand Name: General
• Accuracy: +/-0.25% FSD

Accuracy class+_ 0.25% fsd rugged construction 1.2 fold over range capability for short duration traceability to nationalinternational standardlaboratory special carrying case (wooden box) with each gauge.

Master Setting Ring Gauges are known for their efficiency and dimensional stability. Master Setting Ring Gauges are non-corrosive and subjected to heat treatment process which includes subzero stabilization cycle. Master Setting Ring Gauges have rigid construction, ensuring high impact resistance and sturdiness. Master Setting Ring Gauges are available in a wide range of dimensions, to suit the diverse requirements of the customers.   Features : Dimensional stability Intricately designed   Specifications : Material : 316L stainless steel Size : 30*25*25cm

We are offering Master Setting Ring Gauges. Range: 2 mm to 450 mm GoNo Go type Range: Up to 100mm.

• Size: 4inch, 6inch, etc.
• Shape: Round,Round
• Feature: Easy To Fit, Perfect Strength
• Quality: Best
• Condition: New

MASS make Master Gauges are designed for use as a reference gauge for recalibrating general service gauges, transmitters and other pressure operated instruments. These gauges are easy to carry for field use and for spot inspections. To make reading easier and faster each pressure gauge is provided with readble dial. Reading error caused by paralax is eliminated by aligning the knife edge tip pointer with its reflection in the mirror band on the gauge

These gauges are used in Laboratories and Industries by Inspecting authorities, for pressure gauge testing and Calibration.   How to Order / Inquiry: Please advise the below Dial Size Connection Mounting Pressure range Application media Or Any other special requirement   Application: Chemical, Pharmaceutical, Petrochemical, Power Plant, Refinery, Paper & Pulp, Sugar, Breweries, Cement Industries, etc.

We are Maharashtra (India)-based Manufacturer and Supplier of Master Setting Rings. Our rich industry experience in this field helps us in presenting genuine and certified Master Setting Rings and that too at the most affordable price. The manufacturing of Setting Rings commences under the watchful supervision of experts; they use only qualitative raw material sourced from renowned vendors. We are capable of entertaining bulk requirements of the customers.Details : Cyclo instruments manufactures master setting rings in the range of 6 to 400 mm & plain gonogo ring gauges in the range of 6 to 250 mm. blank design for both the types is as per i.s.3485-1983. Manufacturing tolerance for master setting rings is as per i.s.3485-1983 & that for plain gonogo rings are as per i.s.3455-1971. Master setting rings are used to set internal diameter setting instruments such as, dial bore gauges; 3 point internal micrometers and dia-test plugs. Plain gonogo rings are plain limit gauges for checking shafts. Made from prime quality alloy steel; these rings are stabilized by subzero process @ -80oc; in a specially designed low temperature test chamber to arrest the dimensional growth. Calibration of these rings is done on carl ziess make horizontal metro scope; accuracy of which is traceable to national standards of length through NPL. Individual gauge is supplied with calibration report. Salient Features : For Setting Internal diameter measuring instruments and for use as GO/NOGO Ring Gauges. Made from Alloy Steel and hardened to 60 HRC Subzero treated for dimensional stability @ -80oC, in numerically controlled Test Chamber. Calibrated at +20oC on Horizontal Metro scope under standard Rooms Conditions. Dimensions traceable to NPL, New Delhi. BLANK DESIGN AS PER I.S. 3485-1983 and GAUGING PRACTICE AS PER I.S. 3455-1971 Manufacturing Range- 5 to 400 mm

• Dial Size: 150 mm
• Accuracy: +/- 0.25% Of FSD
• Connection: 1/2″ Bsp (M)
• Make: Aavad
• Range: 0 To 10 Kg/Cm2 (Least count: 0.1 Kg/Cm2)
• Case & Bezel: SS 304, Bayonet Type
• Socket: SS 304
• Movement: SS 304
• Sensing material: SS 316, Bourdon tube
• Dial: Aluminum, with mirror scale black markings on white background
• Pointer: Aluminum, Black, Knife Edge, Micro-Zero Pointer
• Window: Plain glass
• Blow Out Disc: Neoprene
• Over-range protection: 130% Of FSD
• Mounting: Direct bottom
• Enclosure class: Protection IP-65
