Measuring Pins Dealers

• Material: Steel
• Application: Centre Distances, Used For Checking Bores, Used For Checking Bores
• Features: Excellent strength, Optimal durability, Superior finish
• Hardness: 60+/-2 HRC
• Grade: 1 +/-0.001mm
• Range: 0.5mm - 20mm
• Length: 50mm

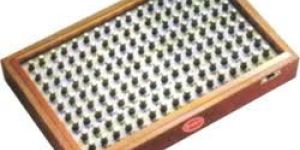

We are well-reputed as one of the major Measuring Pins Suppliers in India. The Carbide Measuring Pins and Steel Measuring Pins are included in the array to meet the varied needs of the clients. The Precision Measuring Pins offered by us are widely used for checking of bores, center. Distances, groove dimensions, inspection of micrometers, gear measurements etc. Some of the notable features of the Measuring Pins are as listed below :   Manufactured as per IS Standards : Measuring pins are manufactured from high quality steel. Hardened, ground & lapped measuring pins are available in standard steps of 0.01, 0.02, 0.05, 0.10mm. Length of measuring pins up to 1.49 mm dia. is 40 mm & above1.50mm dia. it is 50mm. Measuring pins of 70mm in length are available from 1.00 to 10.00 mm dia. Pins from dia. 3mm are marked with size. Loose pins or pins of odd sizes are available on request. Calibration Certificate traceable to National/International Standards issued with each set & losses pins. Pin set supplied in attractive wooden casing. Application : Measuring Pins for checking of bores, centre distances, groove dimensions, inspection of micrometers, gear measurements etc.

Can be supplied for Through Bore Blind Bore applications. Adjustable depth collars can be provided for checking at specific depth. Range : 5mm to 100mm Chrome Plated Steel Range :10mm to 50mm in carbide Please specify the unit for which Air Plug Gauge is required.

• Application: Industrial

Measuring Pins

We are experts in supplying the standard, non-standard & customized of Loose Pin. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers measuring pins 0.5 – 20mm in “Grade 0 tol. ±0.5μm Grade 1 tol. ±1μm, Grade 2 tol. ±2μm” as per IS11103 standard. Length: 40 ≤ 1.5mm, 50 ≥ 1.5mm Step 0.01mm / 0.02mm / 0.05mm with Wooden box Carbide std pin Length 35mm Made of selected alloy steel and tungsten carbide giving high-grade super finish and greater wear resistance. Supplied in set as well as individual pins.

We use en 31, ss 304, hss material. Hardened (60-62hrc) ground & lapped measuring pins are available in standard steps of 0.01, 0.02, 0.05, 0.10 mm & special steps are also available on request. Length of measuring pins up to ø1.49 mm is 40 mm & above ø 1.50mm it is 50mm. Engravings of pins make above ø3 mm as per sizes. Measuring pin set are available with precise std. Wooden box. Special length pins ex. Length 55 mm to 150 mm. Available on request. Loose pins with odd sizes are available on request. Pins with knob sets & loose pins with knob available on request. Technical specifications grade of accuracy diametrical tolerance surface finish hardness a 0.001mm 0.1µm 60 to 62 hrc b 0.002mm 0.1µm 60 to 62 hrc

• Material: Steel
• Hardness: 60+/-2 HRC
• Available in steps: 0.010mm, 0.020mm, 0.050mm
• Grade: 1 +/-0.001mm
• Range: 0.5mm - 20mm
• Length: 50 mm

we are among the prominent manufacturers of quality steel measuring pins, which are widely used in the automobile industry. These pins are designed accurately for measuring the diameter of internal and external gears. The offered pins are designed by our technical professionals and are.

• Production Capacity: 1000/Month

We have installed the latest machines and technologies in the massive warehouse that helps us in sorting out the product range in the dedicated time span. The automated warehouse system has decreased the human interference as well. Broad connectivity, dependable transportation facilities, we deliver the product basket to the customers within the devoted time. Our Steel Measuring Pins have high dimensional accuracy with smooth edges and are available in a quality packaging.

Based in Faridabad(India), our company is actively involved in furnishing varied demands of the buyers. We offer our clients a safe payment procedure as we have both Online and Offline Payment Processing suiting the needs of the clients.

For maximum customer satisfaction, we ensure that the product reaches the customer in the said time slot, owing to our reliable shipping facilities. With the immense knowledge and experience, our company presents a comprehensive array of Measuring Pin in Steel in the national market. Our Steel Measuring Pins are mainly used in electronic boards, circuit boards and other precision engineered machinery manufacturing.

• Set Range (mm): No. of Pins
• 0.50 : 0.99
• 1.00 : 2.00
• 2.01 : 3.00
• 3.01 : 4.00
• 4.01 : 5.00
• 5.01 : 6.00
• 6.01 : 7.00
• 7.01 : 8.00
• 8.01 : 9.00
• 9.01 : 10.00
• 10.01 : 11.00
• 11.01 : 12.00
• 12.01 : 13.00
• 13.01 : 14.00
• 14.01 : 15.00
• 15.01 : 16.00
• 16.01 : 16.75
• 16.76 : 17.50
• 17.51 : 18.25
• 18.26 : 19.00
• 19.01 : 20.00
•  Set Range (MM): No. of Pins
• 0.50 : 1.00
• 1.02 : 3.00
• 3.02 : 5.00
• 5.02 : 7.00
• 7.02 : 10.00
• 10.02 : 12.00
• 12.02 : 14.00
• 14.02 : 16.00
• 16.02 : 17.50
• 17.52 : 19.00
• 19.02 : 20.00
• Set Range (MM): No. of Pins
• 0.50 : 2.00
• 2.05 : 7.00
• 7.05 : 12.00
• 12.05 : 15.00
• 15.05 : 18.00
• 18.05 : 20.00

• Application: Used For Checking Bores, Centre Distances, Etc,Centre Distances, Used For Checking Bores
• Features: Excellent strength, Superior finish, Optimal durability
• Price Range: Rs. 150 to 1500
• Production Capacity: 1000/Month
• Size: 3mm
• Length: 50mm

The Precision Measuring Pins offered by us are widely used for checking of bores, center distances, groove dimensions, inspection of micrometers, gear measurements etc. Product Information :- Planet Metrology manufactures measuring pins from 0.3 – 20mm range in steps 0.005 / 0.010 / 0.020 / 0.050 & 0.1 mm steps. Loose pins are also supplied apart from sets.

• Brand Name: MIKROCHEK

We are mass mfr. of Carbide Measuring Pins.We are offering carbide measuring pins. Applications :- measuring pins for checking of precision bores, thread measurement, inspection of micrometers, centre distances, groove dimensions,Thread measuring wires, gear measurements etc. Technical specifications Grade 1 ± 1 micron Grade 2 ± 2 micron Features supplies in 40 mm length. manufactured as per is standards. Pins with close tolerance of ± 0.5 µm can also be supplied. Pins are available in standard steps of 0.002, 0.01, 0.02, 0.05, 0.10mm measuring pins of extra length are also available from 0.30 to 20.00 mm dia. Loose or set of pins in odd sizes can be supplied. Pin set supplied in attractive wooden casing. Calibration certificate traceable to national standards issued with each set & losses pin.

High Precision Custom Built Pin Sets to suit Customer specified size ranges and incremental steps for use in quality control or checking/setting measuring instruments. The number of pins in a set can range from 6 to 250.   The pins are produced to ANSI Class X (0.00125mm), lapped to 0.03m finish and supplied in a high quality wooden box or cabinet. Gauge life and dimensional stability are guaranteed based on well proven manufacturing processes and a robust quality management system.

• Material: Stainless Steel
• Steps of Diameter: 0.01 mm
• Brand: Tieco
• Surface Finishing: Polished

• Features: Premium quality, Effectiveness, Compatible .

Ms precision is an iso 9001:2008 company, modest manufacturer and supplier of snap gauges, ring gauge, plug gauge, width gauge, slip gauge, height block, measuring pin, taper gauge, flush pin gauge, air gauge, comparator stand. we also leading manufacturer and supplier of thread ring gauge & thread plug gauge(available in metric , unf, unc, bsw, bsf, bsp, bspt, npt,nptf cycle threads ,acme, buttress ,trapezoidal.), thread caliper gauge. ms precision offers customized relation gauge, receiver gauge, position gauge etc(for example taper, chamfer, squareness , concentricity, depth checking, flush pin gauges ,pcd gauge, run out & perpendicularity checking gauge, different distance, height, angle, hole & groove checking gauge & as per drawing etc.)as per customer requirements. Ms precision offer best quality, competitive price & service.

The Cylindrical Measuring Pins are made of superior quality high Carbon Chrome alloy steel, hardened to 58-60 HRC, to provide a high degree of wear resistance. The Measuring Pins are made of high accuracy and have a fine surface finish. Common Uses The Measuring Pins are for checking bores, tapers, distances, thread teeth, and for general gauging purposes. Scope of Supply The Smitra Measuring Pins are manufatured as per IS - 11103 - 1984, with or without aluminium knobs. The measuring pins are supplied in Gauge box for safe keeping.

With diligence, hard work and dedication, we have worked our way up and become established provider in Avadi(India). This is due to our rich industry experience and knowledge; we are able to offer optimum quality Measuring Pins.

Offers Carbide Pins from 0.5-10mm in ' Gr. 1' ( Mfg. Tol +/- 0.001mm ) & 'Gr. 2' (Mfg. Tol +/- 0.002mm) as per IS:11103 standard. Supplied in set/ individual as per customer requirement. Also available in Steel from range 0.5-20mm.

• Material: Stainless Steel
• Usage/Application: Checking Bore
• Tolerance: 0.002 micron
• Water Absorption: 0.13 %

• Size: 0.3 - 20mm

Measuring pins, The Precision Measuring Pins offered by us are widely used for checking of bores, center distances, groove dimensions, inspection of micrometers, gear measurements etc. KCP manufactures measuring pins from 0.3 - 20mm range in steps 0.005 0.010 0.020 0.050 & 0.1 mm steps.
