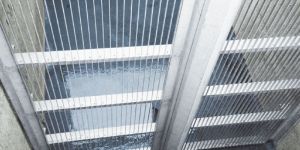

manual bar screen
Get Price Quote
The Manual Bar Screen is used to screen sewage water entering the purification plant, and is normally installed in channels.It is composed of a set of filtering components moved against the stream by two chains equipped with chain stretcher.
Mechanical Bar Screen
850,000 Per Piece
1 Piece (MOQ)
Best Deals from Mechanical Bar Screen

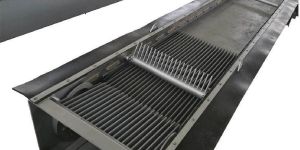

Mechanical Bar Screen
Get Price Quote
1 Piece (MOQ)
Rake screens of various measurements are made of stainless steel AISI 304 or AISI 316 on customer demand. Measurements of the rake screens are chosen relying upon required flow rate, wastewater arrangement and measurements of the channels. The rake screen is a separating mesh comprising of bars introduced into a frame. The bars are produced using primary shapes with a tear drop formed cross segment that improves stream attributes of the filtering mesh. The screen’s filtering mesh can also be made of rectangular or round profile bars. Bar dispersing in the filtering mesh can change from 5 – 100mm for normal hardware or can be changed exclusively. The rectangular edge comprises of two longitudinal sheets associated by cross shafts. The covered hardened steel chains can be moved along polymer guides installed on the longitudinal sheets of the screen. Chain strain is movable. Cross rakes are introduced on the chains for cleaning of the filtering mesh. Chains and rakes are impelled by shaft rotation with drive sprockets situated in the screen top segment. The shaft is driven by a motor. At the screen base, the chain is moved along a pilot slider made of a wear safe polymer material. In this way, there are no pivoting parts in the lowered segment of the screen. The screen is introduced onto a hub of an extraordinary turning prop mounted on the wall of the channel or onto unique stage affixed in the channel while the actual screen can be lifted over the channel for upkeep. In the event that there is an absence of room in a short station without probability of screen lifting, an extraordinary adaptive stage is utilized Operating Principal The rake screen gathers and eliminates solids from wastewater that bigger than bar separating. The solids are regularly taken off from the sifting network by the rake moving them to the top edge of the edge. The solids are then eliminated from the rake by methods for a kicker and dispatched along the gravity slide onto a carrier or into squander container. The screen operation periodicity depends on the chosen equipment automation scheme and defined by technological commission results. Advantages of Bar Screen: Protection from mechanical and pressure-driven over-burdens because of high tensile design in correlation with different kinds of mechanized screens High hydraulic efficiency is achieved by using tear-shaped bars that cause a pressure gradient to the mesh and across the bar spacing The tear molded profile also shields the screen from waste sticking inside the filtering mesh. By utilizing this plan, such blockages can be eliminated by rakes, permitting the screen work uninhibitedly; High dependability, accomplished by the shortfall of the turning parts in the submersible part Submersible parts like packaging, bars, chains and rakes are made of tempered steel to improve consumption obstruction in forceful conditions of wastewater; Improved ergonomics: the practicality of the screen because of openness of the principle units inactivity and screen lifting without demounting. Automation : Screen automation is possible as per various boundaries: Timespan. Wastewater level contrast upstream and downstream of the screen. Any modified program. Alert frameworks are accommodated the typical activity sign, the crisis stops, the wastewater high level in the channel and others. It is conceivable to move gear status information to a more significant level automated process control framework relying upon the customer’s necessities. The screen is provided with a security device jet lever to evade harm to the screen, for example, chain extending or breaking. The security gadget and stops the screen activity in case of any jam or mechanical hindrance to the chain development. Light and sound alerts turn on all the while when the safety device activates. The screens along with a conveyer, compacting press and slide doors are remembered for an elite complex for mechanical wastewater treatment. Outfitting the control system with programmable modules makes it conceivable to coordinate complex sub systems into one system with a common control centre and remote dispatching.
Mechanical Screen
Get Price Quote
5 Piece (MOQ)

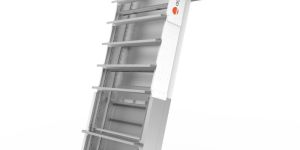

Mechanical Bar Screen
350,000 - 4,850,000 Per piece
1 Set (MOQ)
Mechanical Bar Screen
65,000 - 350,000 Per
1 Piece (MOQ)
Bar Screen
Get Price Quote
1 Piece (MOQ)
0.0
View Profile
Curved Screen
150,000 - 5,000,000 Per Piece
1 Piece(s) (MOQ)
0.0
View Profile
Mechanical Bar Screen
500,000 Per number
0.0
View Profile
Thick Film Screen
Get Price Quote
mechanical fine bar screen
Get Price Quote
Our max clean range of Mechanical Fine Bar Screens is an effective solution for the primary unit screening requirements. These Mechanical Fine Bar Screens are made from SS 316 & SS 304 materials, and are fitted with specially laser cut screen bars. They are operated by a power efficient 1 HP hydraulic power pack, and consist of single cylinder drive and two cylinder weight management system for smooth operations. The operation of these Mechanical Fine Bar Screens is controlled by control panel with timer as well as ultrasonic level sensing option which are in line with prevalent standards. Mechanical Fine Bar Screen operates using two sets of fixed and moving bars which rotate cyclically discharging screened debris from one step to the next,
Waste water Bar screen
100,000 Per Piece
Owing to the changing and specific needs of customers, we provide a large array of Wastewater Bar Screens. In the field of water management, our products offer a wide range of coarse and fine screen which are essentially a part of the sewage treatment plants and effluent treatment plants. The technology incorporates screening of influence in sewage treatment plants as primary treatment. The primary objective of these products are to remove (screen) considerable amounts of waste such as sand, gravel, cotton buds, plastic bags and pouches, floating rags etc. The process ensures very high capture rate of materials screened before it proceeds for further primary treatments. The design data offers flexibility by proper positioning of screens at required degrees of inclination. The spacing of bars is the decisive factor in determining the degree of primary treatment. Data Required: Spacing between the bars Channel width Channel height Discharge height Maximum water height In fluent flow in litersec Material of construction Feature: Bar can be replaced individually Simple and rugged construction Heavy accumulation of screening managed easily No moving parts permanently under sewage All parts easily accessible for lubrication of screen Specifications: Automatic Grade: Automatic Bar Spacing: mm Capacity: Immersion of screen
0.0
View Profile
Mechanical Bar Screen
Get Price Quote
1 Piece (MOQ)
Mechanical screen with rakes of bar vertical way and linear in motion. They are installed in the wastewater channel with angle of 70 - 75°. The equipment consists of screen, motorreducer,base frame, chain mechanism, rake and rake cleaning system. The motion is conveyed to the rakes with the help of the chain mechanism. Number of the rakes depends on to the depth of channel and in the consequence of the length of the screen. The smooth running, endless track system employs a gear-driven cleaning rake to carry screenings from the submerged bar rack to a discharge chute for removal – without the use of chains, sprockets, cables or any underwater moving parts. Applications- STP headwork: protect downstream equipment, Pumping stations; flood control; Water intake for remove large debris; Ideal for both municipal and industrial use. Benefits : Above water operation, No submerged moving parts; Flexible & customized design, Heavy duty, wide range,Positive screening discharge.
0.0
View Profile
Mechanical Bar Screen
Get Price Quote
The proclean screens is the latest development in the new generation of fine screens that have unique step shaped laminates. These stepped laminates enable the screen to capture and remove plastics and other solids from any water flow channels. A set of stationary laminates alternates with a set of moving laminates, with the action lifting the screening up to the next stationary step. An upward transfer speed of approximately 1.5mmin is achieved while the screen is operating. The proclean screen is available in 304 and 316 stainless steel and fully assembled ready for installation in the water channel. Over 10 years experience in designing equipment for all conditions ensures that the proclean step screen will be ideally suited for your application.
0.0
View Profile
Sub vertical Mechanical Bar Screens
Get Price Quote
0.0
View Profile
Mechanical Bar Screen
Get Price Quote
Basket Type Wastewater Bar Screen
100,000 Per Piece
0.0
View Profile
Bar Screen
Get Price Quote
We are the supplier of this product. Bar screens are typically at the headworks(entranc of a wastewater treatment plant (WWTP), bar screens are used to remove large objects such as rags, plastics bottles, bricks, solids, and toy action figures from the waste stream
0.0
View Profile

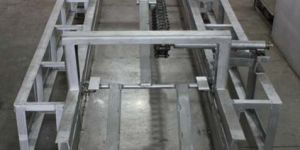

Sub vertical Mechanical Coarse Screen
Get Price Quote
The GVB is a coarse bar screen with cleaning rakes for filtration of waste water. Salient features : The drive steel shaft is assembled on spherical centre bearing, equipped with chain tensioning system. Two stainless steel toothed cleaning rakes. Special device for reversal of rake’s motion. Special chain guide, no bottom sprocket required. Suitable for use in unmanned Plants. Ease of operation. Installation in channels upto 2 meters wide and 10 meters deep. Bar spacing from 12 mm to 60 mm. Capacities upto 2000 m3. MOC carbon steel hot dip galvanised / stainless steel SS304 and 316. Applications : Municipal waste water treatment plants. Industrial waste water treatment plants such as Paper mill, Slaughterhouses, Food industry, Textile industry, Tanneries, Chemical industry.
0.0
View Profile
Multi Rake Screen
Get Price Quote
0.0
View Profile
Thick Film Screens
Get Price Quote
0.0
View Profile
Bar Screen
Get Price Quote
1 Piece(s) (MOQ)
We offer all types of bar screen.
0.0
View Profile
Coarse Screen
1,000,000 Per Piece
0.0
View Profile
Mechanical Bar Screen
Get Price Quote
Mechanical bar screen is an advanced solid-liquid separation device which is widely used in municipal sewage treatment, waterworks, intake of power plant. Meantime, it can also be used as a pre-screening equipment in the wastewater treatment process in textiles, food processing , paper, leather and other industries. Mechanical Bar Screens are typically used to remove large objects such as rags, plastics bottles, bricks, solids and toy action figures from the waste stream entering the treatment plant. We offer Mechanical Bar Screens in various dimensions as per the specifications laid by the customers. We provide these mechanical bar screens in a confine time at industry leading rates to our customers.
0.0
View Profile
JASH HYPERBOLE STATIC SCREENS
Get Price Quote
“Hyperbole” is a manually cleaned very fine screening equipment used to prevent fine sized floating wastes from traveling further in to waste water treatment plants based on MBR or similar technology so as to prevent damage to the membranes. These are also ideal for effluent treatment plants of food processing, textile, pharmaceuticals, chemicals, sugar, breweries etc. Hyperbole screens are static screens and do not require any power.
0.0
View Profile
Mechanical Bar Screen
100,000 Per Piece
0.0
View Profile
Mechanical Bar Screen
Get Price Quote
Mechanical Bar Screen, Sequential Batch Reactor, disc diffusers
0.0
View Profile

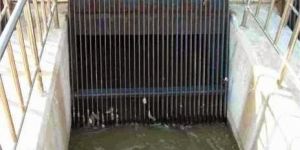

manual bar screen
Get Price Quote
A screen is a device with openings for removing bigger suspended or floating matter in sewage which would otherwise damage equipment or interfere with satisfactory operation of treatment units. Types of ScreensCoarse Screens: Coarse screens also called racks, are usually bar screens, composed of vertical or inclined bars spaced at equal intervals across a channel through which sewage flows. Bar screens with relatively large openings of 75 to 150 mm are provided ahead of pumps, while those ahead of sedimentation tanks have smaller openings of 50 mm.Bar screens are usually hand cleaned and sometimes provided with mechanical devices. These cleaning devices are rakes which periodically sweep the entire screen removing the solids for further processing or disposal. Hand cleaned racks are set usually at an angle of 45° to the horizontal to increase the effective cleaning surface and also facilitate the raking operations. Mechanical cleaned racks are generally erected almost vertically. Such bar screens have openings 25% in excess of the cross section of the sewage channel. Medium Screens: Medium screens have clear openings of 20 to 50 mm.Bar are usually 10 mm thick on the upstream side and taper slightly to the downstream side. The bars used for screens are rectangular in cross section usually about 10 x 50 mm, placed with larger dimension parallel to the flow. Fine Screens: Fine screens are mechanically cleaned devices using perforated plates; woven wire cloth or very closely spaced bars with clear openings of less than 20 mm. Fine screens are not normally suitable for sewage because of clogging possibilities.
0.0
View Profile
Mechanical Bar Screen
Get Price Quote
Mechanical Bar Screen, Mechanical Bar Screen for Waste Water
0.0
View Profile
mechanical operated bar screen
Get Price Quote
mechanical operated bar screen, Diffusers, electric diffusers
