Mechanical Universal Testing Machine Dealers

• Weight: 100-1000kg
• Color: Silver
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 10-15kw
• Warranty: 2 Years

Buyers are free to place orders and can expect timely deliveries of the same. As a dependable name, we make sure that our products are of excellent quality. To make it possible, we use only quality-approved and certified raw materials sourced from reliable vendors.

Ours is an illustrious organization that is engaged in exporting and supplying Mechanical Universal Testing Machines. Mechanical Universal Testing Machine that we offer is used for mechanical and engineering works. We source these machines from trusted and reliable vendors of the market. Besides, we make sure that the Mechanical Universal Testing Machine is timely delivered at customers' destination.Features Open type cross head Hydraulic wedge action grips Load cell technology Long test stroke and test space Straining at variable speeds

Our company has created niche in the field of offering Column Floor Models to the clients. These products are precisely manufactured under observation of genuine vendors by making use of quality material and cutting-edge technology. Column Floor Models are thoroughly checked by quality norms on various quality parameters in order to ensure quality. Offered range is made available in several designer patterns and designs to the customers. Features: Robust Free from flaws Excellent finish Load capacities from 50kN to 300kN Precision backlash free ball screw driven Servo motor based drive system for precise control Testing speed range: 0.0005 to 508 mmmin Position control resolution down to 0.0001mm Long strokes up to 1,600mm Horizontal test space up to 650mm Works out of Single phase 220VAC 32 bit Processor based controller 8kHz servo loop update rates Load accuracy ± 0.5% of read out value Speed & position accuracy ± 0.1% of read out value 0-1.0 KHz data acquisition rates Applications: Tensile, Compression & 3 – Point bend Cyclic load applications Peel, Tear, Friction, Relaxation Adhesives, biomaterials, elastomers, films, packaging, plastics, wires, textiles, wood and many other materials

Loading accuracy as high as ±1%. Training roll autographic recorder supplied as standard to enable study of the behaviour of materials. High reading accuracy due to large size and design of dial. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens. Motorised loading and unloading cycle. Large effective clearance between columns enables testing of standard specimens as well as structures. Simple controls for ease of operation. Safe operation ensured by means of safety devices. Fully enclosed and protected pendulum.

Most simple and Easy to use, Suports Tensile, Compression, Bending and many more Tests, Confirms BIS 1825-1991 and ISO -7500--1986, Built-in Graphic Recorder, Auto Load Selector

Features: • Loading accuracy as high as ±1%.• Straining roll autographic recorder supplied as standard to enable study of    the behaviour of materials.• Motor driven threaded columns for quick effortless adjustment of lower    Crosshead to facilitate rapid fixing of test specimen.• High reading accuracy due to large size and design of dial.• Wide range of standard and special accessories, including load stabilizer.• Easy change from plain to threaded and screwed specimens.• Large effective clearance between columns enables testing of• standard specimens as well as structures.• Simple controls for ease of – operation.• Robust straining frame of an extremely rigid construction.• Safe operation ensured by means of safety devices.• Fully enclosed and protected pendulum. Principal of Operation : Operation of the machines is by hydraulic transmission of load from the test specimen to a separately      housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers  and knife edges, which are prone to wear and damage due to shock on rupture of test pieces.Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder  of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is  also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred t hrough a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represent the absolute load applied on the test specimen.Return movement of the pendulum is effectively damped to absorb energy in the event of sudden  breakage of a specimen. This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two straigh columns. The lower cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured be reveling the cylinder and ram of of any possible side loading by the provision of ball seatings.An elongation scale with a minimum graduation of 1 mm, is provided to measure the deformation of the specimen.   Tension test is conducted by gripping the test specimen between the upper and lower cross-heads,Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table.The lower cross-head can be raised or lowered rapidly by operating the screwed columns thus facilitating ease of fixing of the test specimen.Control Panel : The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer a load indicator system and an autographic recorder. Power Pack :The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth.Hydraulic Controls :Hand operates wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken. Application : ARUN Universal Testing Machine is designed for testing materials and other materials under tension, compression bending, transverse and shear loads.     Principal of Operation : Operation of the machines is by hydraulic transmission of load from the test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces.Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represent the absolute load applied on the test specimen.Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of a specimen Machine consists of Straining Unit :   This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the  ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually  lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two straigh columns.  The lower cross-head is connected to two screwed columns which are driven by a motor. Axial loading  of the ram is ensured be reveling the cylinder and ram of of any possible side loading by the provision  of ball seatings.An elongation scale with a minimum graduation of 1 mm, is provided to measure the deformation of t  the specimen.Tension test is conducted by gripping the test specimen between the upper and lower cross-heads,Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table.The lower cross-head can be raised or lowered rapidly by operating the screwed columns thus facilitating ease of fixing of the test specimen. Control Panel :    The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer a load indicator system and an autographic recorder.Power Pack :The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth.Hydraulic Controls :Hand operates wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken. Load Indicator System :This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporated which automatically cuts out the pump motor when the load range in use is exceeded.Pendulum Dynamometer : This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer system. The piston is constantly rotated to eliminate friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator.Autographic Continuous Roll Load-Elongation Recorder :This unit is of the pen and drum type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates in the ration of either 1:5 or 1:10.

Loading accuracy as high as ± 1%. Straining at variable speeds to suit a wide range of materials. Motor driven threaded columns for quick effortless adjustment of lower cross-head to facilitate rapid fixing of test specimen. Continuous roll autographic recorder supplied as standard to enable study of the behaviour of materials. High reading accuracy due to large size and design of dial. Large effective clearance between columns enables testing of standard specimens as well as structures.Easy change from plain to threaded and screwed specimens. Robust staining frame of an extremely rigid construction. Fully enclosed and protected pendulum. Simple controls for ease of operation.  Safe operation ensured by means of safety devices.  Wide range of standard and optional accessories are available. Chrome Plated Metal Components.  Plain & threaded columns are hard chrome-plated to give the machine a perpetual new look.

The company has come up as a highly acclaimed Manufacturer, Exporter & Supplier of Mechanical Universal Testing Machine. The high quality Mechanical Universal Testing Machine is designed to perfection and is based on the client specifications. The accurate functioning of the Mechanical Universal Testing Machines, as well as their versatility, has made them popular across the globe. Application : Performs tensile, compression, bending and shear tests on metal & other materials, both in the form of test pieces and as finished products Features Continuous roll auto graphic recorder supplied as standard to enable study of the behavior of materialsHigh reading accuracy due to large size and design of dialEasy change from plain to threaded and screwed specimensRobust Straining frame of an extremely rigid constructionMotor driven threaded columns for quick effortless adjustment of lower cross head to facilitate rapid fixing of test specimenSimple controls for ease of operationSafe operation ensured by means of safety devicesFully enclosed & protected pendulumLoading accuracy as high as + 1 %Wide range of standard and special accessories, including load stabilizerLarge effective clearance between columns enables testing of standard specimens as well as structures Principle of Operation Operation of the machine is by hydraulic transmission of load from test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers & knife edges, which are prone to wear & damage due to shock onrupture of test pieces. Load is applied by a hydrostatically lubricated ram. The oil pressure in the main cylinder is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The dynamometer piston exerts a force proportionate to the hydraulic pressure. This force is transferred through a leverage system to a pendulum. Displacement of pendulum actuates the rack and pinion mechanism which operates the load indicating pointer. Return movement of pendulum is effectively damped to absorb energy in the event of sudden breakage of specimen.

Continous roll autographic 'Load Elongation' recorder.Variety of tests - Tension, Compression & Transverse.Optional accessiories include load- stablizer, attachments for Brinell Test, Bend Test & Shear test.

• Brand Name: FIE
• Certification: Iso 9001:2008
• Country of Origin: India

Variety of tests - Tension, Compression & Transverse. Continous roll autographic 'Load Elongation' recorder. Various Models-Max. capacity reading from 100kN to 1000kN. Optional accessories include load- stablizer, attachments for Brinell Test, Bend Test & Shear test. Loading accuracy well within +-1%

• Brand Name: SRI
• Color: Grey
• Automatic Grade: Automatic
• Power: 3-5kw
• Application: Tensile, Bending, Compression Test of Various Material
• Voltage: 440V
• Weight: 1-5 Ton
• Warranty: 1 Year
• Country of Origin: India

SRI make Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also conduct. Loading accuracy well within ±1% from 2% to 100% of capacity of the machine, conforms to IS:1828 / BS:1610 TECHNICAL FEATURES: Micro Processor based electronic panel. Precision strain Gauge type pressure transducer for load measurement. Rotary Encoder with rack for crosshead displacement indication with 0.1mm resolution. Digital Load, Displacement / Extension indication. Rs-232 Com. port for PC interfaces.  Window based software. Real time graph, user friendly software. Data entry for specimen dimensions, serial number, gauge length, Unit selection for load etc. Results include Load vs Displacement Curve, Maximum Load, Maximum. Displacement, U.T.S.- % Elongation. Young’s Modulus & Proof stress if Extensometer is use. Recording, storage & retrieval of results & details.

• Weight: 1-5 Ton
• Voltage: 110V
• Automatic Grade: Automatic
• Power: 1-3kw
• Warranty: 1 Year
• Loading accuracy as high as: + 1%
• Material: Stainless Steel
• Accuracy (%): 99

We are ranked as the finest in the list of Manufactures, Exporters as well as Suppliers of Mechanical Universal Testing Machine in India. Our Universal Testing Machine has following features which enables High Accuracy Testing with Economy, Speed and Versatility. Features Straining at variable speed to suite a wide range of materials Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials Motor driven threaded columns for quick effortless adjustment of lower crosshead to facilitate rapid fixing of test specimen High reading accuracy due to large size and design of dial Wide range of standard and special accessories with load stabilizer Easy change from plain to threaded and screwed specimens Large effective clearance between columns enables testing of standard specimens as well as structures Simples controls for ease of operation Robust straining frame of an extremely rigid construction Safe operation ensured by means of safety devices Fully enclosed and protected pendulum Application Our Universal Testing Machine is designed for testing metals and other materials under tension, compression, bending, transverse and shear loads. Hardness test on metals could also be conducted. Principals of Operation Operation of the Mechanical Universal Testing Machine is hydraulic transmission of load from the test specimen to a separately housed load indicator. The system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydraulic lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to the pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represents the absolute load applied on the test specimen. Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of the specimen. Machine consists of Straining Unit This consists of a hydraulic cylinder motor with chain sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two straight columns. The lower cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured by relieving the cylinder and the ram of any possible side loading by the provision of ball setting. A displacement elongation scale, with a minimum graduation of 1 mm is provided to measure the deformation of the specimen. Tension test is conducted by gripping the test specimen between the upper and lower cross heads. Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table. The lower cross head could be raised or lowered rapidly by operating the screwed columns, thus facilitating ease of fixing of the test specimen. Control Panel The control panel consists of a power pack complete with drive motor and an oil tank, control valves, a pendulum dynamometer, a load indicator system and an autographic recorder. Power Pack The power pack generates the maximum pressure of 200 KGF/cm. The hydraulic pump provides continuously non pulsating oil flow. Hence the load application is very smooth. Hydraulic Controls Hand operated wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable. Incorporated in hydraulic system is a regulating valve, which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken. Load Indicator System This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporate which automatically cuts out the pump motor when the load range in use is exceeded. Pendulum Dynamometer This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurized oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer system. The piston is constantly rotated to eliminate the friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator. Autographic Continuous Roll Load Elongation Recorder This unit is of the Pen & Drum type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates, in the ratio of either 1: 5 or 1: 10. A continuous roll of Graph Paper is stored inside the drum and is easily replaced. Accuracy and Calibration Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of production. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in British Standard 1610: 1992 and IS: 1828 2005 Part 1. Universal Testing Machines comply with grade �A� of BS: 1610: 1992 and class 1 of IS: 1828: 2005 parts 1. An accuracy of + 1% is guaranteed from 20% of the load range to full load. Below 20% of the selected range, the maximum permissible error is 0.2% of the full reading.

In the wake of technological advancement and automation, existing mechanical dial type Universal Testing Machines are getting obsolete. Moreover it takes plenty of time for testing. Plotting of graph of required test in different units is still more difficult. Evaluation of important parameters like Proof stress, Young's modulus is very tedious and time consuming.

Variety of tests - Tension, Compression & Transverse. Continous roll autographic 'Load Elongation' recorder. Various Models-Max. capacity reading from 100kN to 1000kN. Optional accessories include load- stablizer, attachments for Brinell Test, Bend Test & Shear test. Loading accuracy well within ± 1%

Technical Description :       'FIE' Universal Testing Machine series Unitek 9400 are microprocessor based electromechanical machines with Servo drive designed for testing & studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines offer good built in features to offer excellent stand alone performance for standard tests & great flexibility for complex analysis.  These machines confirm to IS, BS & ASTM standards. Main Features       Precision DC servo motor & Drive with ball lead screw given an advanced drive systems with 1 to 1000 standard speed range.     Provision for load cell inchargiability & thereby automatic selection of load full scale & units (kN or N).      Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metalsheets, fiberglass, leathers, springs, cardboards etc     Built-in parallel interface to connect Dot matrix printer for data & curve print-out. Safety interlock for overload & limit switch sensing to ensure protection during test.     Universal applications in R & D, education, quality control & production for test like tensile, compression, bending etc.     Electronic Control Panel (Series Universal 2001)       Microprocessor based panel incorporating state of art technology with following features.     Front panel membrane type keyboard for machine operation with numeric keys for data entry.     7 sigment display.     Auto load cell identification.     Data entry with numeric keyboard of test parameters including speeds, rupture % peak,  preload, modulus data, test data, specimen data etc.     20 input data set storage, 50 result storage. maintains data & results during power off.     Batch test facility for generating batch & statistics result. Using same data set.     Optional remote to ease specimen loading/unloading.     RS232C serial port. Optional windows based software a for.........     On line graph on PC.- Data analysis, statistics with point tracing, superimposing graphs to compare with standard, zooming graph etc.     Printer port for printer interface with       Graph & result printout.     Test certificate printout.     Batch certificate printout.     Simple statistics printout.     Optional accessories         FIE offers wide range of optional accessories along with Unitek 9400 machines to cover almost every material test requirement.     Loaded Cells       FIE offers Strain gauge type Universal load cells in different capacities in the following nominal ranges :     100N, 250N, 500N, 1 kN, 2.5 kN, 5 kN, 10kN, 25kN, 50kN, 100kN Load cells of different capacity can be offered as per customers equirements.     Grip & Clamping Device         A wide range of grips are available from FIE such as      Wedge type grips for flat & round specmens with different inserts.     Vise type grips.     Single threaded grips     Pneumatic grips     Compression plates     Bending fixtures     Shearing attachment     Extenso meters :       Electronic analogue extensometers are offered along with interface card on the control panel to measure extension       Model 1 : EE2 - STRAIN GAUGE ( with 1 micron resolution )     Model2  : LTE800 - DIGITAL TYPE ( with l Omicronresolution )     SERIAL COMMUNICATION & SOFTWARE PACKAGE ON PC       The Universal 2001 series control panel can be hoked to any PC using RS-232 communication port. FIE offers different window based software packages with real time graph on PC to enable the user to effective evaluate different parameters.     The features include :       Real time graph, User friendly software.     Extensive graphics on screen for curve plotting, magnification and zooming.     Software features includes Graph comparison, point tracing facility. Different units selection   for load & displacement.     Statistical evaluation with water fall dig., Mean deviation, frequency distribution, Skew dig.,   Histogram. Also calculates   max. value, min. value, mean value, Variance, Standard Deviation. ( Other statistical parameters on request ). Selectable batch & statistical printouts.     Evaluation of wide range of user selectable parameters such as % elongation, % reduction in  area, young's modules, yield stress, proof stress etc.     Software packages for Shear, Bend, Torsion, Rubber, Testing etc.     Customer built application software to suit customer requirements.

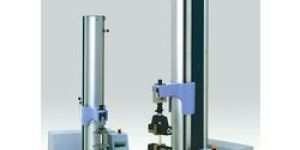

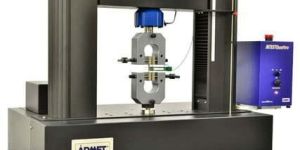

Electro Mechanical Universal Testing Machines UNITEK 9700 Series with Interface & Real Time Graph ( Panel / PC Controlled ) Electro Mechanical Universal Testing Machines UNITEK 9700 Series with Interface & Real Time Graph ( Panel / PC Controlled )   Technical Description : FIE Universal Testing Series Unitek 9700 are microprocessor based Electromechanical machines with Servo drive designed for testing & Studying mechanical behavior of various materials like metals, polymers Etc. These machines offer good built-in features to offer excellent stand alone performance for standard tests & great flexibility for complex analysis. These machines confirm to IS, BS & ASTM standards.   Main Features : • Precision DC Servo motor & drive with ball lead screw gives an advanced drive system with 1 to 1000 standard speed range. • Computerised Microprocessor based instrumentation to measure display & store load & displacement value. • Provision for load cell interchangeability & thereby automatic selection of load full scale. • Speed selection through Data entry or variable speed selector through potentiometer. • Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metalsheets, fiberglass, leathers,    springs, cardboards etc. • Built-in parallel interface to connect printer for data & curve print-out. • Safety interlock for overload & limit switch sensing to ensure protection during test. • Universal applications in R & D, education, quality control & production for test like tensile, compression, bending etc.   Electronic Control Panel : (Series Universal 2001) • Microprocessor based panel incorporating state of art technology with following features. • Front Panel membrane type key board for machine operation with numeric keys for data entry. • 7segment display. • Auto load cell identification. • Data entry with numeric keyboard of test parameters including speeds, rupture % peak, preload, modulus data , test data & specimen data etc. • 20input data set storage, 50 results storage, maintains data & results during power off. • Batch test facility for generating batch & statistics result using same data set. • optional remote to ease specimen loading/unloading. • RS 232C serial port, Optional windows based software available for..... • On line graph on PC. Data analysis, statistics, point tracing superimposing graphs to compare with standard, zooming graph etc.   Printer port for printer interface with ..... • Graph & result printout. • Test certificate printout.• Batch certificate printout. • Simple statistic printout.   Optional Accessories : FIE offers a wide range of optional accessories along with unitek 9700 Machines to cover almost every material test requirement.   Load Cells : FIE offers Strain gauge type Universal load cells in different capacities in the following nominal ranges :  100N, 250N, 1kN, 2.5kN. Load cells of different capacity can be offered as per customers requirements.   Grip & Clamping Devices : A wide range of grips are available from FIE such as : • Vise type grips.• Single threaded grips. • Compression Plates. • Bending Fixtures. • Shearing Attachments.   Extenso meters : Electronic analog extensometers are offered along with interface card on the control panel to measure with a resolution of 1 micron. • Model : EE2-STRAIN GAUGE   • Serial Communication & Software Package on PC The Universal 2001 series control panel can be hooked to any PC using RS-232 communication port. FIE offers different windows based software packages with real time graph on PC to enable the user to effectively evaluate different parameters. The features include : • Real time graph, User friendly software.• Extensive graphics on screen for curve plotting, magnification and zooming. • Software features includes Graph comparison, point tracing facility. Different units selection for load & displacement. • Statistical evaluation with water fall dig., Mean deviation, frequency distribution, Skew dig., Historigram. Also calculates max. value, min. value, mean value,    Variance, Standard Deviation.(Other statistical parameters on request). Selectable batch & statistical printouts. • Evaluation of wide range of user selectable parameters such as % elongation, % reduction in area, young's modulus, yield stress, proof stress etc. • Software packages for Shear, Bend, Torsion, Rubber, Textile etc. • Custom built application software to suit customer requirements.

Supplied with shear test attachment along with a 180o bend test attachment, this Mechanical Universal Testing Machine is simpler to install as compared to its contemporaries. We are a credible Manufacturer, Supplier and Exporter of Mechanical Universal Testing Machine. Also, this Mechanical Universal Testing Machine is simple to operate.

Features : Loading accuracy as high as ±1 %  Straining rate to cover a wide range of materials.  Motorised loading and unloading. High reading accuracy due to large size and design diel. Simple control to facilitate ease of operation.  Fully enclosed and protected load measuring system.  Wide range of standard and special accessories including load stabilizer.  Robust straining frame.  High reading accuracy due to large size and design diel.  Motorised UP/DOWN movement of lower crosshead to enable easy and rapid fixing of test specimen.  Application :Universal Testing Machine is designed to perform Tensile, Compression, Bending and shear tests on metal & Other materials both in the form of test pieces and as finished products. Principle of operation :The test specimen is subjected to load with hydraulic system and is measured precisely with pendulum dynamometer. Load is applied by a hydrostatically lubricated ram.The oil pressure in the main cylinder is transmitted to the cylinder of the pendulum dynamometer housed in the control panel, the dynamometer piston exerts a force proportionate to the hydraulic pessure.This force is transferred through a leverage system to a pendulum. Displacement of pendulum actuates the rack and pinion mechanism which operates the load indicating pointer. Return movement of pendulum is effec- tively damped to absorb energy in the event of sudden breakage of specimen.Machine comprises ofthe following: Strainung Unit : This consists of a hydraulic cylinder & piston mounted on a robust base. The loading frame consists of an upper crosshead, middle crosshead and lower table. The upper crosshead and lower table is connected by means of two plain hard chrome plated columns. The middle cross head is fitted on two hard chrome plated threaded columns. A reduction gear motor drives the chain and sprockets fixed at the bottom of the threaded columns for height adjust- men!. The cylinder and ram is individually lapped to eliminate friction.Axial loading of the system is ensured by provision of a ball seating under the lowertable. An elongation scale with least count of 1 mm is provided for measurement of deformation on various samples. Tensile test is conducted by gripping the test specimen between the upper and middle crosshead.Compression, Transverse, Bending and Shear tests are conducted between the Shear tests are conducted between the middle crosshead and the lower table.  Control Panel : The control panel consists of the hydraulic system .complete with drive motor, oil sump, pendulum dynamometer and the load indicating system. Hydraulic System : The power pack has a directly driven pump which generates a maximum pressure of 200 kgf/cm2. he hydraulic pump producs a continuous non- pulsating oil flow. Hence the load application is very smooth. Oil filter, oil stranier, air breather, oil level indicator and drain plug is provided in the power pack. A pressure compensated flow to the main cylinder. This maintains constant rate of piston movement andhence straining rate is kept constant. This valve is hand operated and gives infinitely variable oil flow to obtain different rates of straining. Pendulum Dynamometer : The oil pressure in the main cylinder actuates the special dynamometer system. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and deflects the pendulum. The piston is constantly rotated to eliminate friction. The system has effective damping arrangement to ensure smooth return of pendulum aftersudden breakage of test piece. This unit permits selection of favourable hydraulic ratios producing relatively small frictional forces. Load Indicating System : This system consists of a large dial and a pointer. Displacement of pendulum actuates the rack and pinion mechanism, which operates the load indicating .pointer. The pointer moves over a large dial indicating the load. A dummy pointer is provided toregister the maximum load reached during the test. Window type dial is provided for easy and clear changing of load range. Load / Elongation Recording System : A continuous roll ( A strip chart) type load-elongation recorder is provided for plotting load-elongation graph. Horizontal movement of the rack produces load ordinate of the diagram and drum rotation to elonga-tion ordinate, in the ratio of either 1:5 or 1:10. Electronic Universal Testing Machine : Construction : AI make electronic Universal Testing machines comprise of a) Loading Unit b) Measuring Control Panel a) Loading Unit : This is similar to standard loading unit of analogue type universal testing machin. In addition to standard features of regular loading unit, a ROTARY ENCODER is attached to the hydraulic ram to get accurate displacement of the ram. b) Measuring Control Panel : This includes,
