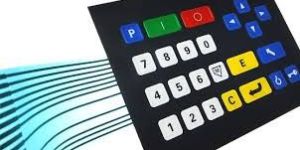

Membrane Switches Dealers

• Material: Autotype Polyester/ Polycarbonate
• Color: Customized
• Country of Origin: Made in India
• Size: Customized
• Brand Name: Linepro Controls Pvt. Ltd.
• Actuator Type: Tactile / Non Tactile
• Layout: Customized

• Wire Entry: 1/2" NPT

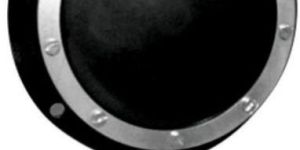

The DK’s Membrane Level Sensor is a simple and economical instrument suitable for the minimum and maximum level control inside silos or hoppers that contain non sticky materials, powders or granules like rice, corns, plastics, coffee, sand, lime, etc. A membrane level sensor provides level indication by detecting pressure applied by the bulk material to the sensing membrane. The unit is installed to a vessel wall so that the membrane is exposed to the material to be sensed. As material contacts the membrane, a force is exerted through the diaphragm to a pressure plate within the level sensor. Physical deflection of the pressure plate actuates an internal micro switch for signaling alarms, lights or PLC inputs. When material recedes from the membrane, a light duty spring returns the pressure plate and internal switch back to their original positions. Humidity and temperature variations do not affect working; the membrane is collision and vibration proof.

• Material: NBR, PVDF
• Certification: CE Certified
• Voltage: 200VDC
• Frequency: 50HZ
• Power: 10-15Amp
• Setting Range: 1500-3000pF

• Type: Membrane Switches

Memtron was established in the year 2000 at Gujarat. We are into manufacturing of Membrane Switches, PCB Based Membrane Keypads, Flexible Membrane Keypads, Vinyl Labels, Dome Labels, Metal Labels, Membrane Overlay and many more. We offer our products with cost effective solutions. We have become a prominent leader in the industry with our wide product extension and designing capabilities. Highest quality labels with beautiful designs attract customers more. We are the first choice amongst our client due to our outstanding customer service, technological intervention in the manufacturing process and a can-do-attitude.

• Color: Black

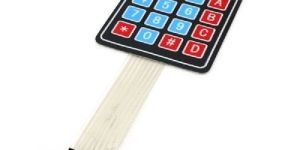

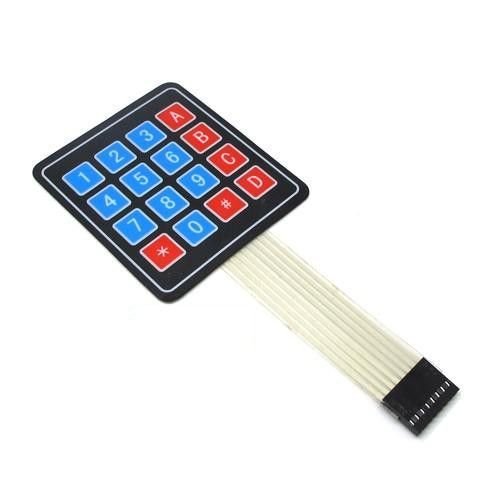

4 x 4 matrix membrane keypad 8 pin connector adhesive mounting maximum circuit rating: 35vDC, 100ma insulation resistance: 100m omh, 100v dielectric withstand: 250vrms (5060hz, 1min) contact bounce:

• Category: Membrane Switch and Capacitive Switch Products
• Industrial: Automation equipment Barcode Scanners Battery chargers Fluid detection Forkl
• Defense: Aviation controls Communication systems Sighting systems Targeting systems

Molex standard membrane switches are thin, low-profile, micro-motion assemblies, with one or more layers of silver or carbon conductors printed on polyester substrate layers. Pressure-sensitive adhesives are used to bond the layers together. Assemblies can be designed as thin as 1.00mm. Tactile metal domes provide the "snap" or tactile feedback and audible sound when the switch is actuated. Available options include non-tactile membrane switches (ex, microwave ovens, treadmills), poly-domes and silicone rubber keypads with carbon or gold contacts. Molex membrane switch assemblies incorporate electronic components, such as LEDs, seven-segment LEDs, photo diodes resistors and capacitors that are integrated to the membrane switch substrate using conductive adhesive technology. Molex’s advanced manufacturing can print double-sided silver circuits producing the equivalent of four layer PCBs or the elimination of printed ‘crossovers’ for environmentally exposed applications. These advances are customized in a variety of configurations to fit increasingly smaller, more demanding and cost competitive applications. For higher level integration, Molex has experience and manufacturing to include copper flex circuits and PCB assemblies, LCDs, plastic housings or metal backers and lenses.

• Material: PVDF
• Voltage: 230VAC.
• Frequency: 60Hz, 50HZ
• Power: 0-5Amp
• temprature: 30- 60 Dig C

Membrane switches are commonly used to enter function commands on many equipment such as cellular phones, remote controls, calculators, machine controls, microwave ovens and kitchen appliances...

• Brand Name: SMARTsaa
• Process Temperature: 300 Degree C
• Mounting Options: Side Mount
• Usage/Application: Boot Level Sensing,Chute Jamming Detection
• Material/Body: Metal

Manufacturing facility was set up in Mankoli, Thane on the outskirts of Mumbai. This is a state-of-the-art, climatically controlled factory with 20000 Sq.ft area, currently operational in 10000 Sq. ft, the remaining area earmarked for future expansion. The company is lead by dynamic Managing Director Paul Malpan. After completing his Engineering degree, Paul Malpan spent 8 fruitful years in research and development in a leading electronic enterprise.

• Brand Name: LBD Robotics PVT LTD

 Pad Size: 68.9 x 76 x 0.8mm  .Cable length: 85mm (include connector) . Connector: dupont 7 pins, 0.1 inch (2.54mm) Pitch . Mount style: Self-Adherence . Max. circuit rating: 35VDC, 100mA /

• Type: Membrane Switches
• Material: Glass, acrylic, polyester, or polycarbonate
• Certification: ISO9001:2015
• temprature: -20 to +40 Degree C
• Brand Name: Rangvishwa
• Application: Electronic Industries
• Color: Multicolor
• Certification: ISO9001:2015
• Keypad Button Material: Touch
• Product: Capacitive Membrane Switches
• Thickness: 0.45-2 mm
• Finish Type: Glossy
• IP Rating: IP67

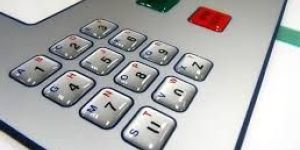

Membrane switches which are very thin and light in weight increase reliability and longevity versus mechanical switches. At chain electronics, membrane switches can be designed to meet your specific performance and graphic needs. The switch design contains a sandwich construction that can be rigid or flexible. Switches can have a variety of colors, and can be backlighted as well.

• Normal sensitivity: 40-45gm
• Membrane material: Neoprene / Silicon
• Max.Working Temperature: -20 deg C to +80 deg C
• Microswitch contacts: 15A, 250v, cos=1
• Max.cable size to be  connected: 2.5mm2
• Cable gland: PG 11/PG 7 (standard)
• Housing: LM6-CAST ALUMINIUM
• Weather protection: IP53
• Weight: 1.2kg (Approx

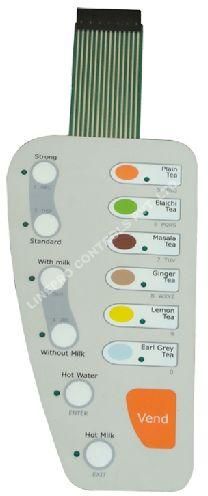

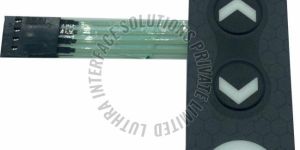

It is a Keypad with flexible tail with without connector as per design and application. The Keys are mounted on multi layers of punched flaxible polymer sheets (typically polyester) sandwiched together. Circuits are silk-screened with conductive silver ink on both the top and bottom membrane layers. Low cost , reliable Keypads, alternative Key-life exceeds - - 5 million Keystrokes, also lighter than a PCB, Flaxible circuits allow Product from which is not possible with rigid PCB. Rim & Pillow Type Emboss available on demand . Male Female Clincher connector are used.

We prepare the complete assembly for your membrane switch application. We regularly conduct projects that include custom design (technical or graphic), PCBs, back plates, custom molded boxes, precision color matching, and complete in-house circuit testing. Our mastery of CAD & CorelDraw ; close-tolerance screen printing and the very latest engineering techniques will keep you on the cutting edge. (Materials can be generated with tolerances of .002.) Our expertise in selecting textures, materials (adhesive layers from Avery and 3M) and tactile feedback options, or our cost-saving design ideas. In addition, we can provide a variety of connectors and terminations. Utilizing the most advanced material technologies - such as durable adhesive layers from Avery and 3M - our experts will craft a precisely engineered graphic overlay product that works in harmony with interior membrane switches.

Membrane switches which are very thin and light in weight increase reliability and longevity versus mechanical switches. At Chain Electronics, membrane switches can be designed to meet your specific performance and graphic needs. The switch design contains a sandwich construction that can be rigid or flexible. Switches can have a variety of colors, and can be backlighted as well. They can also be finished in matte or gloss to match existing enclosures or cabinets. Whatever your requirements are, Chain Electronics is eager to work with you. For further information about Membrane Switches, please contact us.

• Type: Membrane Switches
• Material: NBR, Nylon, PVDF
• Certification: CE Certified, ISO 9001:2008 Certified
• Application: Industrial
• Color: Grey,white,Blue,Black
• Condition: New,Used
• Features: Longer life ,Easy to use ,Fine finishing ,High strength Good Quality

We are the main supplier of this product.

• Type: Matrix Membrane Switch
• Thikness: 1-2 mm
• Size: 4 x 4 mm
• Dishplay Type: Touch

Membrane switches are devices for actuating a circuit and is finding a wide application these days due to their aesthetics, ease in operation, better functioning and durability. The membrane switches are Dust tight, Water resistant, Chemical resistant, Long-lasting, stable operation in wide range of temperatures, aesthetically pleasing, economic and slim-line. It can be customized according to the need with a wide range of features. These days it is in fashion and replacing the old switches. to provide ease, aesthetic look and accuracy in their operation. These membrane switches are made from high quality material and most suitable for use in hi-tech equipments and weapons. These can withstand rough environmental conditions, vibration, and rough use and can be trusted in time of war. Our experts help our customers in choosing the right feature with these membrane switches according to conditions of use and application.

This switch is designed and developed in-house. In order to switch capacitor banks in Manual mode, it is necessary to wire up the panels with multiple auxiliary contactors, push-buttons, indicating lamps, timers, etc. The functionality of all the sundry switchgear is built into this electronic module. The required controlled wiring is reduced to 1/10th of what is required with conventional wiring set-up. Feedback indications are provided with LEDs on the Electronic Manual Switch to confirm the capacitor step status (ON or OFF). Different versions of this electronic manual switch are available, incorporating fault annunciations, and setting features.

• 40-45gm: Neoprene / Silicon
• -20 deg C to +80 deg C: 15A, 250v, cos=1
• 2.5mm2: PG 11/PG 7 (standard)
• LM6-CAST ALUMINIUM: IP53

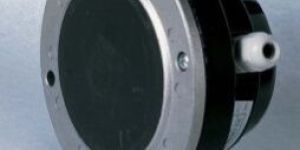

FEATURES : The instrument consists of a microswitch inside a cast aluminium box, covered by a flexible membrane of neoprene or silicon rubber. OPERATION : The device must be mounted so that the flexible membrane is exposed to the product whose level should be controlled in such a way that the product, if present, can press the membrane. When this membrane becomes covered up by the product, it moves under the product pressure, thereby working the microswitch. The device must be connected to control signal or to mechanisms driving the product transportation systems, like feeding, unloading ,etc. APPLICATION : Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remoulding finish to make it absolutely hermetic. INSTALLATION : MODEL DLS-AL-ND (with neoprene diaphragm) or DLS-AL-SD (with silicon rubber diaphragm) level switch is used for indicating, controlling, and regulating the level of granulated or powdered dry materials with a grain diameter up to 30mm and a density of 0.3 to 2.5 g/cm3, flowing through a silo, hopper or conduit. INSTRUCTIONS AND MOUNTING : The device can be installed outside the container by making a hole on the wall, so that the membrane remains exposed to the product inside. Suspended by means of a tube, it can be also installed inside the container. Using adaptors, it can be installed in pipes and conduits. Wherever possible level switch should be mounted on vertical surfaces. By this means ,the product can flow freely downwards, and wrong indications are avoided. It can be mounted on surfaces with a slope of not more than 30degrees from vertical, provided that the product leaves the membrane thoroughly free when flowing along. If maximum levels are to be controlled, the devices must be mounted at such a height that the product overflowing the membrane can exert pressure on this membrane, working the microswitch.

• Brand Name: Molex
• Actuator Type: Tactile
• Packaging Type: Box
• Usage/Application: Industrial
• Display: LED
• Surface Finishing: Coated
• Category: Membrane Switch and Capacitive Switch Products

• Voltage: 50VDC
• Circuit Resistance: 10 - 500 ohm
• Working Current: 100 mA

• Color: Multicolor
• Actuator Type: Tactile
• Size: Customized

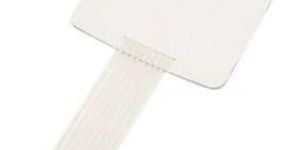

A membrane Keyboard has two screen printed polyester films with conductive ink to form the circuit layer of the Keyboard. Between the two circuits, a die-cut spacer at contact points is placed. To complete the circuit a touch of finger on the die-cut holes allows to close the contact. Upon release, the circuit is broken. User can specify the specific key contacts through a Graphic overlay. For interfacing with the customer’s electronics, the panel back is laminated with an adhesive for mounting on a backer or enclosure which can be terminated to a malefemale clincher connector.
