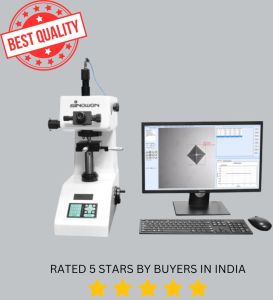

Micro Vickers Hardness Testing Machine Dealers

• Country of Origin: India
• Type: Indentation Hardness Tester
• Brand Name: Gaprio
• Certification: IS 1754:2002 & ISO 6507-2:1997
• Color: White
• Corrosion Resistance: Yes
• Voltage: 220V
• Display Type: Digital
• Low Battery Indicator: Electric
• Driven Type: Electric
• Structure: Vertical
• Operating Type: Automatic
• Warranty: 1 year
• Material: Mild Steel
• Length: 250-300mm
• Packaging Type: Wooden Box
• Dimension (WxDxH): 405 X 290 X 480mm (L X W X H )
• Overall Weight: 45-70 Kg
• Height: 100-150mm
• Usage: Hardness Testing
• Specialities: Easy To Use, Proper Working, High Strength
• Finishing: Chrome Finish
• Accuracy: ± 0.2μm
• Parameter: HV
• Hardness Scale: HV
• Measurement Range: 5-3000 HV
• Load Speed: Automatic
• Load Capacity: 1000 gf
• Test Force: 0.09807, 0.24C52, 0.4904, 0.9807, 1.961, 2.942, 4.904,9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf

• Power: 50 Watts
• Item Code: FMV-1
• Overall Dimensions: 500 L x 500 W x 1450 H mm
• Test Loads: 10 grams to 1000 grams
• Maximum Test height x Throat: 115 x 70 mm
• Least count: 0.01 mm
• Load Accuracy: +/-1%
• Weight of Machine: 110 kg.

• Type: Hardness Testing Machine
• Application: Industrial
• Voltage: 110V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1year
• Weigth: 20-30kg

The finest array of products we deliver is manufactured using only exceptional quality inputs (raw material). We make certain that the material (inputs) used are of high grade. We efficiently cater to the varied demands of the clients and offer them personalized packaging options as well. We ensure that the products are packed sternly using quality packaging material to evade loss.

VickersVickers cum Brinell hardness testers are suitable for testing very wide range of materials. From very soft material such as lead upto hard material like hardened steel, as well as thin metal strips & case hardened jobs can be tested since the load applied is very small. Though these machines are easy to operate it is highly precise. A push button system is provided for the selection of loads. Loading cycle and penetration of the indentor in the job starts after pressing the push button. Unloading is accomplished through handle and diagonaldiameter of impression directly appears on the screen.

• Test Load: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)

Micro Vickers Hardness Tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing. With RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input; hardness value more accurate meets the requirement,Economet VH-1 MD Digital Automatic Turret Micro Vickers Hardness Tester with digital display when the pressure head and the objective to switch to each other, the test point to be automatic positioning precision.

The Vickers hardness test method, also referred to as a microhardness test method, is mostly used for small parts, thin sections, or case depth work. The Vickers method is based on an optical measurement system.

• Brand Name: ROCKWELL

HVS-1000Z Digital Micro Vickers Hardness Tester adopts large LCD Screen to display and menu type structure to choice hardness hardness Scales HV or HK, exchange hardness values among scales, store testing Results and data procession automatically, as well as output by printer, By means of interface of RS-232, the instrument can be linked with computer.Usage Range :Heat treatment layer, carbonized layer, hardened hard layers, superficial Coating, steels, non-ferrous metal, micro and thin shaped components.

10Weight Loads (FM-800) from 1 gf to 3000 gf in various options. Advanced Color LCD Touch Panel Operation and Display. X– Y Coordinate Display interfaced with the Digital Microhead (Option). Automatic Load and Release Method. Hardness Conversion to Other scales. SPC (FM-800)

‘fine spavy associates & engineers pvt. ltd.’ is a trusted name when it comes to premium quality micro-vickers hardness testing machines that are ideally suited to check hardness of finished components like thin sheets, fine wires, springs, pivot bearings, gears, cutting edge of razor blades, drills, file teeth, metallic foils, surgical needles, pen points, etc. the wide demand of our hardness testing machines has placed us among the leading micro-vickers hardness testing machine manufacturers and exporters based in miraj, maharashtra. specifications :- test loads from 10 grams to 1000 gramsmagnifications - 125x, 250x & 625xleast count of 0.01mmprecision diamond indentor for sharp indentations on the specimens / samplesload accuracy well within ± 1% of nominal load valueconforms to is:1754 standards optional accessories :- knoop indentorknoop test blockprecision vicethin specimen holding devicev-shape anvilvertical & horizontal fine specimen holding devicerotary table

We offer Micro Vickers Hardness Testing Machines. MICRO VICKERS HARDNESS TESTING MACHINES ( Model : FMV-1 ) • Suitable for finish components like thin sheets, fine wires, etc. Watch parts like springs, pivot bearings, gears, cutting edge of Razor blades, drills, file teeth, etc. Metallic foils, surgical needles, pen points & so on. • To determine hardness on - surface coatings (like electroplating, etc.), extremely thin case hardened parts, anodized castings of alluminium, shot blasted or rolled faces, etc. • A range of test loads can be used to suit particular application. Test loads from 10 grams to 1000 grams. • Magnifications - 125X, 250X & 625X available. • X-Y stage is provided with least count of 0.01mm, which can move the job as per the requirements. • A precision Diamond Indentor (136° pyramid) is used to make sharp indentations on the specimens samples. • Maximum Test height x Throat : 115 x 70 mm. • Load accuracy well within ± 1% of nominal load value. Machine conforms to IS:1754. • Computerized model is available .Computerized model has built in CCD and suitable advanced software. Hardness will be displayed on computer monitor automatically. Results printout can be taken. • Extra (Optional) accessories like – Knoop Indentor, Knoop test block, Precision vice, Thin specimen holding device, V-shape anvil, Vertical & Horizontal fine specimen holding device, Rotary table, etc. Are available

• Maximum Test Height: 30 mm with clamping vice 50mm without clamping vice
• Machine dimension: L 450 x W 275 x H 535 mm (Approx)

'FIE' Computerised Microvickers Hardness Tester is a simple and accurate means to produce and automatically measure the diamond indentation to give micro hardness numbers directly. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard, and their accurate results are widely acclaimed. These testers strictly conform to IS:1754:2002 and ISO 6507-2:1997.
