Microcontroller Training Kit Dealers

• Brand Name: Embeddinator
• Color: Blue
• Shape: Rectangle
• Weight: 450 g
• Package Dimension: 15x12x5 cm
• Set Content: 19 item
• Package Type: Box

We are offering avr microcontroller self learning kit.thinnkware feel proud to introduce the best product of industry. From now to study about 8051/avr/pic/arduino/robotics you are not supposed to go to classroom or any institution. Just be at home and learn the 8051/avr/pic/arduino/robotics.this product is best suited for students / hobbyist / professionals who wants to learn about 8051 microcontroller & embedded system.

• Group Name: Microprocessor and Microcontroller Lab

Our Microcontroller Trainer Kit is widely used by our customers for studying architecture, for interfacing with a different module. We use high-grade raw materials in the manufacturing process which make our products performance high and its life long. The kit has important features like a backup for RAM, inbuilt power supply 32K bytes, and 32 K bytes of EPROM. It's a high performing kit offering accurate result. Moreover, we accept order in bulk and ensure timely delivery.   Details : 8051 microcontroller trainer kit is most popular trainer kit. Its helps to study the architecture, instruction set of 8051 chip. The kit can be used for interfacing for different module. The kit has capability of interfacing with an PC. The trainer kit perfectly fabricated with the best grade components and raw materials. The trainer kit is best known for its high performance and accurate results.   Features : Built in IC based circuits. Details description of Software command and sample programs. Battery Backup for RAM. Experiment - To study microcontroller programming and instruction set working To study interfacing using microcontroller trainer kit In-built Power supply 32K bytes of RAM and 32K bytes of EPROM. Total memory expandable upto 128K bytes. Control signals available at FRC connector port. 48 programmable Input/ Output lines. RS -232C interface using 8251. Seven segment display and hexadecimal keyboard. Accessories - Complete operating manual with details description of key board and software command. Sample programs Range - 8031 microcontroller, 8051 Microcontroller Trainer with LCD display

• MODEL NO: 8051

Micro-8051 is an 8 bit Microcontroller Trainer kit based on Intel's 8051 Microcontroller from Minmax Electronics. It is the same as 803180C31875189C51 (MCS - 52 Series). It is an universal type kit with 8052 CPU Module plugged onto it. With Micro -8051 one can enter machine -coded programs, check their correctness, execute it and verify the results. It has onboard RS232 interface to download Intel - hex files from PC. The on-board peripherals of Micro - 8051 include 8255) Programmable Peripheral Interface), 8279 (Keyboarddisplay Controller), 8253(Programmable Interval Timer), 8259(Programmable Interrupt Controller), 8251(Programmable Serial Communication Interface) with RS232 drivers 14881489. Micro - 8051 operates from 230 V AC through an external Power Supply Unit.

• Display: 16 X 2 LCD Display Interface
• Keyboard: 4 X 4 Matrix Keyboard Interface
• Clock Frequency: 11.0592 MHz
• Memory Type: Flash Program Memory with ISP and IAP capability
• No of Data Switches: Eight

• Display Type: Analog
• Usage/Application: College Laboratory

Microcontroller Trainer Kits are available with us in the models of VSET-51DK-13, VSET-51INTIG-42, VSET-85TK-33, VSET-458DK-19, VSET-458INTIG-43, and VSET-877DK-27.Our Microcontroller Trainer Kits have inbuilt clock generator, LCD display, keyboard, and power supply. Microcontroller Trainer Kits are widely used to train engineers to develop their software and hardware skills for any industrial process. Models Available : 8085 Microcontroller Trainer Kits : (VSET-85TK-33) 8086 Microcontroller Trainer Kits : (Model : VSET-86TK-47) 8051 Microcontroller Trainer Kit : (VSET-51DK-13) 8051 Microcontroller Trainer Kit : (VSET-51INTIG-42) PIC16F Microcontroller Trainer Kit : (Model: VSET-877DK-27) PIC16F Microcontroller Trainer Kit : (Model : VSET-877INTIG-48) PIC18F Microcontroller Trainer Kit : (Model: VSET-458DK-19) PIC18F Microcontroller Trainer Kit : (Model : VSET-458INTIG-43) ARM7 Microcontroller Trainer Kit : (Model : VSET-2148DK-20) ARM7 Microcontroller Trainer Kit : (Model : VSET-2148INTIG-49)

• Material: Aluminium Alloy
• Brand Name: Tangent
• Automation Type: Automatic
• Color: Grey
• Handle Material: PVC
• Phase: Single Phase

VSET-EK-01 Basic 8051 Microcontroller Trainer Kit is designed for experimental study of 8051 Microcontroller and interfacing of peripherals with the Microcontroller Scope of Learning:- 16 x 2 Character LCD Display Interface. 16 x 2 Character LCD Display and 4x1 Keypad Interface. Onboard Buzzer Interface. Onboard LED Interface. Onboard Relay Interface. Onboard Bicolor LED Interface. 4x4 Matrix Keypad Interface Seven Segment Display Interface. Seven Segment Display and 4x1 Keypad Interface. ADC Interface. DAC Interface. DC Motor Interface. Stepper Motor Interface. Traffic Light Interface Onboard UART Interface.

• Brand Name: Siemens
• Voltage: 220 V
• Automation Type: Semi-Automatic
• Phase: Single Phase
• Power Source: Electric
• Frequency: 50 Hz

• Brand Name: UNICON

Application of 8051 microcontroller trainer 8051 development board has following sections 1. 8051 microcontroller with 4 input ports 2. inbuilt 3 power supplies +5v1a, +12v-500ma, -12v-500ma 3. serial programming through isp interface (max232) 4. display (lcd) section 16x2 5. display led 8 bit with latching output. 6. multiplexed 4 seven segment display 7. input switches push button 4 bit section 8. one reset push button 9. 2 channel (isolated with op-to coupler) relay interface section 10. buzzer section peripherals part no. specifications lcd 16 x 2 character lcd buzzer 5v relay 12v,6a power supplies provided internally voltage rating current rating + 5 v 1a +- 12v 500ma

8051 Development Board   89V51RD2 8 bit microcontroller Used as Programmer as well as Development Board A 9 pin D type female connector for RS232 Serial    i/o interface UART experiments for flash programming Power Connector (+5V and gound) Stepper motor interface A push button switch is for reset 4 push button switches 8 LEDs interfaced 16 switches RTC ( Real Time Clock ) 4 seven segment display ADC ( Analog to Digital Converter )

• Brand Name: TAGLab

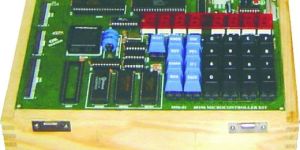

We are offering microcontroller trainer kit. 8051 / 89c51 cpu operating at 10 / 12mhz 16k bytes of eprom with 8k bytes of battery backup ram 48 i/o lines, three channel timer/counter, pc serial interface using usart, interrupt controller six digit seven segment display with 28 keys hex keypad all address, data, control & port lines are available on 40 pins & 20 pins frc connector powerful commands like single stepping, break point, full clock execution, examine memory / register uploading / downloading to & from pc in windows 98 / xp / nt.

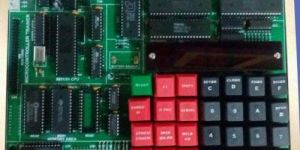

8051 CPU operating @ 10/12 MHz. 8K user RAM with Battery Backup, 16K bytes monitor EPROM Peripherals like 2x 8255 brought, 8253,8251, RS-232 interface 25 Keys Hexadecimal Keyboard and 6 digit 7-segment display using 8279 In-Built Power Supply of +5V/1.5A, ±12V/250mA

• Type: Trainer Kit
• Brand Name: Preino
• Color: Green
• Display Type: Digital
• Usage/Application: Colleges/ Lab.
• Interface: RS- 232 interface using 8251
• Item Code: PTPL-8051
• RAM: On Board 8K/ 32K Ram
• Automation Grade: Semi-Automatic
• CPU: Operating at 10/12 MHz
• Material: Plastic
• Packaging Details: Standard Packing

Based on 89C61X2 Microcontroller ISP Programming facility 8 LEDs to display Digital Output 16 x 2 Alphanumeric LCD, 4 digit Seven Segment Display 24 I/O Lines Provided on 26 pin FRC Connector 24C512 EEPROM (64KB) DS1307 RTC with suitable battery 4 Channel 8bit ADC & 8 bit DAC using PCF8591 Temperature sensor interface LM35 & DS18B20
