Milling Table Dealers

• Country of Origin: Made in India
• Usage/Application: Industrial
• Weight: 16 kg
• Table T-Slot Size: 10 mm
• Diameter of Table Slot: 150 mm

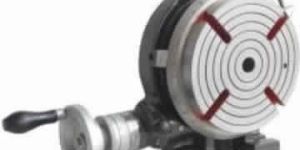

A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. Some rotary tables allow the use of index plates for indexing operations, and some can also be fitted with dividing plates that enable regular work positioning at divisions for which indexing plates are not available. A rotary fixture used in this fashion is more appropriately called a dividing head (indexing head). Features: 1. Size range: 150, 200, 250, & 300 mm 2. High accuracy, easy reading of all dials 3. Efficient lock provided 4.provision for fine zero adjustment when setting work piece. Works as an index center in the vertical position as well as conventional rotary table graduated 360 degree indexing plate provided to enable the user to convert quickly to use indexing plates for fast setting.

Features : High accuracy, easy reading of all dias clear & functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring and spot facing with a milling machine. Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360° Provision for fine adjustments when settings work piece. Efficient lock provided. Worm drive disengagement is quick and precise. An eccentric sleeve with thrust Bearing races encases the worm shaft. End play in worm shaft is adjustable. Application : ROTARY TABLES have a sturdy design to suit many machining operations on Milling Machines including circular cutting, setting angles and indexing. They are available in a range of sizes to suit various machines and machining applications. Construction : The table and base is manufactured from close grain shock resisting Cast Iron dully stress relieved Worm & center table bush made of selected steel. Inspection : Direct reading to 2 minute for size 6",8" and 10" on handwheel scale. Direct reading to 1 minute for size 12",15",18" and 20" onhand wheel scale. ACCURACY:- Maximum error 4 minutes of circulardivision using hand wheels. Table flat to within 0.01 mm / 100 mm. Working surface rotates in its own plane to within 0.030mm. Horizontal and Vertical supporting surface square with0.01mm/100 mm. Centre bush bore is true to table axis within 0.03 mm. Maximum parallelism error through 360° rotation of tableis .025 mm . The Base is provided with two bolt slots in 1115E : Both horizontal slots in & Vertical mounting on machine table. Finish : Hammer tone mid grey

Milling table Industrial Tool Changer (For Semiproduction Machines), Three Dimensional Simulation as well as dynamic machining.

Direct reading to 2 minute for size 6",8" and 10" on hand wheel scale. . Direct reading to 1 minute for size 12",15",18" and 20" on hand wheel scale. . ACCURACY:- Maximum error 4 minutes of circular division using hand wheels. . Table flat to within 0.01 mm / 100 mm. . Working surface rotates in its own plane to within 0.030 mm. . Horizontal and Vertical supporting surface square with 0.01mm/100 mm. . Centre bush bore is true to table axis within 0.03 mm. . rotation of table is .025 mm . . The Base is provided with two bolt slots and both Horizontal & Vertical mounting on Machine Table.

* High accuracy, easy reading of all dias clear & functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring and spot facing with a milling macine.* Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360°Provision for fine adjustments when setting work piece.

We are one-stop-shop from where you can browse wide range of Rotary Milling Tables, vertical rotary table etc. We are one of the paramount horizontal rotary table exporters, incepted in India. We use up-to-date equipments in the entire manufacturing process to ensure the optimum use of available resources. We have abundant experience in the manufacturing of rotary milling tables, vertical rotary table, horizontal rotary table etc.

is graduated 360 degrees on a level skirting to facilitate easy reading, can release worm for rapid indexing. Turntable can be rigidly locked in any position. Micro dialling is arranged for minute reading by a cap which also covers the indexing plate sector from the dust. Dia. 300 mm.

Features:- The Table & Body manufacturered from close grain shock resisting cast iron. The body is provided with two bolt slots in code No. U335 & U337 for mounting on machine Table vertically & Horizontally. Provded with quick & precise disengagement of worm drive. Efficient lock provided. End play in wormshaft is adjustable. An eccentric sleeve with thrust Bearing races in the worm shaft. Provision for fine zero adjusment when setting work piece. Works as an index centre in the vertical position as well as convential Rotary Table grarduated 360° indexing Plate is provided to enable the user to convert quickly to use indexing plates for fast setting. Direct reading to 2 minutes for size 6", 8" & 10" on hand wheel scale. Direct reading to 1 minutes for size 12", 15", 18" & 20" in hand wheel scale. High accuracy, easy reading of all dias clear & functionl arrangement of all operating elements sturdy yet simple good looking practical design. These are widely used for circular cutting, angle setting, boring & spot facing with a milling machine.

For the first time, the highly dynamic DMU 65 monoBLOCK® combines all of the stability benefits of the monoBLOCK® construction with the advantages of a fast swivel rotary table, and is the most compact machine in its class with a 7.5 m2 footprint. Equipped with an optimal and accessible large working area of 735 × 650 × 560 mm (X Y Z), this machine dominates all milling technology disciplines at an exceptionally high level with flexible expansion stages, 3- to 5-axis machines and roughing and finishing operations – A machine for all industries at an attractive price.

ROTARY MILLING TABLE is graduated 360 degrees on a level skirting to facilitate easy reading, can release worm for rapid indexing. Turntable can be rigidly locked in any position. Micro dialling is arranged for minute reading by a cap which also covers the indexing plate sector from the dust. Dia. 300 mm.

Continuous Milling Rotary Table are used in continuous milling machines where the rotary tables rotate continuously at a slow rpm enabling rotary milling of components. Features High Grade C I Construction Dual Lead Worm Gear set High Driving Torque Horizontal Mounting

We are the leading manufacturer in machine tools rotary milling table,precision screwles vice, machine vice, bench vice.

• TABLE SIZE INCH: 3”, 4”, 6”
• TABLE SIZE MM: 75, 100, 150

Available Rotary Milling Table Plain and Horizontal & Vertical System. Available with and without indexing Device. Dual position tables used for indexing, circular cutting, angle setting, boring and spot facing operations, Horizontal and Vertical Rotary Table comes with 360 degree graduations. Features dual positive action locks with extra deep coolant channel. Table clamping surface are precision ground and cylinderical centre bore concentric. Table Surface id accurately Ground and base of the body to ensure smooth Rotation. Gear Ratio 90 : 1S

Features: High Grade C I Construction Dual Lead Worm Gear set High Driving Torque Horizontal Mounting

• Size: 18*5
• Specifications: Size in inches
• 18 x 5: Size of Table (in mm )
• 450 x 125: Length of Stroke (in mm)
• 115: Longitudinal Travel (in mm)
• 230: Cross Travel (in mm)
• 135: Working Area of Table (in mm)
• 400 x 90: Size of T-Slot (in mm)
• 10: Height of Centre (in mm)
• ...: Between Centre (in mm)
• ...: Direct Dividing Plate Division
• ...: Wheel calibration (in inches)
• .001: Height Overall (in mm)
• 140: Weight (app. in Kgs.)

Rotary Milling Table, Wire Drawing Machine, two way tilt vice, Machine Vice

Rotary Milling Table, glass edge polishing machine, Pneumatic Grease Pump
