Milling Tool Dynamometer Dealers

• Range of Force: 100kg in XYZ direction - 200kg in XYZ direction - 500kg in XYZ direction.
• Sensor: 4 Arm Bounded Strain Gauge Component Bridge for Each Force.
• Bridge Resistance: 350 Ohms Typical
• Bridge Voltage: 12 Volts Maximum
• Linearity: 0.1% of Full Scale
• Accuracy: 0.1% of Full Scale
• Mounting: Using Slots Provided
• Additional Facility: Vice 4” Size to Hold the Specimen Optional
• Optional: Data Logger with Computer Interface Software

• Type: Milling Tool Dynamometer
• Certification: ISO 9001:2008
• Condition: New
• Warrenty: 1year
• Automation Grade: Automatic
• Brand Name: TNEI
• Automation Grade: Automatic
• Usage: Laboratory
• Model: DS
• Is It Waterproof: Non Waterproof
• Phase: Single Phase

• Color: White, Blue
• Condition: New
• Country of Origin: Made in India
• Brand Name: EEE
• Features: Facility for easy set up, Compact unit
• Usage/Application: Laboratory

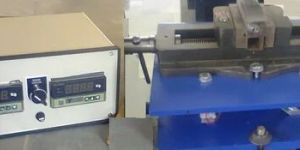

This is simple and easy to understand set up designed to study behavior of cutting forces during Milling Operation. This is based on octagonal ring method, which consist two pairs of octagonal rings with strain gauges mounted on it. These rings are sandwiched between two plates. A machine vice is mounted on top plate to hold job to be machined. A three channel digital force indicator is provided to measure three forces simultaneously. Specifications - Mechanical sensing unit with octagonal ring set and strain gauges. Digital force indicator - 3 channel to measure three forces simultaneously. Range - 0 to 500 Kg Resolution - 1 Kg Balancing pots for initial zero setting. Machine vice to hold job. The set up is calibrated at our works with the help of standard Proving Ring.

• Bridge voltage: 12 volts Maximum..
• Mounting: using slots provided

The milling tool dynamometer can be mounted on the table of the milling machine and any component to be milled can be fixed over the dynamometer. Slots are provided to mount the dynamometer to the milling machine. Holes have been provided on the milling dynamometer to enable any type of component to be fixed on it. The output terminals are provided for the force in XYZ direction acting on the working piece.

SAMS Tool dynamometers to measure cutting forces on various machines like lathe, drill, milling machines. All three direction forces are measured simultaneously and displayed. Tool dynamometers are useful to study, analyse the optimum feed, speed and depth of cut on different materials Product Code : SAMS DYN - 027

A unit consists unit & indicating unit. The machine vice on sensing unit which use strain gauge fixed over octagonal rings to sense the force in three direction viz. 2 components in horizontal directed one vertical.

Lathe Tool Dynamometer(Two component), Drill Tool Dynamometer (Three component), Milling Tool Dynamometer, Grinding Tool Dynamometer.

• Capacity: 500Kg in X,Y & Z direction.
• Power: 230V 50 Hz
• Model: UIM 14
• Display: 3 independent for x,y & z force. LED display 3½ digit.
• Resolution: 1Kg for all the 3 Components.
• Recorder O/P: Analog output for connect any recorder or data logger
• Accessories: Powder coated metal box.400(L)x300(W)x100H : Self centering vise 4”-1No. : Necessary cables provid

Unitech offers tool dynamometers to measure cutting forces on various machines like lathe, drill, milling machines. All three direction forces are measured simultaneously and displayed. Tool dynamometers are useful to study, analyse the optimum feed, speed and depth of cut on different materials. The dynamometers are also available in various capacities as per customer requirement.

Milling tool dynamometer, We also manufacture the equipments and control systems for sugar industries mainly mill automation, boiler instrumentation, prd stations and embibition water control system.

At our sophisticated production unit, this machine is manufactured using supreme quality components and ultra-modern technology by our deft professionals. Provided machine is strictly tested on numerous parameters by our quality auditors to ensures its excellent working condition at the clients' end.
