The vibrating element (tuning fork) is energized piezoelectrically and vibrates at its mechanical resonance frequency. The piezos are separated mechanically and are hence not subject to temperature shock limitations.When the vibrating element is immersed in the product, the vibrating frequency changes. This change is detected by the integrated oscillator and converted into a switching command.

We are offering side mounted miniature level switch. material of construction-ss 316.float diameter-48mm.process connection-1/4\" bsp(m) thread with lock nut.ptfe teflon gasket.mounting hole diameter-13mm.spst reed switch rated 100 va, maximum switching voltage-230 vac/ 300 vdc,maximum switching current-3 amp.with 1 metre long 19/36 swg teflon insulated flying extension leads. Maximum working pressure- 4 kg/sq.cm & temperature-125 deg c.specific gravity-0.5.

• Applications: Water, Hydraulic Oil, Edible Oil, Chemicals & Pharma.
• Probe Length: Up to 1000mm
• Float: PP, SS 316
• Switching rating: 24 V DC, 230VAC
• No. of Switch Levels: 1 to 2
• Mounting: Flange, Threaded
• Material of construction: SS 304, SS 316
• Maximum Temperature: 125oC
• Maximum Pressure: 10kg/cm2

• Probe Length: Up to 1000mm
• Float: PP, SS 316
• Switching Rating: 24 V DC, 230VAC
• No. of Switch Levels: 1 to 2
• Mounting: Flange, Threaded
• Material of construction: SS 304, SS 316
• Maximum Temperature: 125 Degree C
• Maximum Pressure: 10kg/cm2

Applications : Water Diesel Hydraulic Oil Edible Oil Chemicals & Pharma

• Mounting Options: Side Mount
• Float Diameter: 28 mm
• Usage/Application: Industrial
• Material/Body: Plastic
• Quality: Optimum Quality
• MOQ: As per Requirment

• Country of Origin: India
• Material: Brass
• Shape: Rounded
• Color: Grey
• Switch Type: Regular
• Surface Finishing: Polished

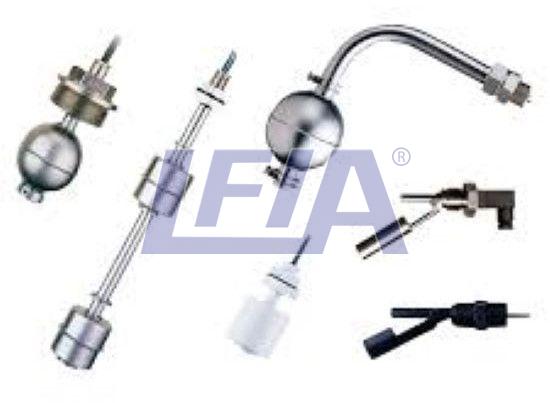

Float type level switches are available in side mounted versions and top mounted versions. These type of level switch are suitable for non-magnetic fluids only. Process connection : flanged, thread end, triclover clamp type or, l shaped clampt type moc of float, stem and stoppers: ss 304 , ss 316, pp, teflon etc. Terminal housing : aluminium housing, flameproof housing, din plug or, flying leads switching contacts : spdt or, spst. Reed type or, micro switch type no. Of switches : in verticle mounted version-one no. And two nos. Are very common. But we can also give multiple level switches in a special case, but in side mounted version-one switch only

• Switch Type: SPST
• Float Diameter: 28mm
• SKU: level switch-1-1-1
• Category: Float Switches
• Type                   : Top mounted
• Process Connection: ¼” BSP
• Rating: 0.5 A @ 230vac / 24vdc
• Lead Wire Length: 1 Mtr
• Max Operating Pressure: 2 Bar
• Max Operating Temp.: 125°C
• Float material: SS316
• Float Length: 28mm
• Total Length: 60mm
• Min Specific Gravity: 1

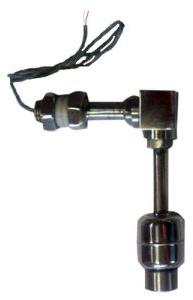

Cirrus – CLS5- Miniature Long bend Hinge Level Switches – are widely used in places where size is constrained. Being compact in size these are used in small tanks & equipments. Hermitically sealed reed switches are enclosed inside the sensor stem, which are actuated by the magnetic floats. Floats are specially designed to encapsulate permanent magnets inside them. These floats traverse up down or tilt outside or on one side of the sensor stem. Contact of in-housed switches changes with movement of floats in correspond to risingfalling of liquid Level inside tank, thus giving potential free contact outputs. The sensors are custom made in top & side mounting versions in SS PP construction. Top mounted models are available in single or multi-Level sensing types in various lengths. Side mounted versions are available in hinge or bend stem construction. The switches are available in variety of constructions, lengths & single or multipoint Level detection.

LIM provide an Economical, rugged, compact & reliable gauge for visual indication of oil level in small tanks.Small storage & Process tanks,Gear box,Oil tanks. Borosilicate Glass,Process Connection Metric thread Pipe thread

• Brand Name: Protocontrol Instruments

Protocontrol offers miniature capacitive type point level switch for sensing level of dry and free flowing solids and powder like cement, milk powder, food grains. It also senses level of clear liquid like water, diesel, oil and plastic granules the change in dielectric is sensed by switch. Due to presence of material, the dielectric will change which is detected by switch to produce op it is low cost level; switch, installation is simple and is extremely compact. find application in packing industries for sensing level of milk, powder, food grains. size of switch : tubular threaded enclosure: m 18 or m 30 size, probe length: 70 mm supply voltage : 230 v ac (two wire switch) 24 v dc (three wire switches) op : ac switch will drive size 0 contactor, while dc switches drive relay or plc gate contacts : solid state no contact rated for 250 m amp mounting : top side temperature : up to 70 degree cent optional : flange, products for high pressure application

Cirrus miniature Switches are widely used in places where size is constrained. Being compact in size these are used in small tanks & equipments. Hermi...
