Miter Gears Dealers

• Country of Origin: India
• Type: Miter
• Material: Metal
• Application: Industrial Use
• Color: Metallic
• Surface Finishing: Polished

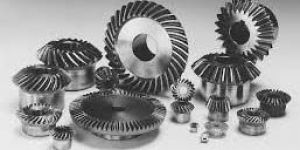

We are offering miter gears. We are engaged in manufacturing a very precision engineered range of miter gears. These gears are an extension of bevel gears family. The range is designed to work in pairs and with both gears having identical dimensions and number of teeth. We offer these miter gears at industry leading prices and in standard and customized solutions. Specifications: *miter gears are designed for applications where the rotational speed of the input and output drives remains constant but the direction changes. *generally the difference in driveoutput orientation in miter gear sets is 90°, although sets are available which produce a selection of angular deviations. *miter gears are available in either spiral or straight toothed configurations. *spiral miter gears are better suited to high speed applications such as power tool and machine drives. *straight cut miter gears are suitable for low speed applications such as door opener mechanisms and hand tools. *miter gear sets are used in machinery designs requiring changes in drive direction while maintaining drive speeds. *these criteria are achieved by employing a set of cone shaped gears of identical size, profile, and tooth number. *this design allows the gears to be positioned in an opposed orientation while maintaining a constant speed relationship between the two drives. *in the majority of cases, the miter gear turns the output drive at right angles to the input. Gear sets can, however, be designed to effect almost any directional deviation.

• Material: Mild Steel,  Stainless Steel,Iron
• Application: Automobile Industry
• Brand Name: Pramod Gears
• Finishing: Available In Zinc Plated, Galvanized, Powder Coated
• Technique: Hot Rolled
• Tolerance: 0.01mm

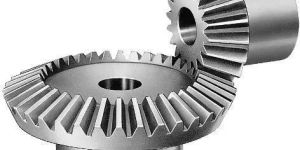

Miter Bevel Gear is used in automobile industries for facilitating smooth operation of automotive. Miter Bevel Gear features the axes of two shafts that intersect and conically shapes tooth-bearing faces. It is mounted on shafts that are 90 degrees apart. We can also provide Miter Bevel Gear to work at other angles as per the requirement. It is resistant to heat and corrosion owing to its high grade metal fabrication. Available at market leading prices, Miter Bevel Gear comes in numerous specifications to make selection.

The units of the RAN series are designed to fit the purposes of transmissions laid out in right angle setting. Easy to fit and almost maintenance-free, RAN units offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come handy when designing synchronized drive systems. Also available in the version for screw jack duty.

These gears are manufactured while keeping all norms in mind and are available to clients at competitive prices. Miter Gears provide a smooth and quite operation and a long life when properly mounted and lubricated. These gears have proper backlash and end of the gear teeth will flush with each other during functioning. These type of gears develop both radial and axial load while transmitting power.

Located in Bengaluru(India), we are actively involved in bringing forth a high quality array of products in the market. For keeping the quality of the products intact, our quality experts check all levels including procurement of raw materials, production, packaging and dispatch.

• Color: Gray
• Application: Automobile Industry
• Brand Name: KHK
• Shape: Round
• Features: Gears that have hardened and ground that has grade-0 accuracy , strength , abrasion resistance .

• Material: Mild Steel
• Country of Origin: Made in India
• Hardness: 70 HRC
• Tensile Strength: 350 Mpa
• Inner Diameter: 40 mm
• Technique: Hot Rolled

• Features: efficient power transfer and durability, carry heavy loads

Miter gears are bevel gears put together with equal numbers of teeth and axes that are usually at right angles. Miter is the surface forming the beveled end or edge of a piece where a miter joint is made. Miter gears are cut with a generated tooth form that has a localized lengthwise tooth bearing. They are offered in various modules, number of teeth, speed ratio, materials and designs. Miter gears are made of steel, brass, bronze, aluminum, nylon and duracon.
