Mooney Viscometer Dealers

We properly package our products using premium supplies and ultramodern technologies to make sure they endure shipping, handling, mechanical damages etc. We provide customized packaging solutions. You can choose to make payment through offline and online mediums as per your convenience. We are well versed with all and we ensure that the transaction is transparent. Computerized Mooney Viscometer has a sturdy body with high precision and a long service life.

Mooney Measuring range 0 to 200MU, Pre Heat Time 0-60Sec, Rotor size large and small, Rotor speed 2.0 +/- 0.2 rpm, Synchronous geared motor, Temperature PT 100 Platinum resistors Microprocessor controlled. Calibrated rage 5 Deg to 200 Deg, Independent upper and lower platen control, Temp. Control Accuracy +/-0.5 C PID Temp Control, Torque transducer reaction torque sensor, Computer Controlled testing, Directly on line display on VGA monitor. Req. Air Pressure 60PSI Minimum operating pressure controlled by external regulator with gauge.

The new developed device is used to determine the Mooney Viscosity and the scorch characteristics recorded over time. Typical test materials are unvulcanised rubber compounds and samples of pure natural or synthetic rubber. A shearing disk viskosimeter with a closed chamber and rotor.The functionality is especially simplified due to the new design.The sample (consisting of two round blanks) is being sheared in the closed chamber by a constant turning rotor. During this procedure the resulting torque is recorded while pressure, temperature and speed are constant.

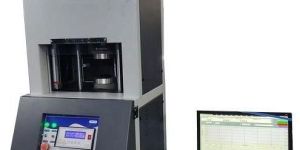

Mooney Viscometer

Mooney Viscometer is a shearing disk viscometer, designed for accurate measurement of viscocity, scorch time and cure rates of the elastomers. The instrument consists of flat, cylindrical disk, driven by a motor to rotate slowly and continuously in one direction. This disk is embedded into elastomer specimen which is confiend in a heated die cavity maintained at specified temprature and kept closed by a specified force. As the disk rotates its experiences a shear strain. This resistance to rotates offered by the elastomer is shearing viscosity which is proportional to mean absolute viscosity of the specimen. Normally a preheat period is given to the elastomer following which the disk starts to rotate. A initial high viscosity is recorded and then as the viscosity also decreases, to a minimum value Viscosity obtained with large rotor are approximately twice those of small rotor.

Designed in accordance with ASTM D1676 & ISO289 standards. Main Functions: Mooney Viscosity Test: A determination of the viscosity of raw rubber or compounded rubber.Stress Relaxation Test: A determination of stress relaxation of a rubber.Pre-Vulcanization Test: A determination of the features of compounded rubber during the early stage of vulcanization. Power Law Decay Model Provide varies quality control function to check the test results of mooney value and scorch time; more than 18 points of time relating to mooney value setting enable the user to control the quality of mooney value at any time of test curve. SPC software can draw and analyze the test results of mooney values and scorch times such as X-MR, X-R, histogram and normal distribution.

Mooney Viscometer is a shearing disk viscometer, designed for accurate measurement of viscocity, scorch time and cure rates of the elastomers.The instrument consists of flat, cylindrical disk, driven by a motor to rotate slowly and continuously in one direction. This disk is embedded into elastomer specimen which is confiend in a heated die cavity maintained at specified temprature and kept closed by a specified force. As the disk rotates its experiences a shear strain. This resistance to rotates offered by the elastomer is shearing viscosity which is proportional to mean absolute viscosity of the specimen.Normally a preheat period is given to the elastomer following which the disk starts to rotate. A initial high viscosity is recorded and then as the viscosity also decreases, to a minimum value Viscosity obtained with large rotor are approximately twice those of small rotor.The viscosity is reported as under Method of sample preparation Mooney viscosity number Rotor size Preheat time Time interval to viscosity reading Tamperature of test Typical test results are started as under= 50ML(I+4) 100CWhere 50M = Viscocity in mooney units. L = Large rotor (for small replace it with 'S') I = Preheat time in minutes 4 = Time in minute after starting the motor at which the reading is taken 100 C = Test temprature

• Temperature: 50 to 200oC
• Rotor speed: 2.0 ± 0.02 RPM

It is an instrument consisting of a motor driven disk within a die cavity formed by two dies maintained at specified conditions of temperature and die closure force. It measures the effect of temperature and time on viscosity of rubber or compound.It is a measure of the viscosity of a rubber or compound determined in a Mooney shearing disk viscometer. It is indicated by the torque required to rotate the disk embedded in a rubbercompound specimen and enclosed in the die cavity under specified conditions.Deviation in viscosity of the compound will critically alter its processibility specially in terms of calendering, extruding or injection moulding. It is necessary that viscosity parameter be maintained within specified limits. To do this Mooney Viscometer is of vital importance. In fact viscometer has manifold advantages.
