Mounted Switches Dealers

• Brand Name: Esha
• Media Type: Liquid
• Connection: Flanged (or) Screwed
• Mounting Options: Side Mounted
• Brand Name: Esha
• Model: ESHA/ SMLS/607/78
• MOC: Allwetted Ports $.5. 316, 304
• Advantages: Minimum Maintenance, Low Cost , Pump Sofe Guard Against Dry Running

• Power supply: 110 / 230 V AC as unit rated
• Maximum load: 16 A, 250 VAC for resistive load
• Delay time: 5 / 30/ 1 / 3/ 5/ 20 jumper selection
• Infrared sensor: Omni-directional, dual element
• Light sensor: CdS photocell
• Dimensions: 100 x 100 x 46 mm

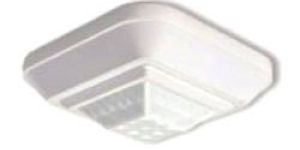

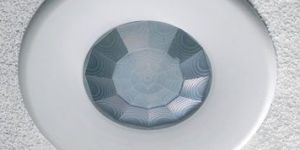

  Ceiling Mount PIR Sen Switches (Item Code : LC-360HD) We offer a wide range of Ceiling Mount PIR Sen Switches. LC - 360 HD is a 360 ceiling mount passive infrared Sen Switch with 16 A switching capacity for heavy duty control of commercial / industrial applications.By utilizing a specially designed omni-directional  infrared sensor and Fresnel lens, this SenSwitch is able to switch on the light when people enter its extensive detection coverage from any direction.A built-in photocell sensor with different threshold can be set to enable the control function based on the ambient light level. Different light-on delay times can be selected by easy jumper head placement.Features: Surface mount technology production Built-in CdS photocell light sensor Second-to-none square detection range Easy TIME delay & LUX level selection Automatic temperature compensation Omni-directional detection capability Detection range mask label provided Superior RFI / EMI immunity protection

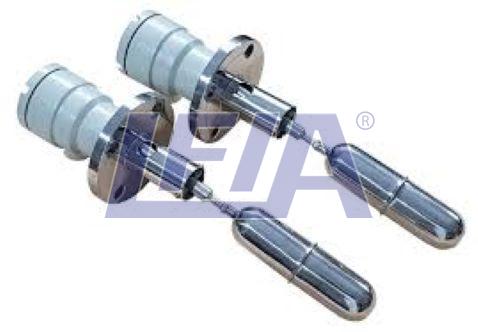

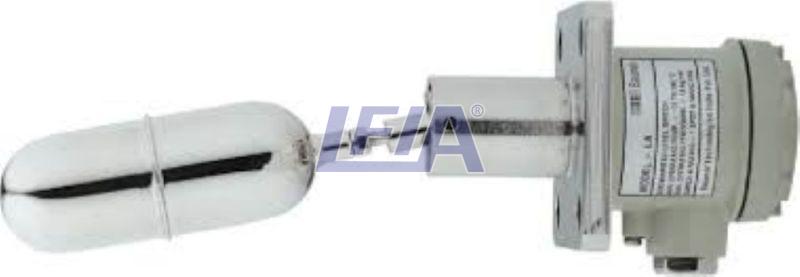

Side mounted level switch are suitable for fitting into tank or Similar vessels for indicating or controlling the level of a liquid. These switches can either be supplied in weather proof housing, Explosion proof housing or for intrinsically safe application.

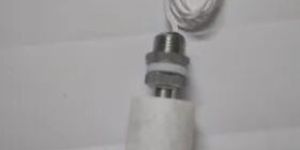

• Mounting Options: Top Mount
• Switch Type: Reed switch (SPDT / SPST)
• Enclosure: Pressure Die-Cast Aluminum
• Process Connection: Flanged / Threaded
• Material of Wetted Parts: AISI 316 SS
• Switch Rating: 0.5A
• Ingress Protection: IP 67
• Max Operating Temperature: 100 Degree C
• Max Operating Pressure: 10 Bar
• Min Specific Gravity: 0.7
• MOQ: As per Requirment

Connectwell DIN Rail mounted socket and switches offer a unique possibility of mounting an Industrial Socket and Switch on a standardDIN rail. Sockets are available for various country standard plugs. These need to be wired and snapped inside the Din rail mounting frame asshown in the assembly diagram below. This assembly then easily snaps on to a standard DIN rail.

• Country of Origin: India

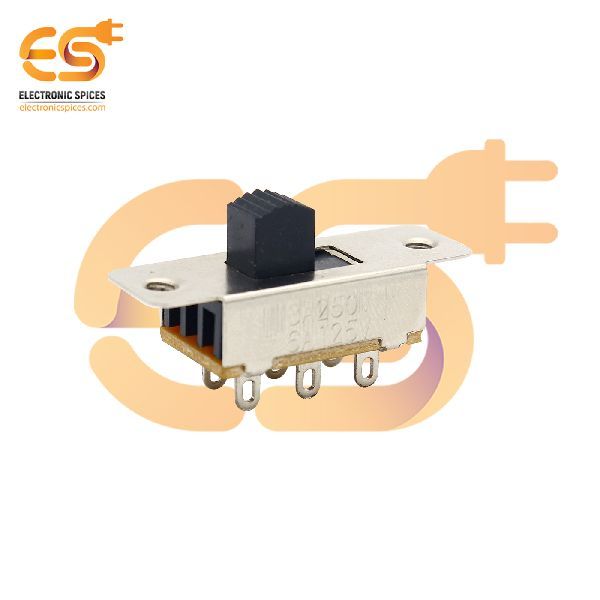

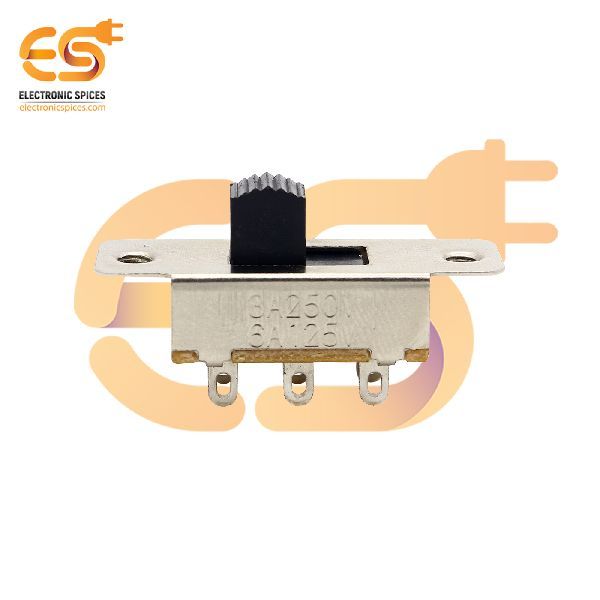

• Brand Name: ELECTRONIC SPICES
• Shape: Rectengular
• Max. Voltage: 240V
• Switch Type: Regular
• Switch Operation: ON/OFF
• Product Name: 6 pin metal body panel
• Max. current withstand: 250V
• power rating: 2A
• Mode of Operation: slide

• Mounting Options: Side Mount
• Process Temperature: 0-150 Deg C
• Operating Temperature: -10...150 Deg C
• Surface Finishing: Polished
• insertion Length: 220 Mm Side Mount
• Material Of Construction: AISI304 SS / 316 SS

• Size: 4”, 6” NB
• MOC: CS / CS (A-106) / SS304 / SS316 / PP
• Max. Temp: 100ºC
• Max Pressure: 10 Kg/ cm2

We are offering techtrol external cage for side mounted switches. Size- 4”, 6” nb moc- cs cs (a-106) ss304 ss316 pp (rubber frp ptfe lined chambers on demand .max. Temp – 100ºc, max pressure – 10 kg cm2 special features – ibr certification

• Material: NBR
• Voltage: 200VDC
• Frequency: 50HZ
• Power: 0-5Amp
• Temperature: 0Dig C To + 60Dig C
• Hole Diameter: 0-20mm

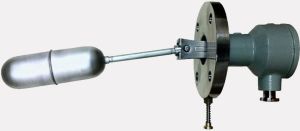

It is an economical, maintenance free and a very reliable device used for high, low or intermediate point level switching. It is ideal for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models are exceeded. The construction is compact & rugged with a free moving pivoted float assembly. The Switch assembly is mounted in a non-magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one linked with the float arm and other by the contract carriers housed in the switch enclosure. Change in the liquid level brings the like poles of dual magnets opposite to each other & resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is gland less so there is no scope of leakage from vessel into switch housing. These switches are manufactured in various materials and enclosures to suit broad range of media/applications. They are designed to provide high repeatability and to minimize effects of shock, vibration & pressure. Most economical, maintenance free and a very reliable device for point level switching Dual permanent Alnico magnets +/-2 mm repeatability 40/50/65/80 or 100 NB Flange drilled to ASA 150# Cast Al, weatherproof to IP 56/IP65 or ex-proof Gr. IIA & B or II C Enclosure 3/4" ET / 1/2" NPT Electrical connection SS 304/SS 316/SS 316L/PP/PTEE Float & Wetted Parts 0.6 min Sp. Gr Depending upon float material and dimensions Micro switch rated at 5 Amp, 220 VAC, SPDT/DPDT/ Air break type also available Load /Insulation: Resistive, 150 Mega ohms at 1.5KV Internal and External mounting through a chamber/Cage 20 KG/cm2 max pr at ambient temp. Special design available for higher pressures 150oC max temp for standard model & upto 350oC depending upon float material, switch elements and mounting

• Switch Type: Micro Switch
• Float Diameter: 45 mm (48 mm at welded seam)
• Housing Material: Diecast Aluminium
• Switch Rating: 5 A / 250 VAC
• Switch Differential: 3 to 25 mm
• Process Connection: 92 mm PCD Square Flange / ANSI Flange
• Minimum Specific Gravity: 0.75
• Maximum Operating Temperature: -10 deg C to + 180 deg C
• Maximum Operating Pressure: 10 kg/cm2
• Material of Wetted parts: AISI 316 SS
• Insertion Depth: 215 mm (Standard)
• Ingress Protection: IP-65

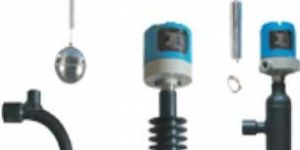

Top Mounted Level Switch Flow Point Introduced magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem ), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters.
