Obstruction Lights Dealers

• Type: LED Aviation Obstruction Light
• Material: Cast Metal L-6 Alloy
• Application: Industrial
• Weight: 4.5 KG approx.
• Feature: High Performance
• Voltage: 220V
• Condition: New
• Power Type: AC
• Power: 15-20Kw
• Driven Type: Electric
• Phase: Three Phase
• Country of Origin: India
• Brand Name: NETC-Binay

We are a major single aviation obstruction light & dual aviation obstruction light manufacturer in salem, tamil nadu. Our aviation obstruction lights are made using the best quality components and are appreciated for their bright and clear light. These aviation obstruction lights have powerful bulbs with longer service life. These aviation obstruction lights are durable and perfect finish. Easy to use these aviation obstruction lights are available at market leading prices. why our aviation obstruction lights? high luminositycompact designfine makedurablelonger battery life to enquire about the desired product(s), just check the box and then click “inquiry now” button which is provided below.

• Country of Origin: India
• Type: High Intensity
• Material: Aluminium
• Shape: Round
• Color: Red
• Voltage: 220V
• Finishing: Polished
• Warranty: 1 Year

• Country of Origin: India
• Type: Solar Led Aviation Light
• Certification: CE Certified, ISO 9001:2008
• Weight: 4KG
• Color: Red
• Feature: Bright Light, Low Consumption
• Condition: New
• Automatic Grade: Automatic
• Warranty: 1year
• Brand Name: SPACEAGE
• Material: ALUMINIUM
• Application: TOWERS
• Specification: 10W, SOLAR PANEL, 7AM SMF EXIDE BATTERY
• Solar power: 3

• Brand Name: Aviation Obstruction Systems
• Material: Alluminium
• Color: Red, White
• Power: 200Wt
• Application: Disaster Warning
• Certification: ISI Certified
• Size: 300mm Round

Medium Intensity Aviation Obstructions Lights Type A Medium intensity Aviation Warning Lights Type A Without any missing flashes  With NO NC, Potential Free Auto synchronising With 3 Mode, Day, Twilight & Night Mode. Day mode 100000 Lux Twilight Mode 20000 Lux Night mode 2000-4000 Lux CPRI Tested  Metal-Aluminium LM-6 Tested By Innoval Technology Limited Glass- Borosilicate  Led-White (Osram)

• Country of Origin: India
• Type: Led Light Emitting Diode
• Material: Aluminium
• Certification: CE Certified, ISI Certified
• Weight: 8kg
• Color: Red
• Feature: Auto Controller, Durable, High Performance, Stable Performance, Low Consumption
• Voltage: 220V
• Condition: New
• Power Type: AC, DC, SOLAR
• Operating Temperature: -20 to 60degC
• Frequency: 50Hz
• Power: 30Wpeak And 15Waverage
• Driven Type: Battery, Electric
• Phase: Single Phase
• Warranty: 1Year
• Brand Name: SPACEAGE
• Application: All types of towers, building and high mask pole
• Pixels: 2000cd+-25%

Effective and reliable obstacle lighting is essential to ensure the visibility of tall structures to aircraft pilots under all weather conditions. MIDSTREAM is a leading manufacturer of specialist lighting and provides smart obstruction lighting systems for various applications incl. wind turbines.  Clients of MIDSTREAM range from major international airports, busy container ports, railway operators, large asset managers and blue chip corporates. Wind Cluster provides the sales and front desk services for wind turbine application. Trusted by many global names to delivery projects to specification, time and budget. MIDSTREAM believe that to make a great company, you have to offer both top-end products and superior service. Both are as important as each other. MIDSTREAM invest into R&D to ensure that products are incorporating the latest                                                             knowledge, know-how and processes. MIDSTREAM and Wind Cluster work closely                                                                   with our clients to develop products suited to the task they are designed for, with                                                               innovation and reliability at the forefront of research. MIDSTREAM designs and manufactures obstruction lighting systems that are                                                                       certified to international and national standards and reliable in the harshest environments. Full range of obstacle lights for wind turbines and wind farms:high, medium, and low intensity obstruction lights, controllers, remote monitoring, and                                                           support systems.

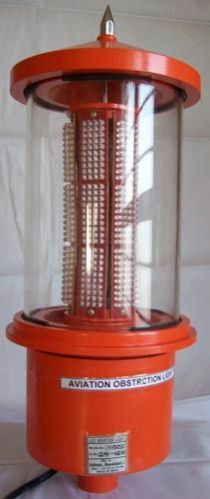

Our company is instrumental in manufacturing, exporting, and supplying the wide range of obstruction warning lights. The obstruction warning lights which we provide to the clients is extensively demanded to be used on mobile tower, high risk building, industrial chimney, etc. These medium intensity obstruction warning lights are made in compliance with the industrial quality standards, and therefore are of reliable nature. Clients can avail these obstruction warning lights from us in qualitative packaging, that too at affordable rates. illumination lux level at 1meter > 2000 luxoptical lens arrangement to provide 360 illumination by high intensity white ledsspecial design for over 10 year lifelong life led @ 1,00,000 hours (12hr/day = 22 yrs) electronic design input voltage : 180 – 280v ac (50/60hz) or 40 – 58v dc power consumption : < 55 wattno of led : 720noscurrent through leds under all conditions 80ma + 20 %voltage across leds under all conditions 2v + 10 %operating temperature range : -100c to + 600cflashing : 20 to 60 fpmphotocell auto on/off ( internal fitted ) no extra cost mechanical design sealed water-proof unit conforming to ip – 65 standardscasing made of lm6 aluminum alloy, painted with uv paint for atmospheric protectionuv stabilized polycarbonate lens to protect the ledsbird – spike to keep away the droppingsweight 5 kg. (approx)fire retardantwithstands impact of up to 5j advantages no replacement, no maintenancelow power consumption : huge savings on electricity billsfailure of single led does not affect performance & delivers constant illuminationstand alone operation : optimized for solar based, stand – alone applications. It can also be installedin remote areas where there is no manpower and electricityquality control : geltronix employs the use of leds & other components manufactured by global market leaders.warranty for two years

We are manufacturer and supplier of aviation obstruction light. The body is of corrosion-resistance aluminum castings finished in stove enameled aviation yellow and houses the spent-up transformer. The light source is protected by a thick clear glass dome mounted on a hinged cast ring secured to the body by means of three brass screws.

• Type: Led Obstruction Light
• Certification: CE Certified
• Application: Constructional
• Color: White
• Voltage: 220V
• Power: 100Wt
• Power Source: Electric
• Feature: Blinking Diming, Brightness
• Warranty: 5years
• Light Source: Led
• Brand Name: Xinan
• Beam Angle(°): 7
• Emitting Color: White
• IP Rating: 66
• FAA Classify: L857
• Model: GS-HI/O
• Power voltage: AC220V
• Power Supply Frequency: 50HZ～60HZ
• Power Consumption: Average: ≤100w, Flashing: 750W
• Working mode: Flashing 40times/min
• Continuous working time: 70ms
• Light Intensity: 2000cd～20000cd～200000cd（±25%）
• Vertical Divergence: 7°
• Horizontal Out-put: 360°
• Service Life of the Light Source: ≥10 years

• Voltage:: 180-270 V AC
• Weight:: 19.8 Kg

High intensity aviation warning light is used for aircraft safety for high rise building as per ICAO, FAA guidelines.Photocell (Sun switch)-Automatic change in intensity in all three modes

LED MOBILE TOWER AVIATION OBSTRUCTION LIGHT :Voltage Rating: 24V DC, 48V DC, 220V AC Current Consumption: 6 watt Cat no: FLMT-AOL-MB Type: Built- in photo sensor or without photo sensor Color Available:Red

• Type: 'A' Statioanry / 'B' Stationary
• Color: Red
• Operating voltage: 12VDC / 24VDC / 48VDC / 240VAC,50Hz
• Life expectancy: 100000 hrs (ideal condition)
• Ingress protection: IP 65 and above

LED type low intensity obstruction lights are required to be installed at obstruction which are less than 45 meters above the ground level. Our low intensity light is designed to give a working life of 50,000 hours coupled with the advantages of lesser power consumption. In the unlikely event of any malfunction or problem, the unit is provided with an in-built, audio-visual alarm system to warn the maintenance team. This system also comes up with service and standby features where incase service light fails, standby shall get ON automatically with an alarm. Features 1. The high power, high flux solid state lamps give an exceptionally long life of more then 50,000 burning hours. 2. The System is highly energy Efficient, Which makes it very suitable for solar powered systems. 3. Efficient secondary optics is induced to generate Lens effect for Proper Light Beam 4. The Lamps are arranged in Series and Parallels with independent light strings, which eliminates total blackout, in the event of an unlikely circuit fault 5. The light housing is made from high grade GRP, with Protective painting. 6. The light is protected from ingress of Dust and Moisture. 7. Dusk to Dawn operation through Photo sensor. 8. Power supplies which are considered heart of the systems are imported from USA/Japan.   Technical Specs Wattage : 5 Watts Intensity : >10,32 CD

Spaceage is the pioneer in uniform intensity LED based Aviation Lights as per ICAO standards. We offer 24V DC/48V DC/230V AC, 10cd/33cd lights (Type A / Type B) lights with or without light/photo sensors/switch. We offer internal/external SMPS/Sensor.  LED Aviation Obstruction Light/Lamp Our distinguishing features are: We FULLY meet the ICAO specifications We provide uniform intensity all around as opposed to most lights in market that meet ICAO mandated requirements at certain angles only. We can produce product as per tender / specifications and save costs. Range of Models We have many versions of Aviation Lights to suit every need. We offer following broad categories Voltage – 24V DC/48V DC/230V AC Sensor – Internal or External Light intensity – Low intensity Type A or Type B (for stationary low height objects) SMPS – External/Internal, Outdoor Bird Spike – With or without General features Each light consists of 135/162 (depends upon model desired) Surface mounted High Powered LEDs sourced from reliable and reputed sources. The LED's are mounted on special base that places the LEDs in absolutely uniform arrangement (as demonstrated in subsequent pages). Such an arrangement requires no additional lens or filter is to give UNIFORM light intensity. This also reduces any losses that are usually associated with lens etc. This is a UNIQUE arrangement devised by us. Body is made from Aluminium with bright orange powder coating or as per specs Totally sealed from moisture and dust. Silicon based permanent seals are used that are durable and absorbs the expansion of material in hot weather. Confirms to ICAO Annexure 14, for low intensity Type B obstruction light The light produced by LED's is RED in color and no additional color filters/Lens are required. (The filters / lens absorb part of light and fade after some time) Since the light produced by LED is directional in nature there are no reflectors or obstructions to reduce the dissipation of light. Our External SMPS model has option to bypass external sensor so that in case there is a problem with sensor, it can just be bypassed by flick of a switch. This gives enough time for operations staff to change the light, as and when convenient.

Our firm is engaged in manufacturing, exporting and supplying a wide assortment of Aviation Obstruction Light working on 24 Volt, 48 Volt, AC / DC, 230 VAC, 110 VAC Power supply. Suitable for installation on communications towers (GSM, CDMA, Radio), Buildings, Industrial exhaust chimney and Aviation Control Towers, our Aviation Obstruction Lights are low energy consumption LED based obstruction light with single & double dome for respective applications. Our all Aviation Obstruction Light models are developed and designed as per ICAO norms. Customers can avail them at market leading prices.

Medium intensity LED obstruction lights are used in places where the structure is more than 45 meters high, above the ground level. With a life span of 50,000 hours, Avaids medium intensity Aviation obstruction light is designed to for low power consumption. In the unlikely eventuality of a malfunction or problem, the light system is provided with an in-built, audio-visual alarm to warn the maintenance team. Our lights comply with ICAO, Annexure-14 type 'B'. These medium intensity lights are made up of high grade aluminum alloy with a protective coat of paint and stainless steel hardware for longer durability. Superior quality and latest LEDs’ are procured from global market leaders for higher intensity of light. The medium intensity LED light series use a high-flux LED light source with a proprietary high efficiency optic in a long life, low power consumption medium intensity red obstruction light. These are used for night time marking of obstructions between 45 meters and 150 meters high. The lightweight and compact medium intensity aircraft LED Obstruction light can be set up in either flashing or fixed modes, with either automatic or external day/night control, making it an ideal choice for both new systems and as a replacement for an existing light operating with third party controllers. Advantages: Efficient secondary optics is induced to generate Lens effect for proper light beam in horizontal plane and arrest unnecessary light dispersion in vertical plane as required by the lights specifications. High quality Aviation Red colour is directly emitted by the lamps thus eliminating the need for any additional colour filters, which otherwise gets faded due to UV radiation of sun. Efficient circuit design reducing the chances of a total blackout. Hardware is made from Corrosion resistant metals. The light is protected from the attack of dust and moisture with an improved glass gasket. Bird Spike is provided at the top to protect the luminaire from bird droppings. High quality copper conductor with earthing, is provided to divert any lightening surge. The flasher is housed in separate weather protected enclosure to avoid any damage. Dusk to Dawn operation is enabled through Photo sensor and electronic timer. Controls on the ground as well as remote control. Easy installation, low maintenance and easy repair. Advanced power supply technology with minimum power consumption.

• Voltage: 180-270 V AC
• Weight: 19.8 Kg
• Shape: Cylindrical, Dome at the Top
• Fixture Color: Red
• Mounting: Surface
• DimmableNo: No
• Life of Lamp: 5,00,000 Hrs
• Lumen Maintenance Factor: 0.7
• Aviation Light Wattage: 130 Watt
• Power consumption per 1000 h: 30 KW.h
• LED Color: White
• Intensity: 200,000 Cd (Day)/20,000 Cd (Twilight)/2,000 Cd (Night)
• Flashing: 40-60 fpm
