Ointment Cream Plant
Get Price Quote
1 Piece (MOQ)

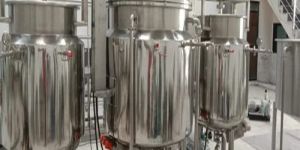

An Ointment Cream Plant is a specialized manufacturing facility used in the pharmaceutical industry for the production of ointments, creams, gels, and lotions. It consists of various interconnected units for mixing, heating, cooling, emulsifying, and filling. Ointment Cream Plants are designed to meet cGMP (current Good Manufacturing Practice) standards and regulatory requirements for pharmaceutical manufacturing.Description The Ointment Cream Plant typically includes units such as a preparation vessel, storage vessel, heating system, cooling system, vacuum emulsifying mixer, homogenizer, filtration system, and filling machine. Raw materials are first mixed in the preparation vessel and heated or cooled as required. The mixture is then transferred to the vacuum emulsifying mixer for emulsification and homogenization. After filtration, the product is filled into tubes, jars, or bottles using the filling machine.Where to use Pharmaceutical Industry: Production of topical pharmaceutical formulations such as ointments, creams, gels, and lotions.Cosmetics Industry: Manufacturing of cosmetic creams, lotions, and gels.Personal Care Industry: Production of skincare products, moisturizers, and emollients.Veterinary Medicine: Manufacturing of topical medications and ointments for animals.
0.0
Website

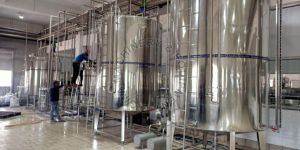

ointment processing plant
2,000,000 - 4,000,000 Per Piece
1 Piece (MOQ)
Best Deals from Ointment Plant
Ointment Manufacturing Plant
1,000,000 - 20,000,000 Per Piece
1 Piece (MOQ)
Ointment Liquid Manufacturing Plant
4,500,000 Per Piece
1 Piece (MOQ)
Key Features All contact parts are of SS 316 quality material & finished to class 4B (Mirror) finish and are crevice free Easily Cleanable Complete lid lifting arrangement to facilities cleaning at the time of product change over Specially designed becomixs stirrer with flexible Teflon scrapers All transfer are done through vacuum to avoid any hand touch & contamination The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice) All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized All pipes, interconnecting piping, and valves are of SS 304 / SS 316 (as per customer requirement) seamless quality, internally electro-polished, with tri-clover ended joints All values of temperature & time of the plant are indicated digitally on the control panel. All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement. Machine Brief Manufacturing Vessel Wax Phase Vessel Water Heating Vessel Storage Vessel Ointment Transfer Pump (Lobe Pump) Ointment Transfer Pump (Metering Pump) Control Panel Piping of Complete Plant Working Platform Vacuum Pump Steam / Electrical Operated Optional Load Cell For Accurate Weighing Plc Based Control Panel For Process Automation Utility Piping Under Working Platform
Ointment Manufacturing Plant
400,000 - 7,500,000 Per Piece
1 Piece (MOQ)
The Conventional Coating Pan is simple unit, which employs the principle of rolling a batch of tablets in an elliptical pan, spraying the coating solution on it and passing hot air across the tablet bed. An exhaust blower may be used to carry away the excess fumes generated during the coating and drying process. Pharmachem Cosmetics Industries manufacturer Conventional Coating Pan of various capacities ranging from 12” lab model to 60” conventional types. Application For Film coating, enteric coating and sugar coating system. PAN DRIVE HOT AIR BLOWER EXHAUST BLOWER WITH DUST COLLECTOR OR WET SCRUBBER WET SCRUBBER SPRAY SYSTEM SOLUTION PREPERATION INSULATED TANK PERISTALIC PUMP HOT AIR PUMP SPRAY GUN NOZZLE
Ointment Manufacturing Plant
450,000 Per piece
1 piece (MOQ)
0.0
Website
Ointment Manufacturing Plant
Get Price Quote
1 Piece (MOQ)
Automatic Ointment/Cream Manufacturing Plant is used to prepare medicated homogenised emulsion of Wax and Water to a particular formulation. It is useful for manufacturing of creams, ointments, pastes and gels for pharmaceutical and cosmetic industries.
Ointment Manufacturing Plant
Get Price Quote
1 Piece (MOQ)
Shree Engineering Services as an Ointment Manufacturing Plant Supplier ensures the design, engineering, production, and supply of sterile and non-sterile ointment and cream facilities that are totally tailored and automated in accordance with the current cGMP standards, along with the required qualifying documentation. The ointment production plants offer flawless manufacturing results for ointments, creams, lotions, and homogenization of various emulsions. The framework includes an encased circuit fabrication office that supports the wax/water phase to the stacking of the filling machine's container. This semi-solid emulsion production line operates by homogenising the ointment and water before putting it through the process of production. By utilising the ointment cream manufacturing plant, costs can be significantly reduced while maintaining a high level of uniformity and reliability.
Fully Auto Ointment Processing Plant
Get Price Quote
1 Piece (MOQ)
Ointment Manufacturing Plant
2,200,000 - 3,000,000 Per piece
1 Set (MOQ)
VE-OCMU Complete untouched Process equipment for (Sterile / Non Sterile) Ointment / Cream / Lotion The vast assortment in processing equipments Salient Features: Latest Model confirming cGMP norms & complete untouched process Complete Lid lifting arrangement to facilitate cleaning & product change-over Easily Cleanable: CoCleaning validation by Sweb testing can match international standards (10 PPM) Easy openable and cleanable, pipeline electro - polished All joints are DIN union standard Special design Anchor Stirrer to match Mixing principles with international standards High Shear Homogeniser to give less than 10 microns globule size in cream products Bump Pump for Transfer the Cream Imported Gear Box for Anchor Stirrer Variable Frequency Drive (VFD) for Anchor Stirrer Optional: PLC based control pannel with SCADA system Load Cell for Online weighing CIP System We also mfgr. CONTRA ROTARY mixer for TOOTH PASTE
Ointment Plant
46,500 Per Piece
1 Piece(s) (MOQ)
Ointment Manufacturing Plant
Get Price Quote
We are offering ointment manufacturing plant. Contact us for third party manufacturing of creams ointments
0.0
View Profile
Ointment Manufacturing Plant
600,000 - 4,000,000 Per Units
0.0
View Profile
Ointment Manufacturing Plant
1 - 100,000 Per Pieces
1 Pieces (MOQ)
Ointment Manufacturing Plant
Get Price Quote
All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction. The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel. Wax is melted in Wax melting vessel, Water is heated in water heating vessel. Both wax and water are transferred into the manufacturing vessel automatically through vacuum. In manufacturing vessel both wax and water are homogenized to make a uniform emulsion and cooled by passing chilled water into the jacket of manufacturing vessel. After the emulsion is formed active ingredients colours etc are added and are thoroughly mixed & homogenized. Later necessary perfume is added in case of cosmetics or wherever necessary. Ointment Cream is ready. The same is transferred by bump pump into the storage vessel. & from the storage vessel it is automatically transferred into the filling machine by means of metering pump. Flow rate of Metering pump can be set as per your tube filling machines speed and capacity.
0.0
View Profile
Ointment Plant
Get Price Quote
Owing to our reliable transportation facilities, we are able to deliver the orders at the desired destination and on promised time. The check on quality has been kept by our experts who ensure that the inputs we source are free from any sort of impurities. Thus, we ensure quality products at buyer's end. Features : Fine functionality Low maintenance Easy to operate Specifications : Suitable for manufacturing pharmaceutical ointments, sterile preparations, cosmetic creams, suspensions, gels, etc. The completely untouched process, hence less chance of contamination. The plant is provided with premixing wax & water phase vessels and the main manufacturing vessel. The main vessel is provided with a slow speed anchor agitator for mixing and a bottom high-speed homogenizer for emulsifying. Jacketed vessels for heating/cooling processes. Centrally located control panel for ease of operation by a single operator.
0.0
View Profile
Ointment Plant
Get Price Quote
Ointment Manufacturing Plant
Get Price Quote
1 Piece (MOQ)
Ointment Manufacturing Plant
200,000 - 850,000 Per Piece
1 Piece (MOQ)
The Ointment Ointment/cream/ lotion manufacturing plant machinery is ideal for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotions, Tooth Paste & other emulsions & homogenizations. It is specially designed to take care of two critical factors which directly affect the quality of the Ointment / Creams. Salient features Sturdy & vibration free construction Low maintenance cost Easy to clean Seamless functioning Durable Application Manufacturing of cream/ ointment/ lotion Industry Pharmaceuticals Cosmetics
Ointment Cream Manufacturing Plant
1,550,000 Per Unit
1 Unit (MOQ)
0.0
View Profile
