Opacity Meter Dealers

The Land Model 4500 MkIII has reset the industry standard on compliance opacity and dust concentration measurement. Combining the unique features of three patented technologies, the 4500 MkIII achieves the highest available specification for the principal performance parameters, as defined by the internationally recognized ASTM Standard D 6216-07.

• Driven Type: Electric
• Usage/Application: Industrial
• Power: 6-9kw, 230 v AC
• Weight: 5kg
• Voltage: 220V
• Color: Brown
• Country of Origin: India

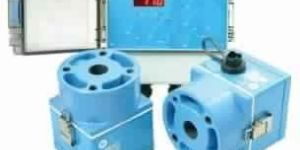

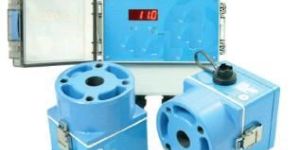

opacity monitoring system has been designed for measuring the pollutants with in the stack emission.vasthi has mainly designed the stack opacity meter for cement plants, steel plants etc., technical specifications: no. parameter units min max comment1 path length (flange to flange) m 0.5 20 flange-to-flange separation2 measuring range % 0.0 100.0 user selectable3 accuracy % -2 +24 resolution % 0.1 display resolution5 damping s 1 60 selectable6 drift with temperature % -2 +2 over any 20°c in the operating range7 operating wavelength nm 510 540 green ledpower & air requirements8 voltage vdc +24 optional 90-260vac psu available9 voltage tolerance % -10 +1010 nominal current consumption ma 40011 power up current consumption ma 40012 air supply volume flow l/min 50 200 to each air-purge body.13 air supply fitting:1” bsp threaded aperture in each air-purge body cable and wire14 cable type – tx/rx interconnection cores 6 screened multi-core, such as belden 987315 cable type – oi/rx interconnection cores 4 screened multi-core, such as belden 987316 wire size at terminal connections awg 20 14 interface options17 serial commsmodbus rtu via rs485 (oi or trx) internal usb (oi), external usb (rx)18 analogue output (one) ma 4 20 isolated and scalable19 digital relay contacts (two) a 0 3 @30vdc (signal level and data valid)physical20 ingress protection: – tx/rx heads ip65 for external use21 ingress protection: – oi wall mounted ip65 hinged door and terminal compartment shut.– oi panel mounted ip64 from front face of panel when installed.22 ambient operating temperature °c -20 +55 air temperature around the heads.23 operating humidity % 100 air humidity around the heads.24 gas temperature °c +600 heat insulating gaskets included.(higher temperatures on request)25 regulatory compliance 89/336/eec (electromagnetic radiation) 73/23/eec (low voltage)26 materials: – tx/rx heads 316 stainless steel (powder coated)27 materials: – air-purge bodies powder coated cast aluminium or stainless steel for demanding installations materials: – oi wall mounted ul rated polycarbonate enclosure; aluminium front panel with pu laminate overlay and with nylon cable glands28 – oi panel mounted powder coated steel back-box; aluminium front panel with pu laminate overlay and with nylon cable glands29 weight kg 2.5 tx or rx head plus aluminium air-purge body30 weight: – oi wall mounted kg 1.3 – oi panel mounted 1.3

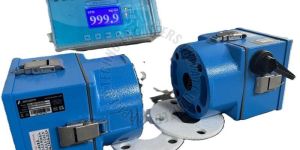

Single & Double Pass based Optical Instruments designed for monitoring Dust and Particulate concentrations (mg/m3) in the exhaust gas of industrial combustion or Air filtration processes, offer an ideal solution to your Emissions monitoring or Process control requirement. These continuous particulate monitors use either the standard obscuration opacity technique with zero and span checking or the innovative Dynamic Detection Principle technique which eliminates the need for zero and span checking through an immunity to drift with dirty optics.

• Weight: 8 kg
• Dimension: 460x145x275 mm

High Reliability Robust Design, Easy to Install & Operate, Compact & Light Weight, Low Maintenance, High-end Micro Controller Technology, Designed to suit Indian extreme Voltage Conditions, Improved Interior design for Easy Service, Self Diagnostic facility

The DSL-340 Dust Monitor uses the innovative Dynamic Detection Principle (DDP) to measure dust, smoke and particulate concentration present in an exhaust gas flow in a duct, stack or flue. A light beam emitted from the Transceiver (TRX) passes across the duct, stack or flue to a Reflector, which returns the light beam to the TRX. Particles moving through the beam will cause fluctuations in the intensity of light received by the TRX. When calibrated against standard reference measurements, the magnitude of the signal variation relates directly to the dust, smoke and particulate concentration.   Features • In-situ measurement directly in exhaust gas flow• Innovative Dynamic Detection Principle, (DDP), measurement technique• Measurement reading as mg/m3 (when calibrated againststandard reference measurements)• Choice of interface options enabling easy integration into plant control system• Free utility software for PC based setup, control and data logging• Optional Operator Interface with different mounting configurations• IP65 rated external enclosure

Technical Specifications: No. Parameter Units Min Max Comment1 Path Length (flange to flange) m 0.5 20 Flange-to-flange separation2 Measuring Range % 0.0 100.0 User selectable3 Accuracy % -2 +24 Resolution % 0.1 Display resolution5 Damping s 1 60 Selectable6 Drift with Temperature % -2 +2 Over any 20°C in the operating range7 Operating Wavelength nm 510 540 Green LEDPower & Air Requirements8 Voltage Vdc +24 Optional 90-260Vac PSU available9 Voltage Tolerance % -10 +1010 Nominal Current Consumption mA 40011 Power Up Current Consumption mA 40012 Air Supply Volume Flow L/min 50 200 To each air-purge body.13 Air Supply Fitting:1” BSP threaded aperture in each air-purge body Cable and Wire14 Cable type – TX/RX Interconnection cores 6 Screened multi-core, such as Belden 987315 Cable type – OI/RX Interconnection cores 4 Screened multi-core, such as Belden 987316 Wire Size at Terminal Connections AWG 20 14 Interface Options17 Serial CommsModBus RTU via RS485 (OI or TRX) Internal USB (OI), external USB (RX)18 Analogue Output (one) mA 4 20 Isolated and scalable19 Digital Relay Contacts (two) A 0 3 @30Vdc (signal level and data valid)Physical20 Ingress Protection: – TX/RX Heads IP65 For external use21 Ingress Protection: – OI Wall Mounted IP65 Hinged door and terminal compartment shut.– OI Panel Mounted IP64 From front face of panel when installed.22 Ambient Operating Temperature °C -20 +55 Air temperature around the heads.23 Operating Humidity % 100 Air humidity around the heads.24 Gas Temperature °C +600 Heat insulating gaskets included.(Higher temperatures on request)25 Regulatory Compliance 89/336/EEC (Electromagnetic Radiation) 73/23/EEC (Low Voltage)26 Materials: – TX/RX Heads 316 Stainless Steel (powder coated)27 Materials: – Air-Purge Bodies Powder coated cast aluminium or stainless steel for demanding installations Materials: – OI Wall Mounted UL rated polycarbonate enclosure; aluminium front panel with PU laminate overlay and with nylon cable glands28 – OI Panel Mounted Powder coated steel back-box; aluminium front panel with PU laminate overlay and with nylon cable glands29 Weight kg 2.5 TX or RX head plus Aluminium Air-Purge body30 Weight: – OI Wall Mounted kg 1.3 – OI Panel Mounted 1.3

1.Anemometer: Vane. Thermal & Ultrasonics type. 2.Pressure Meter, Micro Manometer, Barometer 3..Pressure Calibrators 4.Transmitters for Pressure, velocity, Humidity & Temprature

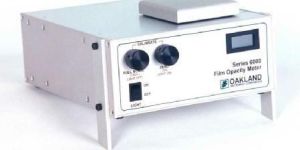

Ideal for the laboratory or plant floor, the model RT-6000 is a simple-to-use, off-line instrument that indicates relative opacity of plastic film, paper, laminates, printed packaging and other materials.  With a single pass of the light source through your material, the system measures relative light transmission on a scale of 0 to 100 Opacity Units, representing perfectly transparent to purely opaque materials, respectively.

• • Measuring range :: 0 -99% opaque
• • Repeatable accuracy :: 0.3%
• • Power:: 230 Volts; 50Hz; single phase.

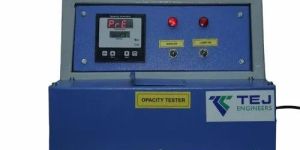

Used to determine optical characteristic including color, clarity, general appearance of plastics ,PVC Sheets, Pipes & various other translucent materials � Working principal on infrared sensing device system with help of wave length facility � Easy to operate & Designed to meet ASTM , IS Standards � Digital Readout (LCD based)

Diesel smoke meter OPACIO 100 is used to measure the diesel engine exhaust smoke.The model is equipped with a Gas temperature pressure valve and distribution control cell in order to ensure measuring accuracy and repeatibilty.It can measure the complete opacity spectrum from 0 to 100 % in either continous or free acceleration test.

The dust concentration is measured depending upon the amount of light blocked by suspended articles in exhaust gas. Advanced techniques are effectively used to detect & compensate for errors due to ambient light as well as stationary dust giving accurate emission readings. Unique design of Swirling Chamber ensures effective cleaning of lenses.

OPAL 100 Series transmissometer systems are non-compliance monitoring systems that can provide continuous in–situ measurement of both visible (opacity %) and quantitative (mgm3) emissions. They are ideal for use as opacity monitors in package boiler, incinerator, and combustion process applications where EPA emission limits are applicable and precise combustion control is desired. They are also an invaluable tool for measurement of quantitative emissions, especially in applications where other technologies have limitations from electrostatic precipitators, variable air velocities andor large duct spans.

Ambient(Opacity Monitors), Gas Detectors, Efficiency Monitoring System

opacity meter, Gas Analyzers, Diesel Smoke Meter, Gas Analyzers

Optical Dust Opacity Monitor, Solid Analyzer For Bauxite, flame monitors

opacity meter, block heaters, Sulphur Analyzer- Horiba, Sulphur Analyzer
