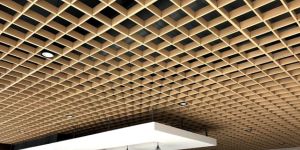

Open Cell Ceiling Dealers

• Type: Tile Accessories
• Material: Metal, 6063-T5
• Color: Black, Champagne wooden grain, customized
• Thickness: 0.5mm
• Surface: Anodized, Polishing, Electrophoretic, Powder coated
• Height: 8mm, 10mm, 12mm
• Punching Hole Shape: Square/Round/Triangle/Letters/Diamond/Customized

Canon Open cell ceiling is suitable for all types of areas and is available in number of cell sizes. The monolithic appearance of it is achieved by integration of grid into the ceiling design. When the hexagonal nut is tightened, the tapered bolt is pulled into the expansion clip and expands it against the hole wall and the clip will not fall off or twist in the hole.

• Standard Module Cell Size: 75mm x 75mm, 100mm x 100mm, 150mm x 150mm, 200mm x 200mm, 300mm x 300mm
• Web Height: 50 mm
• Width: 10 mm
• Thickness: 0.45 mm

HI-STEEL aluminum open cell ceiling tiles are designed to lay onto 15mm Tee Grid. These tiles can be used without any tee grid system also. Access is gained by simply lifting the tiles our of the grid. The new Lock-In system features open cell ceiling panels with no frame or border around them. The panels simply connect to ach other with easy lock in system of main and cross.

• Material: Aluminum
• Thickness: 0.45-1.0 mm
• Manufacturing Technique: Cold Rolled

Open cell ceiling system provides scalability of sizeable areas while maintaining the mystique of its design. The most intriguing feature about the design is its ability to blend with other architectural designing. Recommended for public spaces, design facilitates easy airflow management and rapid smoke extraction, required in high traffic areas. The first impression of an open cell ceiling is always about ceilings in which a repeating pattern of “cube” shapes appear unbroken by any suspension components. So, the finished ceiling will look much like a perfect waffle in appearance. The cube / cell size can be offered starting from 50mm up to 300mm. The standard width of blades is 15 mm, However, some manufacturers can also make it available in 9mm. There are also options of open cell ceilings which are based on linear pattern. The linear aspect of the product arises from longitudinal blades arranged in parallel. When looking at the ceiling along blades, cross-members are not detected. Simultaneously, a clear, simply structured ceiling appearance is created for long-room projects.

• Size: Standard
• Type: Open Cell
• Material: Metal
• Application: Commercial, Residential
• Thickness: 10-20mm
• Color: Grey, Silver
• Surface Treatment: Power Coating
• Technique: Cold Rolled

PPP, leader for over 60 years in the working of plastics, offers a great range of open cell system ceilings, made in ABS and ASAPC, ultimate thermoplastic materials, with varied mesh sizes, panels, colors and special metallic finishes. Open The ceilings are extremely versatile and adaptable to all uses and styles, be they classic, modern, hi-tech, elegant or purely functional. The possibilities are endless.

DynamixIndiaBP Open Cell Ceiling Systems offer decorative, durable and functional design solutions for open ceilings. Available in 4 design options, We supply and install open cell ceilings which enables you to employ different structures, materials, and surfaces, you can create rooms which impress with their open, transparent, and individual atmosphere.   In combination with our linear ceiling panels, metal-coffer ceilings, and lighting systems, the opportunities to create your own, unique architecture are almost unlimited. Key Features: Easy Access to Lighting Ventilation System Matched with all type of light Fixtures Versatile range of patterns

NOTE : The above mentioned price is the starting price range of the product and it will depend on the requirement and quality.

• Color: White, Gray etc
• Material: Steel, Aluminum etc
• Brand Name: Comet Metallic
• Manufacturing Technique: Cold Rolled
• Usage/Application: Home, Hotel etc
• Cell Size: 50 x 50mm to 200 x 200mm

• Application: Commercial, Residential

Besides the utility based ceiling in metal tiles Techno is glad to introduce a range of architectural & durable open cell ceiling options, open cell ceiling and perforated metal ceilings are profiles made from aluminum roll formed sheets & are introduced to form various cell sizes. Cell Size 75 x 75 / 100 x 100 / 150 x 150 / 200 x 200 mm75 x 150 / 200 x 100 mmAny other size and colour as per requirement Section Size 50 x 10 / 40 x 10 mm Materials Aluminium / GI Powder-coated / Pre-coated GI

Aluminum open cell ceiling tiles are designed to lay onto 15mm Tee Grid. These tiles can be used without any tee grid system also. Access is gained by simply lifting the tiles out of the grid. The new Lock-in system features open cell ceiling panels with no frame or border around them. The panels simply connect to each other with easy lock in system of main and CMS. When grid system is not required, the Lockin system of Main and Cross provides architects and designers with additional flexibility, especially in customized sizes and different colors.

• Size: 100mm x 100mm, 150mm x 150mm, 200mm x 200mm
• Thickness: 0.5 mm
• Height: 40 mm, 50 mm

The new Lock-In system features open cell ceiling panels with no frame or border around them and do not need a standard grid system for installation. The panels simply connect to each other via supporting mounting and cross rails.Open Cell systems create a clean plenum mask, Easy access to lighting, ventilation systems, and sprinklers.

Manufacturers Specification for Open Cell Ceiling System. Open Cell Ceiling C50 / C75 / C100 / C150 / C200 MAIN & CROSS RUNNER: Supersil make U shaped profile, 10 mm wide x 50 mm deep with inwardly return edge of 2.5mm formed out of 0.50 mm thick (TCT) Aluminum Alloy AA 8011 fixed with a special groove to snapping Cross Profile to make module of desired square. Panel shall be powder coated on external surface only. Installation Details:     The Main Runner shall be fixed at a distance of 1.2mtrs C-C and shall be suspended by means of G.I Suspension Rod 4mm diameter and a Galvanized Suspension Spring Clip at a distance of 1.2mtrs C-C. The Cross Runner shall be fixed to the Main Runner at a distance 0.6mtrs C-C., with a self locking device. The Upper Section and Lower section shall be fixed to the Main Runner and Cross Runner in a form of a Cell Structure of module 100mm*100mm with a self locking device.

Modern Open Cell Ceiling, Lay In Tiles, Persian Carpet, Modern False Floor

• Application: Commercial, Residential
• Corrosion Resistance: Yes

Canon Open-cell ceiling is suitable for all types of residential and commercial areas and is available in a number of cell sizes. It offers a very elegant look.
