Optical Fiber Attenuator Dealers

• Type: Optical Fiber Attenuator
• Application: Telecommunication
• Color: White
• Attenuation range: 3 DB
• Brand Name: JT Optics
• Return Loss: ≥55dB
• Transfer Mode: Single mode

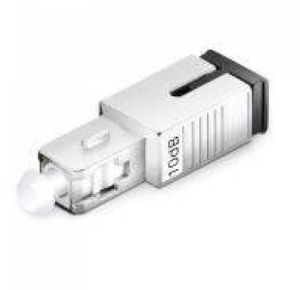

Fiber Optical Attenuator is used in fiber optic communications to reduce optical fiber power at a certain level. The most commonly used type is female to male plug type fiber optic attenuator, and it has male fiber Connector  at one side and the other side is a female type fiber optic adapter. attenuators mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave

• Operation Wavelength (nm): 1310nm, 1550nm
• Dual Wave Lengths: 1310/1550nm
• Attenuation (dB): 1, 5, 10, 15, 20 & 30
• Attenuation Precision (dB): ±10%
• Operating Temparature: -40
• Storage Temparature: -40

Features: Wavelength attenuation stability Environmental stability Low back reflection Low attenuation tolerances Compact & readily panel mountable Multiple fiber types for use in different systems and applications UPC (Ultra Physical Contact ) Polish Metal ion doped fiber High-power light source durability Attenuation levels from 1dB to 30dB, with standard and premium tolerances SC,FC,ST,LC in UPC types available.

• Operating Temperature: -25 to 75 Deg C
• Attenuation Tolerance: 1-30 dB
• Cyclic Test: 500 Cycles
• Engagement Force: 12.5 N
• Max Input Optical Power: 0.20 dB
• Packaging Type: Box

Fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level. Adaptor type fixed attenuators are available for single mode LC, SC, ST, FC types, select from 1310nm or 1550nm.

Optical fiber attenuator, High return loss, Max operation power(1W), Low wavelength relativity, Low polarization related loss, Compact design.

• Brand Name: RF CONNECTOR HOUSE
• Model Number: NA
• Place of Origin: Delhi, India
• Packaging Details: Customized packaging

• Material: Plastic
• Application: Telecommunication
• Weight: 0-500 Gm
• Color: Red
• Fiber Diameter: 0-100 Um
• Cleave Angle: 0.5 Degrees, 0.5-1 Degrees

UNISOLTM Fiber optic accessories supply Planar Lightwave Circuits (PLC) which are key components used in FTTx networks. We supply the PLC splitters including 1XN to 64 and 2XN to 64 types, they are with a wide range of working wavelength from 1260nm to 1620nm. The PLC splitter can be with optional various kinds of connectors and cable length, they feature compact size and very good optical performance. PLC splitters are based on the Planar Waveguide Technology. They provide a cost effective and space saving networking solution. They are key components in FTTH Networks and are responsible to distribute the signal from central office to numbers of premises. With its compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems. Two types of planar light wave circuit (PLC) products--chips and modules--have been developed to serve the rapidly expanding area of fiber-to-the-home (FTTH) systems. UNISOLTM PLCS are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System applications. UNISOLTM PLCs are available in both ABS & 19 Rack mountable type. Enquery Us

Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Variable in-line optical attenuators comprises a dual fiber collimator and a reflection component separated by a linear moveable ND filter. They are used to permit dynamic control of optical power levels in a fiber and can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter. Unique Features Wide attenuation range 0dB to 60dB Low PDL and insertion loss High stability & high reliability Product Highlights High quality ceramic core&In-line structure: The application of Imported A - grade ceramic insert and in-line structure enable the product with high stability , good reliability , high transmission speed and low insertion loss. Customized connector & Easy to use: Customized In-Line Fiber Optic Attenuator is able to satisfy your need by customized fiber connector, you can choose LC/SC/FC/ST four kinds fiber connector of your attenuators. Collimator-based manually variable attenuation:The attenuator are designed to give the accurate attenuation required by the connected device and are available in a wide 0dB to 60dB range of attenuation levels by turning the thumb screw Environmental protection PVC materials: The product adopts the environmental protection PVC material, the access port with a dust-proof cap, prevents the communication quality to be affected

• Interface Type: FC,SC,LC,ST
• Operating Temperature: -40 to +75 Deg C
• Brand: Nav Fibro Plastic
• Material: Plastic(Body)
• Tensile Strength: Less Than 20N
• Inertion Loss: More than 0.2dB
• Usage/Application: An optical signal, either in free space or in an optical fiber
• Maximum Optical Input Power: 200mW
• Sound Range: 25 db

Fiber Optic Attenuators - Male - Female Optical attenuators used in fiber optic communications systems may use a variety of principles for their functioning.

We excel in designing and developing high performing Fixed Fiber Optic Attenuators. Precisely designed, these Fixed Fiber Optic Attenuators are meant to be used in communication systems to reduce optical power, launched onto photo detectors. These Fixed Fiber Optic Attenuators are designed to give accurate attenuation over a wide range of wavelengths. Available in FC SC LC E2000 connector types with PCAPC polish.   Features Wide attenuation range Precision ceramic ferrule Higher return loss Environmentally stable Applications Telecommunication Networks Cable TV networks Active devise termination FTTx applications EDFA Fiber optic sensors Availability SimplexDuplex Patchcords Customized cable length Single Multimode patchcords Pigtail forms available

• Type: FC,SC,ST or LC (UPC or APC polish)
• Make: Radiant Technologies
• Model: SM / MM
• Operating wavelength (nm): 1310 , 1550 (±50nm) or dual windows
• Attenuation Range (d.B): 1dBÌ°
• Attenuation Precision: ±O.5 dBÌ° (<10 dBÌ°), ±10%(>10 dBÌ°)
• Return loss(d.B): >45 dBÌ°
• Maximum PDL(d.B): 0.1
• Repeatability(d.B): <0.1
• Operating temperature  ( ̊C): -40
• Storage Temperature ( ̊C): -40
•  :

• Application: Telecommunication
• Insertion Loss: 55 DB
• Operating Temperature: -40 to 80 degree Celsius
• Humidity Cycling: 75 degree Celsius
• Attenuation Values: 10 dB
