Optical Inspection System Dealers

Cost-Effective 2D Bottom-side Automated Optical Inspection (AOI) System. • Ensures PCB quality after DIP, Selective soldering & Wave soldering. • Completely automates bottom side Inspection (pin, through Hole Fillets). • Eliminates the need for flipping the PCBs. • Increases the productivity by reducing time, cost and the floor space for additional equipment to Flip the PCB. • Automates the Bottom side Inspection Just with one equipment. • Supports L-Size PCBs, High clearance, heavy substrates and mounted Jigs. • Fujiyama Algorithm provides complete Through hole joint inspection in a single step.

• Brand Name: Visimaster
• Driven Type: Electric
• Color: Light White
• Voltage: 220V
• Type: Optical Inspection System
• Weight: 100-1000kg
• Country of Origin: India

We are offering automatic optical inspection systems. Emst marketing pvt.ltd. Deal in various types of automatic optical inspection systems that are available at market leading prices.

The topside inline system for the inspection of printed circuit boards has a single multi-LED illuminated scanner unit with our patented special lens which generates a parallax free picture. The ASYS transport module has a system length of 1500 mm 1590 mm (two segments with 1000 mm 1090 mm and 500 mm). The system includes one modus system computer with the proprietary modus AOI-software.

optical inspection system Conveyor system: Finger conveyor Spray system: Transmission method: Stepping motor Preheating system: Preheating method: Hot air; IR tube Rail width control: Motorized Auto, Conveyor angle: 4*–7` Solder pot system: Solder pot material: Titanium Aloy (Standard) Wave height adjust: Digital control Cooling system: Forced air ‘air chiller Optional accessories: Center support: U-sonic Ultrasonic spray: Top heating. UPS. ProtectionWitrogen system, Feeder Knife

• Voltage: 220 V
• Application: industrial
• Country of Origin: Made in India
• Is It Portable: Portable

• Country of Origin: India
• Type: Optical Inspection System

If a spectrometer is the heart of an Ocean Optics system, and its light source the lungs, then fibers and probes are the circulatory system – the conduits through which light travels to reach the extremities and bring life to the measurement of a sample.Our patch cords come in a variety of core sizes for optimizing throughput. Bifurcated fibers and splitters are Y-shaped assemblies for routing light from one location to two others.

We represent some of finest companies in the world for offering state of art inspection system from Carton, Thailand to our valued customers.

THIS is Omron's second generation in-line PCB inspection system. It delivers fast and reliable results. The inspection program is simplified with Omron easy-to-use EzTS software. Designed for in-line inspection, the VT-RNSII is an ideal solution for smaller manufacturers running low volume to customers with large volumes.

Highly Precise and Accurate In-Line AOI system from GMS, Malaysia, SPOIS works on the principle of synthetic modeling of components. SPOIS does not rely on comparator principle of comparing all PCBs with the Golden Board, thus avoiding false alarms. SPOIS has a unique capability to detect defects at any stage of SMT manufacturing. It can be placed after the Stencil Printer to detect Printing defects, or after the Placement equipment to detect Placement related defects, or after the Reflow oven to detect Soldering related defects. Priced much lower than conventional Inline AOI systems, and slightly higher than the conventional Table Top systems, SPOIS can achieve ROI in record short times. The NG Marker (Optional) can mark the defect on the PCB making it easier for the Rework Operator to identify and rework the defect.

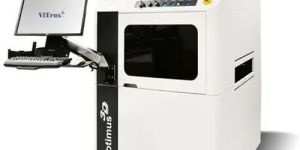

• Weight: 1000 Kg Approx
• Brand Name: Vitrox
• Model Name/Number: X6L
• Rame Size: 650x550mm, 736x736mm
• Min Size: 50x50mm
• Max Size: 610x510mm
• Stage: Single Stage
• Thickness: 0.4 - 6.0mm

automated optical inspection system, 3D SOLDER PASTE INSPECTION

automatic optical inspection system, automatic test equipment

optical inspection systems, board handling systems, reflow ovens

optical quality inspection systems, inline print inspection systems

Thermocouples, pcb cleaning systems, solder frame cleaning system

Stereo Optical Inspection System, PCB Cleaning System

Stereo Optical Inspection System, SMT Placement Machines
