Optical Mounts Dealers

• Country of Origin: India
• Brand Name: Crescent
• Weight: 0.65kg
• Material: Black Anodized Aluminum
• Design: Customised
• Condition: Good
• Feature: Good Design, Good Quality
• Pitching Adjustment: 5 Degree Tolerance
• Laser Mounting Diameter: 45mm
• Adjustment: Pitchin/left/right
• Laser Length: 250mm
• Mounting Hole: M6 Tapped Holes

• Country of Origin: Made in India
• Color: Black
• Material: Plastic
• Mount Size: 10 mm
• Diameter: 8 mm
• Pack Type: Box

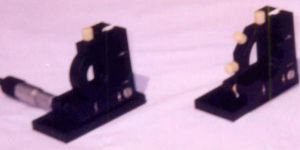

Mirror Mount is one of the highly demanded products of our company. It has wide application in optic research. Our Mirror Mount is fabricated using the best components and other raw material to ensure supreme quality. High durability, efficiency and flawless performance are some of the attributes of our Mirror Mount. We make available Mirror Mount with different technical specifications as per the requirement of buyers.

• Adjustment range in two planes:: ± 3 degree.
• Fine adjustment:: Driven by 80 tpi lead screws or micrometer.
• Finish:: Black anodized.

Front surface of the mount is plane. Optics can be fixed to the front surface of the mount by adhesive. Plane mirrors are available in two types. One type will have translation in addition to tilting. This type of mount will have three lead screws. Two of them for tilting and third one for translation.

  Mounts are kinematically designed for independent orthogonal movements. Two micrometers/set screws reading up to 0.01mm will facilitate precision movement in X & Y direction. Tilt of 9° approximately in each axis. Accuracy 8 arc seconds. Compact design with good stability and high sensitivity. Material – Anodized Aluminum. Available in different diameters.

• Color: Black
• Country of Origin: Made in India
• Usage/Application: Industrial
• Suitable For: Mechanical Lens
• Finish: Polished
• Material: Plastic

• Type: Standard, Precision, Manual, Motorized
• Compatible for: Prisms, Beam splitters, Non standard Optics, Fixed Optics Mount, or Wavefront Sensors
• Material: Grounded Hard Black Coated Aluminium
• Angular Adjustment Range: ±3° or ±4°
• Angular Movement: 8mrad (0.5°) and 13mrad (0.75°) with standard Adjuster 3µrad and 1.5µrad with Differential Adjuster
• Mounting for optics: Adjustable Clamp Arm
• Adjuster: Standard Adjuster, Differential Adjuster
• Mounting: Post Mountable, Vertical –Horizontal Mounting Surfaces

Self-Centering lensoptics mounts, Universal Adjustable lens, Multiple filter holder,Push holder, Universal plate holder, Bar clamp, spring clamp.

A prominent supplier of huge range of Gimbal Mirror Mounts.

• Type: Manual
• Material: Black Anodized Al
• Mirror Position: Centre and Top Corner
• Mirror Loading: Front and Side
• Mirror Diameter: 25mm
• Mirror Thickness: 6 mm
• Dimension Tolerance: 0.1mm
• Tilt Adjustment: +- 3 Degree
• Mounting Thread: M6
• Model No.: CMRMT25

Optical Mounts The new iOptron SkyTrackerTM camera mount is the perfect accessory for astrophotography. This portable mount makes it easy to take long exposures of the night sky without streaking or star trailing. Simply attach your camera to the front and turn on. The mount's slow-motion motors keep your camera tracking as the Earth rotates for beautiful images of the night sky. The SkyTrackerTM mount runs on 4AA batteries for portability at any location. Now you can take photos of the night sky like never before!
