Optical Prisms Dealers

We are a noteworthy name and work hard to attain complete client satisfaction. And, for achieving this objective, we facilitate them with easy payment modes. Our main concern is to deliver top-of-the-line quality products and for this, we check the entire lot on several quality parameters.

• Type: Surveying Instrument
• Brand Name: Topcon
• Material: Fiber-Brass- Aluminum
• Application: Architecture
• Color: Yellow- Silver
• Feature: Survey
• Condition: New
• Country of Origin: Switzerland
• Product Name: Big Prism
• Size: 250mm
• Color: Yellow- Siver

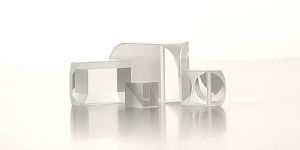

We offer clients a wide range of precision engineered right angle anamorphic prisms which is the most common type of prisms. These prisms are coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems and they are also often coated with high transmission using the hypotenuse face in total internal reflection. Properties :- 90°x45°x45°Clear glassRefractive index 1.52 approx.Polished faces Hypotenuse x Length mm :- 35x2570x50

• Features: Simple to use, Highly durable, Ruggedness, Accurately designed, Longer working life, Affordable rates

• Material: Plastic And Aluminium
• Surface Finish: Powder Coated
• No of Poles: 4
• Centring Accuracy: 2.0mm
• full length: 2150 mm
• Prism offset: 0mm/ +17.5mm

• Surface Treatment: Polished
• Diameter tolerance: -0.20mm
• Dimension: 32x32 mm

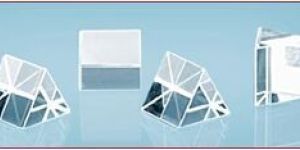

• Type: Optical Prisms

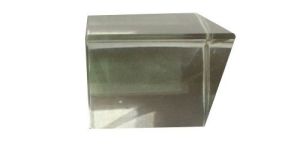

Equilateral Crown glass prism size 32×32mm

• Material: BK7 Grade A optical glass
• Dimension Tolerance: +or -0.2 mm
• Clear Aperture: >80%
• Deviation: 180°±15 arc seconds
• Flatness: λ/2 on big surface, λ /4 on other surfaces
• Surface Quality: 60-40 scratch and dig
• Wavefront Distortion: λ/2 @633nm
• Bevel: 0.2 mm to 0.5 mm
• Coating on input and output sides: Uncoated

Corner Cube Retro Reflector are used to reflect light beam back to the direction that it comes from. The reflected beam is always parallel to to the incident beam, and it travels in the reverse direction of the incident beam. This hold true regardless of the angle of incident beam. The beam reflection is achieved either through total internal reflection or by mirror coating on the rear surface of the retro reflector . An Incident beam filling the effective aperture, is reflected exactly back on itself. The Protective Al2 coating can be given to the rear reflecting Surface to avoid total internal reflection failure at high incident Angle.

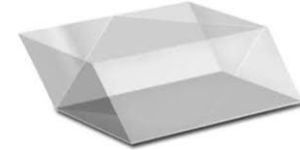

• Material: Nicol
• Dimension: 25*25mm 4800 , 20*20mm 4000 , 18*18 mm 3800 , 15*15mm 3000.
• Appearance: Transparent
• Shape: Pyramid
• Finishing: Polished
• Feature: High-quality
• Material: Other
• Condition: New
• Usage: Industrial
• Thickness: 3mm

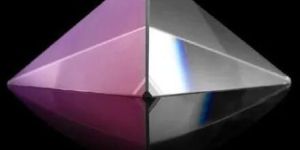

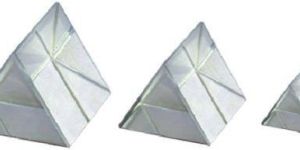

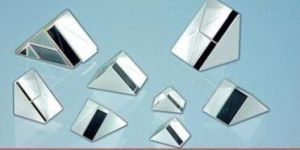

• Product Name: Equilateral Prism
• Material: Finest Grade Raw Material
• Brand Name: TD
• Condition: Good
• Place Of Origin: Ambala Haryana

We offer our clients, the unique Equilateral Prism. The equilateral prism is made of the finest grade raw material and is highly effective. The prism disperses light over a much larger frequency bandwidth and provides accurate results to the user.

• Material: BK7 Grade A optical glass
• Dimension Tolerance: ±0.2mm
• 90° Deviation Tolerance: according to the table
• Flatness: λ/2(Standard), λ/4(High Precision)@633nm
• Reflectivity: R > 95% per face @400-700 nm

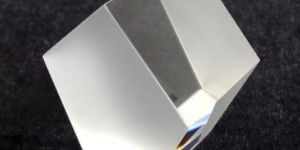

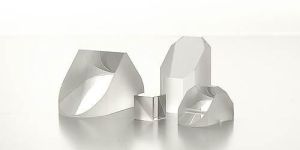

Penta Prism is a Five –Side prism, It has two important properties ,First the image is neither inverted nor reverse while deviated by 90 degree. Secondly, It is a constant deflection device ;i.e all the transmitted rays are deviated by the same exact 90 degree. Slight movement of the prism does not effect the true right angle. It is commonly used in Plumb Level, Surveying, Alignment, Range finding and Optical Tooling. The reflecting surfaces of this Prism must be coated with a metallic or dielectric coating. The standard Penta Prism reflecting surfaces are coated with aluminum with Black Paint.

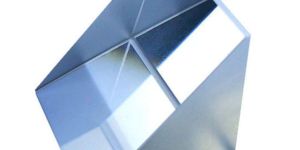

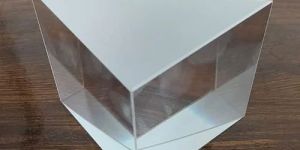

We offer Right Angle Prisms. Technical details :- product code:prbp004material:bk7surface quality: 60/40angle tolerance: +-5 arc minutessurface flatness tolerance: 1/4 wavedimensional tolerance: +-0.1mmar coating : entrance and exit surface are coated with broad band ar, 1/4 wave mgf2 @550nm.

We understand that the superior quality raw material is essential for manufacturing top-notch products. For this, we have tied-up with the leading names who assure us for the quality. With the assistance of our capacious warehouse and sophisticated inventory system, we are able to meet the bulk as well as urgent requirements of the clients. Moreover, our experts keep a stringent check on the safety of the products.

• Side (mm): Height (mm)
• 25: 25
• 38: 38
• 50: 50
• 62: 62
