Paper Cone Machine Dealers

Glueing Machine : Glue coating thickness adjustable Uniform coating on both sides of cone pattern   Paper Cone Winder : Single revolution synchronized clutch Pneumatic air ejection system Faster interchange of sizes

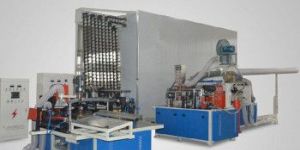

This machine is a fully automatic paper cone production line for textile industry. It is controlled by PLC. It consists of paper cone winding unit, drying oven, and paper cone finishing unit.

• Power: 12.5 HP
• Capacity: 25 - 30 Cones

Paper reel feeding with automatic production with inside and outside grinding, pattern, cutting, automatic pattern feeding by vaccum system and cone ejection by pneumatic system.

• Country of Origin: India
• Type: Textile
• Application: Textile Paper Cone Machine
• Condition: New
• Automatic Grade: Automatic
• Warranty: 1year
• MOQ: 1

 Salient Features* High performance machine with output up to 55 cones per minute @ 100% efficiency* For standard cone tapers such as 9 DEG 15',5 DEG 57', 4 DEG 20' & 3 DEG 30'etc* Unique Patented Gripper Winding system which ensures minimum process wastage with less power impact.* Finger Touch Paper Reel Loader* Easy Reel Shifter* Reel Tensioning Devices* Rapid setting and size changeover facility* Latest type glue applicator* Waste paper exhaust system* Online Printer for precise single or multicolour Printing with great flexibility of standard designs as shown in the colour chart.* Drier can be heated with multiple source of energy such as coal or firewood or gas or steam or electric or thermic heating with automatic energy saving device.* Inner logo printer (Optional)

Ice Cream Paper Cone Forming Machine has a suction nozzle, which sucks the printed and shaped paper from the shelf and then puts the paper onto the delivery chains, which delivery the paper into the forming mould. In this procedure, the paper will be coated with Heat Melt Adhesive, whose position, whose length and whose weight can be adjusted without stopping the machine if needed. The finished cones will be blown into the collecting device, counted, gathered and transferred automatically. Main Technical Parameter 1.100mm2. 255mm3. 15°-28°4. Fastest 200pcs/min1.The lowest height: 100 mm2.The highest height: 255 mm　3.Angle:15°-28°4.Other models can be customizedSTANDARD FITTING:1.complete electric-controlled case, including segment and non-segment speed regulating.2. Vacuum device and air-condensing device3. Heat melt adhesive device.4. Products piling device.5. Fin refusing collecting device.6. a kit of forming mould.7. Ten fin knives.

This automatic paper cone making machine consist three parts of winding part, dryer part and After finish part, save cost and efficient. Full automatic paper cone/bobbin making machine for yarn. Full automatic conical paper cone making machine. Automatic spinning paper cone machine for textile.  Automatic pagoda paper cone making/winding machine. And opening cutting, then the semi-finished paper cones will be sent to the drying machine automatically, also counting number automatically. It adopts double-speed variable frequency control, the winding speed can be adjusted freely.Using with the drying machine can make the whole process much easier.More About Information for Fully Automatic Paper Cone Making MachineThis machine is professional equipment of making paper cone/paper bobbin for spinning mill. After inside and outside printing (all kinds of patterns & logos), hen polishing, gluing, shearing, winding and opening cutting, then the semi-finished paper cones will be sent to the drying machine automatically, also counting number automatically. It adopts double-speed variable frequency control, the winding speed can be adjusted freely.Using with the drying machine can make the whole process much easier.   Flew chartPaper roll---Inside and outside printing---Paper edge grinding---gluing---paper cutting--- paper cone winding----opening cut--- drying---collecting---V-shaped notching---Line pressing---Head curling(Bull nosing)---polishing/flocking---Final products collating Parameters of SIN-APC. Automatic paper cone making machine Speed - 25-55pcs/min Applicable paper - 280 to 400 gsm Applicable glue - white glue/starch glue Compressed air - 1.2m3/min, 1.5MPa Power - 30 KW/380V/50HZ/3 Phases Operator Labor Total= 3 persons/shift Weight - 14000KGS total Machine size - 14000mm*10000mm*3000mm Recommend workshop area - 20000mm*12000mm*4500m. This machine is professional equipment of making paper cone/paper bobbin for spinning mill. After inside and outside printing (all kinds of patterns & logos), hen polishing, gluing, shearing, winding and opening cutting, then the semi-finished paper cones will be sent to the drying machine automatically, also counting number automatically. It adopts double-speed variable frequency control, the winding speed can be adjusted freely.Using with the drying machine can make the whole process much easier.Main parameters : Types - Various paper cones. Speed - 25-55PCS/min. Power - 11kw. Compressor (prepare by customer) - 0.99mpa 1.4 m³ /min. Size - 6500mm*2300mm*2600mm. Weight - 7000Kg. Control - PLC (DELTA screen, DELTA VFD). 4 servo motors. This machine make specialy for 5 layer cone and also can very low mantenence. (Because this machine has no need for cam shaft.) this machine is without cam series.This machins paper west are about 23 to 25%.

A heavy-duty clutch type machine, fitted with a pair of 10” length male & female embossing rollers, paper roll shaft, paper roll shaft adjustments, draw roller assembly carriage set with pattern cutting knife suitable for 9.15. A blower collects the grinding dust. Supplied with 2 HP motor for main drive and 1 HP motor for grinder drive with suitable starters.

• Country of Origin: India
• Brand Name: SODALTECH
• Certification: ISO 9001 : 2015
• Place of Origin: Tamil Nadu, India

A sucking nozzle will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During the transportation, the paper will be spread with thermosol. The position, length and quantity of thermosol can be adjusted during the production process without stopping the machine. After the formation, the paper spread with glue will be automatically blown to be transported to the collection machine. The pile and counting are automatic, and the paper will be carried out according to the pre-arranged pile numbers without stopping the machine.

• Model: CPC - 220
• Overall dimensions: 1850x1750x1800mm

This automatic paper cone machine is made for ice cream and other similar paper cone cup. This machine can form angles from 15。to 28。 (Through the way to change the mould) The structure of driving for this machine is adopted the boxing structure, using the oil Cycling to lubricate The crucial parts of this machine are adopted from the famous international brand materials.

• Type: Paper Cone Machine
• Color: Blue
• Automatic Grade: Automatic
• Driven Type: Electric
• Warranty: 1year
• Brand Name: ZSZ
• Type: Paper Cone Machine
• After-Sales Service Provided: Global Lifelong After-Sales Service For Free
• Certification: CE ISO9001
• Size: 14000mm*6000mm*3800mm
• Operator Number: 1
• The Length of Paper Cones: Adjustable
• Sample: Can Provide Free Paper Cones Sample
• Wall Thickness of Paper Tube: 1-5mm
• Origin: China

The Paper Cone Forming Machine has a suction nozzle which sucks the printed and cut paper out from the paper shelf and then places the paper onto the conveying chains, which convey the paper further to the forming mould. The paper will be coated during this procedure with Heat Melt Adhesive, whose length and weight can be adjusted without stopping the machine if needed. After formed, the coated paper will become the cones which will be blown into the collecting device, where the cones will be automatically gathered, counted and transferred at a certain intended amount.

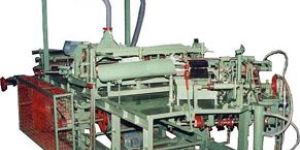

With vast experience of our domain, we are offering a wide range of Paper Cone Winding Machine. Offered product range is widely demanded in market for its flawless and hassle free performance. Our clients can avail this Paper Cone Winding Machine from us at everyday price range.This machine is suitable for: 5 Deg 57 mins ( 5 layers / 51/2 layers) 4 Deg 20 mins 3 Deg 30 minsFeatures:High efficiency Optimal performance DurabilityAdditional Information: Item Code: Cone-Master

• speed: 5.5 KW
• maximum speed: 180 pcs/minute

The sucking mouth will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During theTransportation, the paper will be spread with hot-melt glue. The position, length and quantity of thermal sol can be adjusted during the production process without stopping the machine. After the for-mation, the paper spread with glue will be automatically blown to be transported to the collection machine. The piling and counting are automatic, and the paper will be carried out according to the prearranged piling numbers without stopping the machine.

We are acknowledged for offering a flawless assortment of Automatic Paper Cone Making Machine. This machine is manufactured under the strict vigilance of professionals, who possess years of expertise in the respective domain. Our machine is highly effective in making paper cones with reduced consumption of energy. This is well acknowledged for its unique attributes like durability, quality etc. Features:Low maintenanceCorrosion resistantOptimum performance

We are offering paper cone cutting machine. Name : mew - paper cone cutting machine purpose : cone top and bottom cutting, suitable for 9.15,4.20, mini 3.30 and 5.57 cones capacity : 23 cones power : 1 hp labour : 2 person

• Voltage: 110,220
• dimensions: 1300*530*1400, 1080*850*1280

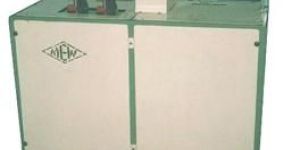

Paper Cone Printing Machine is also referred as heat press machine and screen printing machine. It prints the top and bottom side of the paper cones effectively. The performance of these machines is very high, easy to operate & the high quality printing ink is used. The specification are dimensions (L*W*H): 1300*530*1400, 1080*850*1280 etc, Voltage(V): 110,220 etc, Power(kW): 1.8,2.4 etc and Current(A): 5,17 etc. It is used in beverage, cloths printer industries.

We are instrumental in providing a high quality of Automatic Paper Cone Sleeve Making Machine to our clients Description : This is a superior product of our company which is made for ice cream and other similar paper cone cup coat. According to the customer's requirement, we can shape angles on this machine from 17-25 by changing the mould Different paper material like art paper, alumInIzed paper, offset paper, and others is OK for this machine working.

• Type: Paper Cone Machine
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric, Penaumatic
• Warranty: 1year, 1 Year
• Brand Name: Tirth
• Type: Automatic Paper Cone Making Machine
• After-Sales Service Provided: All Required Services

We are offering automatic paper cone making machine. This machine is a fully automatic paper cone production line for textile industry. It is controlled by plc. It consists of paper cone winding unit, drying oven, and paper cone finishing unit. Technical parameters:- dimension:- automatic paper cone rolling machine: 5760*2100*2030mm dryer: 8200*1200*3100mm roughing machine: 2150*2710*1430mm total set dimension: 6800*11000mm motor:- automatic paper cone rolling machine: 17.4kw dryer: coal heating: 4.45kw electric heating: motor 4.45kw, electric heating 20kw(total 28kw, 8kw for preparation) roughing machine: 7kw capacity:- 45-55pcsmin weight:-9t paper wastage rate:- lower than 20% motor power:- rolling main machine:- 14.7kw hem polish machine motors:- 6.5kw dryer parts:- drying way (coal) (fan motor):- 2.95kw (electric) (fan motor):- 2.2kw (electric wire heating power):- 28kw (20 actual 20kw and 8kw for backup) no. Of worker needed:- need rolling cone operator and finishing packing worker total 2 workers characteristics:- whole machine adopt advanced hmi cnc technology, program design, whole paper cone rolling machine have no cam, digital take place of former old manual cam maintenance, breakthrough maintenance difficult, annoying problem, stable working, simple maintenance, easy operation. Capacity:- since this machine is a programmable control, the pneumatic components take place of mechanical transmission, reducing the wear and tear of equipment, so with significantly improved speed, this machine is the normal production rate of 48-53 per minute, no one can surpass in domestic market so far. Precision:- paper feeding method of this machine is very unique, using the most advanced servo motor modular way, no inertia, feed stable. Hmi according to the instructions can pause at any position, and high accuracy. Feed length can do arbitrary regulation, this approach has been applied for patent.

The fully Automatic high performance Paper Cone production line from Sodaltech is designed for efficient manufacturing of paper cones in various sizes required by the spinning industry. The production line comprises the following machines: 1. Automatic Cone Making Machine with Cone Drier 2. Automatic Cone Finishing Machine This production line facilitates cost-effective results in comparison with production with individual operation.

• Color: Black, Brown, Grey, Light White
• Voltage: 220V, 380V, 440V
• Condition: New, Used
• Automatic Grade: Automatic, Manual, Semi Automatic
• Driven Type: Electric
• Warranty: 1year, 2years, 5years
• Application: Industrial

• Weight: 100-1000kg
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 3-5 Kw
• Driven Type: Electric
• Power Source: Diesel
• Warranty: 2years

We are acknowledged for offering a flawless assortment of Automatic Paper Cone Making Machine. This machine is manufactured under the strict vigilance of professionals, who possess years of expertise in the respective domain. Our machine is highly effective in making paper cones with reduced consumption of energy. This is well acknowledged for its unique attributes like durability, quality etc. Specifications Micro-controlled transducer Step-less speed adjustment Automatic control adopts optically controlled non contact switch Automatic Bowl-fan-wall body feeding, sealing Automatic Bowl bottom feeding, punching, edge curling, knurling Automatic Bowl top edge curling Automatic bowls counter

Paper cone machines

Paper Cone making machines are of different types like fully automatic paper cone making machine, automatic paper cone making machine, semi-automatic paper cone making machine. Fully automatic paper cone making machine feed the paper roll to the machine pattern inside printing and outside printing, inside and outside grinding pattern cutting and cone winding, top and bottom cutting and ejection by air systems.

Introduction: This machine is a fully automatic paper cone production line for textile industry. It is controlled by PLC. It consists of paper cone winding unit, drying oven, and paper cone finishing unit. Technical parameters: Dimension:Automatic paper cone rolling machine: 5760*2100*2030mm Dryer: 8200*12 Characteristics: Whole machine adopt advanced HMI CNC technology, Program design, whole paper cone rolling machine have no Cam, digital take place of former old manual cam maintenance, Breakthrough maintenance difficult, annoying problem, stable working, simple maintenance, easy operation. Capacity: Since this machine is a programmable control, the pneumatic components take place of mechanical transmission, reducing the wear and tear of equipment, so with significantly improved speed, this machine is the normal production rate of 48-53 per minute, no one can surpass in domestic market so far. Precision: Paper Feeding method of this machine is very unique, using the most advanced servo motor modular way, no inertia, feed stable. HMI according to the instructions can pause at any position, and high accuracy. Feed length can do arbitrary regulation, this approach has been applied for patent. Suck Blow Conversion: This machine�s suction blowing method is achieved by using programmable control solenoid valve conversion. Can do arbitrary adjustment of Vacuum suction position, inspiratory time, blowing time, conversion interval and so on. Using this approach improves the stability of the equipment Greatly Abrasive Method: This machine uses nesting head, brushing in simultaneous manner, simple and easy to understand. Brushing in the most stable time, in this way, abrasive paper cone produced by our machine is good and beautiful. Single nesting way can solve the chronic problem of paper concentricity. Lowest Paper Waste Rate: This machine paper waste rate is about 20%. Using most paper saving way to achieve customers� most satisfactory according to customer�s request.

Manufactured by:- k.s machinery and packing industry factory no 394, saha industrial area, hsiidc sec- 2, saha ambala, haryana. Points of attraction: 1.production 20,000 patterns in 08 hours. 2. No loss of paper, color and zero maintenance machine. 3.plug to start (machine contains all branded electrical ,belt and starter).(optional charges extra). 4. Automatic counting display. (optional charges extra). 5. No fear of accident in comparing with treadle printing machine. 6. Ratio of miss printing is very low. 7. Semi skill operator can also operate this machine. 8. Water base ink, no use of diesel, reducer or any other contents. 9. You can wash machine daily with water and no wastage of color.

We are offering paper cone machine. Characteristics: high efficiency, the maximum speed is 180 pcsminute, with automatic counting of the finished product small volume, occupying little space, with convenient installation. Small load power of the machine, which is about 5.5 kw; speed regulation by frequency vibration, with high precision. The transmission system adopts box type structure, with good rigidity and stability and high precision; oil circulation lubrication

automatic paper cone making machine, paper core winder, dry moulding machine

semi automatic paper cone winding machine, paper cone nosing base machine
