Paper Core Compression Strength Tester Dealers

• Features: It has adjustable testing area to accommodate specimen sizes and shapes, Maximum pressure to crush the test sample recorded on a gauge with peak pointer
• Capacity: 500 kgf at 6 kg/cm2
• Power: 220V AC 50Hz
• Material: IRON

• Capacity: 1000 kg
• Brand Name: NTF
• Country of Origin: Made in India
• Least Count: 100gm
• Testing speed: 12.5mm/min + 0.5mm
• Digital Display: Load and displacement
• Display Type: Digital

• Brand Name: Vertex
• Weight: 100 kg Cast Iron weights
• Capacity: 500 kgf
• Display Type: Digital
• Voltage: 230 V
• Frequency: 50 Hz
• Accuracy: 0.2% of Full Scale
• Current: 5 A
• Phase: Single Phase
• Least Count / Resolution: 0.1 kgf
• Required Compressed Air: 6 kg/cm2

• Capacity: 500-2000 (Newton per ton cm)
• Brand Name: PAP TECH
• Frequency: 50 HZ
• Accuracy Grade: 2% / 0.2% of full scale
• Model Name/Number: PAP- 4062
• Power Supply: 220 V, AC
• Material: Mild Steel

• Capacity: 500 kg ( Different Capacity also available on request )
• Thermal Printer: Yes
• Model: ECT (3.0) prima series
• Data Output: USB port available
• Motor: 1/4 HP Single Phase , 1440 rpm
• Dimensions: 600 x 524 x 934mm

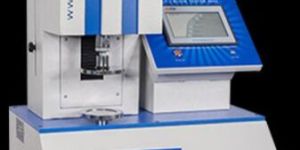

The edge crush test is one of the common quality tests that will be conducted on the material to ensure that your product will be able to withstand edge crush force. Presto has recently introduced an edge crush-Prima model that has designed this equipment with an automated Human Machine Interface. This lab testing instrument has been designed with a stable and practical mechanical structure with uniform movement over 90 ° alignments. It has been installed with a thermal printer that can instantly print the test result without the hassle of cartridge refill. The prima model of this lab testing equipment has a microprocessor-based high-speed controller designed to provide accurate test results. It has been programmed with individual test templates for measurement with three tests (RCT/FCT/ECT).   Users can easily get accurate test results of ten samples at a time and when a test is complete, the dynamic fixtures automatically move to the home location. This is the fastest Human Machine Interface (HMI) powered by a Cortex-A8 high-speed processor and allows the users to connect the machine to your computer for access. This edge crush testing instrument will work with a noise-free mechanism and users can generate and download the soft copy of the report in-a-go in pdf format.

• Application: Laboratory
• Automatic Grade: Automatic
• Feature: Easy To Use
• Use: Testing of Specimen
• Quality: Optimum Quality
• Load Frame: Two column type with variable speed motorized type
• Horizontal Test Span: Suitable for Samples upto 375 Mm Length
• Vertical Span: Max. 800 Mm

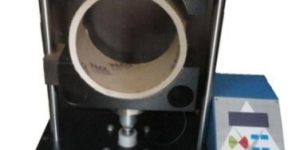

Product description: We have marked a dynamic position in the market by providing the finest quality range of Paper Core Compression Strength Tester. Descriptions: We manufacture and supply Pneumatically Operated Paper Core Compression Strength Tester which is used for testing the core collapsing strength It has adjustable testing area to accommodate specimen sizes and shapes It is pneumatically operated piston to apply the pressure Maximum pressure to crush the test sample recorded on a gauge with peak pointer Other details: Other Details: Paper tubes and bobbins are used as yarn carriers while paper cores are generally used for paper plastic film reels The collapsing force, which the carriers are capable of resisting, is dependent upon the following factors Quality and Quantity of paper Quality and Quantity of adhesive Manufacturing process Moisture content in the carrier Physical size and dimensions It is very difficult for a user to know all the above factors and their influence on the strength of the carrier It is equally difficult for a manufacturer to know the effect of each variable quantitatively But it is very easy for both the user and manufacturer to differentiate between good and bad and adopt a suitable standard of monitoring the quality of the carrier Collapsing strength tester is designed in such a manner that gradually increasing force is generated applied on the surface of the carriers The sharp collapsing point can be easily detected with the help of a Loadcell and Microprocessor based digital indicator Since this machine directly measure the collapsing force, no calculations are required and hence, the readings are direct and most accurate For Paper Tubes 1 Cores used as Winding Medium I Carrier, Radial Crush Test is performed For Paper Tubes 1 Cores used as Packing Material, Flat Crush Test and Vertical Crush Test can be performed

• Features: for testing the core collapsing strength. Has adjustable testing area to accommodate specimen sizes and shapes. Pneumatically operated piston to apply the pressure
• crushing force: 10 kn
• Item Code: FBIPT3005

Paper Core Compression Strength Tester, Box Compression Tester
