Phase Sequence Corrector Dealers

Our strong association with the renowned vendors in the market helps us in fetching the outstanding array of raw materials and that too after complete inspection. We keep our standards high to maintain quality throughout. Our team of quality analysts ensures that the offered product is of unmatched standard and free from any kind of flaws.

• PHASE SEQUENCE CORRECTOR FOR 8 TON/ 18 KW / 20HP: FOR 8 TON/ 18 KW / 20HP

suitable for correcting the ryb phase sequence, whenever the sequence is changed or reversed. It automatically corrects the phase and allow to run the 3 phase motorcompressor to run in right direction. • for three phase ups, during sequence changed or reversed, ups will start use the battery power & battery may become empty within hours • 3ph air conditioner will be tripped off, due to sequence reversal & the entire office will be suffering or disturbed because of ac failure • avoid damages during phase sequence changes or reversal • no break downs of lifts, ups, machineries, 3 ph. Air conditioner or any motors or 3-phase system due to any change in sequence. Suitable for 3 phase- lifts, ups, air conditioners, motor, pumps, machineries up to rating of -8 ton 18kw 22.5kva20hp motor pump it automatically corrects phase sequence so that output is always in the right sequence(r,y,b) , hence motor will run in right direction microcontroller based system, loaded with negative sequence correction technology. No manual intervention automatically corrects phase sequence ryb. Phase sequence indicator and controller. Heavy duty phase reversal changeover

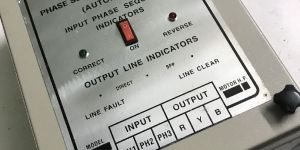

We are engaged in offering Inline make Automatic Phase Sequence Corrector that is capable of managing three phase loads. Automatic Phase Sequence Corrector, that we provide, saves downtime of equipment part losses and production loss. We make available precision engineered Automatic Phase Sequence Correctors that are used in motors, lifts and three phase loads.

• Frequency: 50 - 60 Hz
• Voltage: 3 Phase 415V AC
• Phase: Three Phase
• IP Rating: IP68
• Automation Grade: Automatic
• Mounting Type: Wall Mounted
• Output Power: 7.5-200 HP
• Automatic Grade: Automatic
• Surface Finish: Powder Coated
• Body Material: MS
• Input: PH1, PH2, PH3
• Output: R, Y, B
• Load: From 5 HP to 100 HP

• Country of Origin: India
• Application: Industrial
• Condition: New
• Phase Type: Three Phase
• Color: Siemens Grey
• Brand Name: Volt-on
• Voltage: 440V

• Circuit: Printing silver ink on PET material
• Cable: Flexible, custom cable length, tracks
• Water-proof: Yes
• MOQ: As per client requirement

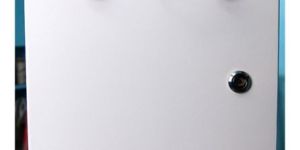

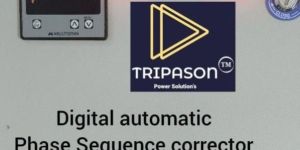

It is used to overcome problems likes single phasing, reverse phasing and unbalance supply to protect the electrical/electronic appliances.Features : Auto cut off on single phasing & unbalances supply. Auto corrects in Reverse phasing Switching time is 10 second with an Operating Voltage 130V to 280V. Temper proof and maintenance free, powder coated box. Microcontroller based technology with Pre Program interlocking to prevent short circuit. Minimum heat dissipation & energy losses. Remove problem of sparking & burning with the usage of Pre Magnetic Contactor.

• Brand Name: TRIPASON ™

• Material: Aluminium, Polyester Film, Raw Aluminium
• Current Type: AC
• Color: Blue, Grey, Light White, White, Green
• Condition: New
• Power: 1-3kw, 12-15kw, 15-18kw, 3-6kw, 6-9kw, 9-12kw
• Application: Automobile Use, Industrial
• Certification: ISI Certified
• Feature: Accuracy, Auto Controller, Dipped In Epoxy Resin, Durable, Heat Resistance, High Performance, Shocked Proof, Stable Performance
• Phase Type: Triple Phase
• Type: Phase Sequence Corrector
• Frequency: 50Hz, 60Hz
• Warranty: 1Year
• Voltge: 380V, 440V

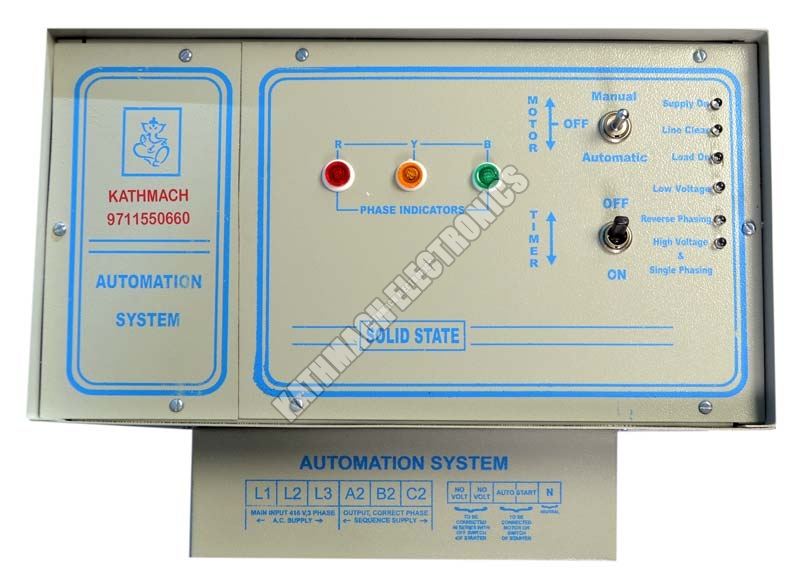

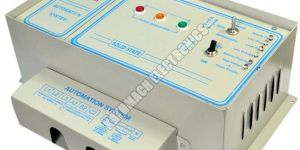

Phase Sequence Corrector automatically corrects the phase sequence in case the phase gets reversed or changes.No damage on motor in case of phase reversal. The sequence corrector will switch off, during the single phasing or imbalance voltage occur & later, auto-reset after restoration Features : Automatically corrects phase in case of phase reversal or .(Indication provided) Prevents accident due to reverse rotation of motor shaft. Protects motor from single phasing(Indication provided) Protects motor from low voltage and high voltage.(Indication provided) Load will be given on motor after 1 minute time delay to increase the life of motor(Indication provided) Protects motor from unbalance voltage(Indication provided) Auto/Manual switch provided Space of timer provided Type GIC FM1 Timer switch provided Light weight Maintenance free Three phase indicator RYB

• Display:: Right 7 segment LED 3 Digit
• Dimension :: 63(W) X 72 (H) X 114 (D)mm
• Operating Temp range:: -5°C + 60°C

PHASE CORRECTOR RELAY' offer following protections along with 3 digit display showing R-Y,Y-B,BR voltages in scanning mode with precise accuracy. LOWHIGH voltage tripping to ensure trouble free running of 3-phase Loads. Single phasing & Unbalance protection. Phase correction RELAY 'R2' which operates only when phase sequence changes.

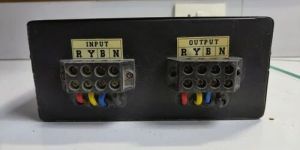

We are offering automatic phase sequence corrector. It automatically corrects the phase sequence r y b at the out piut terminal so that motor connected will always get the correct phase and will rotate in the right direction.

• Material: Phase Sequence Changer
• Color: Black
• Usage/Application: Offices, Factories, Industrial Area
• Brand: BS
• Phase: Three Phase

3 phase equipments viz. Lift, Motors, compressors, process machines, Air conditioners run when the 3 phases are connected in the right sequence( RYB ) & the phase angle of 120° between each phase is maintained. In case the phase sequence changes the motor tends to rotate in the reverse direction. In case of Lifts, Air conditioners, or other process machines the  load will stop functioning because of inbuilt protection & these  equipments resume only when the sequence is corrected manually. In case of 3 phase UPS ( Uninterrupted Power Supply) the UPS starts functioning on the battery mode & drains the batteries even when the power is available but only the sequence changes, effects battery life  & lowers battery life. By installing the ARIES Electronic Auto Phase Sequence Corrector all these problems donot occur under any circumstances irrespective of any sequence in the input. In the case of 3 phase UPS, due to wrong sequence, the input supply will be cut and it starts working in the battery mode resulting in discharge of battery. SWIFT – ELECTRONIC AUTOMATIC PHASE SEQUENCE CORRECTOR always gives an output 3 phase supply in the right sequence and maintains 120° between phases, even if the input sequence is interchanged. Thus all the 3 phase equipments continues to run irrespective of the change in input phase sequence.   RYB sequence is maintained. No manual control Fully automatic operation   9A to 200A

Elite automatic phase sequence corrector is designed to supply an industrial and domestic for three phase applications. Ranges: Automatic Phase Sequence Corrector – 9 A – 400 A ELITE PSC always gives output 3 phase supply in the right sequence and maintains 120° between phases, even if the input sequence is interchanged. Normally, for any 3 Phase Machines (or) Equipments like AC, UPS, Lifts and Motors, 3 Phase incoming supply has to be given in the right sequence (R, Y, B). The Phase angle of 120° between the phases R, Y, B is to be maintained to run 3 phases Motors. If the sequence is changed instead of R, Y, B to Y, R, B the motor tends to rotate in the reverse direction. In case of 3 phase UPS, due to wrong sequence, the input supply will be cut and it starts working in the battery mode resulting in draining of battery. If the sequence is changed for loads like 3 phase AC, UPS and Lifts, they will stop functioning due to the inbuilt sequence protection and only when the input sequence is corrected manually, they start functioning. ELITE Automatic Phase Sequence Corrector always gives an output 3 phase supply in the right sequence and maintains 120° between phases, even if the input sequence is interchanged. Thus all the 3 phase equipments continue to run irrespective of the change in input phase sequence. Operating functions Whenever three phase input supply is given to ELITE – PSC, it checks whether all the 3 phase are alive initially If all the three phases are detected by the Single Phase Preventer (SPP), then it checks and selects the RIGHT SEQUENCE to give always the desired output. In the event of phase failure, ELITE – PSC disconnects the load and protects 3 phase equipments from damages. Fully Automatic Output In The Right Sequence(R,Y,B) Voltage Imbalance Protection Between Phases Auto / Manual Mode Single Phase Prevention High / Low Voltage Protection

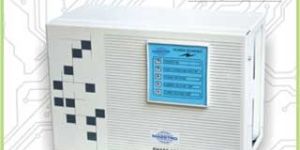

  This is a panel which performs vital functions related to three phase electrical supply. Maestro Phase sequence corrector is used widely for three phase electrical equipments at places where sometimes the phases (R-Y-B) are interchanged from the electrical panel or the electrical board. Due to this problem many three phase equipments suffer faulty operation. The power scanner in the PSC senses the changing of phases and indicates such failure. Then the contactor comes into working and this device automatically corrects the sequence of the three phases with immediate effect in fraction of a second, hence giving uninterrupted operation of the three phase equipments it has been applied on. These functions are indicated through LED indicators. These heavy duty equipments comes with the wiring terminals so that its application is easy and hassle free. These equipments come in various ratings ranging from 25 Amp. to 800 Amp. Features:- Three Phase Online Ups Three Phase Air Conditioning Plants ( Ductable and Split Units) CNC Machines Critical Medical Equipments Delicate IT Equipments Offset Printing Machines Tele Communication Systems Escalators and Elevators Defense Equipments
