Phase Sequence Indicator Dealers

• Frequency: 25-65Hz
• Working Voltage: 100V to 500V AC
• Working Voltage: 100-500 Volt (in vertical position) 50-500 Volt (in horizontal position)
• Frequenct: 25-60Hz
• Size: 96 mm x 96 mm

The instrument should not be left in circuit. Rating 30 se. @ 500Volt Supplied with case & leads.

• Warranty: 1 Year
• Item Code: 8031F
• Usage: Industrial
• Brand: Kyoritsu
• Model: 8031F
• Automation Grade: Automatic
• Usage/Application: Electrical Lab
• 110 – 600V AC: 0.5A/600V (F)
• >500V : within 5 minutes: 50Hz/60Hz
• 1.5m (R:red S:white T:blue): 106(L) × 75(W) × 40(D)mm
• 350g approx.: 9094 (Carrying Case), Instruction Manual

• Voltage: 90 V-600 V AC
• Weight: Approx. 510 g
• Frequency Response: 50/60 Hz
• Cord: 1.1 m each of Red (R), White (S) & black (T) cord
• Accessories: Instruction manual and Vinyl case
• Safety Standard: IEC 1010 CAT.ll
• Storage Temperature & Humidity: 20° C
• Operating Temperature & Humidity: 10° C
• Dimensions: 134 (L) x 85 (W) x 45 (D) mm

We have established ourselves as a prominent organization in the market by offering wide range ofPhase Sequence Indicator. This product is highly reliable for long lasting performance and acclaimed by the clients for its high operational accuracy.   Special Features:   Two functions in one unit Designed to check phase sequence Lamps provided on the unit indicates whether phase is open or which phase is open at that particular moment Functional design Small, portable and lightweight Designed for maximum ease of operation Safety design No exposed metal parts Safety features are incorporated Large size alligator clips Easily hold terminals of switchboards Highly reliable Allows to check a broad range of 3-phase power source ranging from 90 V to 600 V Exclusive test lead length are provided on request Sealed against dust It ensures dependability and trouble-free performance   Specifications:

• Material: ABS
• Application: Industrial
• Feature: Accuracy, Heat Resistance, Shocked Proof
• Voltage: 50-500 V
• Frequency: 25-60 Hz
• Rated: 30 sec

• Voltage: 220V
• Frequency: 50Hz, 60Hz
• Warranty: 1Year
• Brand Name: Meco
• AC Voltage: 50-500V AC
• Voltage Range: 50-500V AC
• Frequency range: 2-400 Hz

• Weight: 200g
• Brand Name: Kyoritsu
• Model Name/Number: 8030
• Operating Frequency Range: 20-400 Hz
• AC Voltage: 200-480V AC (Operational Voltage)
• Phase Type: 3 Phase
• Withstand Voltage: 4000V for one minute
• Time Limit For Continuous Use: 60 Minutes max at 200V AC and 4 Minutes max at 480V AC
• Dimension: 80 X 59 X 23 mm

• Brand Name: 3 Phase Sequence Indication via LED & Buzzer
• Application: Open Phase Indication via LED & Buzzer
• Model Number: Features
• Place of Origin: Reverse Phase Indication via LED & Buzzer
• Accessories: Test Leads with Insulated Crocodile Clips & Carrying Case

In Electrical System, sometime without identification of Phase Sequence it is impossible to proceed further. The Phase Sequence Indicator is used to determine the Phase Sequence R, Y & B of 3 Phase Voltage. It is important that Phase Sequence is known properly prior to energizing electrical motor & other equipment, as incorrect connection could cause damage to the equipment. The correct operation of measuring instrument like 3 Phase Energy Meter, 3 Phase Power Meter and Automatic Control of devices also depend on the Phase Sequence.

In Electrical System, sometime without identification of Phase Sequence it is impossible to proceed further. The Phase Sequence Indicator is used to determine the Phase Sequence R, Y & B of 3 Phase Voltage. It is important that Phase Sequence is known properly prior to energizing electrical motor & other equipment, as incorrect connection could cause damage to the equipment. The correct operation of measuring instrument like 3 Phase Energy Meter, 3 Phase Power Meter and Automatic Control of devices also depend on the Phase Sequence.

• Phase Sequence Indicator: Audible indication of direction , Phase condition LEDs

Electrical work on commercial and industrial installations often requires working on motorised machinery with three phase supplies. Correct sequence of the phases is important with certain motors and pumps as damage to brakes and valves will occur in minutes with incorrect phasing.

Digital Insulation Tester 1KV; 5-range Testing voltage 50 V100 MΩ to 1000 V4000 MΩ, response time PASS FAIL 0.8 sec.,

• Model Number: KM981
• Brand Name: Kusam Meco
• Mounting Type: Hand Held
• Material: ABS Plastic
• Number of Poles: 3 Pole
• Power: Self Powered
• AC Voltage: 60-600V

• Measuring frequency range: 20Hz
• Dielectric Strength: 2000V / minute

When connecting any 3 phase equipment to the 3 phase power, the first step is to check the phase sequence of the 3 phase power supply. This instrument is a handy and essential instrument for checking the phase sequence in 3 phase Circuits. When connecting motors, energy meters, watt meters, Power factor meters, Power factor controllers, Power meters etc, it is very important to connect the equipments in proper phase sequence, otherwise the instrument equipment can be damaged or give incorrect readings. The instrument can also be used to check for open phase( one phase only). It is used to measure the Phase sequence (R,Y,B) & Open phase Condition through LED and Buzzer.

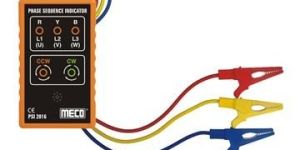

• Model No.: PSI 2016
• Brand:: Meco

In Electrical System, sometime without identification of Phase Sequence it is impossible to proceed further. The Phase Sequence Indicator is used to determine the Phase Sequence R, Y & B of 3 Phase Voltage. It is important that Phase Sequence is known properly prior to energizing electrical motor & other equipment, as incorrect connection could cause damage to the equipment. The correct operation of measuring instrument like 3 Phase Energy Meter, 3 Phase Power Meter and Automatic Control of devices also depend on the Phase Sequence.     Features:   3 Phase Sequence Indication via LED & BuzzerReverse Phase Indication via LED & BuzzerOpen Phase Indication via LED & Buzzer No Battery Required Rugged & HandyEasy & Safe to UseColoured Test Probes with Heavy Duty Insulated Crocodile Clips for R, Y, B Phase ConnectionsPhase Presence Indication from as low as 60 V AC (PH-N)

DESCRIPTION:- It is a rotating disc type instrument. The disc rotates in clockwise direction when correctly connected to incoming three phase power supply. Black arrow on white disk indicates correct phase sequence. If rotation is anti-clockwise then it indicates that one of the phases is reversed. It is suitable for use only in horizontal position and should not be left in circuit. Three, 1 meter long red, yellow, blue colour leads with clips and sheaths are provided. ELECTRICAL SPECIFICATIONS:- TYPE:- Electro-mechanical OPERATING VOLTAGE:- 50V to 500V AC FREQUENCY:- 25 Hz to 60 Hz. OPERATING TEMP. :- -10°C to 55°C STORAGE TEMP.:- -20° to 70°C HUMIDITY:- upto 95% RH

• Frequency: 25-60Hz
• Standard Accessories: Rexine carrying case
• Working Voltage: 100V to 500V AC at 25Hz to 65Hz
• Standard Accessories: Rexine carrying case
• Dimensions: 96mm x 96mm
• Rating: 30 seconds @ 500 V, Burden – 15VA @ 500 V, Voltage – 50-500V (in horizontal position), 100-500V (in vertical position)

• Voltage range: 40 to 700 V
• Frequency range: 15 to 400 Hz
• Current consumption: Max 3 mA

Brand Name:-SAMTEKLAB PHASE ROTATION INDICATOR  Features:  Phase rotation indicator for 3 phase system  Indicates phase rotation Indicates phase presence Specifications:

Electrical work on commercial and industrial installations often requires working on motorised machinery with three phase supplies. Correct sequence of the phases is important with certain motors and pumps as damage to brakes and valves will occur in minutes with incorrect phasing. The Megger PSI410 phase rotation indicator provides rapid indication of correct phase sequence utilising a three bi- coloured LED display and a specific audible tone. Clockwise rotation is indicated by clockwise rotating green LEDs with a continuous tone and counter clockwise rotation has counter clockwise rotating red LEDs and a warbling tone. To avoid the display rotating at the supply frequency the unit has been designed to provide a slow rotational speed of the display to allow easy indication of rotation. Dual phase colour coding has been adopted for the PSI410 to allow ease of use on both Brown / Black / Grey and Red / Yellow / Blue colour coded supplies. The PSI410 also features a triple bi-coloured LED display that indicates that all three phases are present. A green LED indicates the phase is present while a red LED shows a missing phase connection. The unit has a tough rugged case designed for an industrial environment and is supplied with long fused test leads with croc-clips and prods. The prods have insulated tips that provide less than 4 mm exposed tip. The PSI410 is self powered from the supply and requires no batteries.

• Brand Name: Protocontrol

We are offering reverse rotation indicator. protocontrol make reverse rotation monitorindicator is designed for protection & monitoring of pumps and other machinery. The rrm will generate an alarm if the equipment rotates in reverse direction by an accident. This is an important safety device for heavy pumps. the reverse speed monitor uses specially designed sensors to detect direction of rotation of equipment. Rrm actuates a relay contact when equipment shaft rotes in reverse direction. Using contacts of this relay desired control action such as alarm, trip can be achieved. The model with digital display facility normally indicates actual speed of the equipment as well as direction of rotation. the op is in the form of 2co relay contacts. Speed range from 1 to 6000 rpm . the enclosure for monitoring unit is panel mounting type ip 30. A special sturdy cast al enclosure, suitable to ip 65 grade can be provided when the unit is required to be field mounted. Supply voltage to the control unit is 240 v ac, or as per requirement.
