Phasing Sticks Dealers

Phasing Out Sticks

Get Price Quote

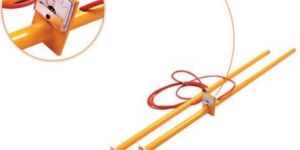

Phasing Out Sticks are used to phase out two sources of supply directly at high tension level without the use of Pts. FEATURES TYPE : Bipole Type Hand Held with KV Meter RANGE : 15KV AC & 36KV AC Models (Covering 0 to 15/36KV) NO. OF POLES : 2 (Two) INDICATION : Direct Voltage read out on the KV meter. (When two sources are in Phase, potential difference is minimum & when two voltages are out of phase, potential difference is maximum). PROTECTION : Inbuilt HV Protective Resistors against shorts and grounds CARRYING CASE : Padded Nylon or Hard carrying case for storage and transportation.

Phasing Out Sticks

Get Price Quote

• Application: Industrial
• Packaging Type: Corrugated Boxes
• Type: Bipole Type Hand Held with KV Meter
• Range: 15KV AC & 36KV AC Models (Covering 0 to 15/36KV)
• No. of Poles: 2 (Two)

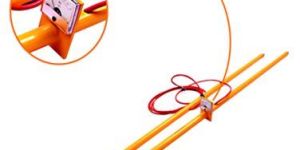

Phasing Out Sticks are used to phase out two sources of supply directly at high tension level without the use of Pts.   Indication : Direct Voltage read out on the KV meter. (When two sources are in Phase, potential difference is minimum & when two voltages are out of phase, potential difference is maximum).   Protection : Inbuilt HV Protective Resistors against shorts and grounds CARRYING CASE : Padded Nylon or Hard carrying case for storage and transportation.

Phasing Sticks

93,000 Per Piece

• Length: 775 mm
• Operating Temperature: -25 deg C to 55 deg C
• No of Poles: 2
• Range: 15KV AC & 36KV AC Models (Covering 0 to 15/36KV)
• Operating Humidity: 20 to 96%RH

Phasing Sticks

Get Price Quote

• Application: Laboratory
• Model: 11 kV
• Brand Name: Kusam Meco

Phasing Sticks

92,000 Per Piece

• Total Length: 1.175M
• Total Weight: 2.1Kg
• Total Resistance: 4.48 M
• System Voltage: 6.6 kV
• Front End: Fibre Glass Wound Tubing
• Length of Handle: 775 mm
• Response Time: 1 Sec
• Neon Threshold: 1.2 kV
• Neon Lit Fully: 1.5 kV
• Length Front End: 400mm
• Full Scale Voltage: 8 kV
• Maximum Voltage: 9 kV
• Handle Material: Composite Material with Polyurethane

High Voltage Phasing Sticks

25,000 Per Piece

• Application: Industrial
• Length: 3-12m
• Type: Phasing sticks
• Package: Box
• Material: Light epoxy resin
