PIC Development Board Dealers

• Features: 5 mm standard DC plug-in jack for power supply

This is basic PIC development board with DIP(Dual in-line package) socket. This board is perfect for programming PIC microcontroller as well as for designing and testing PIC based projects.The board has on-board PIC16F877A MCU. The bridge rectifier allow this board to be powered with both AC and DC power supply adapters. Board has on board 5v power supply circuit,DB9 RS232 port for serial communication with computer and other serial device(GPS modules, GSM Modems,RFID Reader),power status LED(RED),Reset switch, User switch for input, User LED(GREEN) for output, and port extensions for all 5 ports. ICSP (In-Circuit Serial Programming) header port for easy programming using Pickit-2,Pickit-3 programmer.

• Color: Green
• Application: Used in training,testing and development of DSPIC controllers
• Design: Customized
• Model Number: different types of model number
• Material: PVC

The immensely popular PIC development board for the PIC16F877A enables easy development and testing of various solutions of PIC projects. Microchip’s powerful PIC 16F877A .It is used to develop the exciting PIC real-time applications. It is Ideal as a home controller, the RS232 connection can connect directly to a computer for monitoring and sending various commands to the system. The on-board clock allows time based commands and the integral EEPROM allows for easy data storage. All of the features make this board as the ideal for more advanced level AD applications in automation, industrial appliances and consumer applications.

• MCU :: PIC16F877A
• Crystal Frequency :: 4 MHz
• DC Power Supplies :: +12V, -12V, +5V & -5V
• Power Supply :: 110V - 260V AC, 50/60Hz
• Operating Conditions :: 0-40 C, 85% RH
• Communication :: USB Port
• Test Points :: 41 nos (Gold plated)

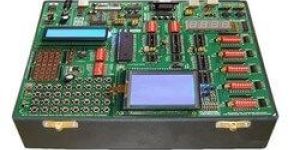

Nvis 5002 PIC Microcontroller Development Platform is a full featured development platform for microchip PIC16F877A microcontroller. It is an ideal platform to implement and test the designs both for the beginners and the experts. Nvis 5002 is a single microcontroller development platform. The Nvis 5002 PIC Microcontroller Development Platform is a convenient way to teach the principles of the family of microcontrollers through to programming and interfacing on the 16 series device. Using the platform, a range of projects in various domains like telecommunication, robotics, consumer electronics etc can be done. The Nvis 5002 gives designers a quick start to develop code on the controller with on platform programmer and on platform breadboard facility. The flexibility of connectors allows the user to make external connections. On platform, breadboard allows making their own circuits and performing an experiment as they desire.

• Power: 5v, 12v

PIC Development Board for Microchip PIC Series For any 40 Pin series 16FXXX , 18FXXX (EX 16F877A - 40 pin).ICSP Socket for Programming through PICKIT2, On board Regulated Power- Optional Supply 5v, 12v supplies.With this board you can develop and prototype with any of Microchip's 40 pin PIC microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware, The board have User buttons and status LEDs. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters.

•
  Can be used as a PIC programmer for programming chip on the end product itself:
  Easy programming through 'B-type' USB

A PIC Development Board allows you to perform any experiment on PIC microcontrollers and create any applications based on them with minimum amount of effort and time. It’s easy and fast programming helps debug the programs at a much faster rate reducing the time to market, whereas on-board interfaces like LCD and LEDs make it really comfortable to test the programs on the go. Connection of any external hardware is also very handy with IO extended through box headers. Programing of the microcontrollers on the board is done directly through USB cable. The board can also be used as a programmer for programming PIC microcontrollers on the end product.

• Weight: 1Kg

The eCee PIC16F877A Development Board can be used to evaluate and demonstrate the capabilities of Microchip PIC16F877A microcontroller. The MCU socket on board provides support for 40 pin DIP package of PIC16F877A controller. The board is designed for general purpose applications and includes a variety of hardware to exercise microcontroller peripherals. It is a fantastic tool for code debugging, development and prototyping. The all new board design have made it much more user-friendly than its predecessors, ideally suitable for training and development purposes. The components used in this board are of high quality and the PCB is high quality two layer PTH PCB, which makes this board especially durable. When you start using the eCee PIC16F877A Development Board you will find it to be one of the best development tool available for PIC16F877A controller. Here below you will find the key features of this product.

• Country of Origin: Made In India
• Material: Microchip
• Processor: PIC24F
• Suitable For: industrial purpose
• Application: commercial
• Brand Name: argus

• Operating Voltage Range: 7V 15VDC
• Features: ICSP connector for UIC00B -simple and fast method to load program.Perfect fit for 40 pins PIC16F and PIC18F.
• Operating Voltage (VDC)    : 7 to 15
• Length (mm): 95
• Width (mm): 55
• Weight: 75 gm
•  :

PIC Development board is used to develop and prototype with most of PIC 40 pin microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware ( Easy to flash Thru ISP Mode). The board have User buttons and status LEDs. The bridge rectifier allow this board to be powered with both AC and DC power supply adapters. MAIN FEATURES: • RS232 Tx, Rx interface with MAX232 IC on socket • DIL40 ZIF Socket ( Zero Insertion Force) microcontroller socket – To Reduce Microcontroller Damages • ULN 2803 To Drive Stepper Motor & Relays. • Quartz crystal. • Reset button. • Power plug-in DC/AC jack. • Extension slot on every uC pin. • GND bus. • Vcc bus. • Four mounting holes 3,3 mm (0,13″) I/O Features: • On board Regulated Power Supply 5v,12v supply’s • Easy to test with Burg Connecters wires. • A Serial Port for ISP. • An RS232 Serial Port. • 7Segment Multiplexed Display. • DC Power Supply Connector(12v Ac or Dc) • Interface Connector For LCD display 2line x 16Character • 24Cxx I2C EEPROM. • RTC DS1307 with on Board Battery Holder. • 8 LED array. • 4 x 4 Matrix Key Pad. • 4 Interrupt Switches. • 8 bit ADC (IC not Included) Package Content: • PIC Development Board ( WITH CHIPS RS232,RTC1307,EEPROM 24C04,ULN2003) • Burg Connecters 20 Nos NOTE – PIC USB PROGRAMMER IN NOT INCLUDED WITH THIS KIT.

The Pic Development Board is 8-bit Pic Microcontroller (pic16f877) in a Tiny Tqfp44 Package Which Has Inbuilt Data Memory and Flash Memory with the Operating Speed of 20mhz Clock Input. this Feature Equips the Pic Development Board with Low Power Consumption and Inbuilt Adc Channels with Spi Interface and Timer counter Internally.. available in Size 802*604 details atmeg8535 technical Specifications 40-pin Socket (mcu), 4x3 Matrix Keypad, Serial Eeprom (spi, I2c), 2x16 Character Lcd, Ds1307 Rtc with Battery Backup, Uart(rs232, Serial Communication), Pwm Output, 3 Nos. Interrupts, Reset Button, 8kflash – Program Memory, 1mhz Inbuilt Crystal, 32.768 Khz for Timers uses automotiveindustrial Application, Any Electronic Companies

Features PIC Development Board for Microchip PIC Series ( EX 16F877 - 40 pin) Programming Through ICSP Onboard Regulated Power- Optional Supply 5v,12v supplies Easy to test with Burg Connectors wires. An RS232 Serial Port. 7Seg Multiplexed Display. DC Power Supply Connector(12v Ac or Dc) LCD display 2 line x16 Character. 24Cxx I2C EEPROM RTC DS1307 8 LED array Matrix Key Pad 4 Input Switches Example Programs for LED,7seg, LCD, RS232 , Matrix Key Pad, ADC
