Pinch Valve Dealers

• Material: Metal
• Color: Black
• Application: Industrial
• Feature: Corrosion Proof, Durable
• Pressure: Medium Pressure
• Advantage: Easy to Operate

To Control the Abrasive Flow.

• Country of Origin: India
• Size: 1inch, 2inch
• Type: Ci Valves
• Material: Cast Iron
• Certification: ISO 9001:2008 Certified
• Application: Gas Fitting
• Color: Blue
• Pattern: Plain
• Pressure: Medium

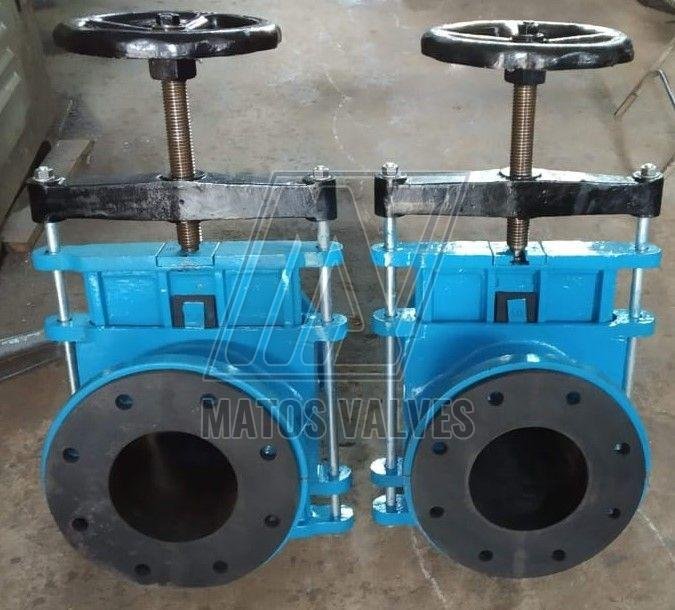

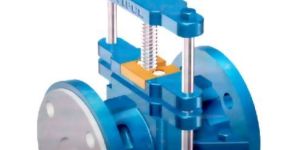

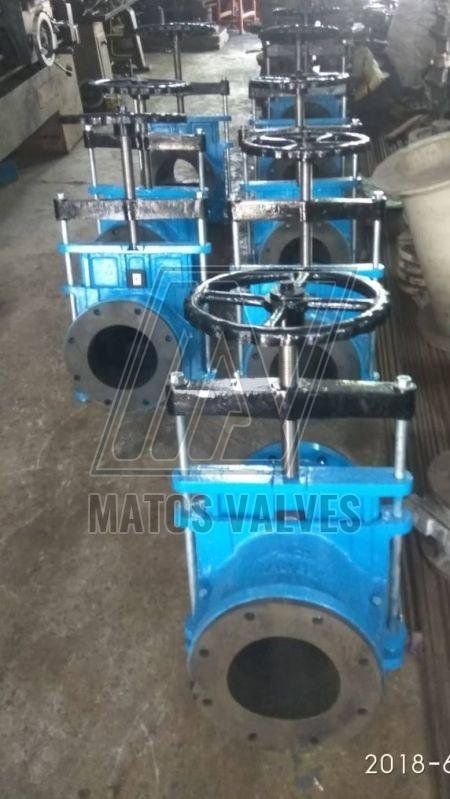

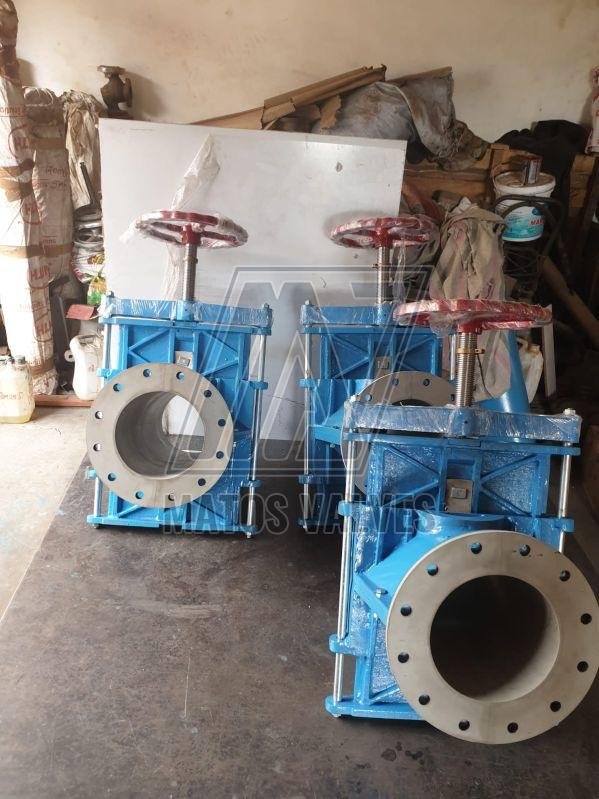

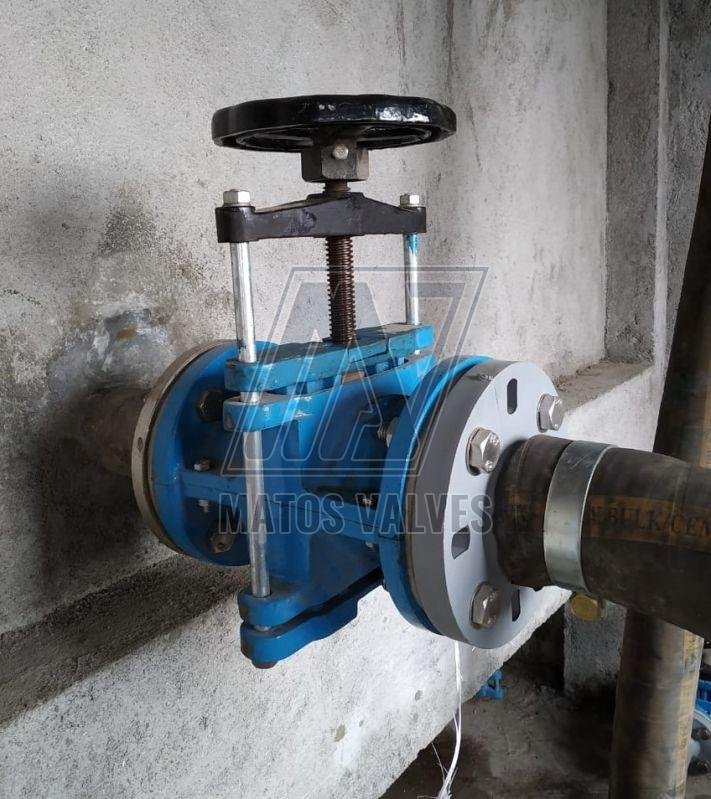

Pinch valves, offered by our company, are the modified version of laboratory pinchcock in which rubber sleeve is protected under the casting made of cast iron. The main advantage of Pneumatic Pinch Valves is that the fluid passing from it does not come in contact with its metal parts except the sleeve. This property makes it corrosion resistive against the action of various fluids. Open Body Pinch Valves assure the smooth flow of water like pipeline and their collar sleeve eliminates gasket. Pinch valve is user friendly and can be operated easily as compared to other wheel operated valves. This valve allows positive control over flowing media because of its in between stoppage that gives desired throttling. These pinch valves are extensively used for handling corrosive slurry, liquid with solid suspensions, abrasive media, and many others. We offer pinch valve in best application range with flange as per BS, DIN, ASA & IS dimensions, and ranging between 15mm to 300mm. We are known widely as one of the proficient Pinch Valves Exporters and Suppliers. General Features & Highlights Seat Less & Glandless ValvesField Replicable Elastomer Sleeve.Elastomer Sleeve Having Four Reinforced LugsFlanged Ends & Drilled to Din, Ansi, Bs-10, Is, Etc.this Valve Incorporates allthe Design Modifications Based On Our Experience & is of Study Construction to Handle Abrasive Corrosive Media. BRIEF DETAILS OF PINCH VALVE Pinch Valve is a Seat less & Glandless valve.Pinch valve is a modified version of laboratory pinchcock. A rubber sleeve is protected under a cast iron casting.The fluid passing through do not come in contact with either body covering or any other metal parts of the valve except the sleeve.Hence the body and other metal parts are almost permanently not subjected to the corrosive action of the fluid.The flow through the valve is straight and full as that of a pipeline, when the valve is fully open. Further, the collar of the sleeve eliminates gasket.The valve is simple hand wheel operated of rising wheel type. Therefore the operation of the valve is just simple as other wheel operated valve.The in-between stoppage will allow the desired throttling. Thus the valve offers positive control over flowing media. Applications Pinch valve finds its best application in handling corrosive slurry, abrasive media, liquid with solid suspensions and many others, which are difficult to handle with seat valve. Range The flange of the pinch valve can be supplied in accordance to BS, DIN, ASA & IS dimensions The range for the valve is from 15 mm TO 300 mm. Actuation The valve can be supplied with Electrical and pneumatic actuation. Operating Manual OF PINCH VALVE THE PINCH VALVE is a modified version of the laboratory pinchcock. A rubber sleeve is protected under a Cast iron or Aluminum split body casting. The valve is a simple hand wheel operated of rising wheel type. The operation of the valve is same as other hand wheel operated valve, it closes when moved in clockwise direction and opens when moved in anticlockwise direction. The in-between stoppage will allow the desired throttling. Thus the valve offers positive control over flowing media. The flow through the valve is same as that of a pipeline, when the valve is in fully opened condition. Further, the rubber sleeve eliminates the need of a gasket. PRELIMINARY PRECAUTION On receipt of the valve please check the position of the valve, as it is advisable to keep the valve in fully opened condition. Also check the position of the travel limit nut, if found loose then tighten the set screw of the nut. INSTALLATION The valve can be installed without any gasket unless it is required for some specific purpose. Tighten the nut of the flanges evenly & equally, but avoid too much tightening. After installation check the free movement of the upper & lower pinching bar by opening & closing the valve. The valve is then ready for the service it is installed for. MAINTENANCE If the valve is found leaking through the seat after sometime even though in fully closed condition, then set the travel limit nut by just taking it 1 or 2 threads above & then tighten. This will allow more room for traveling of rubber sleeve & ensure the valve to zero leakage. This problem sometimes occurs when the sleeve is slightly worn out, when used under abrasive condition. Further, The Rubber sleeve of the valve up to 2” (50mm) have a single lug on either side and it goes into the hollow passage of the pinching bar where it is fixed with the lug clamping screws. In the higher sizes above 2” the sleeves have two lugs on either sides and is fitted overlapping the pinching bar. DISMANTLING THE VALVE & REPLACING THE RUBBER SLEEVE When the rubber sleeve is ruptured or totally worn out then it is to be replaced with a new one. In this case first dismantle the valve by following the instructions. Remove the hand wheel.Open the Tie Bar nuts.Disconnect the spindle from the Horseshoe connection and remove it completely with the bridge.REMEMBER not to temper the set screw of the yoke bush, unless if required it should be completely tight.Open out the nuts & bolts of the split body of the valve.Remove the screw of the lugs from both the pinching bars.Now fit the new rubber sleeve & reverse the operation to assemble the complete valve. NOTE It is advisable to keep a spare rubber sleeve for maintenance purpose, considering the self life of the Rubber as six months when packed & stored in dark. The Pinch valves should be stored in fully open condition only. We also offer complete spares of the valves, but request you to place your order a week in

• Country of Origin: India
• Material: Stainless Steel
• Number Of Way: 3way
• Finishing: Polished
• Actuation Type: Single Acting
• Automatic Grade: Automatic
• Overall Length: 6-10 Inch
• Diametre (milimetre): 100 To 1000 Mm

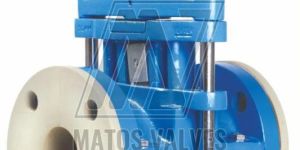

Details : Seatless & glandless valves Field replaceable elastomer Sleeve / muff Rubber sleeve / muff has four reinforced lugs Flanged ends & drilled to DN, ANSI, BS-10, IS etc., This valve in-corporates all design modification based on our experience & good quality finishing to abrasive and corrosive media.

Product Introduction A wear-resistant pinch valve with excellent corrosion resistant and sealing ability.Pressure 1.6MPa/cm2.Product Improvement Wear – resistant rubber liners resistance to corrosion and wear prolong the service life of equipment 2 times Wear - resistant rubber spool high resilience reliable opening and closing Product Features High resilience rubber liners with rubber boss no leakage. Smooth internal surface makes slurry flow stably and fast without flow resistance. The rubber elasticity exceeds 80 the slurry will not cause water hammer impact. Valves liners have strong anti fatigue ability longer service life. Easy to replace simple structure and convenient operation. High resilience rubber spool more flexible and reliable opening and closing. Wear-resistant Pinch Valve is composed of upper grip valve body rubber spool and lower grip. Product Appliion Automatic control or remote control for all kinds of wear-resistant and non-wear-resistant pipelines uniform addition of reagents in chemical industry or mine.

• Country of Origin: India
• Type: Pinch Valves
• Material: Stainless Steel
• Application: Water Fitting
• Temperature Pressure: High Temperature Pressure
• Finishing: Polished
• Specialities: Investment Casting, Heat Resistance

A pinch valve is a type of valve that controls the flow of a fluid or gas through a tube or pipe by using a flexible tube or sleeve that is pinched or compressed by a mechanism, such as a handwheel, lever, or pneumatic actuator. The tube or sleeve is made of a durable, elastic material, such as rubber or silicone, and is designed to withstand repeated pinching and releasing without wearing out.

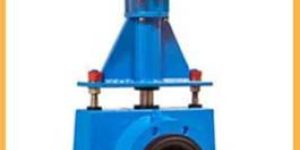

We are offering pinch valve, jupiter controls pinch valves are seat less and gland less valves. They have field replaceable elastomer sleeve, highly abrasive resistant due to elastomer sleeve and are 100 % leak tight. We make sure that our pinch valve maintained, easy to service and economical. The sleeve provide the valve lining, flange gaskets, and seating surface all in one. Pinch valves are best suited to handle highly corrosive slurry. When abrasive particles strike elastomer surfaces, the impact is absorbed and then deflected back into the particle; this resiliency allows elastomer surfaces to wear at a much slower rate than metals or even ceramic surfaces. We provide pinch valve with cam actuator, electric actuator, gear operated, manual pinch valve, pneumatic cylinder operated etc., pneumatic pinch valve, industrial pinch valve, manual pinch valve, corrosion resistant pinch valves, gear operated pinch valve, industrial open body pinch valve, jupiter pinch valve are reliable, maintenance free, cost-effective valves design for slurry, abrasive and corrosive –chemical application. There are no seats to grind and no stuffing box to repack and no packing gland to adjust, the heart of this unique pinch valve is the durable, flexible rubber sleeve which is reinforced with high-strength fabric. The sleeve, which is the only part of the valve exposed to the line process, eliminate maintenance and the need for expensive materials. Additionally, valve operation will not freeze, and operating torques remain constant. The design principle is very simple-two mechanical pinch bars open and close the elastomer sleeve. Because of its excellent control characteristics, the manual pinch valve can be used as a variable orifice. Few manual valves have this throttling advantage. Plus, zero leakage is maintained bi-directionally. A number of options are available, such as the pneumatic operated, gear operated, electrical actuated.

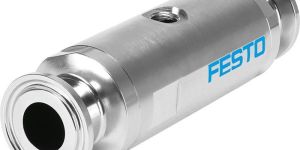

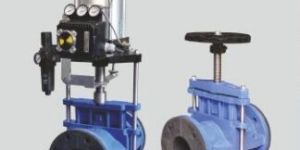

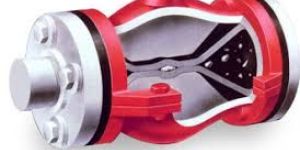

Air operated Pinch Valve allows Free flow of product, minimum frictional resistance, 100% leak free, no blockages and low net weight. Air operated Pinch Valve is a flattened and elliptical casing design of all flanged types ensures minimum compressed air consumption. This results in energy savings and ensures a specified, lipped fold pattern to the sleeve of the air operated Pinch Valve. This specific, lipped fold pattern in the Air operated Pinch Valves ensures the complete sealing of the product flow. Even large solids are enclosed by the sleeve in the air operated Pinch Valves and are thus tightly sealed. Sleeve materials and connection options A wide range of different rubber sleeve-, body materials, flange- and socket end materials such as internal thread, tri-clamp, weld-on ends, RJT connection or threaded hose nozzles, are available at our website.

• Feature: High grade components

The entire range, we offer, is manufactured under the strict guidance of the quality experts ensuring zero defect's at buyer's end. Customers should stay rest assured with us for the payment procedures. They can pay us conveniently through wide-ranging payment mediums. Features : Precision engineered High grade components Corrosion resistant

• Country of Origin: India
• Material: Metal
• Application: Industrial
• Color: Blue
• Condition: New
• Finishing: Coated
• Specialities: Durable
• Brand Name: Perfect Exports

• Body: Cast Iron & Aluminium
• Sleeve: NBR/VITON/FOOD GRADE
• Hanle STD Ends: Flanged to ANSI B 16.5/16.47 150#
• Hyd Body Test: 450 psig (32 kg /cm2)
• Hyd Seart Test: 315 Psig (22 kg/cm2
• Size: 80mm to 400mm
