Pipe Beveling Machine Dealers

• Weight: 100-1000kg
• Voltage: 220V
• Driven Type: Electric
• Warranty: 1year
• Rated Power: 1-3kw
• Automation Grade: Automatic

Pipe Beveling Machine is used for the purpose of beveling the Pipe End. Pipe is Beveled from the Outer and Front is faced by two different tools. The Pipe remains Stationery and the Beveling Head rotates and comes out of the Head Stock for cutting the Pipe End. The Pipe Beveling Machine mainly consists of the following: Base Head Stock Saddle Bed or Pillar Type Clamping Vice Die Head. BED: –The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb max. Vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8” BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. HEAD STOCK: –The Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Spline Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. CLAMPING VICE: –The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4”, 5”, 6”, 7”, 8”,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. BEVELING HEAD: –A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve. Note:-One set of Round Type Clamping Jaws will be provided with the machine. Other Round Type Clamping Jaws are Optional and will be supplied at an extra Cost.

The machine is a split frame ring, also called as clamshell design. This enables it to be mounted at any point along the axis of the pipe. It can be mounted on pipes with a horizontal, vertical or inclined axis. It uses a standard single point tool for the cutting and Beveling. The tool can be tilted to any angle to produce the required bevelled edge angle. The machine is also capable of spot facing and edge preparations of the pipes for welding or joining of pipes. There are various models of this machine for machining various sizes of pipes and for machining Metal or F.R.P. Pipes.

Pipe beveling machine in providing automated solutions in welding and cutting applications. Known for delivering quality products in time and at most competitive prices.

• Country of Origin: Made in India
• Weight: 30 Kg
• Brand: Allcut
• Tube Inside Clamping Range: 306 mm
• Feed Stroke: 50 mm
• Air Consumption: 60 cfm

• Material: ABS
•  :
• Power Source: Electric
• Automatic Grade: Fully-automatic
• Max bevel width: 21 mm Bevel angles
•  :

• Country of Origin: POLAND

This advanced, lightweight Industrial Plate Beveller BM-21 is developed with decades of industry experience and is the optimal tool for machining plates and pipes prior to welding. Get this cutting edge tool and make welding easier and more efficient.   new single milling head equipped with 10 square inserts,that makes machining process far more efficient withlittle operator’s effort• fast and easy exchange of inserts with no need forspecial adjustment• extended working range from 0 to 60 degrees withcontinuous angle adjustment• easy setting of bevel angle and bevel width• vibration insulation protects both the operator andelectronics against vibration• one universal guide plate for beveling both platesand pipes.

• Power: 800 W
• Pipe Diameter: 22 mm ID - 48 mm OD, 15.5 mm ID - 30 mm OD, 42 mm ID - 60.3 mm OD
• Air Consumption: 1400 l/min (50 CFM)
• Air Requirement: 0.6 MPa (87 psi)
• Rotational Speed: 105 rpm
• Weight With Motor: 7.6 kg (17 lbs)

Industrial Machinery Corporation Pipe Beveling Machine is used for the purpose of beveling the Pipe End. Pipe is Beveled from the Outer and Front is faced by two different tools. The Pipe remains Stationery and the Beveling Head rotates and comes out of the Head Stock for cutting the Pipe End. The Pipe Beveling Machine mainly consists of the following: Bed  Head Stock  Clamping Vice  Beveling Head.BED: - The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb max. Vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8” BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. HEAD STOCK: - The Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Spline Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. CLAMPING VICE: - The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4”, 5”, 6”, 7”, 8”,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. BEVELING HEAD: - A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve. Note:-  One set of Round Type Clamping Jaws will be provided with the machine. Other Round Type Clamping Jaws are Optional and will be supplied at an extra Cost.

Our organization is positioned at Ludhiana(India) and has gained immense acknowledgement and a respected place in the market. We have a well-developed all the in-house storage facility, laced with all the modern facilities. Also, we have hired a team of professionals who efficiently manage and maintain it.   Bed : The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb maximum vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8 BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. Head Stock : he Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Splined Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. Clamping Vice : The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4, 5, 6, 7, 8,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. Beveling Head : A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve.

• Automation Grade: Semi-automatic
• Voltage: 440V
• Frequency: 50 Hz
• Body Material: Mild Steel
• Surface Finish: Paint Coated

• Automation Grade: Fully-automatic
• Brand Name: Hongli
• Country of Origin: Made in India
• Certification: ISO and CE
• Usage/Application: Industrial
• Wall Thickness: 25 mm

• Locking Range (mm): 28 - 76
• Weight (kg): 10.5
• Idal Speed (RPM): 110,140

The BBM-3000 is a very popular pipe beveling machine. It is versatile and powerful machines. Quick interchangeability of locking jaws to suit wide range of diameters. This pipe beveling machine is used for pipe beveling, tube facing or tube beveling operation.

• Weight: 80 kg
• Rotating rate: 16 rpm
• Sloping bound: 80-273 mm

The Pipe Beveling Machine is used for the objective of beveling the pipe end. Pipe is beveled from the External and Front side is experienced by two different resources. The Pipe continues to be Invitations and the Beveling head moves and comes out of the head stock for reducing the Pipe end.The Pipe Beveling System mainly includes the following:Bed Head Stock Clamping Vice Beveling Head. Bed  Head Stock  Clamping Vice  Beveling Head. BED: - The Bed of Pipe Beveling Machine is created of cast iron. It is Very Firm and durable in development so as to take highest possible Fill and process max. Oscillations It is offered with four Nos. Base Gaps of Dia M20 at four sides of the bed. It is also offered with Four Utilized holes of 5/8” BSW near the Base Gaps. The head stock and Clamping Vice is fixed on the Bed. HEAD STOCK: - The head stock whole body of Pipe Beveling Machine is created of cast iron. It is Very rigid and durable in style. The Go Inventory is developed for Four Nos. Spindle rates of speed. All the Equipment are of helical kind created out of Axle Developing. The dimension gears is 50 mm. The Moving Equipment move on Splined Golf club shafts. The Golf club shafts are installed on Large Responsibility Football Bearings. The Feedback Base will be offered with a lever having three lines for C-Section V-belts. The Primary Spindle is installed on two Blend Curler Bearings installed in Difficult Firefox Coated Floor Sleeve. The Sleeve along with main spindle fixed with Beveling Go is installed in the Go Inventory whole body and is portable To and Fro along its axis. A Hyd. cylinder tube actuated electronically creates the activity of the sleeve in the Go Inventory. The Movement of the Sleeve can also be created personally. The head stock is Oil Loaded. It is offered with Oil Stuffing gap, Oil Strain gap and Oil Stage Signal.

• Brand Name: DTI
• Usage/Application: Industrial
• Automatic Grade: Semi-automatic
• Diameter (mm): 450-2500
• Material: Mild Steel
• Wall Thickness: 3-14.5 mm
• Length of Pipe: 13.5 m

Features Machine shall be generally as per SPM standard. Hardened & ground machine components in suitable Alloy Steel material. Heavy duty bottom base with LM Guide ways. Both the head on LM Guide ways mounted on Heavy Duty Bottom Base ensure precise and accurate displacement during setting. Low setup time is ensured using Hydraulic jacks Controlled by a single Geared Motorfor initially holding of job and supported by rollers in the middle base. The tube clamping vice with top and bottom semi Radius support to accomodate wide rage of diameter in single vice. Stroke length adjustment of main head controlled thru servo motor precise and accurate displacement of work head. Both the Beveling head movement of 3.5 Mtrs and 6.5 meter fixed middle roller suppon ensure 13.5 meter length of pipe resting and movement. The Beveling head to be planned at both ends with precise pipe positioning before pipe beveling. The face plate RPM adjustment is maintained thru geared motor with VFD. The facing depth can be reduced or increased separately according to requirement. The clamping vice will be lifted by two hydraulic cylinder at both ends. The max dia of pipe radius gripper providing with the machine. (additional gripper as per requirement can be supplied at extra cod)

• Locking Range: 20 – 42 (3/4” - 1.5/8”) mm (inch)
• Idal Speed: 235 RPM

The FM-1625 is a light weight and compact machine for facing, bevelling and weld preparation on all materials including stainless steel, duplex, inconel and others. One operator performs weld preparations safely, accurately and quickly vs. the slow and cumbersome grinding operation. Easy to handle and quick to setup. Used in shutdown environments on condensers and heat exchangers.

The BBM-3000 is a very popular pipe beveling machine. It is versatile and powerful machines. Quick interchangeability of locking jaws to suit wide range of diameters. This pipe beveling machine is used for pipe beveling, tube facing or tube beveling operation.

• After-Sales Service Provided: Overseas third-party support available
• Brand Name: POWERTECH
• Certification: CE
• Supply Ability: 100 Unit/Units per Month
• Packaging Details: Packed and seal in a Box
• Place of Origin: Maharashtra, India

The RHINO features three drive choices that are capable of performing any degree of end prep on pipe up to 18" schedule 160 without cutting fluids. This portable tool has many advances including a self-centering draw rod actuated clamping system and wide clamps that produce a superior clamping force for chatter free end preps while assuring maximum blade life. Designed for years of trouble free service the proprietary gear and bearing system delivers the stability and performance that all FABMAX tools have become known for.   Key Features : One mandrel and 8 sets of clamps needed to cover entire range. Three powerful drive choices: 3 hp pneumatic straight drive motor produces 345 kg-m (2,500 ft. lbs.) of torque (standard). Recommended for 3 hp pneumatic straight drive motor with off-set gear reduction produces 691 kg-m (5,000 ft. lbs.) of torque. Hydraulic motor drive with speed control produces 829 kg-m (6,000 ft. lbs.) of torque.

This machine is designed for beveling of the pipes of large size in length up to 4 meters and diameter of 2.5 meters. Since the pipes are generally not round and the thickness is less, the tool for machining must be guided by the pipe itself so that the face of the pipe can be beveled perfectly. The chuck is fitted with the specially designed tool – named – ‘dancing tool’ whcihholds the pipe through rollers inside and outside to get perfect beveling. The machine was conceptualized for one of our international clientele.

The MiniMill 100 is a rugged, fast, portable weld end preparation lathe designed for various tubes and pipes, including stainless steel and other high chromium materials. Our standard machine can be used for pipe sizes of 20 – 74 mm i.d. (0.787” – 2.913”) and comes with a 88 mm cutting head.

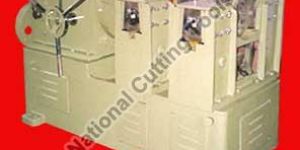

•  Model No.:  NCT-B- 4" to 8"
•  Capacity of the machine for Beveling Min.:  4" N.B. Pipe
•  Capacity of the machine for Beveling Max.:  8" N.B. Pipe
•  Outer Dia of the Sleeve:  200 mm
•  Main Spindle Bearings (Taper Roller):  32218 & 32219
•  Number of Spindle Speeds:  Four Nos.
•  Cutting Tools Required (HSS 10% Cobalt)or Carbide Tool:  3/4" (Carbide Tool)
•  Main Motor:  15 H.P., 960 RPM
•  Max. Travel of the Sleeve:  90 mm
•  Approx. Wt. Of the machine.:  2800 Kgs.

we are manufacturer of pipe machinery used by steel pipe industry. we manufacture different type of pipe processing  machineries, an following is the list of our pipe products: pipe threading machine pipe end facing machine pvc pipe threading machine pipe bevel machine square threading machine scaffolding props jack pipe threading machine rod threading machine conduit pipe threading

This machine is designed for pipe end beveling of small diameter, pipe out mounted compact installation. It is used in pipe end bevelling process of professional equipments & on-site overhaul, e.g. Water cooled wall, overheater, reheater, fuel economizer, boiler & fire thermo electricity, etc. High Quality bevelling tool which can process different grades of carbon steels, alloyed steels, stainless steels & other materials of metal pipes. An outside caliper is fixed in proper position, simple and light, precise centering, steady mount and convenient operation. Driving Type: Electric: 1 phase, 230volts, 50-60 Hz, Power 1.4 KW Pneumatic: It uses pneumatic drive of 5 to 7 bar air pressure with air flow of 53-70 CFM.
