Pipe Leak Repair Clamp
20,000 Per Piece
Manual Cage Type Pipe Clamp
8,000 - 250,000 Per piece
5 Piece (MOQ)
SPM EQUIPMENT offers high-quality Cage Type Pipe Clamp Manual (Outer diameter clamp) that are specifically designed and developed to fulfill the requirements of our customers. Our Cage Type Pipe Clamp Manual is manufactured from quality raw material which we procure from reliable sources. The product is widely used as pipeline equipment for specific industries all over the globe. Our Cage Type Pipe Clamp Manual is available at an affordable market price for our customers.
Best Deals from Pipe Repair Clamps
pipe repair clamps
1,500 - 12,000 Per Piece
5 Piece (MOQ)
Pipe Leak Repair Clamps
18,000 Per Piece
01 Piece (MOQ)
Design Standards and Specifications ANSI Pressure classes 300#-1500# Design based on API 6H. Design calculation ASME Sec. VIII Div. I Body materials A516 Gr. 70, ASTM A105 PTFE coated bolts and nuts, bolt material A193 Gr. B7 and nut material A194 Gr. 2H Standard coating yellow epoxy 100 microns Gaskets (H) NBR or Viton Weldable option is available with heat insulating gaskets Double row sealing is available on request Sacrificial anodes can be installed on the sleeves for long term cathodic protection Non-standard lengths are available on request Full MTC document will be supplied with the order Material Material: ASTM A 516 Gr.70 / ASTM A 105 Fasteners: ASTM-A-193-B7 & ASTM-A-194-2H Seal: Buna “N‟ Paint: Epoxy Coating Yellow 100 Microns Vent Port + Plug: Yes Lifting Lug (8” & above) Hinge Assembly: (8” & above) Yes Design Temperature: 65ºC N.D.T. 100% RT Butt Weld - 100% U.T. of vent plug welds. (Fillet) 100% MPI of Hinge welds. (Fillet) Certification: EN 10204 3.1 Design Calculation: ASME Sec. VIII Div. I
Pipe Leak Repair Clamp
Get Price Quote
We are main supplier of this product.
pipe repair clamps
Get Price Quote
Tekcons Leak seal clamps highly engineered repair solution to restore pressure integrity, quickly and permanently Offshore, Onshore and Sub Sea. A TEKCONS leak seal clamps are available in sizes from 2” to 48” nominal bore and pressure rating 1000 PSIG to 1500 psig. Tekcons can also provide solution to specially designed leak seal clamps according to customer requirement. To ease installation easier further we can attach hydraulic cylinders to open and close the two halves of the clamps. Bolting can be adopted to accommodate hydraulic tensioning or torquing equipment
Pipe Leak Repair Clamp
250 Per Piece
100 Piece (MOQ)
Socket Leak Clamps
1,800 - 37,800 Per Piece
Pipe Leak Repair Clamps
Get Price Quote
KWIK Finger Repair Clamp
Get Price Quote
KWIK Finger Repair Clamp These repair clamp provide an economical and permanent method of repairing damaged pipes from pin hole leaks to full 360° circumferential breaks. These clamps are light weight and easy to handle. Range : DN40-DN600.
pipe repair clamps
Get Price Quote
The “WRAP EASY” repair clamps are flexible clamps consisting of one or more stainless steel rubber lined band sections. They find use for a quick, easy and permanent repair of corroded, damaged or broken pipes. We are one of the renowned manufacturers and exporters of pipe repair clamps which is most appreciated by the global customers. It has been well examined and remarked by our highly skilled professionals to ensure its hassle free performance. We design and develop a highly functional range of pipe repair clamps that enable us to cater the ever-changing market requirements. As a renowned pipe repair clamps manufacturer, we bring forth an enormous array of pipe repair clamps at market leading prices.
pipe repair clamp
189 Per Piece
50 Piece (MOQ)
pipe repair clamps
986 Per Piece
PP Pipe Repair Clamp
Get Price Quote
We have firmly positioned ourselves as one of the distinguished PP Pipe Repair Clamp Manufacturers and Suppliers in India. The PP Pipe Repair Clamp is generally used for repair the HDPE/PP/PVC pipes in various industrial sectors. Our PP Pipe Repair Clamp is intricately designed to meet the clientâs specifications using high-grade polypropylene plastic material. The clients can avail these PP Pipe Repair Clamps at market leading prices. Attributes : Resistant to weather changeReliable performanceExcellent qualityVery durable Applications : IrrigationIndustriesHouse service connections Specifications ProductColorSizeP.P Pipe Repair Clamp (Light Or Heavy)Gray63mm, 75mm, 90mm, 110mm, 140mm, 160mm
pipe repair clamps
Get Price Quote
The “WRAP EASY” repair clamps are flexible clamps consisting of one or more stainless steel rubber lined band sections. They find use for a quick, easy and permanent repair of corroded, damaged or broken pipes. We are one of the renowned manufacturers and exporters of pipe repair clamps which is most appreciated by the global customers. It has been well examined and remarked by our highly skilled professionals to ensure its hassle free performance. We design and develop a highly functional range of pipe repair clamps that enable us to cater the ever-changing market requirements. As a renowned pipe repair clamps manufacturer, we bring forth an enormous array of pipe repair clamps at market leading prices.
pipe repair clamp
Get Price Quote

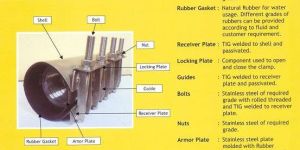

We are providing Pipe Repair Clamp. Pipe repair clamps are the best solution available to prevent the leakage in pipe which can be installed single handedly in a short duration of time. Pipe repair clamp shells are made from suitable thickness stainless steel sheet of suitable grade and thickness which is capable of providing uniform pressure over the damaged part of the pipe. Rubber Gaskets-Gridded design with tapered ends and vulcanized to metal plate provide an excellent pipe seal. Rubber grade can be Natural, EPDM, Neoprene, Nitrite, butyl etc., depending on the customer requirement and fluid conditions. Bolts, nuts, receiver, locking and armor plates are also made of stainless steel and designed to provide easy installation and clamping strength throughout the circumference of the pipe. Pipe repair clamps are available in sizes from 2" to 24". Larger sizes also can be supplied according to customer requirement.
pipe repair clamps
Get Price Quote
The “WRAP EASY” repair clamps are flexible clamps consisting of one or more stainless steel rubber lined band sections. They find use for a quick, easy and permanent repair of corroded, damaged or broken pipes. We are one of the renowned manufacturers and exporters of pipe repair clamps which is most appreciated by the global customers. It has been well examined and remarked by our highly skilled professionals to ensure its hassle free performance. We design and develop a highly functional range of pipe repair clamps that enable us to cater the ever-changing market requirements. As a renowned pipe repair clamps manufacturer, we bring forth an enormous array of pipe repair clamps at market leading prices.
pipe repair clamps
Get Price Quote
Pipe repair clamps Single-Piece Precision Die Moulded Seal fixed in wedgelock grooves in each half for peripheral and lateral sealing, Construction: Carbon Steel, Stainless Steel, and combination of SS wet parts & CS, Class: Standard 1000 psig and larger, such as ANSI 600 and 900 rating.
pipe repair clamps
Get Price Quote
pipe repair clamps, Metallic Bellows, Industrial Dampers
pipe repair clamps
Get Price Quote
pipe repair clamps, Garbage disposal installation, BIO Septic Tank
