Pitot Tubes Dealers

• Warranty: 1 YEAR
• Application: MEASURING WATER VELOCITY,ACCESSORIES WITH ANEMOMETER , MANOMETER ETC
• Brand Name: SASA,SASA
• Type: MANUAL
• Country of Origin: India,India
• Color: SILVER
• Material: BRASS
• Accuracy: BEST
• Name: PITOT TUBE
• QUALITY: BEST

Pitot tubes, Straight type pitot tube is widely used for dirty liquids .We also send pitot tubes for calibration at IIT powai on chargeable basis to find their co-efficient, Some of the places where pitot tubes are widely used are pitot tube for air sampler & chromatography, velocity measuring, dirty, cement plant & air blower pitot tube. Pitot tube manometers are used for velocity measurement in wind tunnel . Pitot tubes can also be used with digital manometers and anemometers. Curved joint and ellipsoidal nose are used for clear AirGas velocity measurement. Standard : • MOC-304 S.S. • Pipe -O.D. 38", I.D. 14" • Pressure Connections 14" BSP (Female) or as required • Process connection nil • Other required length, M.O.C., O.D. & I.D. Pipe, pressure connections can be provided

We are offering averaging pitot tubes. Averaging pitot tube is a differential pressure producer suitable for liquid, gas and steam flow measurement. It offers simple, low cost installation into pipes and ducts, and high energy savings due to its low unrecovered pressure loss. There are no moving parts or sharp edges to wear, so long term accuracy can be maintained.

• Length: 300 mm
• Port: New Delhi
• Diameter: 3 mm
• Reference: TPL-03-300

• Type: Pitot Tubes
• Material: Stainless Steel
• Application: Laboratory, Industrial
• Color: Silver
• Feature: Durable, Easy To Install, High Quality, Quality Approved
• Voltage: 110V
• Condition: New
• Finishing: Non Polished, Polished
• Packaging Type: Box, Carton
• Warranty: 1 Yr
• Brand Name: Dwyer

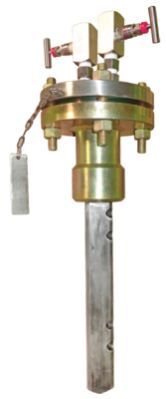

Pitot Tubes ] Constructed in Inox Steel AISI 316, equipped with thermocouple type K. Different lengths available..

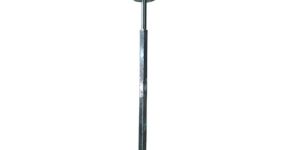

averaging pitot tube Averaging Pitot Tube is suitable for clean liquid, gas flow measurement • Accuracy ± 2 % of actual flow rate • Repeatability of measurement ± 0.2 % • Flow rate turndown typically 4:1 • Short upstream and downstream straight pipe lengths • Long term accuracy unaffected by wear • Less pressure loss

• Pitot Tube: Composed of 4 Static Holes and Total Pressure Tapping D3
• Transparent Tube: 170mm
• Length: 33.2 Mm Internal Diameter and 850 Mm Length Approx
• Water Inlet: Hose Connections
• Water Manometer: 500 mm length

• Material: Metal
• Voltage: 220 V
• Warranty: 1 Years
• Water Supply: Water Supply & Drain
• Electricity Supply: Single Phase, 220 VAC, 0.5 kW
• Surface: Polished
• Power: 200 kW

We are the leading manufacturer of Pitot Static Tube which is used to measure the local velocity at a given point in the flow stress. The process of the product is also known as Pitot Static Tube Set-up. We offer the product at an affordable market price. Our powerful manufacturing unit is fully capable of producing premium quality Pitot Static Tube which we supply world wide to fulfill the requirements of our clients. The product includes : A Pitot tube of standard design made of copper / SS is supplied and is fixed below vernier scale The Vernier scale is capable to measure the position of Pitot tube in transparent pipe section The pipe has a flow control valve to regulate the flow A U-tube manometer is provided to determine the velocity head Present Set-up is self-contained water re-circulating unit Flow control valve and by-pass valve are fitted in water line Flow rate of water is measured with the help of measuring tank and stop watch Experiments : To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot tube To plot velocity profile across the cross section of pipe

• Material: Stainless Steel
• Application: Gas Flow Measurement
• Color: Silver
• Feature: Durable
• Finishing: Polished
• Packaging Type: Corrugated Box

• Material: Metal
• Finishing: Polished
• Color: Silver
• Application: Laboratory
• Packaging Type: Box
• Brand Name: Esha
• Brand Name: Esha
• Moc: Long Lasting Ss 304, 316 Stainless Steel Construction
• Features: No Calibration Needed, Recisely Located, Burr-free Static Pressure Holes

Pitot tube for use with our precision manometers and air velocity gages. 'Sharp" pitot tubes are constructed from corrosion resistant stainless steel for o life time of service. Sharp design meets AMCA specification for maximum accuracy over a wide variefy of flow conditions.

We are offering pitot static tube, 206x296.

S-Shape Pitot tube Recommended specifically for flow / velocity measurement of dirty, particulate laden air or gas streams. Typical in environmental testing, large I.D. (1/4"or more) tubing resists chocking under harsh, sooty conditions. Again tube can be cleaned easily by passing air or water through it. Total & static pressure tubes are precisely aligned & arc welded together at every six inch,for maximum accuracy, strength and durability. 1/4" BSP (F) connections easily adapt to any type of pipe or tubing. Permanent engraved insertion depth graduation (optional) facilitates accurate positioning. Features :a) Long lasting S.S. construction b) 1/4" BSP c) Permanently welded d) Rated for upto 815°C (1500°F) Temp.e) Required adaptors, tubing or piping can be provided.(F) pressure connections Standard :a) MOC-304 S.S.b) Pipe -O.D. 3/8", I.D. 1/4"c) Pressure Connections 1/4" BSP (Female)d) Process connection nil(e) other required length, M.O.C., O.D. & I.D. Pipe, pressure connections can be provided Optional :1) Engraved insertion depth marking2) Nozzel or other process connection adaptors3) Isolating valves4) Connecting Hose or Tubing5) D.P. Indicating Instrument 6) Any other size, material of construction or tube as per your given drawing can be made & supplied.

Use of the 33T allows insertion and removal without process shutdown. The 33T probe consists of a standard brass head and a 316SS probe and installs through a wet tap assembly. The wet tap assembly consists of a packing gland, pipe nipple, insertion valve and thredolet or pipe saddle clamp. The 33T has 1/ 8” FNPT connections and is shipped with wet tap assembly and safety chain.

Pitot Tube is standard air velocity meter. It consists of two concentric tubes. Inner one measures total pressure existing in the fluid stream, the outer measures static pressure only. When these tubes are connected to Manometers only the velocity pressure is registered. This pressure is a measure of linear velocity of gases.

• Line Size :: 150 NB - 750 NB (6" to 30")

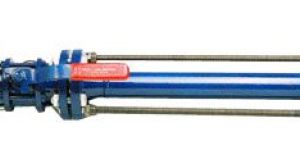

We are the leading manufacturer, exporter and supplier of Averaging Pitot Tube (Annubar). P.S Instruments Averaging pitot tubes use multiple sensing ports to continually average the flow profile and generate a differential pressure that represents the mean flow rate across the pipeline. Averaging Pitot Tubes offer an accurate measurement and low permanent pressure loss The Pitot tube produces a Differential pressure (DP) signal proportional to the square of the flow rate in accordance with Bernoulli's theorem. This signal has two components, the high pressure (HP) and the low pressure (LP). DP= HP-LP When the fluid impacts the sensor, it creates a high pressure zone, greater than pipe static pressure, in front of the sensor. As the fluid moves past the sensor, it accelerates and a low pressure zone is created to the sides and rear of the senor. Multiple sensing ports are positioned in the high and low pressure zones and an averaged differential pressure is produced. The DP increases proportionally to the square of the velocity of the fluid. By averaging the flow velocity across the pipe, averaging pitot tubes are more tolerant of errors bends and valves upstream of the meter

ANNUBAR - DIAMOND BAR (AVERAGING PITOT TUBE) Annubar -Diamond Bar (Averaging Pitot Tube) is an energy saving device used to measure the flow of liquids, gases & steam in pipes, stacks & rectangular ducts. It provides high, long term stability with low permanent pressure loss. The sensor is diamond shaped which controls the separation point at which the boundary layer breaks off as the flow pass through it, resulting in a stable flow coefficient & achieving good accuracy over wide range of flow.

• Type: Pitot Tubes
• Material: Carbon Steel, Metal, Stainless Steel, Steel
• Application: Laboratory, Industrial
• Feature: Durable, Easy To Install, High Quality, Quality Approved, ,Easy To Use
• Voltage: 110V, 220V, 380V
• Condition: New, Used
• Finishing: Non Polished, Polished
• Packaging Type: Box, Carton

Averaging Pitot Tube is suitable for clean liquid, gas flow measurement • Accuracy ± 2 % of actual flow rate • Repeatability of measurement ± 0.2 % • Flow rate turndown typically 4:1 • Short upstream and downstream straight pipe lengths • Long term accuracy unaffected by wear • Less pressure loss

• Size: 12- 4000 mm
• Standards: ASME MFC-3M,BS-1042 And ISO-5167 etc
• Material of Construction: Carbon Steel,SS304,SS316,SS304L,SS316L as Standard.Hastelloy C,Monel,Inconel
• End Connection Type: Buttweld, Flanged
• Accuracy: Within +/- 1 %
• Optional Testing: PMI,Hydrotest,Radiography,Calibration,NACE,PWHT,IBR,Oxygen Cleaning,Die Penetration Test

Unique profile shape enables high flow rate turn down, Dual averaging for better accuracy, Suitable for Liquid, gas and steam flow measurement, Repeatability of measurement ± 0.1 %, Short upstream and downstream straight pipe lengths,Long term accuracy unaffected by wear. Averaging pitot tubes are generally used for large line sizes or ducts where other primary devices become relatively expensive. Averaging Pitot tube comprises of following components:

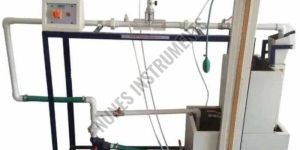

A Pitot tube is used to measure the local velocity at a given point in the flow stress. A Pitot tube of standard design made of copper/Stainless Steel is supplied and is fixed below a vernier scale. The vernier scale is capable to measure the position of Pitot tube in transparent pipe section. The pipe has a flow control valve to regulate the flow. A manometer is provided to determine the velocity head.

• Pitot Tube: Material Copper/ SS of compatible size.
• Hook/Pointer Gauge: With Vernier Scale
• Test Section: Material Clear Acrylic, compatible to 1″ Dia. Pipe.

A Pitot tube is used to measure the local velocity at a given point in the flow stress. A Pitot tube of standard design made of copper/Stainless Steel is supplied and is fixed below a vernier scale. The vernier scale is capable to measure the position of Pitot tube in transparent pipe section. The pipe has a flow control valve to regulate the flow. A manometer is provided to determine the velocity head. RANGE OF EXPERIMENTS   To find the point velocity at the center of a tube for different flow rates of meter and calibrate the pitot tube To find the co-efficient of Pitot tube To study the flow distribution in a pipe and estimate the ratio of average velocity to maximum velocity at the center of pipe for different flow rates To plot velocity profile across the cross section of pipe for different Reynold’s number. FEATURES   Clear Acrylic test section Superb Painted structure Simple to operate & maintain UTILITIES REQUIRED   Hydraulic Bench. Water Supply & Drain Electricity 1 kW, 220V AC, Single Phase Floor Area 1.5 x 1.5

• Size: 150 NB - 750 NB (6" to 30")

The pitot tube produces a Differential pressure (DP) signal proportional to the square of the flow rate in accordance with Bernoulli's theorem. This signal has two components, the high pressure (HP) and the low pressure (LP).When the fluid impacts the sensor, it creates a high pressure zone, greater than pipe static pressure, in front of the sensor. As the fluid moves past the sensor, it accelerates and a low pressure zone is created to the sides and rear of the senor. Multiple sensing ports are positioned in the high and low pressure zones and an averaged differential pressure is produced. The DP increases proportionally to the square of the velocity of the fluid.

Ideal for use with our precision air velocity gages, transmitters and digital test instruments, the Series 160F Pitot Tubes are constructed from corrosion resistant stainless steel for a lifetime of service. Permanent, stamped insertion depth graduations on sides of the 160F Pitot facilitate accurate positioning. Static pressure port is parallel to sensing tube allowing quick, easy alignment of tube with air flow. Straight design allows for easy insertion into ducts through grills and pressure taps as well as aids in positioning in hard to reach locations where a hook style Pitot tube may not allow access.

Spraytech Systems manufactured Averaging Pitot Tubes are another type of differential pressure flowmeters. Averaging Pitot tubes are basically used to detect flow velocity of fluids, gasses,steam, steam water and absolutely all those medias which atmost with 3-5ppm of solids as the max size. Spraytech Systems make averaging Pitot tubes have the potential to measure two pressures at the same time,Hexagonal sensor in forged construction, enables, perfect velocity and flow distribution, no erosion on the material with media thus,With aerodynamic design, enabling, perfect pressure distribution to enable most workable solution against cavitation and flashing conditions of the liquid media and against choking of the gas vapour media,Cost effective measurement against orifice assembly, ventury and flow nozzle as the free length space involved with Spraytech Systems make, is only 2D in upstream and 1D in downstream as compared to higher lengths defined as per beta ratio in ventury, orifice and nozzle, No moving parts,Type tested to radiography level - 1

• Size: 25 NB – 5000 NB (1” – 200”)

STAR-MECH provides economical flow measurement products based on differential pressure principle, suitable to wide range of line size, pressure & temperature applications with service like any liquid, gas or steam. We also provide products for special applications required in the process industries.
