Planetary Drives Dealers

• Power: 0.33 Kw to 15 Kw

We are offering planetary geared motors with Output speed of 0.15 RPM to 410 RPM (Below 0.15 rpm can be given on request), solid Male Output Shaft, Hollow output shaft with shrink disc or Keyway, male or female spline shafts ,These geared motors, electric motors are built with squirrel cage induction TEFC motor of ICE Standard and have We can customize these planetary geared motors, on various parameters as per the requirements of our clients.

Feel free to approach us, if seeking for top-of-the-line quality Shaft Mounted Planetgear! Since, our entire range is produced by following rules set by global quality regulation standards it is of supreme grade.

• Torque: 100Nm To 4500Nm
• Ratio: 3;1 To 45;1
• Input Power: 0.18Kw To 25Kw

We are offering worm planetary drives. Our worm planetary drive is proficient in providing consistent quality performance. The worm planetary drive manufactured, exported, and supplied by the company, is a paradigm of advanced technology. The worm planetary drives is highly appreciated in the market and it can be availed at market leading priced from us. quality features offers high corrosion resistivitylow power consumptionless noisylarge ratio in compact sizeweight to gearbox ratio is lowest of the classexceptionally reliable finds application in rolling millsconveying engineeringpressesoems specifications mounting : casingratio : 1:1500hp : 0.5 hp to 50 hp

• Torque Capacity: 100 – 10, 00,000 Nm
• Reduction Ratio: 3.48:1 onwards
• Power Rating: 0.18 - 300 kW
• Mounting Type: Foot/Flange/Agitator

These drives are energy saving, sturdy and compact speed reducers working on simple Planetary principle used for high torque requirement, based on modular design, with nominal rated torque value and various reduction ratios.

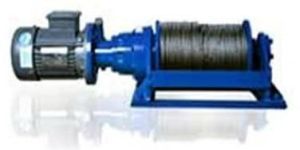

Winch Drive This range covers from 5.000 Nm to 400.000 Nm nominal torque. It comprises rotating case gearboxes designed to fit inside the winch drum. In order to ensure an isostatic distribution of the load on the winch, the gearbox is designed with a single supporting bearing. The external negative static brake facillitates the ease of maintainance sought after in marine applications. Several models have the DNV type approval; design approval is available on demand with the other major classification societies.

A new product offering from Involute, Planetary Gearboxes are replacing traditional gearboxes due to their compact size, high transmissible power and increased mechanical efficiency. Our Planetary Gear Units can be manufactured according to requirements of the customers. Suitable for male female input and male female outputs.

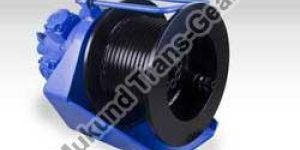

We are engaged in manufacturing and exporting a quality range of Planetary Winch Drive. These Planetary Winch Drivesare manufactured with precision engineered machines using high grade raw material.

The Shaft Mounted Planetary Drive offered by us is manufactured with two helical reduction stages for input and output. Shaft mounted Planetary Drive available with us offers appropriate reduction ratio, thus, it is widely appreciated by the clients. Features : Long performing life Compact size High overhang load capacityEasy mounting Uniform stress distribution High torque capacity Maintenance free performance Used in : Wind mills Plastic industry Rubber industry Chemical industry, etc.

Torque Range :1000 ... 1287000 Nm Mechanical Rating (n1= 1400 min-1) :up to 450 kW Gear ratios: 3.4 ... 5234 The powerful solution to all heavy duty drive problems Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 18 finely spaced frame sizes, spanning over the 1.000 - 1.400.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.

• Reduction Ratio: 3.6 to 7000:1
• Output Torque: 10 Nm to 1,450,000 Nm
• Input Power: 0.25 HP to 300 HP (0.18 Kw to 224 Kw)
• Mounting Type: Flange/ Foot

The drive arrangement consist of electric motor a multi-stage planetary gear reducer and a single stage spur gear transmission. The electric motor is flanged-mounted to the input of the planetary gear reducer, which in turn is flange-mounted to the input of spur gear transmission. The hollow input of the spur transmission can be keyed directly on to the crystalliser shaft. The drive unit can be aligned in a convenient direction with respect to the crystalliser axis and its torque arm structure is to be bolted at the convenient place. No other additional structure, such as base frames or any couplings are required. The drive unit is completely enclosed & oil-tight. All internals including bearings are oil-lubricated, oil change is recommended only once a season.

Being one of the largest companies, we are involved in manufacturing as well as supplying an outstanding range of Planetary Gear Drive to our esteemed patrons. The offered Planetary Gear Drive is highly appreciated and demanded by our valued clients for its desired performance and quality. These Gear Drive are designed at our ultra-modern manufacturing unit using the superb quality material and progressive technology. In order to ensure quality, our products are rigorously tested on various parameters.

Planetary drives regular size and transmission ratio steps, according to catalog, Comprehensive range of sizes, trains of gears and input output coupling dimensions.

• Capacity: 2000Kg to 20000 Kg
• Ratio: 3.6 : 1 to 8000 : 1
• Input Power: 0.5 HP to 50 HP
• Input Speed: 750 to 2000 RPM
• Rope Diameter: 8 mm to 25 mm

PGI Drives, an Indo-Italian joint venture located in Bangalore provides solution for Rotary Power Transmissions used in Industrial and Mobile machinery.

Planetary winch drives are extensively used in various industrial sectors. Offered range is precisely designed under the guidance of highly skilled professionals and in accordance with the set international quality norms.

• Power Ratio: 0.17 kw to 10 kw
• Mounting: Foot / Flange
• Torque Capacity: 200 Nm to 750 Knm
• Torque Capacity: 200 Nm to 750 Knm

The Worm Planetary Drives offered by Top gear is demanded by certain industrial applications where high reduction ratios are required; operation should have irreversible & self locking type and demands for low noise requirements too. The worm gearbox at certain reduction are 100 % irreversible hence this feature at input drive & high torque capacity multiplication at output side by use of planetary drive has given ultimate product to many applications. The prime moves are mainly used as female type hollow input where direct electric motor can be coupled as male female coupling. The output mounting can be offered either foot mounting or flange mounting where the output shaft can be offered as cylindrical type or male / female splined type also.

• Mounting: foot, flange, agitator and special
• Ratio: 3.26onwards
• Torque: 25000Kgm
• Input Power: Electricmotor-0.25HP-150HP,hydraulic motor, Servo motor Free input (solid shaft)
• Output shaft: Solid/Hollow shaft with key way ,Solid/Hollow spline shaft ,Shrink disk with Torque arm
• Right angle version: Worm planetary, Bevel planetary, Helical planetary

Compact, Study, multiple planet mashing allows power transmission through several path yet extemely powerful high torque transmission & ultimately smaller design, make ideal for sever duty application where shocks & impact are more
