Plasma Welding Machine Dealers

• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Rated Power: 10-15kw
• Weight: 100-1000kg
• Voltage: 220V
• Driven Type: Electric
• Warranty: 1year
• Weight: 100-1000kg

Our team members are well aware about the payment procedures and they ensure that the clients are completely satisfied with the transactions made. We accept payment through all offline and online mediums. Situated in Mumbai(India), ours is the name reckoned for providing quality products at competitive price.

• Automatic Grade: Semi-Automatic
• Frequency (Hz): 50/60 Hz, 3 ph
• Brand Name: Arcraft Plasma
• Welding ground: 200 A

semi-automatic plasma welding lathe machine

Product Features : Suitable for SS utensil butt joint (linear tig welding automation) also suitable for plasma welding Welding Range : 0.3 to 2mm SS and MS Input volt : 220 volt With suitable tig power source Manual foot operated automatic pneumatic operated also available PLC control Torch moment control by DC motor with LM guide supportx

• Voltage: 220 V
• Weight: 33.6 kg
• Dimension: 625 x 377 x 531
• Max Output Pressure: 3.5 Bar
• Model Name/Number: Microplasma 55
• Flow Rate: 5 l/min
• Tank Capacity: 5 L
• Frequency: 50 Hz / 60 Hz
• EMC Class: A
• Insulation Class: H
• Protection Class: IP23

Plasma Arc Welding (PAW) is a modification of TIG(GTAW) Welding Process. As Plasma is an intense source of heat, it is used to fuse metals in this process and increase productivity. In PAW, as the electrode is placed within the body of the torch, plasma arc can be separated from the shielding gas. The plasma is then forced through a fine-bore copper nozzle, that compresses the arc and the plasma exits at very high velocity (approximately at the speed of sound) and a temperature approaching 28,000 °C (50,000 °F) or higher. Plasma is the temporary state of a gas.

• Voltage: 220 - 240 V
• Output Current: 100-200 A
• Frequency: 50 Hz
• Phase: Single Phase
• Material: Mild Steel
• Power Source: Electricity
• Model Number: CT312

Plasma welding machine Digital display, precise preset and coeneruent match of current voltage.`Synchronised adustenent of curfew and voltage.

• Type: Mig Welding Machinery, Plasma Cutting
• Weight: 100-1000kg
• Color: Grey
• Voltage: 220V, 380V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 1-5kw
• Driven Type: Electric
• Warranty: 1year
• Country of Origin: India
• Brand Name: StarWeld
• After-Sales Service Provided: Yes

We Are Primarily Engaged In The Production And Supply Of Wide Range Of Spot Welding Machines. High Productivity And Superior Performance Draw Accolades Among Various Clients That Stand Apart Our Spot Welding Machines From Other Manufacturers.These Sorts Of Machines Are Available In Accordance With The Client’s Requirement And Specification In Varied Sizes That Fits Ones Budget.

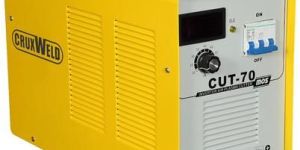

• Type: Air Plasma Welding Machine
• Color: Black, Blue, Brown, Grey
• Voltage: 110V, 220V, 230V, 380V, 440V, 450V
• Condition: New, Used
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Driven Type: Electric, Hydraulic, Penaumatic
• Warranty: 1year, 2years, 5years
• Certification: CE Certified, ISO 9001:2008

Weld in a single pass up to 6 mm plates in square butt position and 10 mm plates in only two passes • HF arcing system. • IGBT inverter based with analog/digital controls & integrated • Programmable Current and Gas down Slope available for automatic closing of key hole during mechanized     welding. • Recessed electrode reduces the possibility of tungsten inclusions in the weld and can substantially increase   the period between electrode dressings resulting in increased life. • Weld in a single pass up to 6 mm plates in square butt position and 10 mm plates in only two passes. • Keyhole mode of welding gives smaller heat affected zone resulting in reduced strength loss at the joint for       heat treated metals, promotes less grain growth which gives better ductility. • Reduced weld time results in less embrittlement by carbides and complex inter-metallic compounds for           stainless steel and super alloys

• Place of Origin: Tamil Nadu, India
• Model Number: PRIMO PTA SERIES
• Dimensions: -
• Input Voltage: -
• BORE CLADDING ON DIA OF: 70MM
• Supply Ability: 4 Set/Sets per Quarter Any
• Packaging Details: SUITABLE FOR ROAD AND SEA WORTHINESS.
• Port: CHENNAI
• BALL CLADDING WITH STELLITE OF DIA: 250MM

Plasma Transferred Arc Welding (PTAW) is an arc welding process similar to Gas Tungsten Arc Welding (GTAW) Process, The difference is placing of electrode in the torch. The arc is established between the torch and work job via electric current which is passed between anode and cathode. We are offering the PTAW welding machines with enhanced quality and controls to various industries, our machines have safety controls as per industrials standards.

Plasma Arc Welding (PAW) is a modification of TIG(GTAW) Welding Process. As Plasma is an intense source of heat, it is used to fuse metals in this process and increase productivity. In PAW, as the electrode is placed within the body of the torch, plasma arc can be separated from the shielding gas. The plasma is then forced through a fine-bore copper nozzle, that compresses the arc and the plasma exits at very high velocity (approximately at the speed of sound) and a temperature approaching 28,000 °C (50,000 °F) or higher. Plasma is the temporary state of a gas. The gas gets ionized after passage of electric current through it and it becomes a conductor of electricity. In ionized state atoms break into electrons(-) and ions(+) and the system contains a mixture of ions, electrons and highly excited atoms. This high velocity of atoms and heat melts the metal and helps to fuse two metals.

• Features: Excellent strength, Longer life service, Easy installation, Nominal costs, Flawless finish

• Max Installed Power: 11 HP
• Input Voltage: 415 V AC, 50-60 Hz
• Current Range: 5 - 200 A
• Pilot Arc Current: 10 - 25 A
• Standard Torch Cable Length: 4 Meter

We are main suppliers of this product.

Plasma arc welding (PAW) is a advanced version of the tungsten inert gas (TIG) welding process. TIG welding has a free-burning arc, which is unstable and tends to wander in the low current range. With increase in current, the arc power increases and the arc diameter also increases.  This leads to a lack of concentrated power in the work-piece, which results in a bigger seam and a larger heat-affected zone. Unlike TIG-welding torches, PAW uses a constricting nozzle and employs two separate gas flows, which give rise to a concentrated plasma arc having a narrow columnar shape. Plasma welding is a superior variation of the TIG process that offers many advantages over TIG Increase productivity by reducing down time. Reduces scrap by providing consistent arc starting every time. Improved process control for repeatable, high quality welds. Reduces interference (noise) with computers, phone systems, CNC controllers Simply stated, plasma welding is a variation to GTAW (TIG) that encloses the tungsten electrode in a protected environment and delivers the arc through a cooled copper tip. Enclosing the electrode protects it from contamination, thus substantially extending electrode life. The consistent arc shape of plasma results in onsistent weld for 8 fours or more of operation as compared to automated TIG welding, where deterioration of the exposed TIG electrode can result in weld arc variations in one hour or less of operation. Plasma welding uses a pilot arc to consistently transfer the arc to the work without the repeated use of high frequency current. The ultima 150 pilot arc circuit results in repetitive starting and reduces problems of high frequency interference with CNC controls, phones and computers which are common with the TIG process.

GENERAL FEATURES : Customized Bad size : Bad size available from1.5 M X 6.3 M to 3M To 12 M Which is customizable as per customers requirement. Precision rack & pinion drives on X & Y axis Cutting capacity gas cutting : maxi 300 mm Cutting capacity plasma : depends upon plasma power source Automatic torch height controller suitable for both plasma cutting & oxyfule gas cutting. To maintain precise distance Between torch & work plate. BRIEF PARAMETERS :

• Country of Origin: Made in India
• Usage/Application: Industrial
• Frequency: 50 Hz
• Automation Grade: Manual
• Phases: 3 Phase
• Material: Stainless Steel
• Voltage(V): 420 V
• Cutting Thickness: 25 mm
• Working Pressure: 3.5 Bar

Plasma Welding Machine is IGBT based inverter power supply which saves power consumption. Manufactured in advanced inverter design system which delivers continuously adjustable constant current output. provides you stable arc at as low as 0.5 Amps. High open circuit voltage for best arc striking and for best quality welding. Electronic pilot arc system gives soft start and reliable arc striking. Power consumption is very low below 0.1 V & no load. Stepless setting for pilot arc & main arc current. current setting features available for Local or remote arc . Front panel digital display show the actual welding current as well as pilot arc current.
