Pneumatic Shearing Machine Dealers

• Weight: 100-1000kg, 1000-2000kg, 2000-4000kg, 4000-6000kg, 6000-8000kg
• Voltage: 110V, 220V, 380V, 440V
• Condition: New
• Rated Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Automatic Grade: Automatic
• Driven Type: Pneumatic
• Warranty: 5years

Our Pneumatic Shearing Machines have Been Designed & Developed Through Structural Analysis Technique for Continuous Production, Accuracy and Repeatability.  Frame :The Frame is Rigidly Constructed from Solid Steel Plates with Safeguards. Its Interlocked Design Provides Support to the Bed Directly On the Frame to Avoid Weak Sections At Load Supports.Hold Down System :Spring Loaded Mechanical Hold Down System is Provided to Hold the Sheet Securely to Avoid Slipping and Bowing. the Pressure of Each Hold Down Unit is Ample to Securely Hold Even Shorter Pieces Under One Hold Down. the Increase/decrease of Pressure of Hold Down is Adjusted Through Cam By Adjustable Lever and Rods.Knives :Each Machine is Provided with Four Edge Rectangular High Quality High Carbon High Chromium (hchc) Knives for Longer Life.Fly Wheel :Fly Wheel of Cast Iron Designed to Cater for Sufficient Energy Required for Operation, Brakes Provided On Request and Mounted On Quill for Higher Capacity, in Both Cases. Fly Wheel is On Antifriction Bearings.Pneumatic Cluster & Brake :Pneumatic Clutch & Brake is Designed for Excellent Torque Transmission Power, Low Inertia/high Torque, Combined with Single-disc Type with Sufficient Fins/ribs for Dissipation of Heat, Pneumatically Synchronized. Clutch Operating Under Pneumatic Pressure Released By Spring, Brake Operating On Spring and Released Pneumatically. for Higher Torque, the Clutch and Brake are Provided Separately. Single Solenoid Valve At Air Entry & Quick Exhausts for Addition Safety.Mechanical Back Gauge :This Equipment is Provided with Scale to Give Instantaneous Reading of Distance Between Shear and Back Gauge to Avoid Errors.Finger Guard :To Avoid Accident, Finger Guard is Fitted in Front of Hold Down System for Operator's Protection Without Obstructing His View.Lubrication :All Moving Parts are Provided Lubrication By Motorized Pump for Smooth Operation.        Standard Accessories& Features : Pneumatic Clutch Quick Exhausts Air Preparation Unit Gear & Wheel Guard Hand Operated Back Gauge Motorized Lubrication Pump Electric Panel Two Hand Box Emergency Stop Batch Counter Pressure Sensor T-Slot Front Supporters Front Scale Gauge. Single Stroke/ Semi-Cotni, Continues Stroke/ Inching Buzzer Foot Switch Motor, Vee Belts, Pulley Volt Meter Optional Accessories : Ball Roller Or Ball Transfer Foundation Bolts Extension Squaring Arm Vibration Pads Photo-Electric Guard Note : Electrical motor and blades are not under warranty.

KNTM Brand Pneumatic Shears fabricated from IS-2062 graded. Rolled steel plates. Table and cutting beam are deeply reinforced and fines machine after stress reliving. The interlocked design put the direct support to frame. Thus frames are strain free and eliminate welds at load support. Thus the accuracy of the machine is never disturbed.    FRAME CONSTRUCTION Pneumatic Under Crank Shearing machine Frame fabricated from IS-2062 graded. Rolled steel plates. Table and cutting beam are deeply reinforced and fines machine after stress reliving. The interlocked design put the direct support to frame. Thus frames are strain free and eliminate welds at load support. Thus the accuracy of the machine is never disturbed.   BED Super strong bed of closed box type construction, Street relieved in a furnace, forms a rigid backbone for the shear and a solid backing for the lower knife. Dovetail slots in front of the bed are provided for front gauge. Slots on top of bed area also provided for machined pas across the bed for convenient setting of front gauge brackets any desired spacing. Depressions in the top at the bed provide ample clearance for fingers in handling sheets narrower than the bed.   UPPER BEAM Ram is also of solid steel plates, carrying the upper knife. Its minimum weight ensure lesser load on the bearings, The upper beam moves in flat heat treated steel guide plates to avoid plates to avoid deflection, for smooth running and maintain the accurate straightness of the upper knife.   HOLD-DOWN MECHANISM Solid clamping by powerful spring loads hold down is one of the reasons for accuracy in our shears. Heavy uniform pressure is applied along the full length of the work piece, preventing slippage regardless of versions in thickness. Hold down pressure in easily adjustable for clamping soft material. Different thickness of material can be cut without future adjustment with consistently accurate and burr free results.   ROLLING KEY CLUTCH Made of alloy steel for positive engagement and continuous operation having three key ways. Single rolling key system is incorporated in the machine ensuring easy and efficient working of the machine.   SHEAR KNIVES Knives are manufactured strictly as per standard material of D2 HCHCr. Every step from designing metallurgical specifications, heat treatment, grinding and inspection is carefully controlled. The blades are standards are standardized and are easily replaced.   ACCURATE GAUGING The Rigid and accurate construction of the back gauge provided with the machine allows consistency in the width of sheets being cut.   LUBRICATION Single shot lubricator provides oil to all the lubrication points, when necessary. Thus, all bearing parts and guide surface etc.   DRIVE Drive through V-belts on flywheel and reduction gears are made of steel, hob cut for the smooth running and longer life.

• Main Gear: 32″
• No. of Pcs per Minute: 30
• Height in Feet: 5½

Our Billet Shearing machines ensure perfect cuts both for square ness and for cleanness of the shearing surface. “NKH” technology allows a precise adjustment way alloyed & mild steels, aluminum, brass etc. The beauty of our shearing machines are to incorporate maximum possible facilities to their users without incurring exorbitant investment. The frames of our machines are rigged & construction and high quality materials are used for their manufacturing. Due to our excellent workmanship and finish of our machines bears pleasant outlook.

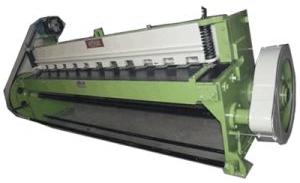

Our company is engaged in manufacturing and export a comprehensive range of Mechanical & Pneumatic Shearing Machine, which are widely used in umpteen industrial applications. Our machines are categorized into categories like Over Crank Shearing Machine and Under Crank Shearing Machines . These are highly known for their sturdy designs and long service life. Available at most competitive prices, these are offered in various customized forms.

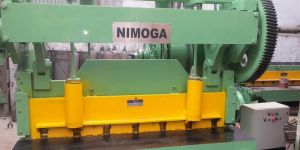

• Brand Name: NIMOGA

We are offering pneumatic shearing machine.pneumatic shearing machine under crank shearing machine over crank shearing machine hydraulic shearing machine pneumatic press brake machine hydraulic press brake machine mechanical press brake machine cnc hydraulic press brake cnc shearing machine heavy duty shearing machine sheet cutting machine shearing machine 2500 x 4 mm sheet shearing machine cut to lenght coil straightner mid crank shearing machine mechanical shearing machine power press.

  Bharat Machine Tools is a renowned manufacturer, supplier and exporter of precision engineered pneumatic shearing machines that are known for their efficiency & durability.Our pneumatic shearing machines can be availed in the following specifications:

• Features: Stretchability,High performance,Low power consumption

• Length: 2030 to 4000 mm
• Thickness: 8 to 20 mm (ms)

Pneumatic Clutch & Brake: Electrically controlled & Air operated Clutch & brake combine unit permits high frequency of operation and more flywheel energy for work. Wear on Clutch & Brake is automatically compensated & no adjustment is necessary. Surge Tank, filter, Regulator, Air Lubrication Unit, Pressure Switch etc. are incorporated. Pneumatic Counter Balancer are provided to Counter the Weight of Slide & tooling which help in taking up the Bearing clearances and ease Slide adjustment.

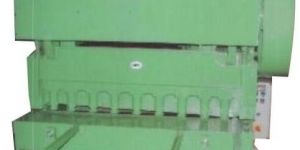

PLC control pneumatic shearing machine. Pneumatic Control system. It is accurate and easy to operate.

Pneumatic Shearing Machine, Pneumatic Clutch Power Press

Pneumatic Shearing Machine, H Type Power Press Machine

Pneumatic Shearing Machine
