Portable Light Tower Dealers

• Option Available: 8x150W, 6x250W, 4x350W
• Rotation: 340 Deg
• Floodlights: 6x250W
• Lamps: LED
• Options: Homologated road trailer
• Model: Synchronous
• Frequency (Hz): 50
• Degree of protection: IP23
• Insulation class: H
• Single phase voltage: 5.7 kVA - 230V
• Units Per Truck: 18 sets
• Auxiliary outlets: 2 kVA
• Engine Model: KOHLER KD441
• Fuel: Diesel
• R.p.m: 3000
• Tank capacity (I): 120
• Consumption (I/h): 0.8
• Running time (h): 150
• Noise level (dBA) at 7m: 65
• Dimensions max. (mm): 2600x1410x2500
• Total weight without fuel: 700 Kg
• Illuminated Illuminated area: 5000 sqm

• Enclosure Height: 30 Feet
• Tower Rotation: 360 DEG

Unique lamp design increases filament life and keeps maximum light on the job longer, increasing productivity while saving time and money, Rotating tower allows 360-degree rotation, reducing the need to frequently move the light tower trailer, Compact design with removable tow bar allows efficient transport and storage, Control panel features elapsed hour meter, 120-volt GFCI receptacle for powering external equipment, and circuit breakers for onoff functionality and protection

• Type: LED
• Model Number: PTL 4KW
• Brand Name: Powerlux
• Length: 8 meters
• Color: White

9 MTR mobile light tower, 5kva TATA Powerlux d.g. 400watt*4 led lights.

• Driven Type: Electric
• Color: Blue
• Condition: New
• Feature: Easy To Operate

• IP Rating: IP - 66
• Country of Origin: Made in India
• Material: Mild Steel
• Application: Outdoor
• Pole Type: Dual-Arm
• Height: 2 MTR TO 5 MTR
• Lighting Color: Cool White
• Surface Finish: PU PAINTED

• Material: MS OR SS
• Brand Name: AMAR LIGHTING EQUIPMENTS,AMAR
• Driven Type: Electric
• Lighting Type: Fluorescent
• Color: GREEN
• Rated Power: 1.5 KW
• Solar power: NA
• Condition: New
• Type: EMERGENCY LIGHT
• Warranty: 12 MONTHS

• Brand Name: CHAKRADHAR INDUSTRIES
• Country of Origin: India
• Warranty: YEAR

   Chakradhar Industries has special expertise in providing  Lighting tower with standard and customized specifications.  Some of the most common specs are as under :   3 KVA AC Gen-set with 6 Mtr Telescopic mast &

• Application: Park, Sports Ground, Weddings
• Capacity: 4*1000W
• Model: Diesel Light Tower
• Winch: Manual
• Fuel Tank Capacity in Lits: 45
• Lifting Eyes: 9 Meter
• Dry Weight in Kgs: 875

Tower Light - 4*1000W Winch - Manual Outriggers - 4 Fuel Tank Capacity in Lits - 45 Spark Arresters - Nil Lifting Eyes - 9 Meter Dry weight in Kgs - 875 Operating Weight in Kgs - 920 Mast Stowed (LXWXH) without light & its bracket in mm - 4200*1400*1550 Mast Stowed (LXWXH) with light & its bracket in mm - 4400*1600*1700   Engine Make - Mitsubishi Model - MVL3E-63 JGSB Cooling - Liquid Aspiration - NA No. of Cylinders - 3 RPM - 1500 Compression Ratio - 23:01 Bore Stroke(mm) - 76*70 Cubic Capacity(Its) - 0.952 Power(HP) - 9.4 Governing* - Mechanical Starting System - 12V Electrical Lube Oil Specification - SAE 20/40 Lube Oil Sump Capacity in lIts - 4.7 Fuel Consumption on Lighting per Hrs - 1.5 Fuel Consumption on Aux Power Drop per Hrs - 1.2 Fuel Consumption on both Lighting & Aux Power per Hrs - 2.6 Fuel Consumption on 75 % load per Hrs - 2 Max Operating ambient temp - 0- 45 Degree Celsius   Generator Make - Lerry Somer Model - LSAP 40 C1 Power Rating(KVA/KW) - 7 KVA/5.6 KW No. of Phases - 1 Power factors - 0.8 Current@0.8(Amps) - 28.7 Amps Battery Rating - 12V-65AH Alternator - 7KVA Voltage - 240 Frequency - 50 Voltage Regulation (max.) - ± 1% Insulation - Class H Enclosure - IP23   Lights Lumens - 4,20,000 Protection - IP55 Type - Metal Halide    Auxiliary Power Power Out - 1.6 Kw   Running Gear Tyre size - 185/70-R14 Max Hub/ Axial Rating Capacity - 1530 Kg Max Towing Speed - 40 KM/HR Sound Level - 70 Dba Mast Rotation - 0 TO 355 degree   ADVANTAGES Fuel tank is easily removable at the time of engine and alternator service. Usage of derlin sheet to reduce the friction between the sliding towers. Better structural design for tower rest. Compact control panel design. Silencer exhaust is provided near the bottom of canopy to avoid hot air exhaust direct to the operating person. Tower self lock is available at vertical position to reduce the roop stress Jack height from floor level is 10 inch while other suppliers are using 6 inch jack only. Cost of Door hinges are less and easily available in market. Larger doors provide for better space and easy service. Engine safety is indicated by lamp. We provide voltmeter to measure voltage which is not available in other supplier Models We provide ammeter to measure amps which is not available in other supplier models. We provide door lock key to ensure the safety of Machines Easy and trouble free control panel. We provide identification marks for switches in each light. We provide knob lock for tower pivot it is easily handled. Usage of MCB switch trip Prevent the short circuit damege if any .

• Brand Name: SDS
• Application: Disaster mangement
• Battery Type: Generator attached
• Place of Origin: Chandigarh, India
• Model Number: PILT-1000
• Port: India

We cater Portable Light Tower that is highly acclaimed in the market. The Portable Lighting Tower offered by us is accessible in different lengths and specifications as per the requirement of the clients. Our portable light towers are made from excellent raw materials making them endurable and long lasting. Additionally, we are one of the choicest Portable Electric Light Tower Suppliers in India. Source : Doosan India International Pvt Limited These are Diesel engine driven trolley mounted portable light sources. The DGMS approved light sources provide day-light quality illumination on wheels. With 9 metres high foldable tower they provide 4000W of light as per NEMA-6 standards. Application Mining projects, Road Construction, Irrigation and building construction sites and wherever there is a need for temporary lighting. Where electricity is not available and frequent shifting of work area is involved a portable light becomes very useful. These lights are trolley mounted, diesel engine driven and rise up to 9 metres of height. The tower can withstand a wind velocity of 105 km and carries on it 4 powerful lights of 1000W each having a rotational capability of 360 degrees. Salient Features Ideal for applications in the below mentioned areas as electricity is not available and these light sources give a perfect solution. For New Project Sites Road Construction Mining Exhibitions Play Grounds Diesel Engine Driven and Lights of 4000W meeting Nema-6 Specification Bright Day Light Type Illumination comes from a Height up to 9 metres with Adjustable Mast capable of Facing Wind Speeds of up to 105 kmph.

• Weight: 27.8 KG

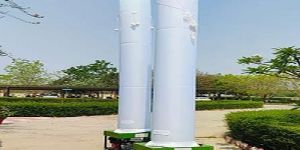

Portable light tower Briggs & Stratton Starting : Recoil Fuel : Petrol Fuel Tank Capacity : 3.6 Ltrs Electrical Parameters Voltage : 230 Ac, Frequency: 50Hz, Rated Output : 750VA, Maximum. Output : 850 VA Dry Weight : 27.8 KG Size: LxWxH (mm) : 404 x 352 x 431 Height of Tower Lamp Type* Lamp Lux Level Maximum Lumens Ballast Balloon (Envelope) 4.5 - 5.0 Mtr Metal Halide 400 Watts 1 Lux at 45 mtrs.

The Wacker Neuson compact size and light weight light tower offers outstanding performance and a high degree of safety, yet at a most competitive price, thus providing you the best return of investment. Using special pulse type metal halide lamps, the ML series is an excellent choice for lighting construction sites, municipal road maintenance, commercial landscaping and wherever reliable and safe mobile lighting is needed. Compact size, light weight. Pulse start lamp for longer lamp life and better luminance compared to probe start lamp. Wider light coverage due to rectangular shaped lights. High wind stability with side stabilizers and high strength fixture frame material. All lamps can be turned individually.

• Pole Type: Dual-Arm
• Material: Mild Steel
• Height: 8 Mtr
• Power: 5kVA
• Lighting Color: White
• Application: Outdoor
• IP Rating: IP65
• Country of Origin: Made in India
• Features: Heavy duty
• Surface Finish: Black

• Features: Eco-friendly lighting, High illumination, Consume less power
•  Lighting Color: Pure White

We offering high end light towers. We have been engaged with manufacturing, and distributing light towers for stadiums, oilfield, mining, off shore and other industrial uses and have supplied and serviced thousands of light tower locations all over the globe. We maintain a full supply of light tower parts and light tower service manuals as well as new and used light towers and light towers for rent. We have supplied variety of light towers anywhere in the the world.

• Emissions Tier (EPA): Tier 4
• Maximum Governed RPM: 2,500 rpm
• Horsepower: 33.5 hp
• Operating Weight: 7,183 lb
• Capacities:: Fuel Tank 14 gal
• Length: 183.5 in
• Max Dump Height: 11 ft

Today our clientele list includes majority of water well rig operators, constructions, roads, multinational companies, Textile, Foundries, Onshore drill sites of mines, Quarries and many more in the core sector.

Portable light tower are unmatched for quality and reliability.The metal halide lamp technology is one of the most efficient ways of turning electrical energy into light.
