Power Transducers Dealers

We Offer Active Power Transducer. This transducer is used for measurement of Active Power for single phase (STE-A-3T) system as well as for 3-phase, 3-wire (STE-B-3T) system and 3-phase 4-wire (STE-C-3T) systems with balance and unbalanced load. They are suitable for measurement of both import and export of power. The output is a load independent DC current or voltage which is proportional to input power. The output can be connected directly to indicating instruments or to data transmission system. Feature • Available in accuracy class - 0.2, 0.5 & 1.0 • Withstands wide temperature variations. • VA burden on CTPT very low. - < 0.5 VA • Low internal consumption • Wide range of Input Output to meet National International requirements. • Comply to revised IEC 60688 (1997-10) standards. • Flexibility in auxiliary power supply requirements - A.C. D.C. • Rugged and vibration resistant. • Withstands seismic test as per IEC 344-1974 for Nuclear Power applications. • Available in dust proof sheet plastic enclosures suitable for Back panel Din rail mounting. • Multiple outputs also available - upto 4 • High input Output isolation - 4.0 KV.

Our company shares glorious credentials with the eminent Suppliers of AC Power Transducers. Our Transducers are robust, safe and reliable.  The Transducers offered by us are suitable to connect with supervisory control and data acquisition system telemetering, PLC indicating instruments and monitoring systems. Buyers can obtain these at reasonable rates from us. More about AC Power Transducer : Secure make transducers come with unique galvanic isolation in both the inputs and fast response time of <3000ms at 99% output value.   Features : Proven Technology- World wide Wide Compact And Most Reliable Accurately class 0.5 as per iec 688; (optional 0.2 Class) High Burden capacity - 750 ohms at 20 mA fast response time<300 ms at 99 % output Output short circuit and open circuit proof AC/DC auxiliary power supply options Low VA burden Insulation level of 3.7 kV upto 300 V, 5.5 kV above 300 V Impulse voltage : 5 KV at 1.2 /50 micro sec pulse Operating temperature :- 10 degree to +55 degree Ripple : < 1% for class 0.5 and < 0.5% for class 0.2 Dual output option available Galvanic isolation is provided in both the outputs. Complies to all international standards : Electrical measuring transducers : IEC 60688 Safety regulations : IEC 61010 Protection types : IEC 60529 Ambient tests : IEC 60062-2-1/-2/-3/-6/-27 Terminals : DIN43807 Flammability : UL 94 Electromagnetic compatibility : IEC 61000-4-2/-3/-4/-5/-6     Available Range : AC voltage transducers AC current transducer Active power transducer Reactive power transducer Combined active and reactive power transducer (separate output for active & reactive) Frequency transducer Power factor transducer DC voltage/current isolation transducer Dual output option is available Naming convention First Letter : D for DIN Rail Second Letter : Measuring Unit Third Letter : Addition to Measuring Unit, Ex : D : DC First Figure : No of measurin elements Second Figure : No. of connected wires (3 wire/4 wire) Third figure : Type of Power supply Aux : 92-138 V AC Aux : 184-276 V AC Aux : 8-30 V (40V) DC 18--80V AC/DC 80-270V AC/DC  For ordering please specify : Input voltage (Both Primary and Secondary) Input current (Both Primary and Secondary) Output : Output volt or current Single or dual Accuracy class Response time Input power Measuring power range* Auxiliary power supply

• Country of Origin: India
• Material: Aluminum
• Application: Static Application Use
• Frequency: 50hz, 60hz
• Power: Electric
• Load resistance: 0-500ohms, 1000-1500ohms
• Brand Name: Megacon

• Voltage: 450 V
• Transducer Type: Temperature Transducer
• Brand: Rishabh
• Part Number: O/P1 O/P2
• Accuracy: Output Signal Accuracy Class 0.2 According To International
• Temperature Range: 45 Degree Celsius
• Model Name: Con-P
• Standard: IEC60688 Standard
• Display Type: LED
• Display Module (Optional): Optional 7 Segment LCD Display With Backlit And Keypad
• LED Indication: LED indication for power on and output type. (Current Orange LED, Voltage Green LED)
• Measurement Input: AC Voltage/current Input Signal, Sine Wave Or Distorted Wave Form.
• Output Response Time: < 750 ms standard.
• Input Signal Frequency: 60Hz

• Frequency: 50 - 60 Hz
• Brand: M System
• Accuracy: 23 +/-10 Degree C
• Nominal Voltage: 480 V
• Operating Temperature: -10 to +55 Degree C

Terminal Protection Cover Reliable & Rugged Static Circuits Low Ripple in outputs Signal Flame Retardant Polycarbonate case Choice of Multiple Asymmetrical Outputs Wide Choice of Suppressed Ranges Open and Short Circuit Protection for Outputs Dual Outputs (Non Isolated Isolated) Self – Powered, AC, DC Auxiliary Supply Bi-directional Output Fast Response Time Din-Rail Mounting Bi-Directional Inputs for Import Export input

• Power: 3 x 100 V to 415 V L-L (3-phase 3-wire system) 3 x 57.5 V to 240 V L-N (3-phase 4-wire system)
• Transducer Type: Active Transducer
• Color: White
• Product Type: three-phase single-function transducer
• Brand: Secure
• Size: 100 mm x 75 mm x 105 mm
• Accuracy: 0.2,0.5 and 1
• Frequncy: 50hz

• Power Consumption: 3.5 VA - AC, 4 VA - DC
• Dimensions (L x W x D) (mm): 73 x 150 x 113

The input Voltage and current signals are scaled down through interposing potential and current transformer. In case of reactive transducers the voltage signals are 900 phase shifted. The scaled down signals are fed to precision multipliers working on time division multiplication principle. The multiplier output is processed to provide DC Voltage Current output signal proportional to input active reactive power. For Signal Phase network, only Active Power Transducer is offered. Fro 3 Phase 3 Wire or 3 Phase 4 Wire electrical networks both Active and Reactive Power Transducers are offered for balanced as well as unbalanced load conditions.

• Accuracy: 0.5%
• Transducer Type: Transducers Models
• Brand: Minilec
• Usage/Application: Metering Panel. Automation Panel. SPM Panels. Industrial Control Room Panels.
• Product Type: Power Line Tranducers/ Multifuctional Meters
• Size: Dimensions (L x W x D) (mm)85 x 80 x 120
• Model Number: D3 TET 1

P transducer is used to measure and convert active, reactive, apparent power, Phase angle & Power Factor of a Single-phase or Three-phase AC system with balanced or unbalanced load into a proportional load independent DC current or voltage output signal.Onsite transducer can be programmed using front key & display or through programming port or through RS 485. For transducer without display & RS485 programming port can be used for onsite programming.

• Features: Withstand harsh environment,Reliability, Easy operation
• Brand: Rishab
• Frequency Range: 25 Hz to 65 Hz (Optional - 400Hz)
• Operational Temperature: 23 Degree C +/- 1 Degree C
• Storage temperature: -40 C to 70 C

Meets to DN-IEC 688. • Easy Installation & Space saving. • Simultaneous detect & display : - Individual Phase to neutral Voltage - Individual Phase Current - Individual Phase watt. - Frequency - Phase to Phase Voltages. - - Power Factor - - Total Watt - - Total Var - - Watt Hour (10 digit)

  SECURE Power Transducers offers accurate true RMS measurements. Upto for load independent galvanically isolated analog ouptputs can be configured for desired input range. Theses transducers comply with IEC60688.

We are offering power factor transducer the ste-a-7t transducer converts the phase angle between current and voltage of a single phase or 3 phase balanced network into an output signal that can serve several receiving instruments such as indicators, recorders, alarm units etc.

• Type: DIN Series
• Standards: IEC 688 / EN 60688, EN 61010-1, EN 61326-1, IS12784 (Part-1) 1989
• DC Output: Current : 0-1, 0-5, 0-10, 2-10, 0-20, 4-20mA and Voltage : 0-1, 0-5, 1-5, 0-10, 2-10V

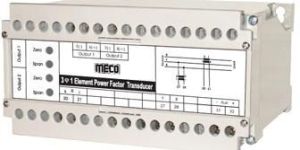

MECO AC Power Factor Transducers measure the power Factor in 1 Phase and 3 Phase electrical systems. The resulting output signal is directly proportional to the system power factor. These Transducers provide an output which is load independent and isolated from the input. The output can be connected to Controllers, Data-Loggers, PLC's AnalogDigital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System.

• Brand Name: Meco
• Model No: PFT

MECO AC Power Factor Transducers measure the power Factor in 1 Phase and 3 Phase electrical systems. The resulting output signal is directly proportional to the system power factor. These Transducers provide an output which is load independent and isolated from the input. The output can be connected to Controllers, Data-Loggers, PLC's Analog/Digital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring System.     Features:   AC InputVoltage : 63.5 / 110 / 230 / 440V (any one only)Current : 1A / 5A (any one only)DC OutputCurrent : 0-1, 0-5, 0-10, 2-10, 0-20, 4-20mAVoltage : 0-1, 0-5, 1-5, 0-10, 2-10V

ITLPro Solutions offers wide range of Transducers & Transmitters that are designed to provide controlled proportional outputs to the average RMS Power, Voltage, Current, Frequency ranging from 1 ph, 3 ph AC or DC inputs. These devices are specifically targeted to provide an efficient solution to most power sensing needs, remote monitoring and controls, automations, SCADA, Energy, Wind turbines, Solar Panels, power monitoring applications etc. Available in different outputs - Voltage (0-10V), Current (4-20mA), Proportional Pulses. Digital using protocols - RS232, RS485, MODBUS, IEC61850 SCADA format etc. Remote Digital (wireless) using protocols - Bluetooth, Zigbee, WiFi, LPR Radio etc.

• Accuracy: ± 0.5% of Span (standard) Others on request (optional)
• Accuracy Range: 0 to 120%
• Zero Adjustment.: ± 2% of Span (min.)
• Response Time: < 0.5s for 0 to 90% of Output
• Impulse Test: 4.5KV, 1 x 40µS (W/o Dewing)
• Applicable Standards: Electrical Measuring Transducers for Converting AC Electrical Quantities into DC Electrical Quantiti

MECO-G" Power Line Transducers are designed for AC Power Line parameters like Voltage, Current, Wattage, Var, Frequency, DC Isolation, TAP Position and Temperature. These reliable and accurate Transducers are in applications in all sectors of the power and process industry since over 20 years. These Transducers give a load independent and isolated DC output directly proportional to the input parameters. "MECO-G" Transducers are widely used for automation and control of power and process systems as well as for local and remote monitoring of the electrical parameters at every stge of electricity generation, transmission and distribution. They are ideal for SCADA, energy management, telemetering, data-logging as well as central monitoring systems. "MECO-G" Transducers are generally designed to comply to the requirements of I.S. 12784:1989 (Reaffirmed in 1993). All "MECO-G" Transducers pass through a stringent manufacturing and in-house quality control process consisting of vibration, burn-in and calibration tests to ensure complete reliability and accuracy during continuos operation.
