Primary Injection Test Set Dealers

• Model Number: PTS1000A
• Brand Name: TI
• Place of Origin: INDIA
• Usage: Testing
• Power: 10KVA
• Dimensions: 16 X 16 X 20
• Name: Primary kit
• MS: Box

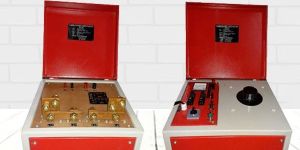

Primary Injection Test Sets Designed using the latest technology, these units combine a variable high current output with the appropriate controls and instrumentation. The test set is ideal for testing Current Transformers (CTs), High Current Panel, thermal, magnetic, and solid-state motor overload relays as well as moulded-case circuit breakers and ground fault trip devices.

We source the raw material from the trusted places in the market. As a result of which, the finished products stand high on the expectations of the clients. By keeping records of the clients' requirements, we have developed a system that offers several options for transferring money from one end to another. Features: Advanced technology Precision made Long life & sturdy

• Brand Name: ENERZIO

we are provide the variable primary & secondry current injection set upto 1000 amp.for testing and calibration of many type of relays & switch gears like Over current relays all type Air circuit breaker upto 800 amp. Current transformer Oil circuit breaker Vaccum circuit breaker 500 amp. All type of mcb

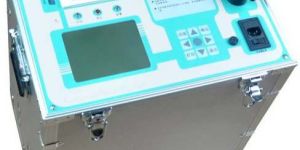

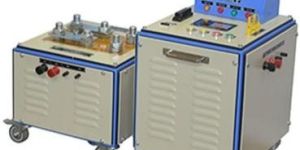

Primary current injection kits are used to test and commission Circuit Breakers, Bus Bars, CTs, Relays, MCCs, PCCs etc. These are also used for high current injection and simultaneously measuring voltage drops and hot spots in bus-bar joints, Circuit Breaker Contacts etc. Primary Current Injection Test Sets are available in current ratings from 500A to 10000A and in short time duty as well as continuous operation duty. Controls are available in Automated as well as Manual versions. The automated controls also have features like CT ratio measurement etc. Light weight portable kits of 1000A and 2000A with full load operation time of 3 minutes also available for field testing.

• Input power Supply: 220 Volts ± 10, 50HZ AC single phase
• Output Test Current: Refer Table no.1
• Output Test Current Range: Refer Table no.1
• Duty Cycle: 10 minutes ON -20minutes OFF
• Mode of Operation: Manual or Motorized
• Protections and Safety: Overload Protection by MCB. HRC fuse protection for control circuit
• Indications: Bright LED Indicators are provided for Input and Output Indication
• Cooling: Air/Oil Cooling
• Control: One Knob control to vary Output current

We are instrumental in offering our clients, highly functional Primary Current Injection Test Set. Our Primary Current Injection Test Sets are used for loading, calibration and testing of CT's bimetals relays etc. Our Primary Current Injection Test Sets are also made as per the clientsâ�� specifications. Our Primary Current Injection Test Sets are of 15 minutes ON/30 Minutes OFF duty i.e. testing duty only. The Primary Current Injection Test Set are designed for non-stop use for temperature rise for bus duct/bus bar etc. Optional Accessories Cable termination Timer Temperature indicator Multiple contactor Individual phase control Specialty Compact It is available in portable trolley type/stationery type model Amps Optional digital/analogue timer Main Transformer up to 25,000 Amps Naturally air cooled type   Technical Details Step Down Transformer A double wound transformer is used for supplying high current at low voltage for testing. Current Control A step less Auto Transformer is used for Controlling Output Current from Zero to Maximum Input Voltage Upto 300 kV Output Voltage Ranges As per requirement Output Current Upto 25000 Amps Capacity Up to 500 KVA Duty 15 Minutes On-30 Minutes Off in case of Primary Injection test set and continuous in case of Loading Transformer. Metering Multi range Ampere meter of class 1.5 with CT of class 0.5 are provided on secondary side to indicate Output Current Protection On-Off Switch with fuse is provided to protect the unit against short circuit, push button to actual and cut of output. Housing Each unit is housed in a MS sheet body, supported with angle iron frame. The oil cooled models are housed in suitable MS tank and the control panel is on the tank or as per requiems.   Optional Voltmeter Timer as per requirement< Rubber cable Zero start interlocking with by pass switch.   Termination The output is brought out on suitable Bus Bar/Terminals.

• Warrenty: 2yrs
• Brand Name: Monarch Controls
• Frequency: 50 Hz
• Supply: AC
• Display Type: Analog
• Voltage: 220 - 240 V

Primary Injection test sets are used to loading. Calibration and testing of CT's bimetals relays, Protection relays etc. Mostly Primary Injection Test set are designed as per customer's specification. The Primary Injections Test sets are of 15 minutes ON30 Minutes OFF duty i.e. testing duty only. Loading transformers are design for continuous use for Temperature Rise for bus ductBus Bar etc. Optional accessories requirement may include cable termination, timer, Temperature Indicator, multiple contactor, individual Phase control etc.

Udey PCT series comprises of two units: 1) a control unit and 2) a loading unit. Thus making the tester compact and portable. Four models are available with outputs from 250 A to 3000 A. The control unit offers a current output of 0-10 Volt at 50 Amp or 0-5 Volt at 100 Amp. Additionally, a separate voltage output of 0-250 V AC is available for testing voltage operated relays coils or checking the magnetization characteristics of current transformers.

• Capacity: 1kVA to 10kVA
• Current output: 200A to 4000A

Testing especially if the protective fear is connected to the power line via a current transformer it is advisable to carry out primary injection testing These sets have been designed to enable the users of heavy electrical equipment to carry out such tests as have been described above with a maximum efficiency at minimum cost, providing a convenient of delivering, controlling and measuring a heavy current in a comparatively low voltage low impedance circuit. Ideal for testing circuit breakers, ammeters with or without current transformers and much other application where a heavy current supply of short duration is required

High Current Test Set is high current, lightweight, modular test sets with state of the art control circuitry and instrumentation. They provide up to 5000 Amps output with maximum burden of 15 V. These test sets can do primary injection testing of high voltage substation breakers and associated protective relays, as well as ratioing of current transformers. I Series feature Laptop controlled that measure in seconds or cycle, auxiliary contact control, and status indicators for input power, thermal overload and ground interlock.

Superior raw materials are essential for the development of a quality product. Thus, we obtain these materials only from the dependable sources available in the market. We are a client-centric firm and work in coordination with the clients to fulfill their ever-evolving requirements and deliver our products in quality packaging for the attainment of complete client satisfaction.

• Use: test and commission Circuit Breakers, Bus Bars, CTs, Relays, MCCs, PCCs etc.
• Current Ratings: 500A to 10000A
• Connections: Series-Parallel to select various current ranges
• KVA Ratings: 5KVA to 100KVA
• Protection: 6 Type of Inbuilt Protection Provided

Primary current injection kits are used to test and commission circuit breakers, bus bars, cts, relays, mccs, pccs etc. These are also used for high current injection and simultaneously measuring voltage drops and hot spots in bus-bar joints, circuit breaker contacts etc.   Primary current injection test sets are available in current ratings from 500a to 10000a and in short time duty as well as continuous operation duty.   Controls are available in automated as well as manual versions. The automated controls also have features like ct ratio measurement etc.   Light weight portable kits of 1000a and 2000a with full load operation time of 3 minutes also available for field testing.

• Brand Name: Motwane
• Output current: 0-100A, 0-200A, 0-500A, 0-800A, 0-1000A, 0-1500A, 0-2000A, 0-2500A, 0-3000A- Refer Model
• Accuracy: +/- 1.5 Percent of Readings
• Resolution: 1A
• OCV: Up to 6.67V Refer Model in attached Catalogue
• Burden: Up to 20KVA Refer Model in attached Catalogue
• Operation: Manual / Motorized
• Display: LED

Primary Current Injection Test Set, 1 PH Meter Test Bench

• Brand Name: STE
• Usage: Industrial, Laboratory, Collage, ITI, Institution, etc.,

Insulation Resistance Test Equipment Brand / STEUsage / Industrial, Laboratory, Collage, ITI, Institution, etc., Features: Robust MS Construction with wheels for ease mobility. Current Fine Control Variac. Digital output display. Interlocks to protect at atypical use. Electronic-In-Circuit-Protection. Over Load Protection. Suitable Current Terminals for different Current range.

• Feature: Digital meters for display of voltage & current Digital time interval meter range from 0.0001 sec to 9999 sec

The MOTWANE make primary injection kit (MOT-PIK) has different models with range of output currents from 100A to 3000A.These are well protected with the provision of MCB against OVERLOAD than the rated current. HRC fuse protection is provided for control circuits. Bright LED indicators are provided for indicating input output status. The PIK comes with adequate cooling systems like airoil cooling depending upon the ratings. It is having one knob control to vary output current. The PIK can be utilized for high current injections during commissioning of protection systems, testing after major repairs equipment replacements in power sub stations.

The MOTWANE make primary current injection MOT-PIK series is most reliable & effective kit for testing & ommissioning of protection system in electrical substation. The PIK series offer high output current up to 3000 Amps with relatively high burden up to 20kVA. It is designed with user friendly features to check operations of the component in protection system including CT, CB, current sensor & relays etc. The Motwane PIK with high VA burden makes it possible to deliver required current to high impedance object like CTs. It has optional feature to measure CT ratio & polarity. FEATURES Zero start interlock for safety Variable output current High VA burden to test high impedance object Digital timer for measuring tripping time Auto cutoff upon tripping relay Wide range of Current from 200A to 3000A depending on customer's requirement Wheel mounted for easy transportation Optional - CT Ratio, Polarity SUPPLIED Standard Accessories Test Lead set : pair of cotton braided copper cables with lugs at both end Mains Cord Spare Fuse Instruction manual Calibration certificate Warranty certificate Optional Accessories C - clamp - 1set

• Automation Grade: Automatic

 Testing Of Heavy Current Load Made Easy The machine can perform great for the high electric substations where heavy electrical installations are required. The Primary Injection Test Kit provided by top primary injection test set manufacturers in India will help you test a maximum of 6000A of current. The testing is done when you inject the current into the primary side of the electrical system like a circuit breaker. The excellent use of the Primary Injection Test Set is to observe how the system will work when you checks the equipment with variable current loads. If the output is weak, it cannot handle a massive current and will fail. If the product is strong and can handle a large current.    Comes With The Useful Accessories The Primary Injection Testing Equipment by S.B.Electrotech comes with diverse accessories that will help you greatly concerning the testing part. The Primary Injection Test Set Suppliers In India give this product with mains power cord, spare fuse, operating manual, work test report, warranty certificate to stimulate you to ease up the operation of the device.   It’s mandatory to have a product that comes along with a warranty because things may take a different turn for you. With our product we also provide High Current Cables as per customer’s requirement.

• Feature: Digital meters for display of voltage & current, Digital time interval meter range from 0.0001 sec to 9999 sec

The MOTWANE make primary injection kit (MOT-PIK) has different models with range of output currents from 100A to 3000A.These are well protected with the provision of MCB against OVERLOAD than the rated current. HRC fuse protection is provided for control circuits. Bright LED indicators are provided for indicating input output status. The PIK comes with adequate cooling systems like airoil cooling depending upon the ratings. It is having one knob control to vary output current. The PIK can be utilized for high current injections during commissioning of protection systems, testing after major repairs equipment replacements in power sub stations.

INSER HITECH ENGINEERS aims to provide testing and commissioning, preventative maintenance of all projects related to Infrastructures, Industries, and Power Plants etc new and existing plants in a cost effective manner. We have the resources and personnel to carry out the following either on site or in house; HV & LV Switchboards EHV Switchyards Secondary Injection of Protection Relays Calibration of Transducers Primary Injection of Current Transformers Insulation Resistance Tests Control & Relay panel wiring, modification & Retrofit Earth Testing Contact Resistance Testing of High Voltage Equipment Transformer Winding Resistance Testing Cable and Cable Fault Locating Polarization Index Tests Power Transformer Testing

Output current up to 2000A Constant current output (current level maintained throughout the test) Built-in timer to record protection relay operation

• Brand Name: Motwane
• Model No.: Primary Injection Kit (PIK)

the motwane make primary injection kit (mot-pik) has different models with range of output currents from 100a to 3000a.these are well protected with the provision of mcb against overload than the rated current. Hrc fuse protection is provided for control circuits. Bright led indicators are provided for indicating input /output status. The pik comes with adequate cooling systems like air/oil cooling depending upon the ratings. It is having one knob control to vary output current. The pik can be utilized for high current injections during commissioning of protection systems, testing after major repairs / equipment replacements in power sub stations.     features:   single compact unit equipment for easy operationdesigned to offer continuously variable output currentbuilt in digital timer for measuring tripping timeadequate mcb protection from overloadscustomization as per customer’s requirements.digital meters for display of voltage & currentdigital time interval meter range from 0.0001 sec to 9999 secburden capacity from 1 kva to 20kva **current range from 100a to 3000a **       features:   single compact unit equipment for easy operationdesigned to offer continuously variable output currentbuilt in digital timer for measuring tripping timeadequate mcb protection from overloadscustomization as per customer’s requirements.digital meters for display of voltage & currentdigital time interval meter range from 0.0001 sec to 9999 secburden capacity from 1 kva to 20kva **current range from 100a to 3000a **

• Frequency: 50Hz
• Usage/Application: Industrial
• Display Type: Digital
• Capacity: 2300 -6400 VA
• Weight: 68 - 85 Kgs
• Device Output: 1000 - 3000 A

We presents huge array of Primary Current Injection sets, which are highly appreciated for their quality and durability. Our Primary Current Injection Sets are safe to use and easily available in the market. Apart from these characteristics customer satisfaction is our main Aim. Applications : Specially used for checking various devices like :RelaysOverload CoilsCircuit breakersCTsBimetal RelaysProtection RelaysAscertain the current carrying capacity of any Conductor, insulator, connector or calibration of CTs / bi-metallic relays etc.Checks all parts of the protection system by injecting current down the cable / bus bars.AC Ammeter C T operated having basic range of 5A/1A associated with multi-ratio currentTransformer available with suitable rangesHigh current output at low cost and with inherent safetyPossible to prevent serious damage to the system ATTRIBUTES : 230/240 Single phase AC 50 HZ1000/2000/4000 Amps OR AS SPECIFIED for output currentDuty Cycles, which make it 10 Min & 10 Min OffAC Voltmeter to measure input voltagePrimary injection kit is designed to operate on single phase 230/240 volts AC 50 HZNatural Air CoolingTime Interval meter with Digital range of 0-999 MillisecondsTerminals for connecting relay under testHigh current output on suitable terminalsMotorized control to vary output currentAC Ammeter C T operated having basic range of 5A/1A associated with multi-ratio currentTransformer available with suitable rangesHigh current output at low cost and with inherent safetyPossible to prevent serious damage to the system
