PRO660R Probe Sonicator
Get Price Quote
1 Piece (MOQ)
probe sonicator
Get Price Quote
1 Piece (MOQ)
Best Deals from Probe Sonicator
probe sonicator
85,000 - 95,000 Per Unit
1 Piece (MOQ)
Ultrasonic Probe Sonicator
250,000 Per Piece
probe sonicator
135,000 - 450,000 Per piece
1 piece (MOQ)
Our product, the Probe Sonicator has been greatly regarded as the most efficient and easy to use equipment for various pharmaceutical testing purposes. Our digital reader gives accurate reading and the testing stand comes with a clamp for adjusting the height of the testing apparatus. We use high precision microcontrollers for accurate readings. The machine follows international standards in quality and is manufactured in our ISO certified factory, undergoing strict testing and verification. Technical Features : Model : PS- 250 W/ 500 W / 750 W. Power Rating : 250 W / 500 W / 750 W. Operating Frequency : 20 K Hz Input Power : 100- 240 V AC. 50 – 60 Hz. Crusher Capacity : 1- 1000 ml. Depending on Model.
probe sonicator
Get Price Quote
1 Piece (MOQ)
Ultrasonicator Probe Sonicator
5,000 - 50,000 Per Piece
1 Piece(s) (MOQ)
Digital Probe Sonicator
Get Price Quote
1 Piece (MOQ)
VSI Electronics Private Limited is an established manufacturer, supplier and exporter of Digital Probe Sonicator from India. Digital Probe Sonicator offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting. Digital Probe Sonicator (VSI-909) has Frequency tracking: automatic tracking, power and amplitude adjust: 0-100%, Sonotrode frequency: 20KHz, Operation panel display: time setting working data, working mode: 1s - 99 hours with pause function continuous working, Generator protection: Built-in circuit; Over loading, over temperature, anti-short-circuit, soft start, Rated Power: 250W, Input voltage- 110V/220V-240V, Input frequency: 50Hz-60Hz, Output Power- ≤250W, Max temperature of sonotrode: 100°C, Max pressure: 5Mpa, Treatment capacity of liquid: ≤10L/H. Note: Appearance & Specifications are subject to change due to continuous development.
Ultrasonic Probe Sonicator
Get Price Quote
probe sonicator
Get Price Quote
Our ultrasonic Probe Sonicator is widely used in tissue processing and particle dispersion. Based on latest technology, these can be easily transferred from one batch to other with intermediatory operations like emptying, cleaning and refilling. The ultrasonic processor can easily be transported to various locations of sample operations. Features : » Large screen LCD.» Microcomputer control, can store 50 groups of work data. » Timer set up to 999 minutes » Ultrasonic time, ultrasonic power can be set.)» Frequency automatic tracking, automatic fault alarm
probe sonicator
Get Price Quote
The Probe Sonicator is an ideal instrument to accelerate the chemical, Biochemical and physic-chemical reactions as well as to accelerate the liquid degassing. This has various applications such as Homogenizations extractions, smash, emulsifications Fluid Suspensions, precipitation accelerations, crystallization and compounding of various biological specimens.
probe sonicator
Get Price Quote
Being a distinguished Manufacturer, Importer & Supplier of Probe Sonicator, we attempt to accomplish 100% customer satisfaction. Our wide range is manufactured using first-rate raw material. We meet the highest standards and parameters of quality set by the industry. Designs are made keeping different specifications in mind. Its optimum performance, efficient design and longer service life is available for economical prices. Get the impeccable quality on offer delivered at your doorstep.
probe sonicator
Get Price Quote
1 Piece(s) (MOQ)
Ultrasonic Processor (Probe Sonicator) is a tool specially designed for Pharmaceutical, Chemical Labs and various Research Institutes. Some of its Applications are: * Tissue Processing (Plant & Animal Tissues) * Emulsification of Immiscible Liquids. * De-gassing & De-aerating of Liquids. * Formulations. * Particle Dispersion. * In small volume batches of about 500ml. Advantages: * Homogenization, Micro fined Emulsion. * More stable compares to other processes * Very Flexible. It can easily be transferred from one batch to other without intermediatory operations like Emptying, cleaning refilling. Ultrasonic Processor can be transported to various locations of sample operations. Ultrasonic Processor consists of: (A) Ultrasonic Generator to produce High Electrical Energy operating at a frequency of 20Khz and an Ultrasonic Power 120watts. (B) S.S. Velocity Horn fitted with PZT Crystals (Transducer Elements). This Velocity Horn assembly converts the electrical frequency energy fed from the Ultrasonic generator to mechanical vibrations at the rate of applied electrical frequency. The amplitude of these mechanical vibrations are magnified by this velocity Horn. This Velocity Horn is used for the processing applications. Principle of Ultrasonic Processor: High frequency vibrations are produced by the S.S. Velocity Horn which is immersed into the liquid to be processed. The vibrations give raise to millions of Intense Microscopic Vacuum Bubbles which form & implode at a very high rate (twenty thousand times per second). This phenomenon is known as 'CAVITATION'. Cavitation gives raise to intense Local Pressure Waves & Micro Strearning of liquid round the points of collapse. This in turn produces High Shear gradients which are responsible for the above stated applications. Sample Capacity Probe Size mm Frequency Wattage 50ml to 500ml 20,12,6 20 khz 120 watts
probe sonicator
Get Price Quote
We are offering probe sonicator
probe sonicator
98,000 - 190,000 Per Piece
1 Unit (MOQ)
A ultrasonic Probe (also known as acoustic horn, sonotrode, acoustic waveguide, ultrasonic horn) is a device with tapered metal bar commonly used for increasing the oscillation displacement amplitude provided by an ultrasonic transducer operating at the low end of the ultrasonic frequency spectrum (commonly between 20 and 33 kHz). function of the ultrasonic horn is to efficiently transfer the sound energy from the ultrasonic transducer into the treated media, which may be solid (for example, in ultrasonic welding, ultrasonic cutting or ultrasonic soldering) or liquid (for example, in ultrasonic homogenization, sonochemistry, milling, emulsification, spraying or cell disruption).
Ultrasonic Probe Sonicator
Get Price Quote
Product Description : We bring forth best quality Ultrasonic Probe Sonicator in Mumbai , India for domestic and international customers. Ultrasonic Probe Sonicator, manufactured, supplied and exported by us, can disintegrate most cells, bacteria, spores or tissue. Ultrasonic Probe Sonicator can prepare an emulsion down to 1/100 of a micron homogenize immiscible liquids, accelerate enzymatic and chemical reactions, stimulate bacterial activity, disperse solids in liquids and degas liquids. Ultrasonic Processors Consist Of : Ultrasonic Generator to produced high Frequency Electrical Energy operating at a frequency of 20KHZ and Ultrasonic Power of 120W S.S. Velocity Horn fitted with PZT Crystals (Transducer Elements). The Velocity Horn assembly converts the electrical high frequency energy fed from the Ultrasonic generator to mechanical vibrations at the rate of applied electrical frequency. The amplitude of these mechanical vibrations is magnified by this Velocity Horn. This Velocity Horn is used for the processing application. Features of Ultrasonic Probe Processor : Low transducer losses permit maximum cleaning action Modular generator for easier modification / Servicing Rugged and easy to clean stainless steel housing Extensively protected electronics circuits for longer and safe operation Frequency 22 + 3 KHz. Input voltage range of 170AC-270 AC.50 Hz
probe sonicator
Get Price Quote
1 Piece (MOQ)
probe sonicator
Get Price Quote
probe sonicator
Get Price Quote
1 Piece(s) (MOQ)
Ultrasonic Probe Sonicator
Get Price Quote
ACCESSORIES FOR PROBE SONICATORS
Get Price Quote

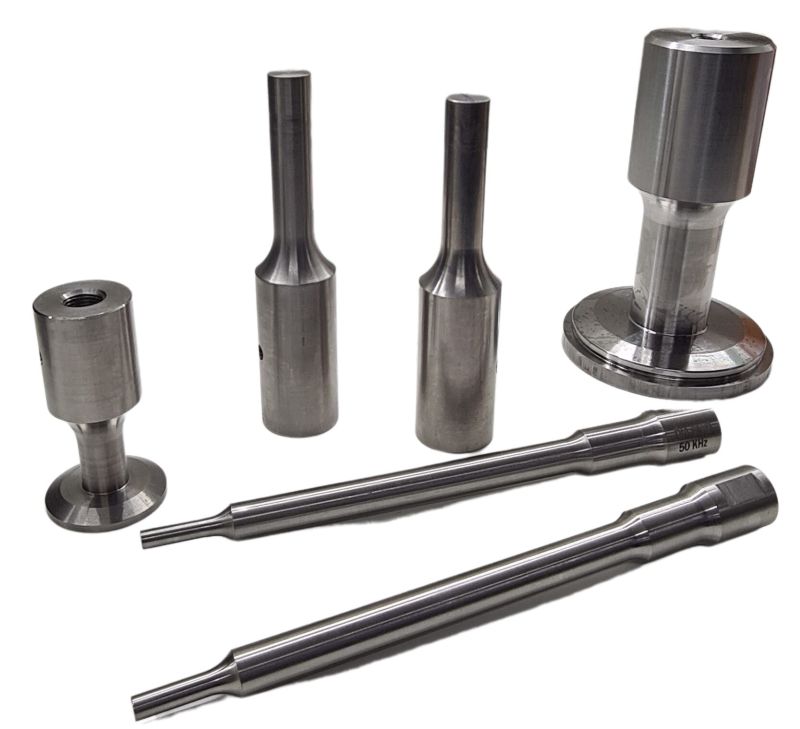

Disruptor Horns ( Probes) for 250 & 450 series : Horns (probes) transmit ultrasonic energy into a solution. The dimensions of the horn and output control setting determine the amount of amplitude (tip moment) and degree of ultrasonic activity in the liquid. Generally, the smaller the tip diameter, the higher the amplitude. Larger tip diameter have less amplitude but can accommodate larger volumes. All Sonifier horns and tips are fabricated from titanium. Please note the charted amplitude ratings and liquid volumes when selecting horns. A step horn with a threaded body enables the attachment of various screw-on accessories, such as a continuous flow cell. Tapped horn ends enable attachment of microtips. Tapped horns are supplied with removable flat tips.
probe sonicator
Get Price Quote
Ultrasonic Processor (Probe Sonicator is a tool specially designed for Pharmaceutical, Chemical Labs and various Research Institutes, Colleges, Universities). High frequency vibrations are produced by the S.S. Velocity Horn which is immersed into the liquid to be processed. The vibrations give raise to millions of Intense Microscopic Vacuum Bubbles which form & implode at a very high rate (twenty thousand times per second). This phenomenon is known as 'CAVITATION'. Cavitation gives raise to intense Local Pressure Waves & Micro Strearning of liquid round the points of collapse. This in turn produces High Shear gradients which are responsible for the above stated applications
probe sonicator
Get Price Quote
probe sonicator
Get Price Quote
probe sonicator
Get Price Quote
Centralized controlled by microprocessor. Steeples regulation of the ultrasonic power. Set the ultrasonic time and pause time, temperature accord to requirement.Real-time temperature, frequency monitoring.Temperature controlled to prevent overheating of the specimen.
Probe Sonicators
Get Price Quote
Ultrasonic Processor probe Sonicator is a tool specially design for Pharmaceutical chemical labs various research Institute colleges and Universities. Ultrasonic generator use to produce High Electrical Energy Operating at a frequency of 20 KHZ and Ultrasonic Power 150 watts
Ultrasonic Probe Sonicator
Get Price Quote
probe sonicator
94,000 Per Piece
1 Piece (MOQ)
probe sonicator
145,000 Per Piece
probe sonicator
150,000 Per Piece
