Profibus Cable Dealers

• Type: 104265
• Brand Name: LUTZE GERMANY
• Application: PROFIBUS NETWORK OF ANY INDUSTRIES
• Color: PURPLE
• Conductor Material: COPPER
• Number of Conductors: 2
• Insulation Material: Special PUR, matt, adhesion-free surface
• Conductor Type: Conductor insulation special polyolefin
• PROFIBUS SUPER FLEXIBLE CABLE: 200

profibus multistranded super flexible cable, it has got 7 strand which give the better signal transfer..

• Feature: Flexible, Multi-stranded Construction, Lower cost,

• Brand Name: Epsillon Cables
• Inner Material: Copper
• Application: Profibus
• Feature: Offers Low Attenuation,Low Crosstalk,Fire Retardant.
• Cable Conductor: Copper
• Number Of Core: 8
• Insulation Material: PVC
• Test Voltage: 500 V

• Brand Name: Lapp

PROFIBUS-DP/FMS/FIP, 1 Pair, Copper Braided and Foil Screened, Polyvinyl chloride (PVC) outer sheath colour Violet for Bus Systems, fixed installation, indoor use, conductor size of 0.64 mm ø, 250 V (Not for power application), 8mm OD, Flame Retardant to IEC 60332-1-2, Approvals: Fire protection, ULC.   Product Description Application Range For fixed installationMaximum electromagnetic screening Dry or damp rooms Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant   Norm References / Approvals In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol) See below for UL certification type   Product Make-Up FC: Fast Connect cable design 7-W: 7-wire, e.g. for applications where vibrations occur PE: polyethylene outer sheath, black P: PolyurethaneH: Halogen-free  COMBI: Data transmission andpower supply in one cable   Product Features These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply(cable type A, PROFIBUS-DP):93.75 kbit/s = 1200 m187.5 kbit/s = 1000 m500 kbit/s = 400 m1.5 Mbit/s = 200 m12.0 Mbit/s = 100 m   Technical Data Minimum Bending Radius Fixed installation: see data sheet   Test Voltage Core/core: 1500 V rms   Peak Operating Voltage (not for power applications) 250 V   Classification ETIM 5 ETIM 5.0 Class-ID: EC000830 ETIM 5.0 Class-Description: Data cable   Classification ETIM 6 ETIM 6.0 Class-ID: EC000830 ETIM 6.0 Class-Description: Data cable

• Type: • PROFIBUS DP — optimized for factory automation • PROFIBUS PA — optimized for factory automatio

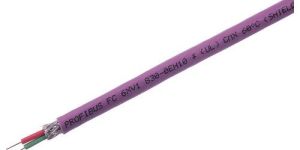

• Brand Name: SIEMENS
• Model Number: 6XV1830-0EH10

PB FC Standard Cable GP, 2-Wire, Shielded, Special Design For Rapid  installation. Profibus is one of the largest open industrial fieldbusses in the world. As with most fieldbus systems, PROFIBUS can reduce operating costs, increase productivity, decrease time to market for new products, and improve product quality. And unlike standard 4-20mA controls, Profibus can support up to 32 devices per segment up to a total of 126 devices, depending on total system current.

• Application: Electrical Industrial

Profibus communication cable for industrial application

• Type: Profibus Cable
• Brand Name: LUITZ
• Color: VIOLET
• Country of Origin: Germany

We are offering profibus cable using shielded twisted pair cable, the profibus topologies utilized in the industrial environment include the following configurations: line, tree and star (and combinations of these topologies). The network can support up to 126 nodes by using repeaters, but the number of repeaters is limited to nine. Standard connections are made through use of a 9-pin d-subminiature connector

• Cable Conductor: Aluminium, Copper
• Size: 24 AWG
• Pair: 1 Pair
• Conductor: Stranded Tinned Copper
• Shield Type: Foil + Tinned Copper Braid
• Jacket material: PVC

• Length: 10 m
• Material: PVC
• Cable Conductor: Copper
• Shielding: Yes
• Rated Temperature: 60 Deg to 105 Deg C
• Nominal Cross Section: 0.50 to 120 mm2

  PROFIBUS to RS-232/422/485 Converter   Specifications   PROFIBUS to RS-232/422/485 Converter. I-7550 Isolated    CPU SRAM/Flash/EEPROM Watchdog ESD Protection Controller Transceiver Connector Baud Rate (bps) Transmission Distance (m) Isolation Protocol COM COM Connector Baud Rate (bps) Data bit Stop bit Parity Round LED Power supply Protection Power Consumption Installation Dimensions Operating Temp. Storage Temp. Humidity Hardware 80186, 80 MHz or compatible 512 KB / 512 KB / 16 KB Watchdog ICCPU built-in 4 kV class A PROFIBUS Interface Siemens SPC3 ADI ADM2486 9-pin female D-Sub 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic DP-V0 UART Interface RS-232/RS-422/RS-485(can’t be used simultaneously) 3-pin screwed terminal block (RxD, TxD, GND)4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)2-pin screwed terminal block (DATA+, DATA-) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 7, 8 1 None, Even, Odd LED PWR LED, RUN LED, ERR LED Power Unregulated +10 ~ +30 VDC Power reverse polarity protection, Over-voltage brown-out protection 2.5 W Mechanism DIN-Rail 72 mm x 33 mm x 119 mm (W x L x H) Environment, -25 ~ 75°C -30 ~ 85°C 5 ~ 95% RH, non-condensing

• Brand Name: Elgo
• Dimensions: 160 x 55 x 40 mm (LxWxH)
• Operating Voltage: 19-27V DC
• Power Input: max. 0,2 A
• Storage Temperature: - 40... + 85 Degree C
• Work temperature: 0... + 60 Degree C
• Protection class: IP50 standard,IP67 optional

We are engaged in offering supreme quality Profibus Cables that are in the form of bus cables, extensively used in discrete manufacturing and process control applications. These cables facilitate communication between automation systems and decentralized peripheral equipment. In this, annealed tinned electrolytic high conductivity copper solid conductor, foam insulated and cores are twisted together in a form of pair, melinex taped, shielded with aluminum mylar and screen with tinned copper. It is installed in cable tracks, outdoor installation and direct burial. It has a double shielding that makes this cable suitable for even in EMC demanding areas.

In this, annealed tinned electrolytic high conductivity copper solid conductor, foam insulated and cores are twisted together in a form of pair, melinex taped, shielded with aluminum mylar and screen with tinned copper. It is installed in cable tracks, outdoor installation and direct burial. It has a double shielding that makes this cable suitable for even in EMC demanding areas.

APPLICATIONS OVERVIEW Profibus cables are automation cabling for industrial fieldbus fast-connect-type systems, particularly developed for process applications. They offer excellent electrical transmission performance for their respective Decentralized Peripherals (DP) and Process Automation (PA) applications. The standard for this cable is set by Profibus and Profinet International (PI), a world-leading automation community with a focus on interoperability and compatibility. Profibus, one of the organisation’s two technologies, is standardised to IEC 61158. The Profibus range differs from control cables manufactured to 4-20m in that they can support up to 32 devices per segment and therefore up to a total of 126 devices depending on the system current. Profibus cables offer a suitable alternative to Belden 3079A for many applications. PROFIBUS DP CABLE Our Profibus DP cables represent the optimised performance version of the more generic profibus cable range. These cables are specifically designed to deliver time-critical communication between process automation systems and distributed peripherals. They are widely used in factory processes and in field communications in cell networks. These cables are manufactured to European Fieldbus Standard EN 50170 and they provide transmission rates of up to 12Mbits/second. PROFIBUS PA CABLE Our Profibus PA are designed for the connection of control systems to field instruments on process automation applications. These cables are based on the Profibus DP and use a segment coupler to allow transparent communication between general purpose automation and process automation networks.Both our Profibus DP and Profibus PA are available with a galvanized steel wire braid (GSWB) for additional mechanical protection. They are also available with various different constructions, including outer sheaths with various enhanced properties. PROFIBUS CABLE SELECTION This range forms part of our comprehensive portfolio of Bus cables designed specifically for fieldbus systems. For technical support with the selection of the ideal cable and accessories, please contact our technical team.

• Voltage: 600 / 1100V
• Voltage: 300 to 1000 V
• Copper: as per VDE 0295
• Sheath: FRLS PVC compound
• No. of cores: 2 to 61
• Cross Sectional area: 0.5 sq.mm to 16 sq.mm
• Copper: VDE 0295
• Sheath: Polyolefin copolymer Electron-beam cross linked
• No. of cores: 1,2,3,4,5…
• Cross sectional area: 0.25 sq.mm to 630 sq.mm

Industrial grade profibus cable mainly used for profibus network. Maximum Speed : 12 mbps 1 Pair 2 Core Available in PVC and PUR.

• Conductor Material: Copper
• Voltage: 300 to 750V
• Cable Size: 12 to 20 AWG
• Type of Cable: Insulated
• Insulation Material: PVC
• Rated Temperature: 60 to 105 deg C
• Nominal Cross Section: 0.50 to 120 mm2

• Brand Name: Kenter
• Conductor Material: Aluminum
• Application: Industrial
• insulated material: PVC
• Body Color: Orange
• Range: 22 AWG
