Programmable Temperature Controller Dealers

• Type: Programmable Temperature Controller
• Application: Industrial
• Color: Grey
• Feature: High Performance
• Voltage: 220V
• Display Type: Digital
• Driven Type: Electric
• Brand Name: Radix

• Voltage: 110V, 220V
• Temperature Range: 0-100°C, 100-200°C
• Temperature Range: -200*c To 2300*c
• Application: Industrial Use
• Size: 48x48 Mm
• Control Timer: On/off
• Depth: 100 Mm

• Voltage: 100
• Type: Digital
• Display Type: LED
• Power: 24 VAC
• Accuracy: 0.1%
• Size: 48*48 mm

• Model No: DQ 100
• Sizes: 96 x 96 x 110 mm , 72 x 72 x 110 mm

Through Potentiometer, Front Acrylic Screened Name Plate, Metal Box, Heavy Duty Controller for Rugged Operations & for High Temp , Dust Atmospheres

• RANGE & TYPE: 0-600 oC (J Type), 0-1200 oC (K Type), 0-400 oC (PT-100 Type) (Seletable by Programme)
• CONTROLACTION: Time proportionating, ON/OFF Control, PID.
• SENSOR INPUT: J Type, K Type, PT-100 Type. (Selectable through Range)
• TCB: Thermocouple Break.
• MODEL: GPT-09, GPT-07, GPT-04
• POWER SUPPLY: 85VAC to 265VAC ±10%, 50Hz.
• OUT PUT: Relay Output-1C/O, 7Amp./ 1C/O, 7Amp.
• DISPLAY & SETTING: 7 Segment LED Display. & Setting by memran keys provided on front
• SIZE & MOUNTING: 96x96x110mm, 72x72x110mm, 48x48x100mm & Panel Mounted.

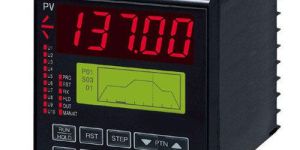

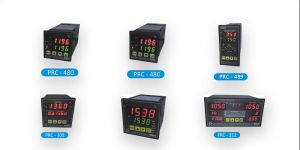

Libratherm offers Microcontroller based multiple Ramp Soak programmable PID temperature controller Model PRC-489 which is designed to improve reliability, accuracy and control for all temperature control applications. It features Ramp and Soak functions (the capability to control the temperature and its rate of change over a predetermined time span). Single pattern of total 16 (rampsoak) steps can be programmed and stored in the memory. It can also be used as single set point control when the rampsoak profile control is not desired. Inputs can be Thermocouple, IR Thermocouple, RTD Temperature Sensors, Voltage, Current Signals etc. PRC-489 offers both switching outputs in the form of SSR driverTriac (AC SSR) for external SSR or external load contactor and analog output in the form of (4-20) mA or (0-5) volt control signal, which can be used to control heater power through Thyristor power regulator (for electrical heating system) or to control the position of a modulating motor valve (for oil or gas fired heating systems). The analog outputs can be directly connected to Libratherm make single phase three phase SCR phase angle or zero cross over fired power controller which is ideally suitable for both resistive and inductive heating loads.

Programmable Temperature / Process Controller

•  Display:  Upper 4d Shows Process Temperature,  Lower 4d Shows Set Temperature
•   Range:  0-400°C , O-600°C , 0-1200°C.
•   Input:  J Or K Type Thermocouple/ Pt-100 2w. /  3w.
•   Control Action:  Time Proportional / On-Off Selectable.
•   Setting:  Set Point, Hysteresis, Proportional Band,  Cycle Time, Manual Reset, And Other Control  Parameters. Adjustable By Key Pad.
•   Output:  Relay Output 5 Amp.230V Ac
•   Resolution:  1°C (0.1°C For Range Less Than 200°C)
•   Power supply:  230v Ac, ±20% ,50Hz.
•   Accuracy:  +1% Of Fsd
•   Resolution:  1°C (0.1°C For Range Less Than 200°C)
•   Power Supply:   230v Ac, ±20% ,50Hz.
•   Size (H x W):  96 x 96, 72 x 72, 96 x 48, 48 x 48 (mm)
•   Cutout (H x W):  92 x 92, 68 x 68, 92 x 44, 44 x 44. (mm)

• Type: Digital
• Display Type: Digital
• Power: 100 to 240 VAC
• Mounting Type: Table Top

The series of single loop controllers with dual LED displays are used for non-sophisticated system, state-of-art design, sufficient features, easy for operation and low-cost, Programming port provided on board, Support manual control & auto-tune function.

Chiller Temperature Controller : A special action for -50.0ºC to 50.0ºC range having independent setting for tember as well as delay time (time m for which Comres- sor has to rest before restarting) Hysteresis is also settable between 0.2ºC to 9.9ºC. The delay time is helpful in increasing the working life of the compressor. This is also available for two compressors ( independnet temperatures and the settings) and three compressors.Temperature Controller with Soak : For heat treatment apipilication addiptional time setting time setting is available to maintain the temperature of the furnace or ovan for the desired set time (0.999min) after the temperature has reached the set value.BOD Controllers : For controller of ovan temperature below or above m ambient temperature. The heating or cooling realy will turn on depending on whether wt temperature is above or below the ambjent temperature. Second sensior for sensing ambient temperature is provided. Both relays have independent hysteresis sellings (by keyboard).Temperature Controller With : The facilitynis used in heat treatment or settable rate of rise of temp material testing equipments .Rate of rise is settable by keyboard from 0 to 10ºC/minProfile Temperature Controller : This is useful in obtaining variable temperature profile in an ovan or furnace for heat curing application. The time and temperature data can be led by the keyboard, control action can be on/off or time propotional. this is also useful for testing purpose in Laboratory (Calibration Bath).PID Temperature Controller (Proportional, Integral & Derivative) : This is useful for precise control of temper ature in an ovan, furnce, plastic machinery etc. when job requires high heating during initial period & low heating when temperature stabilizes. Derivative action overcomes sudden changes in temperature due to load changes, integral action corrects the accumulated error.Derivative time constent and intergal time constant have to be set suitable for the machine whose temperaturemis to be controlled, initially, trial and error methodmis required to select these parameters, but once they are set the action gives better control of temperature.Relay output for control of contractor or pulse output for control of SSR is provided. Optionally 0 - 10V output can also be provided for control of SCR firing units.Controller with Analog Input : This is useful in application where transducers are used (i.e. load cell, flow sensor, pressure sensor etc.) The signal can be ) -10V or 4-20m A D.C. Like in other controllers, single set point and two point models are available. These relays can also be used as alternative settings, Calibration through key board is possible.

• Model No: TC49SU ,TC48,TC72, TC96 ,TCP961 etc.
• Size: 48x96x100,48x48x100,72 x 72 x 100,96x96x100,96x96x100 etc.
• Display digits: 4,4+4,4+4,4+4,4 etc.

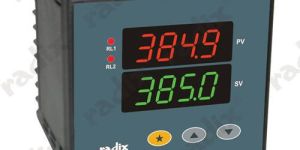

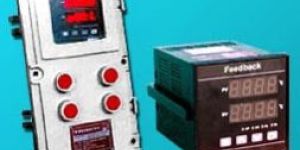

Radix has a large selection of mid-range and low-cost Programmable TemperatureProcess Controllers. Our controllers accept a wide variety of inputs from RTD sensors, thermocouples as well as linear inputs such as such as 4 - 20 mA, 0 - 20 mA, 0 - 50 mV, etc. Large LED displays and LED lights on the controller indicate process variable, setpoint, and relay, communication status.These are easily visible to operators from a distance. Operators can easily program setpoints, alarms, control outputs on the controller via membrane keys on the front of the unit to trigger heating, cooling and high-low alarms. Our Programmable Temperature Controllers retransmit isolated current (4 to 20 mA, etc) or voltage (0 to 10 V, etc) outputs to protect downstream equipment and devices (such as PLCs) from damage. These Controllers are also available in flameproof versions.

Programmable temperature controller Programmable Counters : Length Counters, Batch Counter, Presetable Counters, Programmable Temperature Scanners with PrinterComputer Interface. Digital Potentiometer.

Microprocessor based RS 232 or RS 485 interface available With sure soak facility 8 set of PID groups Universal power supply input 96 sq mm Any range Any type of output

Programmable temperature controller, Digital Temperature Controller

• DIMENSIONS: 96(W) x 96(H) x 110mm(D)

Digital Temperature Controller,CONTROL OUTPUT AVAILABLE: Relay Control : AC 250V, 5Amp (Resistive Load) IC (NO/NC) Contact SSR Driving: 0/12V DC (Control Voltage Pulse Load Resistance more than 1000 ohms) (optional).

Programmable temperature controller, Thermo Hygrograph, Temperature Simulator

Programmable temperature controller, Resistance Temperature Detectors

Programmable Temperature Controllers, Jumbo Display Temperature Indicators

Programmable temperature controller, Temperature Controller

Programmable temperature controller, Paperless Chart Recorder

Programmable temperature controller, car turntable, Melting Furnaces

Programmable PID Temperature Controller, Oven Temperature Indicator
